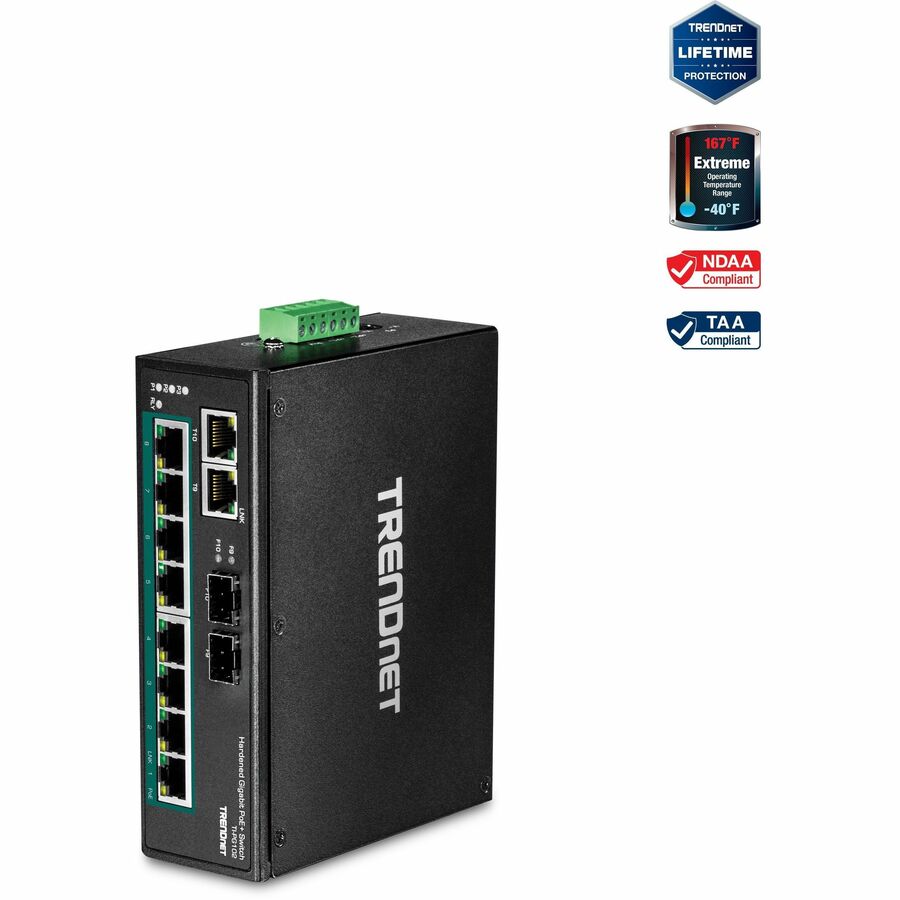

TRENDnet 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, 8 x Gigabit PoE+ Ports, DIN-Rail Mount, 2 x SFP Slots, 240W PoE Power Budget, Network Switch, IP30, QoS, Lifetime Protection, Black, TI-PG102

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments.

• ETHERNET PORT INTERFACE: 8 x Gigabit PoE+ ports, 2 x Gigabit RJ-45 / SFP shared ports

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG102 10-Port Industrial Gigabit PoE+ DIN-Rail Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• REDUNDANT POWER: The 10 port network switch has dual redundant power inputs with overload current protection (power supply sold separately: models: TI-S24052, TI-S24048, 48VDC3000)

• POE+ POWER & SWITCHING CAPACITY: A 20Gbps switching capacity and 240W PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power

• DIN-RAIL & WALL MOUNT KIT: This 10-Port gigabit PoE+ industrial switch comes with an integrated DIN-Rail mount and mounting hardware

• GROUNDING POINT: 10-port Ethernet switch grounding point feature protects equipment from external electrical surges

• SHOCK & VIBRATION RESISTANT: The Ethernet switch is rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

• EXTREME TEMPERATURES : Industrial switch is rated for an operating temperature range of -40 - 75°C (-40 - 167°F)

More from the Manufacturer

OVERVIEW

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

PoE Power

A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power

Fault Tolerance

Features dual redundant power inputs with output alarm relay

Industrial Hardened Design

Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 – 75°C (-40 – 167°F)

Full PoE+ Power Budget

Supplies up to 30 W of PoE / PoE+ power per port with a 240 W PoE power budget

Network Ports

8 Gigabit PoE+ ports plus 2 1000Base TX/SX RJ-45/SFP shared ports

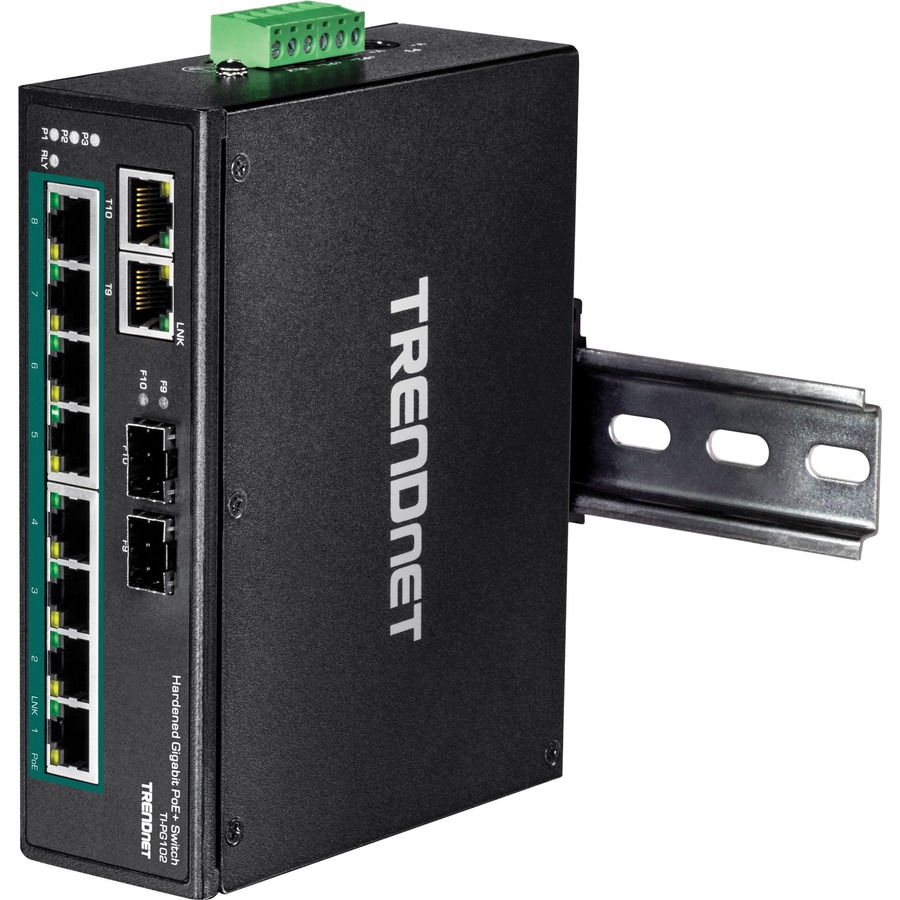

DIN-Rail / Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

20 Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately models: TI-S24052, TI-S24048, / 48VDC3000)

Alarm Relay

Alarm relay triggered by power failure of primary and / or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance

Extreme Temperatures

Industrial switch is rated for an operating temperature range of -40 – 75°C (-40 – 167°F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3z

IEEE 802.3x

IEEE 802.3af

IEEE 802.3at

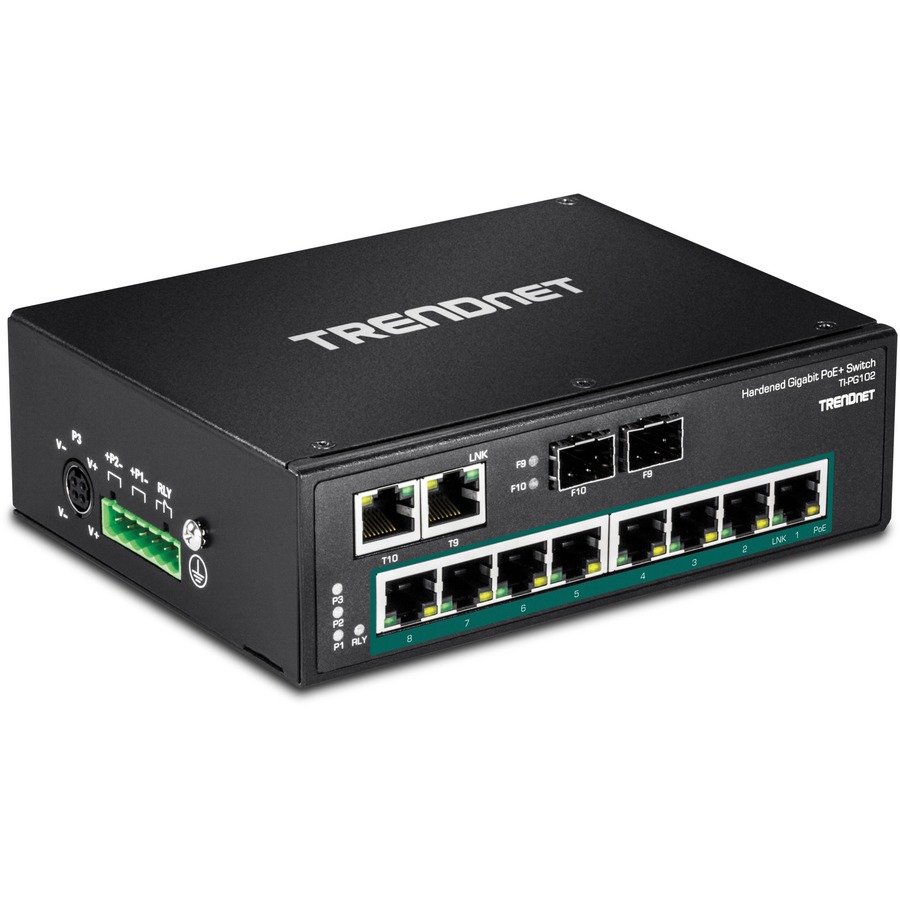

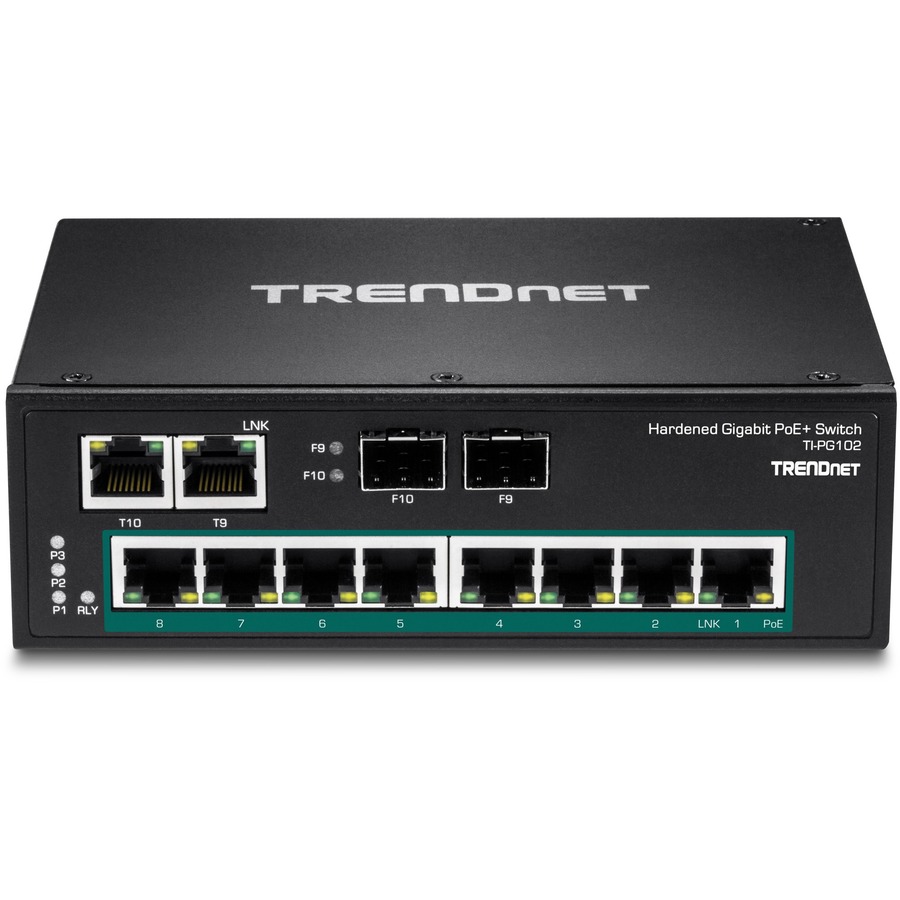

Device Interface

8 x Gigabit PoE+ ports

2 x 1000Base-TX RJ-45 ports

2 x 1000Base-SX Shared SFP slots

6-pin removable terminal block

LED indicators

DIN-Rail mount

Wall mount

Grounding point

Data Transfer Rate

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Gigabit: 2000 Mbps (full duplex)

Performance

Data RAM Buffer: 256 KB

Switching Fabric: 20 Gbps

MAC Address Table: 16 K entries

Forwarding rate: 14.8 Mpps (64-byte packet size)

Hardened components rated for extreme temperatures

Redundant power inputs

Auto-Negotiation

Auto store and forward architecture

Automatic address learning and address aging

ESD 6 KV protection

Power

Input: 48 - 56 V DC

Compatible power supply: TI-S24052, TI-S24048, (sold separately)

Max. consumption: 5.67W (no PoE)

AC Power

Input: 100 – 240V AC, 50/60Hz, 2A

Compatible power adapter: 48VDC3000 (sold separately)

Output: 48V DC, 3.34A 160W max.

PoE

Per port up to 30 W

PoE budget: 240W@56V DC

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin

Wire range: 0.34 mm^2 to 2.5 mm^2

Solid wire (AWG): 12-24 / 14-22

Stranded wire (AWG): 12-24 / 14-22

Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm

Wire strip length: 7-8 mm

Alarm Relay Contact

Relay outputs with current carrying capacity of 1 A, 24 V DC

Open circuit mode when two power sources are connected

Short circuit mode when only one power source is connected

510,400 hours

Housing

IP30 metal case

DIN-rail mount

Wall mount

Grounding point

ESD 6 KV protection

Operating Temperature

- 40 to 75 °C (-40 to 167 °F)

Operating Humidity

Max. 95 % non-condensing

Dimensions

155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.)

Weight

445 g (1 lb)

Certifications

CE

FCC

Shock (EN 60068-2-27)

Freefall (EN 60068-2-32)

Vibration (EN 60068-2-6)

Warranty

Lifetime Warranty*

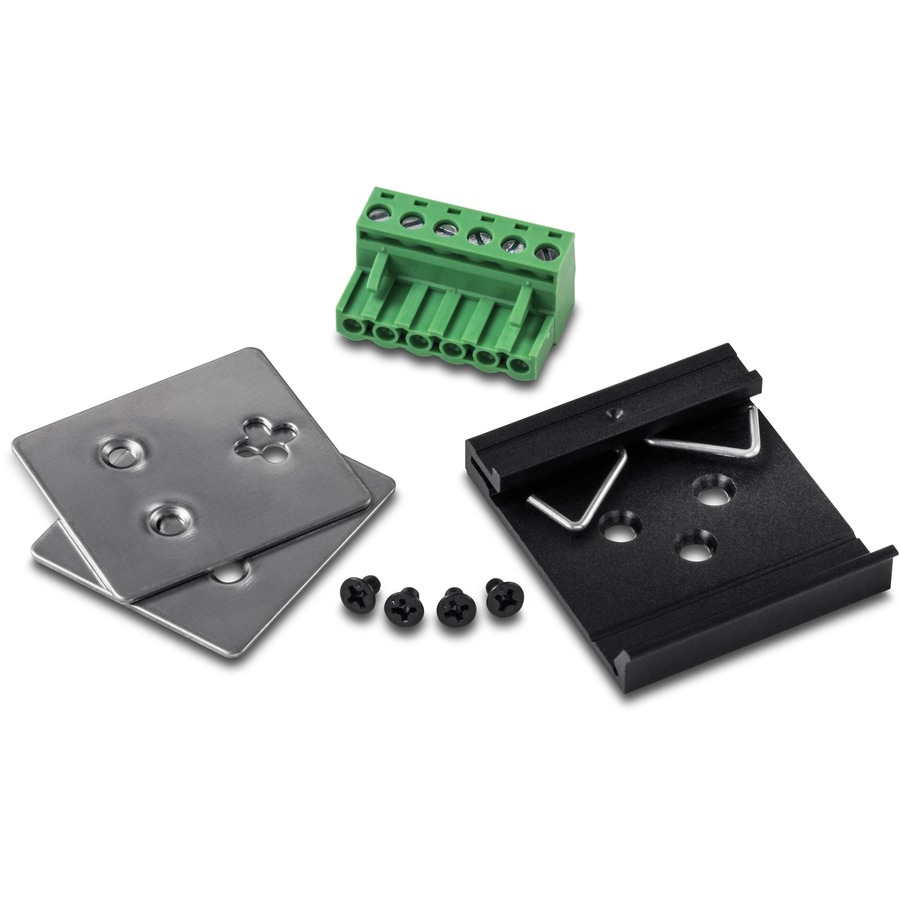

PACKAGE CONTENTS

TI-PG102

Quick Installation Guide

Removable terminal block

DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

10-Port Industrial Gigabit PoE+ DIN-Rail Switch

8 x Gigabit PoE+ ports

2 x 1000Base TX/SX RJ-45/SFP shared ports

240 W PoE power budget

20 Gbps switching capacity

Hardened IP30 rated metal switch

Includes DIN-rail and wall mounts

Operating temperature range of -40° – 75°C (-40° – 167°F)

Redundant power inputs with overload current protection

Alarm output triggered by power failure

Power supply sold separately (models: TI-S24052, TI-S24048, 48VDC3000)

NDAA / TAA compliant

Lifetime Warranty*
