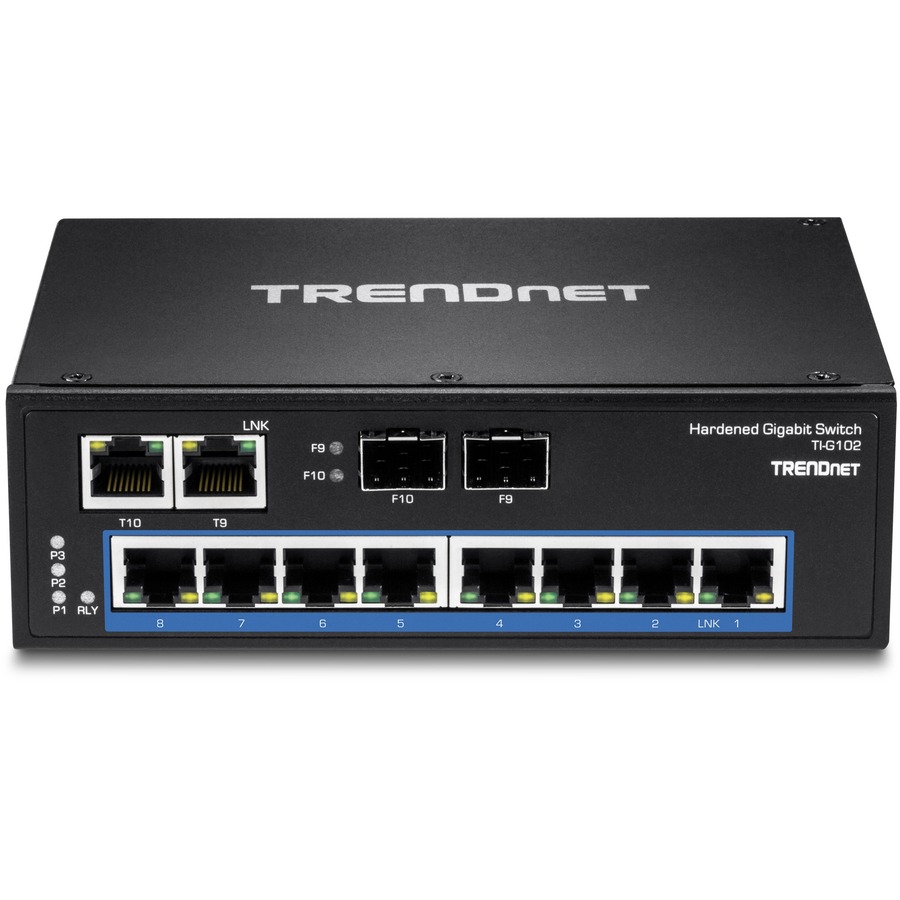

TRENDnet 10-Port Hardened Industrial Gigabit DIN-Rail Switch, 20Gbps Switching Capacity, DIN-Rail And Wall Mounts Included, Dual Redundant, Two RJ-45/SFP Ports, Lifetime Protection, Black, TI-G102

TRENDnet's 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments. Gigabit Speeds Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks. Fault Tolerance Features dual redundant power inputs with output alarm relay. Industrial Hardened Design Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments.

• NETWORK PORTS: 8 x Gigabit ports; 2 x Gigabit RJ-45 / SFP shared ports

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-G102 10-Port Hardened Industrial Gigabit DIN-Rail Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• Gigabit Speeds: Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks

• REDUNDANT POWER: Redundant power inputs with overload current protection (power supply sold separately, models: TI-M6024 / 48VDC3000)

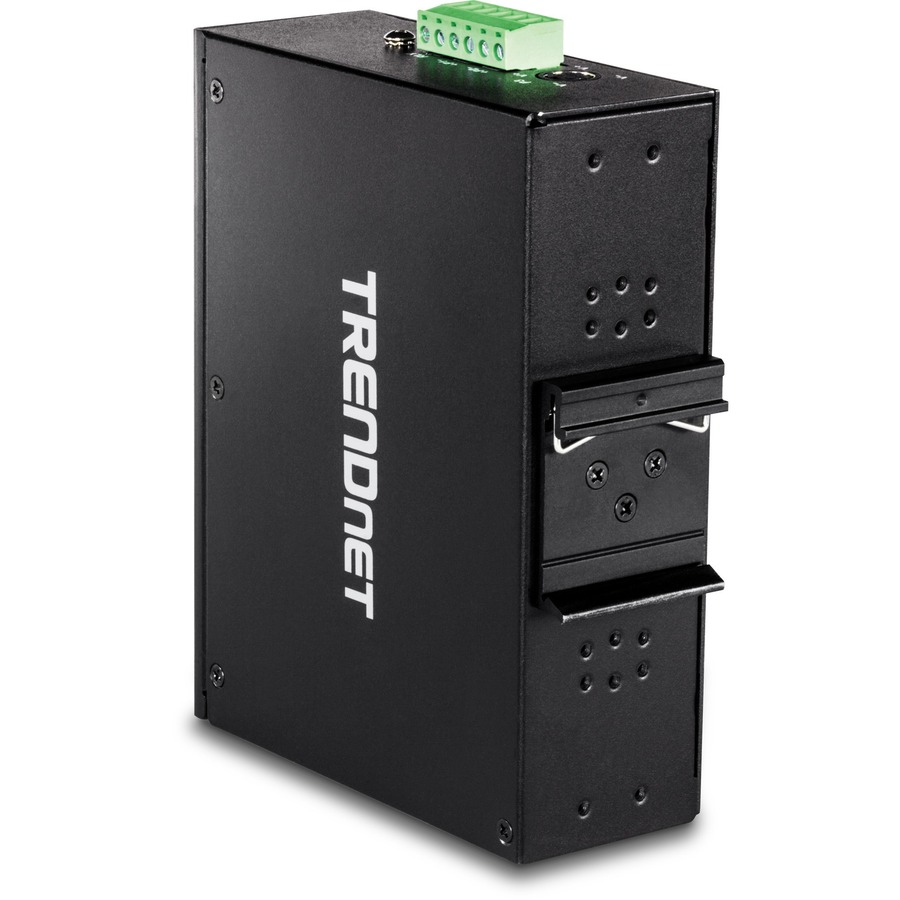

• DIN-RAIL / WALL MOUNTS: IP30 rated metal enclosure with included DIN-rail and wall mount hardware

• FAULT TOLERANCE: Features redundant power inputs with output alarm relay.Alarm output triggered by power failure

• INDUSTRIAL HARDENED DESIGN: Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments

• SHOCK AND VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

More from the Manufacturer

OVERVIEW

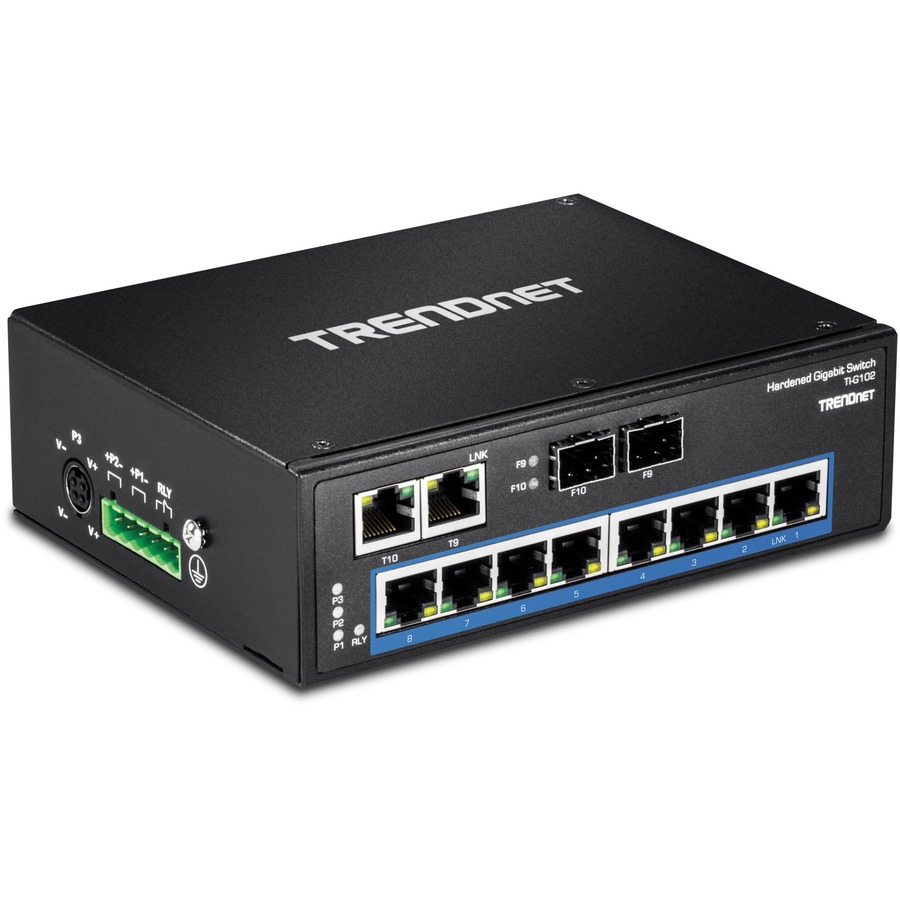

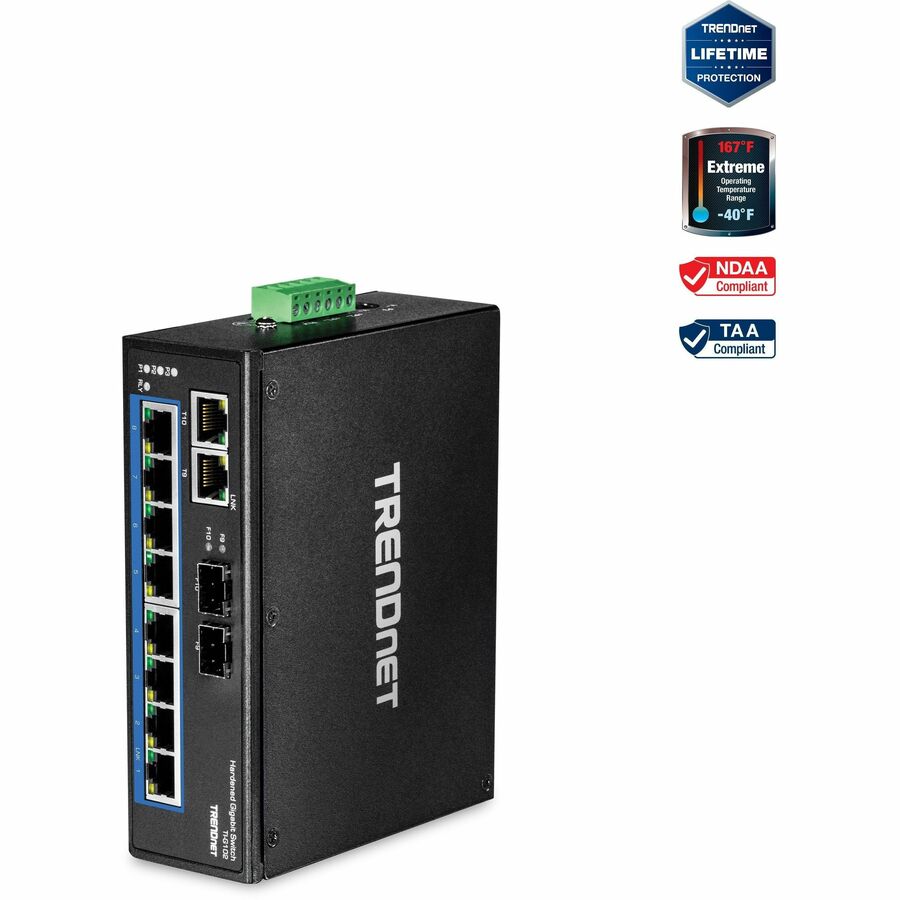

TRENDnet's 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Gigabit Speeds

Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Fault Tolerance

Features dual redundant power inputs with output alarm relay.

Industrial Hardened Design

Equipped with a rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Network Ports

8 Gigabit ports plus 2 Gigabit RJ-45 / SFP shared ports

Redundant Power

Dual redundant power inputs with overload current protection (power supply sold separately, models: TI-M6024 / 48VDC3000)

Switching Capacity

20 Gbps switching capacity

Grounding Point

Grounding point protects equipment from external electrical surges

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3z

IEEE 802.3x

Device Interface

8 x Gigabit ports

2 x Gigabit Ethernet ports

2 x Shared SFP slots

6-pin removable terminal block

LED indicators

DIN-Rail mount

Wall mount

Grounding point

Data Transfer Rate

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Gigabit: 2000 Mbps (full duplex)

Performance

Data RAM Buffer: 256 KB

Switching Fabric: 20 Gbps

MAC Address Table: 16 K entries

Jumbo Frame: 10KB

Forwarding rate: 14.8 Mpps (64-byte packet size)

Special Features

Hardened components rated for extreme temperatures

Redundant power inputs

Auto-Negotiation

Auto store and forward architecture

Automatic address learning and address aging

ESD 6KV protection

Power

Input: 12 - 56 V DC

Compatible power supply: TI-M6024 (sold separately)

Consumption: 5.76 W max.

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin

Wire range: 0.34 mm^2 to 2.5 mm^2

Solid wire (AWG): 12-24 / 14-22

Stranded wire (AWG): 12-24 / 14-22

Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm

Wire strip length: 7-8 mm

Alarm Relay Contact

Relay outputs with current carrying capacity of 1 A, 24 V DC

Open circuit mode when two power sources are connected

Short circuit mode when only one power source is connected

MTBF

510,400 hours

Housing

IP30 metal case

DIN-rail mount

Wall mount

Grounding point

ESD 6 KV protection

Operating Temperature

- 40 to 75 °C (-40 to 167 °F)

Operating Humidity

Max. 95 % non-condensing

Dimensions

155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.)

Weight

415 g (1.1 lb)

Certifications

CE

FCC

Shock (EN 60068-2-27)

Freefall (EN 60068-2-32)

Vibration (EN 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-G102

Quick Installation Guide

Removable terminal block

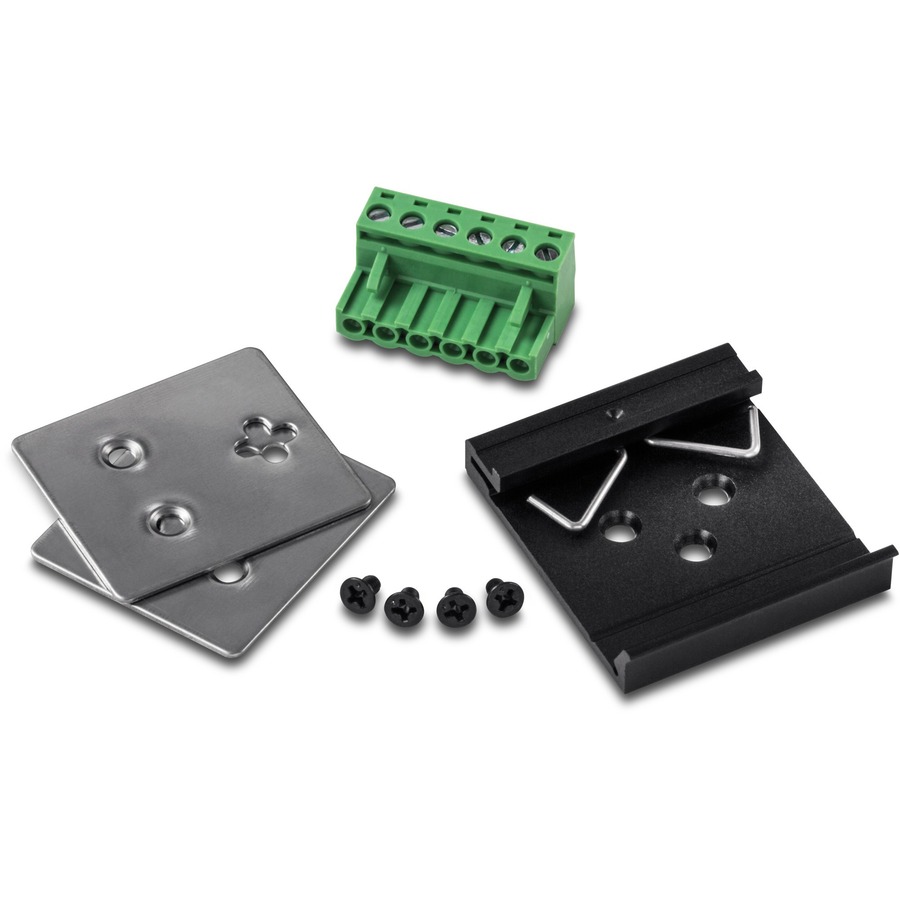

DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

10-Port Hardened Industrial Gigabit DIN-Rail Switch

8 x Gigabit ports

2 x Gigabit RJ-45 / SFP shared ports

20Gbps switching capacity

Hardened IP30 rated metal switch

Includes DIN-rail and wall mounts

Operating temperature range of -40° – 75°C (-40° – 167°F)

Redundant power inputs with overload current protection

Alarm output triggered by power failure

Power supply sold separately (models: TI-M6024 / 48VDC3000)

NDAA / TAA compliant

Lifetime Warranty
