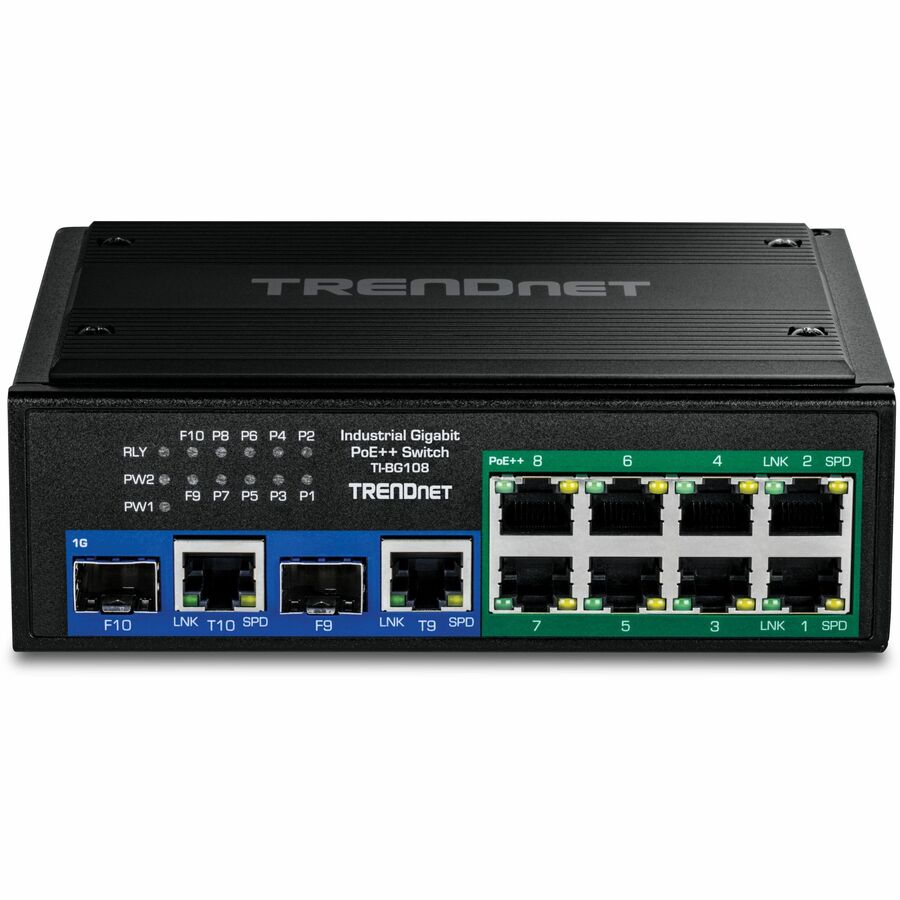

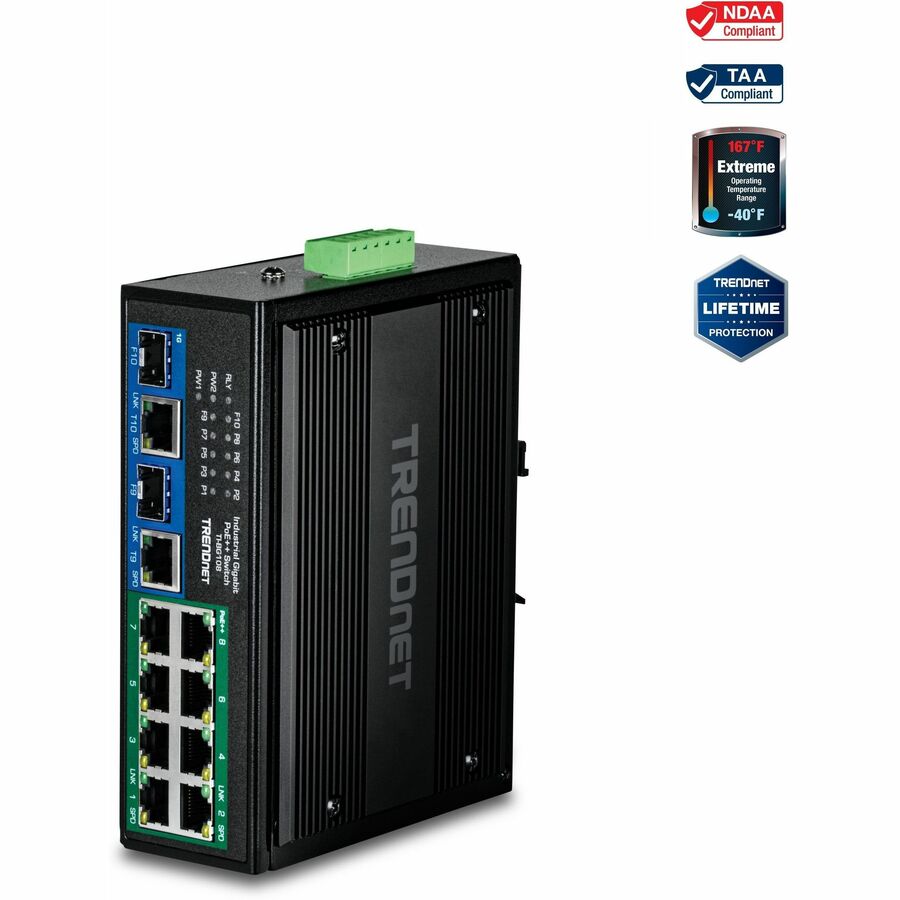

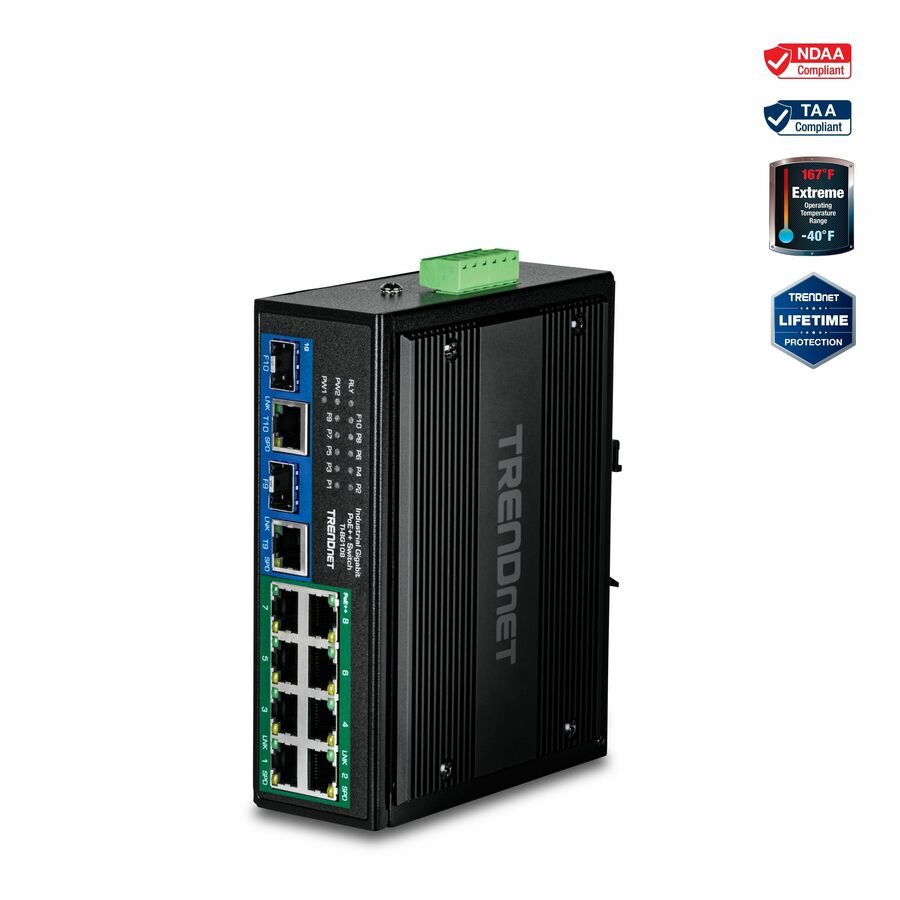

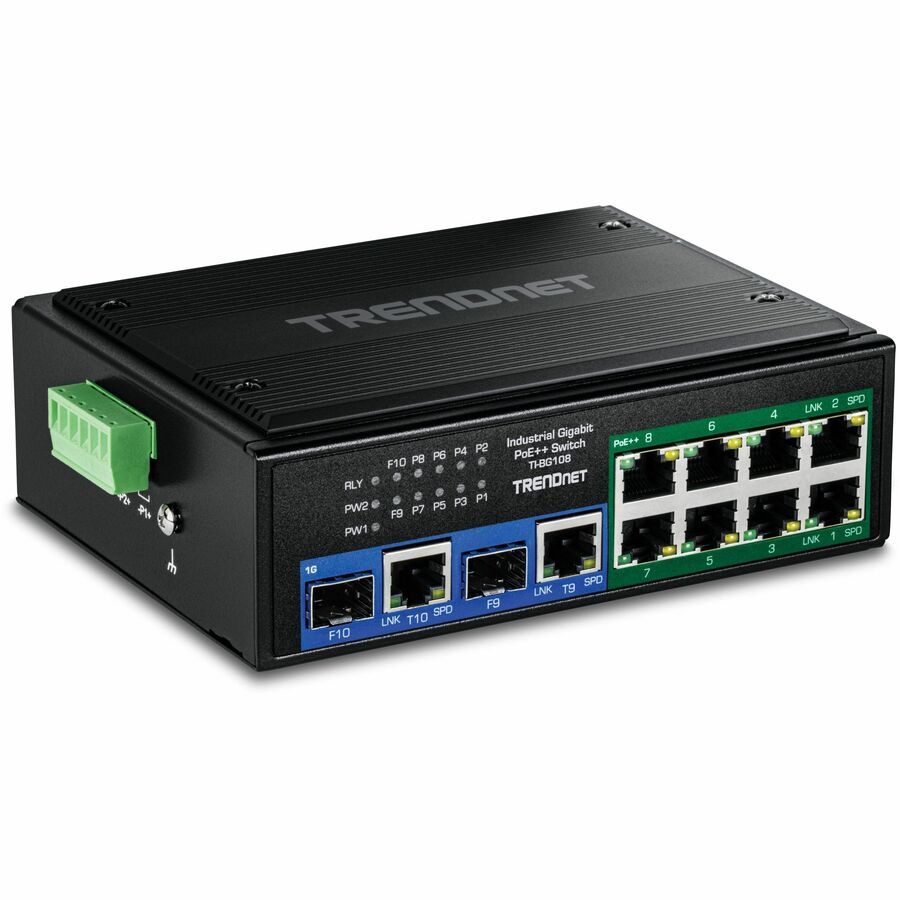

TRENDnet 10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch, TI-BG108, 8 x Gigabit PoE++ Ports, 2 x Gigabit Shared Ports (RJ-45 / SFP), 20Gbps, 400W, Lifetime Protection

TRENDnet's 10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch, model TI-BG108, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within - 40° - 75° C (- 40° - 167° F). This hardened industrial PoE++ switch features copper gigabit PoE++ ports for high-powered device connections, and SFP ports that support 1000Base-FX modules for long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

• DEVICE INTERFACE: 8 x Gigabit PoE++ Ports; 2 x Gigabit Shared Ports (RJ-45 / SFP); 20Gbps Switching Capacity; 400W PoE Power Budget; LED Indicators

• TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-BG108 Industrial Gigabit PoE++ DIN-Rail Switch is secured with Lifetime Manufacturer Protection from TRENDnet.

• NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)

• POWER SUPPLY SOLD SEPARATELY: Compatible power supplies sold separately, (models: TI-S48048, TI-S24052)

• POE POWER: A 400W total PoE power budget on this 10 port switch supplies eight PoE++ devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power

• EXTREME TEMPERATURE SWITCH: The metal hardened DIN-Rail switch is equipped with a rugged IP50 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (-40 - 167 °F)) for harsh environments.

• DIN-RAIL & WALL MOUNT KIT: This 10-Port industrial switch comes with an integrated IP50 rated DIN-Rail mount and wall mounting hardware.

• SHOCK AND VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

• REDUNDANT POWER: The 10-port network switch dual power inputs provide redundant power with overload current protection on this industrial switch, minimizing overall network downtime (power supply sold separately).

More from the Manufacturer

TRENDnet's 10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch, model TI-BG108, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). This hardened industrial PoE++ switch features copper gigabit PoE++ ports for high-powered device connections, and SFP ports that support 1000Base-FX modules for long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

PoE++

A 400W PoE power budget supports up to eight Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power.

Redundant Power

Dual power inputs provide redundant power with overload current protection, minimizing network downtime (power supplies sold separately).

Industrial Hardened Design

Rugged IP50 enclosure with a high degree of vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range -40° - 75° C (-40°- 167° F).

PoE Power Budget

A 400W PoE power budget on this industrial 802.3bt PoE++ switch supports up to eight Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power

Network Ports

8 x Gigabit PoE++ ports and 2 x Gigabit shared ports (RJ-45 / SFP)

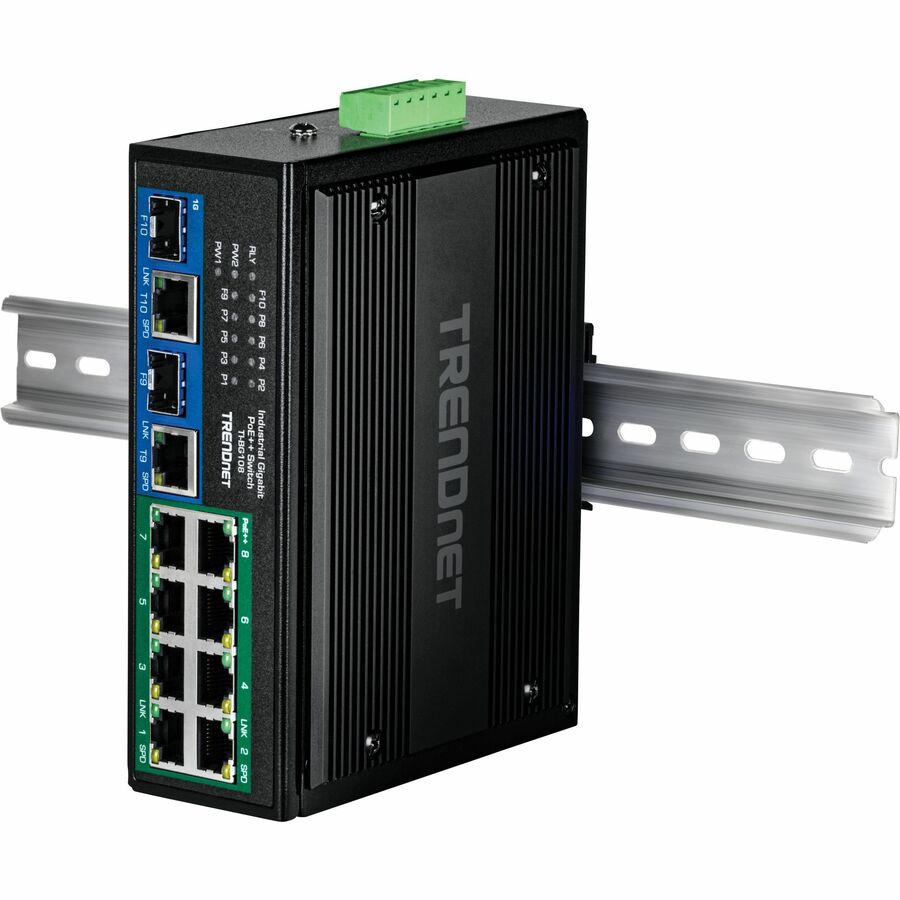

DIN-Rail/Wall Mounts

IP50 rated metal enclosure with included DIN-Rail and wall mount hardware

Switching Capacity

20Gbps switching capacity

Redundant Power

Dual power inputs for redundancy with overload current protection (power supplies sold separately, model TI-S48048, TI-S24052)

Alarm Relay

Industrial PoE++ switch’s alarm relay is triggered by power failure of primary and/or redundant power

Rated for Extreme Environments

Rugged IP50 rated enclosure designed to withstand a high degree of vibration and shock, and operate within a wide temperature range -40° - 75° C (-40° - 167° F) for harsh environments

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point on the industrial PoE++ switch protects equipment against external electrical surges

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

Device Interface

8 x Gigabit PoE++ ports

2 x Gigabit shared ports (RJ-45 / SFP)

6-pin removable terminal block

LED indicators

DIN-Rail mount

Wall mount

Grounding point

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2Gbps (full duplex)

Fiber: 2Gbps (full duplex)

Performance

Data RAM Buffer: 256KB

Switching Fabric: 20Gbps

MAC Address Table: 11K entries

Jumbo Frame: 10KB

Forwarding rate: 8.9Mpps (64-byte packet size)

Special Features

Hardened components rated for extreme temperatures

Multiple power inputs

Auto-Negotiation

Auto store and forward architecture

Automatic address learning and address aging

ESD 6kV protection

DC Power

Input: 48 - 56V DC

Compatible power supply: TI-S24048, TI-S48048, TI-S24052 (sold separately)

Max. consumption: 8.5W (no PD)

PoE

Up to 95W per port @ 52 – 56V DC

Up to 30W per port @ 48 – 52V DC

Power budget: 400W @ 56V DC

Pin 1, 2, 7, 8 for power- and pin 3, 6, 4, 5 for power+

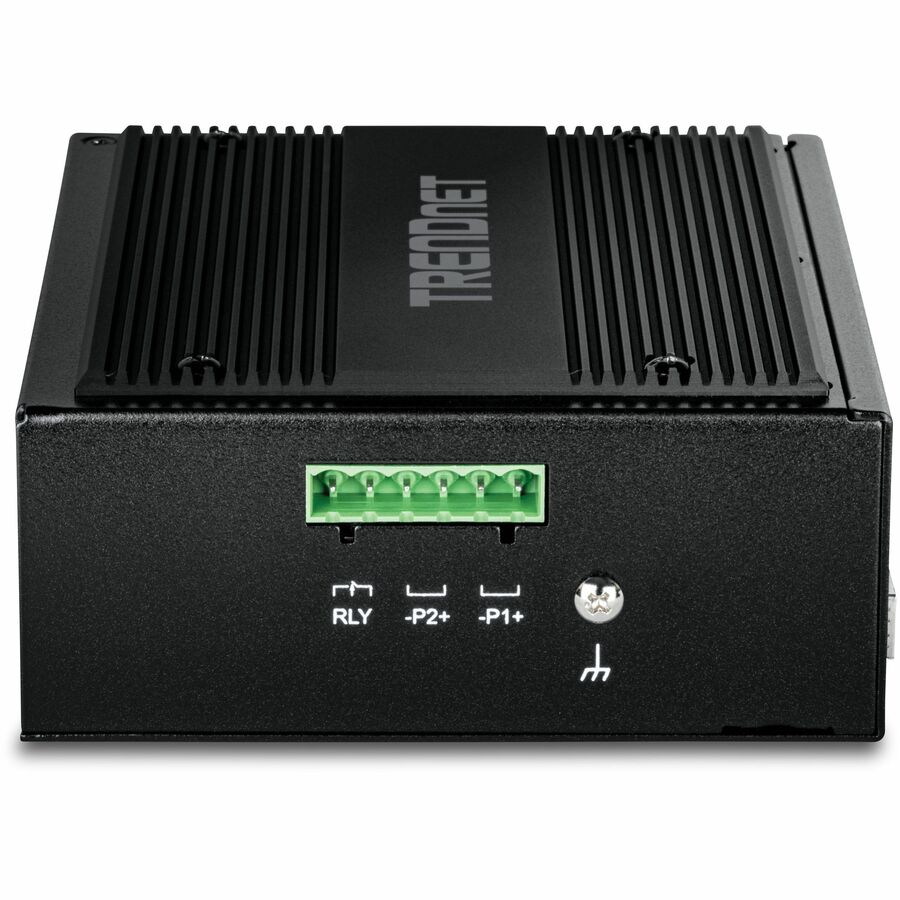

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24/14-22

Stranded wire (AWG): 12-24/14-22

Torque: 5 lb. – In / 0.5Nm / 0.56 Nm

Wire strip length: 7-8mm

Alarm Relay Contact

Relay outputs with current carrying capacity of 1A, 24V DC

Short circuit mode when two power sources are connected

Open circuit mode when only one power source is connected

MTBF

515,469 hours

Housing

IP50 metal case

DIN-Rail mount

Wall mount

Grounding point

Operating Temperature

- 40° – 75° C (-40 – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

156 x 122 x 48mm (6.1 x 4.8 x 1.9 in.)

Weight

602g (21.2 oz)

Certifications

CE

FCC

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-BG108

Quick Installation Guide

Removable terminal block

DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch

8 x Gigabit PoE++ ports

2 x Gigabit shared ports (RJ-45 / SFP)

400W PoE power budget

20Gbps switching capacity

Hardened IP50 rated metal switch

Includes DIN-Rail and wall mounts

Extreme operating temperature range of -40° – 75° C (-40° – 167° F)

Dual power inputs for redundancy

Alarm output triggered by power failure

Power supply sold separately (TI-S48048, TI-S24052)

NDAA / TAA compliant

Lifetime Warranty
