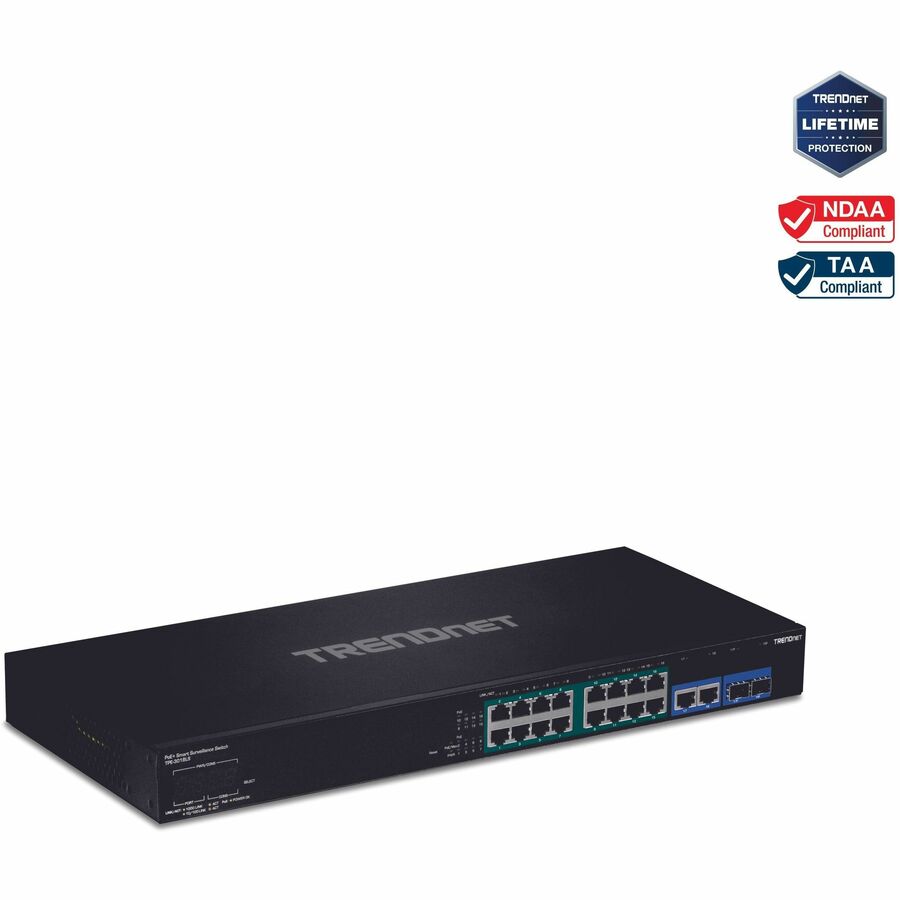

Roll over image to zoom in TRENDnet 18-Port Gigabit PoE+ Smart Surveillance Switch with 16 x Gigabit PoE+ Ports; TPE-3018LS; 2 x Shared Gigabit Ports (RJ-45 or SFP); 220W PoE Budget; Long Range PoE+; VLAN; QoS; LACP; ONVIF

TRENDnet's Gigabit PoE+ Smart Surveillance Switch series is designed to simplify the installation and management of surveillance networks, especially for integrators and installers. These ONVIF switches are optimized for the surveillance industry; surveillance mode provides a graphical dashboard interface with detailed information about the switch and each connected PoE device. Connect ONVIF compliant IP cameras and NVRs for more advanced capabilities such as changing device IP settings, and to view individual IP camera video within the switch GUI. The Smart Surveillance Switches are also PoE self-healing switches featuring PoE device auto-recovery and power scheduling. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Gigabit PoE+ Smart Surveillance Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. Available PoE port controls include enabling and disabling PoE, PD alive check, and power scheduling. PD alive check is an automated PoE self-healing switch feature that attempts to recover an unresponsive PoE device connected to the switch. If a PoE device such as a PoE camera becomes unresponsive to pings, the ONVIF compliant switch will auto-reboot the PoE port in attempt to recover the device.

These PoE+ ONVIF switches feature a 4-digit LED display showing total PoE power, available power, and power-per-port. They also support long distance PoE+ networking up to 656 ft./200m away at speeds up to 10mbps. TRENDnet's Gigabit PoE+ Smart Surveillance Switches also feature SFP slots to support long-distance fiber networking applications.

Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this ONVIF switch a powerful SMB network solution. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.

• DEVICE INTERFACE: 16 x Gigabit PoE+ Ports; 2 x Shared Gigabit Ports; (RJ-45 or SFP (100/1000Mbps)); LED indicators; 4-Digit PoE LED display (total power budget, available power, consumption per port)

• LIFETIME PROTECTION -We stand by the quality of our products. The TPE-3018LS 18-Port Gigabit PoE+ Smart Surveillance Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• SMART SURVEILLANCE MANAGEMENT: These managed ONVIF switches are optimized for the surveillance industry; surveillance mode provides a graphical dashboard interface with detailed information about the switch and each connected device.

• LONG RANGE POE+: Extend your PoE+ signal networking up to 656 ft./200m away at speeds up to 10mbps; 4 DIGIT POE LED DISPLAY: 4-digit 7-segment LED display to view total power, available power, and power-per-port

• INTEGRATION FLEXIBILITY: Managed switch features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP, and syslog for monitoring and flexible network integration.

More from the Manufacturer

TRENDnet's Gigabit PoE+ Smart Surveillance Switch series is designed to simplify the installation and management of surveillance networks, especially for integrators and installers. These ONVIF switches are optimized for the surveillance industry; surveillance mode provides a graphical dashboard interface with detailed information about the switch and each connected PoE device. Connect ONVIF compliant IP cameras and NVRs for more advanced capabilities such as changing device IP settings, and to view individual IP camera video within the switch GUI. The Smart Surveillance Switches are also PoE self-healing switches featuring PoE device auto-recovery and power scheduling.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Gigabit PoE+ Smart Surveillance Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. Available PoE port controls include enabling and disabling PoE, PD alive check, and power scheduling. PD alive check is an automated PoE self-healing switch feature that attempts to recover an unresponsive PoE device connected to the switch. If a PoE device such as a PoE camera becomes unresponsive to pings, the ONVIF compliant switch will auto-reboot the PoE port in attempt to recover the device.

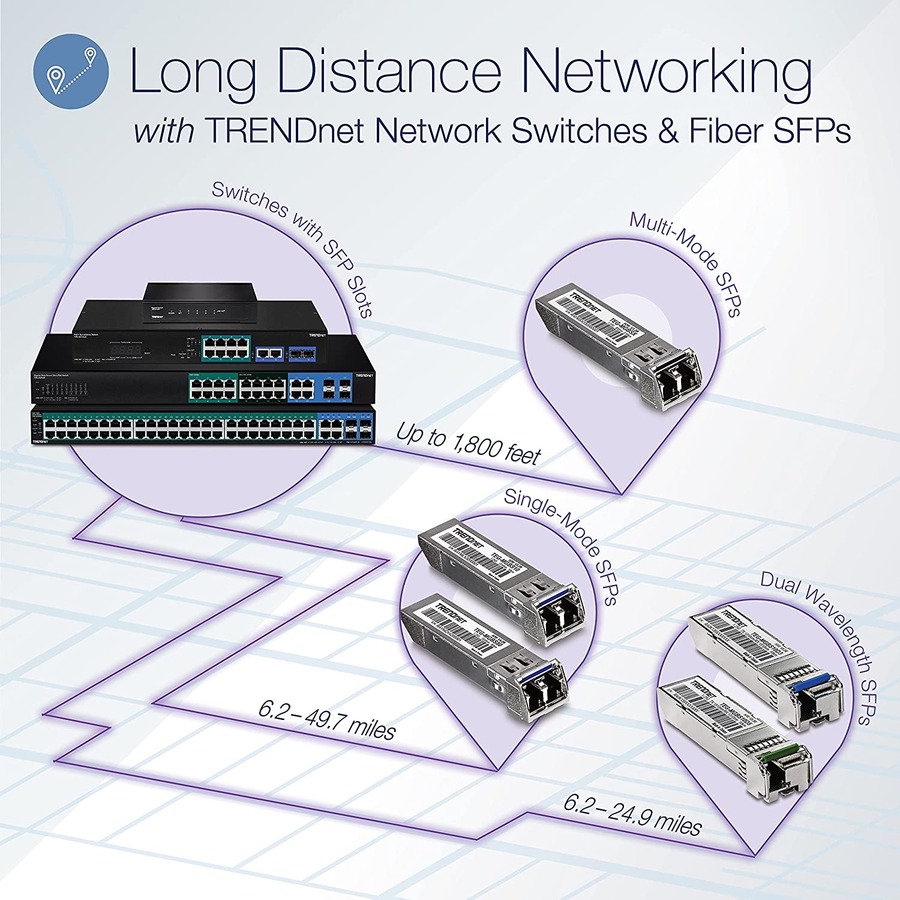

These PoE+ ONVIF switches feature a 4-digit LED display showing total PoE power, available power, and power-per-port. They also support long distance PoE+ networking up to 656 ft./200m away at speeds up to 10mbps. TRENDnet's Gigabit PoE+ Smart Surveillance Switches also feature SFP slots to support long-distance fiber networking applications.

Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this ONVIF switch a powerful SMB network solution. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.

18-Port Gigabit PoE+ Smart Surveillance Switch

16 x Gigabit PoE+ ports

2 x Shared Gigabit ports (RJ-45 or SFP)

220W PoE power budget

Easy-to-use web-based management interface

Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping

Extend PoE+ signal up to 656 ft./200m at 10Mbps

Front panel 4-digit LED display provides PoE power statistics

Surveillance mode GUI for simplified configuration and network monitoring

Device discovery for ONVIF compliant IP cameras and NVRs

Upload building floorplans to create an E-map of surveillance devices

Change IP camera IP address settings

Upgrade IP camera firmware

Change IP camera administrator user name and password

Bandwidth control per port

802.1Q, MAC, Surveillance, and Voice VLAN support

IEEE 802.1p QoS with queue scheduling support

Smart Fan

36Gbps switching capacity

NDAA / TAA compliant (U.S. and Canada only)

Lifetime Warranty

Smart Surveillance Management

These ONVIF managed switches are optimized for the surveillance industry; Surveillance mode provides a graphical panel interface with detailed information about the switch and each connected device.

Integration flexibility

Managed switch features include access control lists, VLANs, IGMP snooping, QoS, RMON, SNMP, and syslog for flexible network integration and monitoring.

Active PoE Device Check

PD alive Check is an automated PoE self-healing switch feature that attempts to recover a non-responding PoE device connected to the switch. If a PoE device such as a PoE camera is unresponsive, the ONVIF compliant switch will automatically reset the PoE port to attempt to recover the device.

TRENDnet Smart Surveillance Switches: TPE-3012LS & TPE-3018LS

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3af

IEEE 802.3at

IEEE 802.3az

Device Interface

16 x Gigabit PoE+ ports

2 x Shared Gigabit ports (RJ-45 or SFP (100/1000Mbps))

LED indicators

PoE power status LED display (total power budget, available power, consumption per port)

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit Ethernet: 2000Mbps (full duplex)

Performance

Switch fabric: 36Gbps

RAM buffer: 512KB

MAC address table: 8K entries

Jumbo Frames: 10KB

Forwarding mode: store and forward

Forwarding rate: 26.7Mpps (64-byte packet size)

Management

HTTP / HTTPS web-based GUI – Standard or Surveillance Mode

CLI command line interface (Telnet / SSHv2)

SNMP v1, v2c, v3

IPv4/IPv6 support

Multiple administrator or user accounts

Dynamic/static unicast MAC address table

Enable or disable 802.3az power saving per port

Syslog

System message logging severity levels

Port mirroring (transmit, receive, one-to-one, many-to-one)

ICMPv4/ICMPv6

Traceroute

LLDP

Cable diagnostics test

SFP DDM (Digital-diagnostic-monitoring)

UDLD (UniDirectional Link Detection)

Port error disabled/Errdisable state

Ping watchdog

MIB

RMON MIB RFC 1271

IPV4 MIB RFC 1213 (read only)

SNMP MIB RFC 3415

Spanning Tree

STP (spanning tree)

RSTP (rapid spanning tree)

MSTP (multiple spanning tree)

Link Aggregation

Static link aggregation and dynamic LACP (Up to 8 groups)

Quality of Service (QoS)

802.1p Class of Service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth limit per port

Queue Scheduling: strict priority (SP), weighted round robin (WRR)

VLAN

Multiple management VLAN assignment

802.1Q Tagged VLAN

MAC-based VLAN

Surveillance VLAN

Voice VLAN

Up to 256 VLAN groups, ID Range 1-4094

Multicast

IGMP Snooping v2/v3

IGMP immediate/fast leave

IGMP querier

Dynamic/static multicast MAC address table

MVR (Multicast VLAN registration)

Up to 1K multicast entries

Access Control

802.1X port-based authentication (Local user database, RADIUS, Guest VLAN)

DHCP Snooping / Option 82

Loopback detection

Denial of Service (DoS) prevention

Storm control (broadcast, unknown multicast, unknown unicast, min: 16Kbps)

Head-of-line (HoL) blocking prevention

IP Source Guard / IP-MAC-Port-VLAN binding

Protected ports

Port Security/MAC address learning restriction

Access Control List (ACL)

MAC Address (VLAN ID, EtherType, 802.1p)

IPv4 (IP Protocol, TCP/UDP Port, 802.1p, DSCP, TCP flag, ICMP type, ICMP code)

Surveillance Mode (ONVIF)

Surveillance mode GUI for simplified configuration and network monitoring

Device discovery for ONVIF compliant devices such as IP cameras or NVRs

Upload virtual maps

Change IP camera IP address settings

Upgrade IP camera firmware

Change IP camera administrator user name and password

PoE

PoE budget: 220W

802.3at: up to 30W per port (ports 1-16)

PoE Mode A: Pins 1,2 and pins 3,6 for power

PoE power scheduling

PD alive check

Over current/short circuit protection

Power

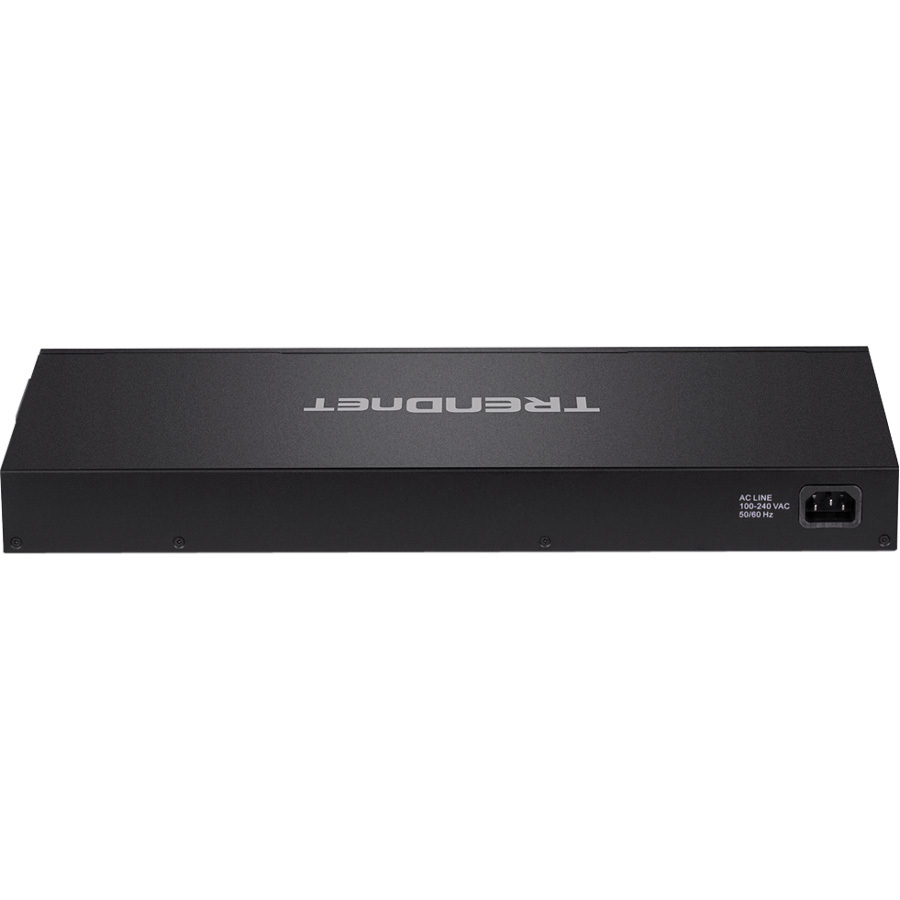

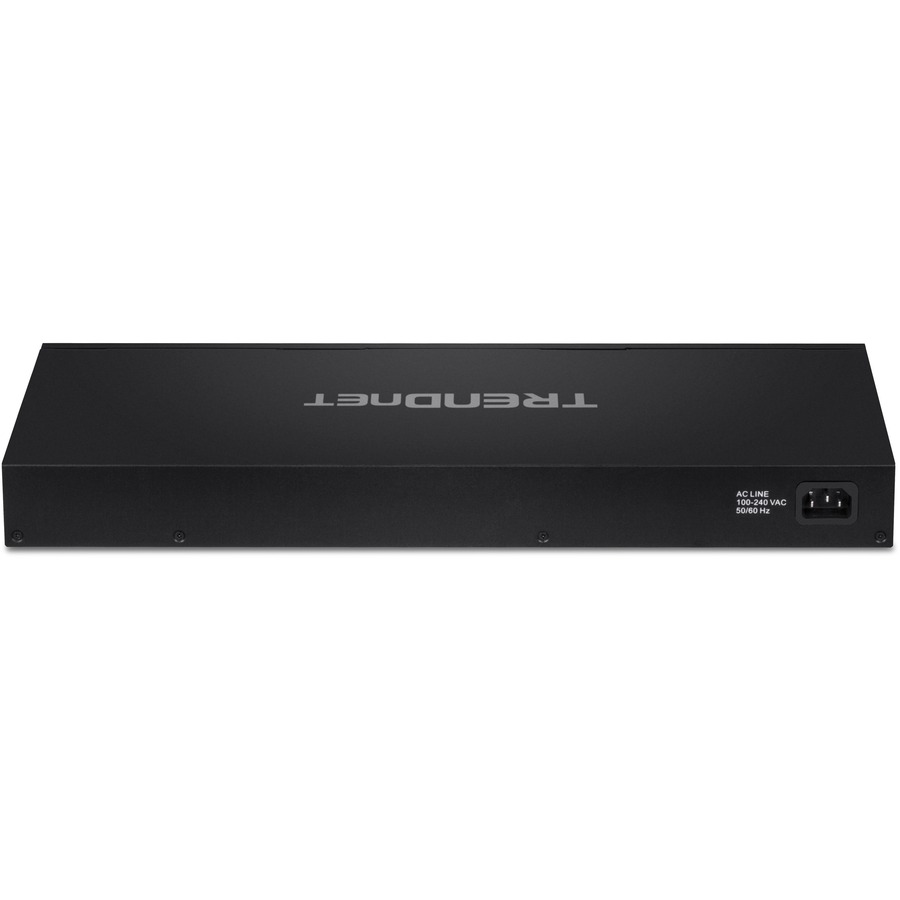

Input: 100 – 240V AC, 50 – 60Hz, internal power supply

Max. consumption: 14W (No PoE load)

Surge Protection

6kV (Ports 17 & 18)

Fan/Acoustics

Quantity: 1 (Hot swappable)

Noise Level: 60.1 dBA (max.)

MTBF

331,516 hours

Operating Temperature

0 – 40°C (32 – 104°F)

Operating Humidity

Max. 90% non-condensing

Dimensions

440 x 195 x 44.45mm (17.3 x 9.8 x 1.74 in.)

Rack mountable 1U height

Weight

2.93kg (6.45 lbs.)

Certifications

CE

FCC

ETL

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TPE-3018LS

Quick Installation Guide

Power cord (1.5m/5 ft.)

Rack mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
