SKU
SW-725
Category
Switches & Bridges
Overview

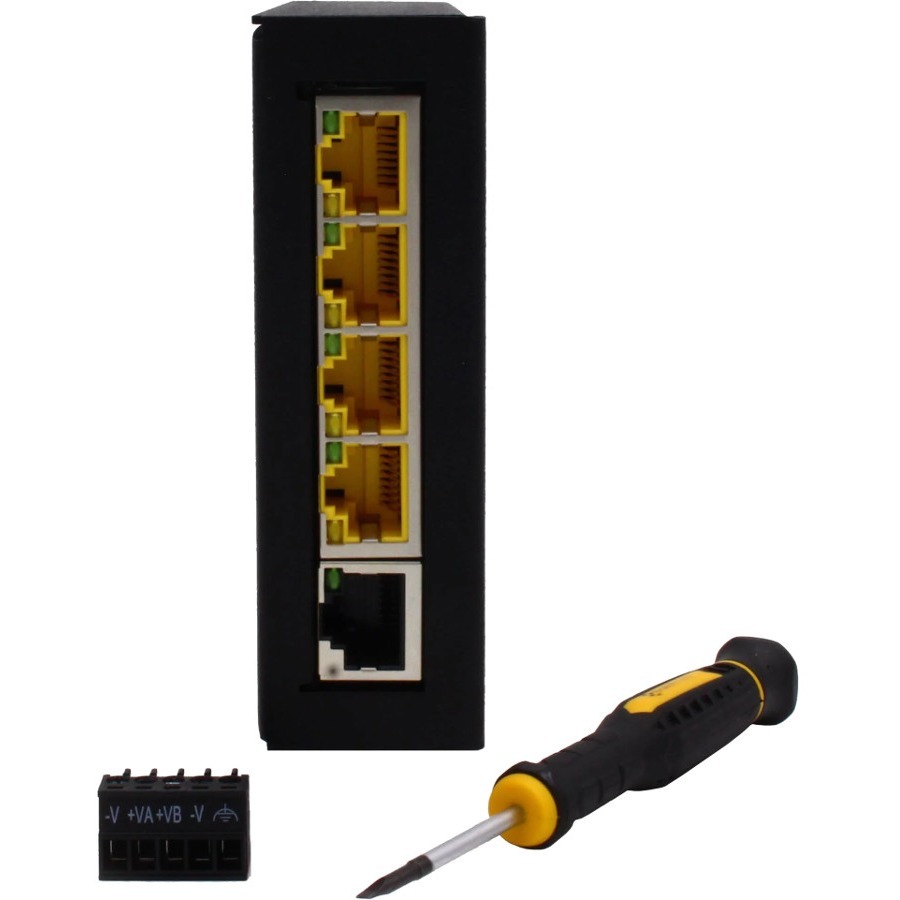

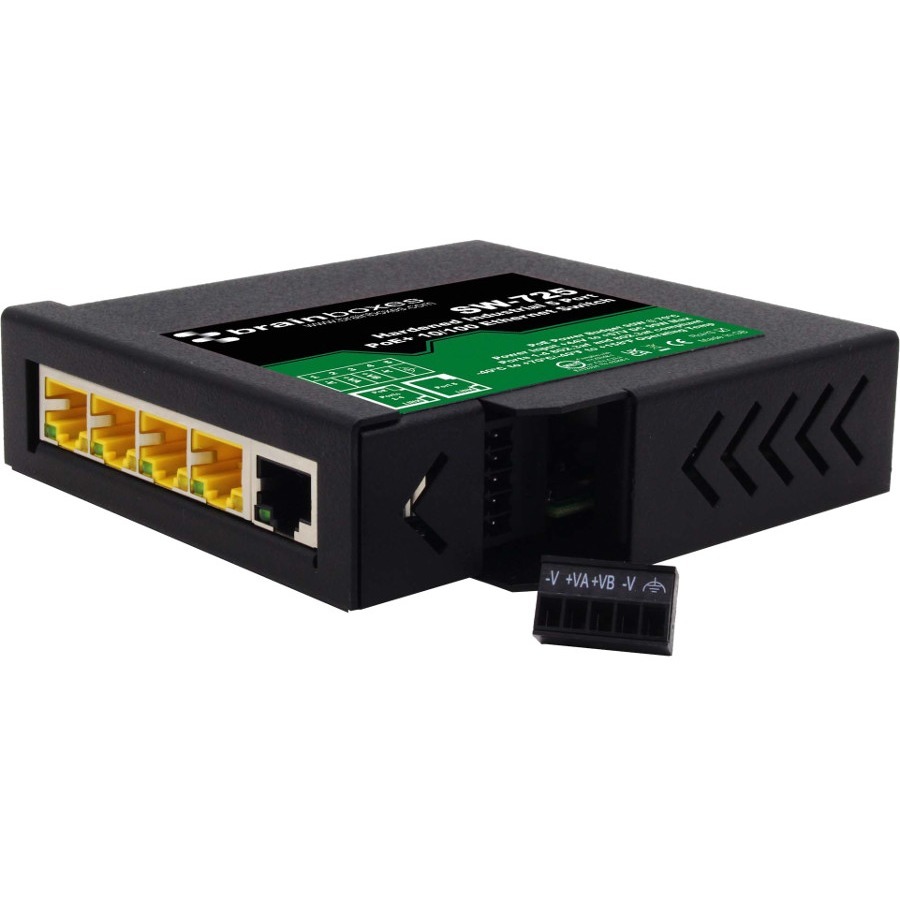

Hardened Industrial 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
Warranty
Limited Warranty: Lifetime
Highlights
Allows power and data to be combined on the same Ethernet cable
Ports 1-4 PoE+ capable
Ports 1-4 IEEE 802.3af/at compliant: deliver up to 30W to each port (backwards compatible)
PoE Power Budget: 90W @ 70ºC between all 4 PoE ports simultaneously
Redundant dual power inputs: +44V to +57V DC
Industrial operating temp range -40°C to +70°C / -40°F to +176°F
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-725
Brand Name
Brainboxes
Product Model
SW-725
Product Name

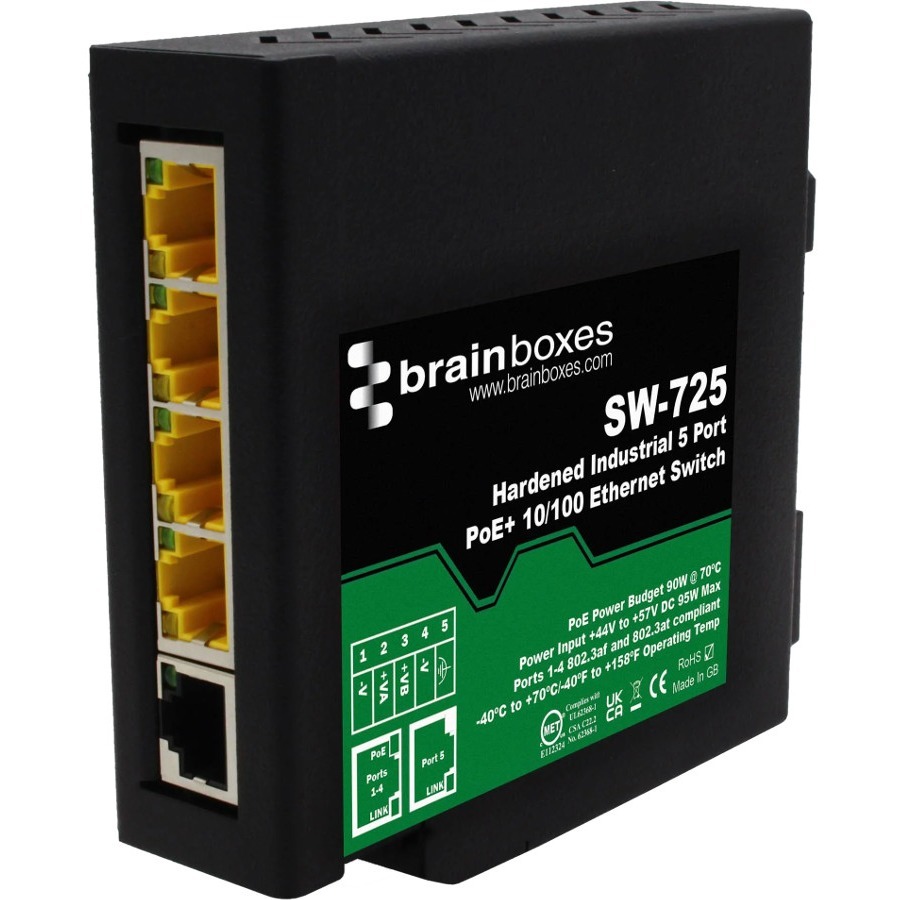

Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
5
Network (RJ-45)
Yes
Port/Expansion Slot Details
4 x Fast Ethernet PoE+, 1 x Fast Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-T
Network & Communication
Layer Supported
2
Networking Standards
IEEE 802.3at, IEEE 802.3af
Physical Characteristics
Form Factor

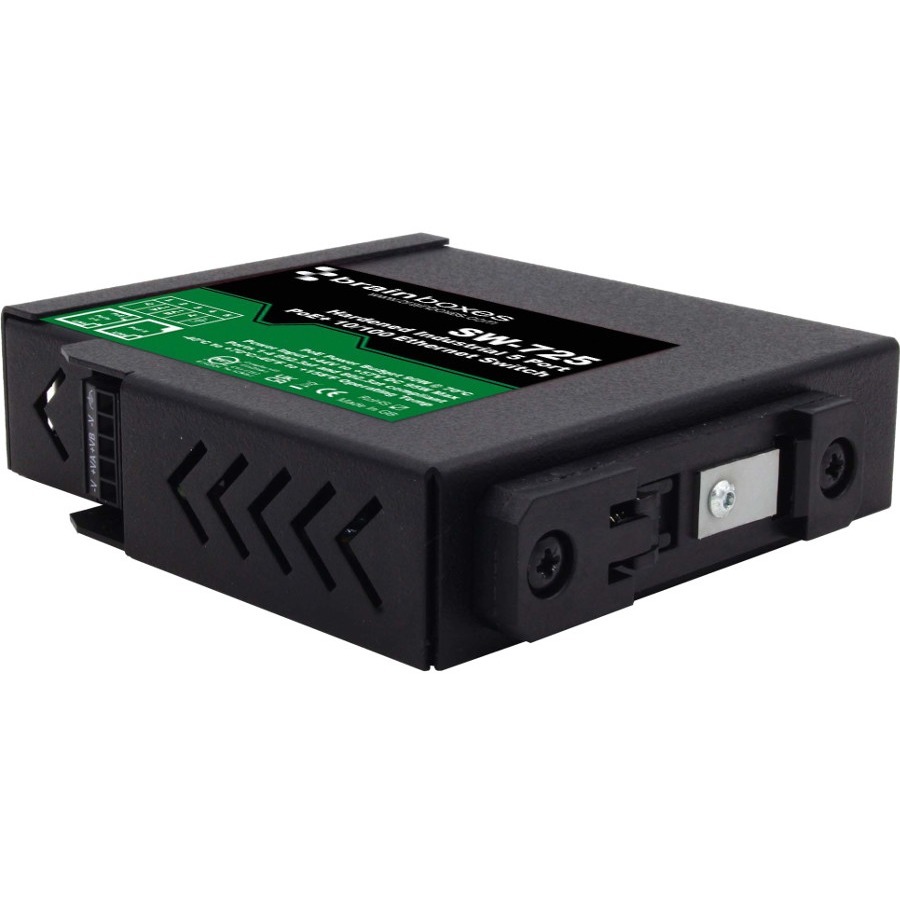

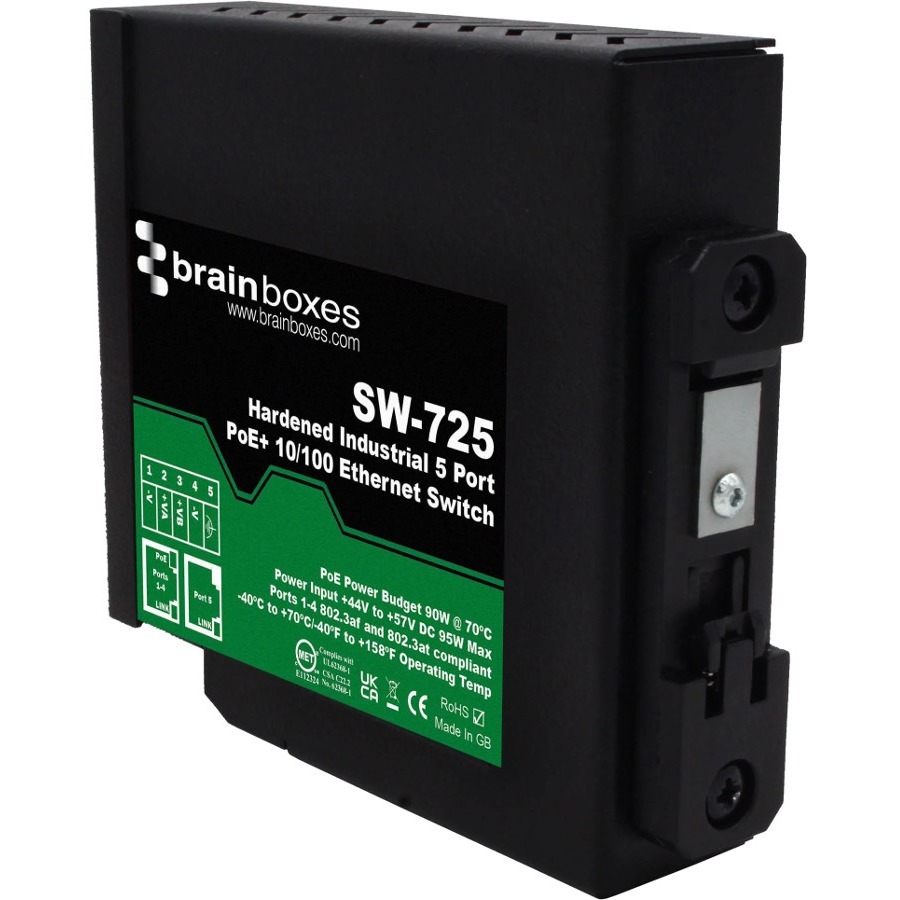

DIN Rail Mountable, Compact
Height
3.9"
Width
3.5"
Depth
2.4"
Weight (Approximate)
15.66 oz
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
90 W
Input Voltage
44 V DC, 57 V DC
Power Source
Power Supply, USB
Redundant Power Supply Supported
Yes
Power Consumption
4 W
Plug/Connector Type
Terminal Block
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Hardened Industrial 5 Port PoE+ 10/100 Ethernet Switch
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
