Overview

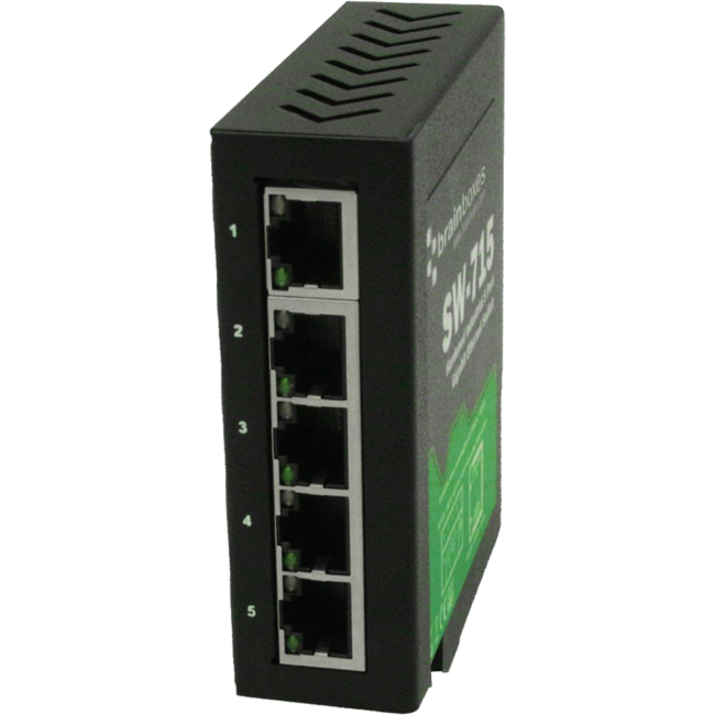

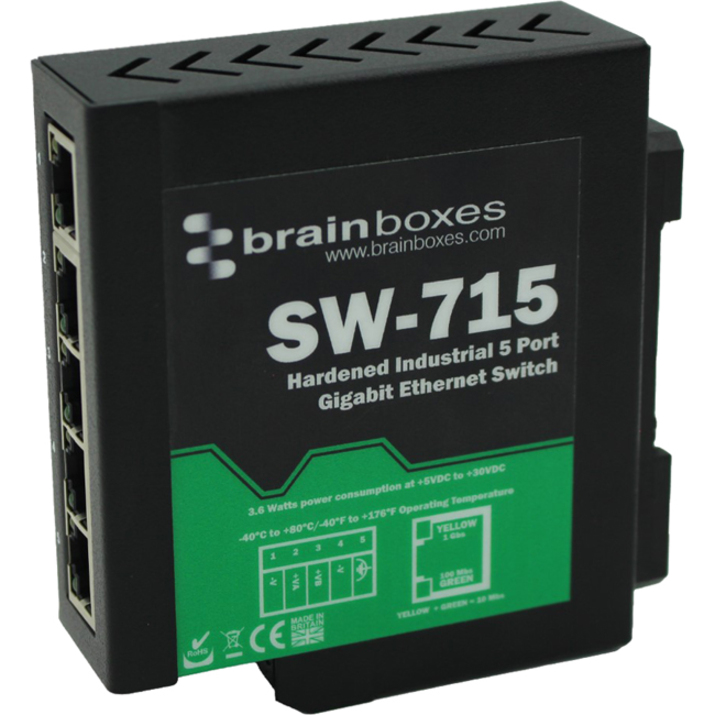

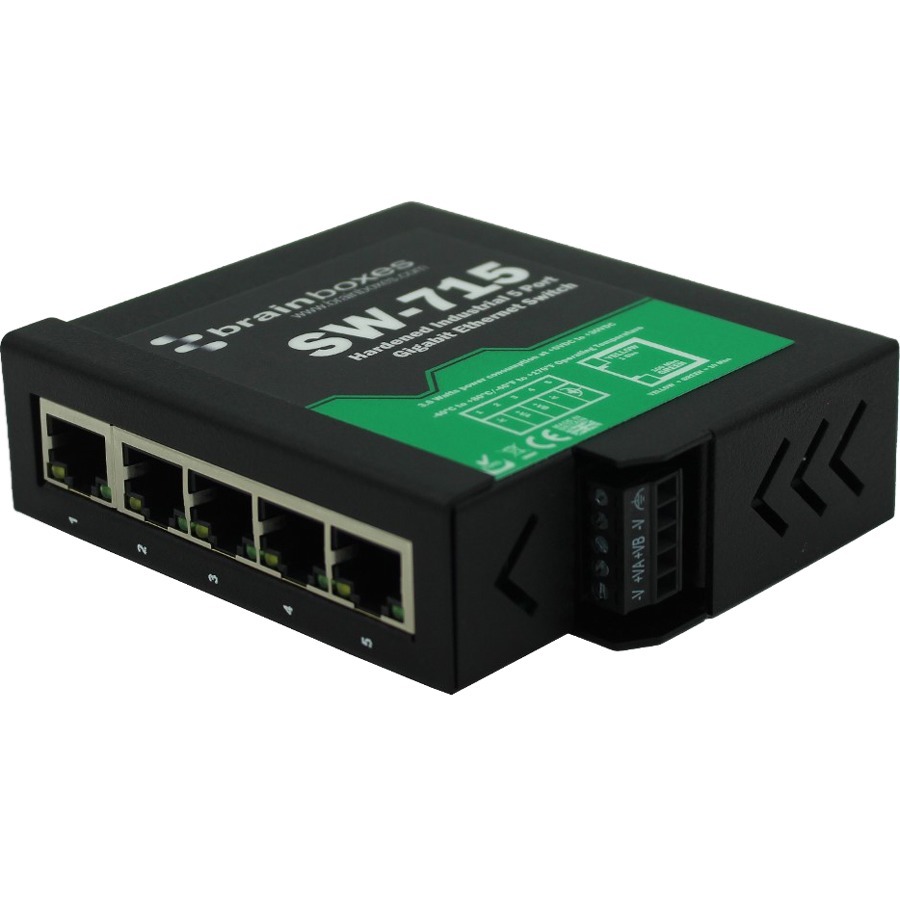

Compact industrial 5 Port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 29mm wide and 95mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Warranty
Limited Warranty: Lifetime
Highlights
5 Port Hardened Gigabit Ethernet Switch

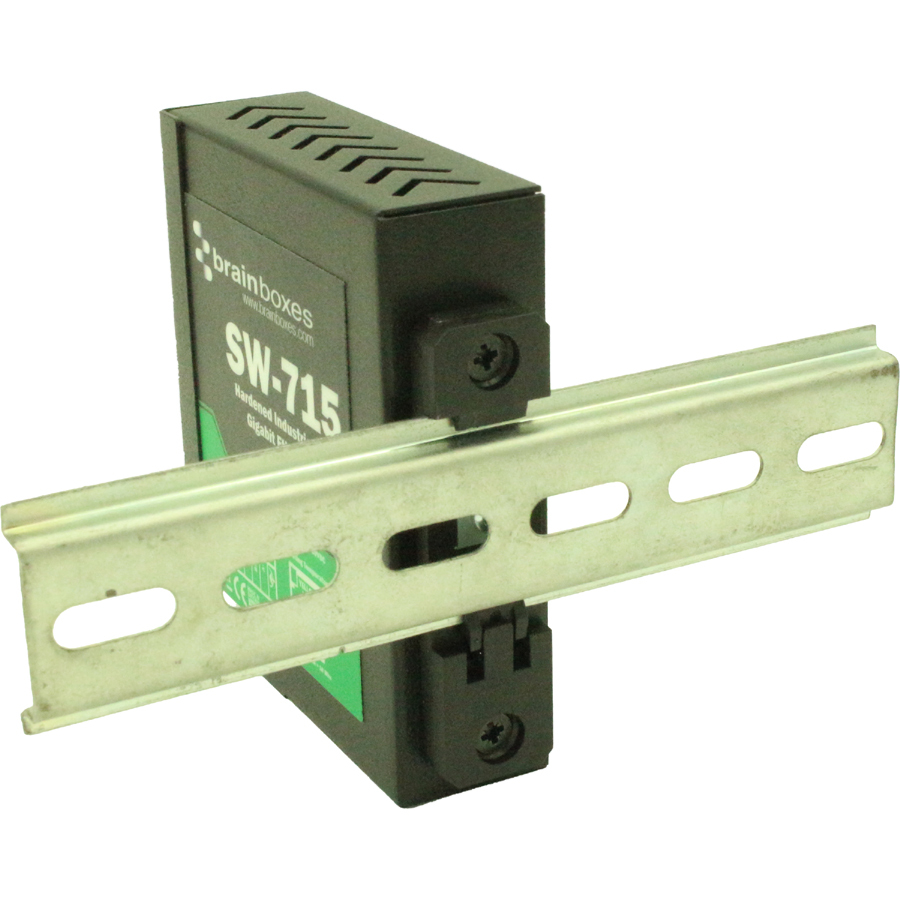

Integrated DIN Rail Mount with grounding
Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
Redundant dual power inputs - reduces risk of power outage
Compact Hardened Enclosure
Industrial operating temp range -40°C to +80°C / -40°F to +176°F
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-715
Brand Name
Brainboxes
Product Model
SW-715
Product Name
Hardened Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
5
Uplink Port
No
Modular
No
Stack Port
No
Port/Expansion Slot Details
5 x Gigabit Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
DIN Rail Mountable
Height
3.9"
Width
1.1"
Depth
3.7"
Weight (Approximate)
9.67 oz
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Hardened Industrial 5 Port Gigabit Ethernet Switch DIN Rail Mountable
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
