Overview
Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
More from the Manufacturer

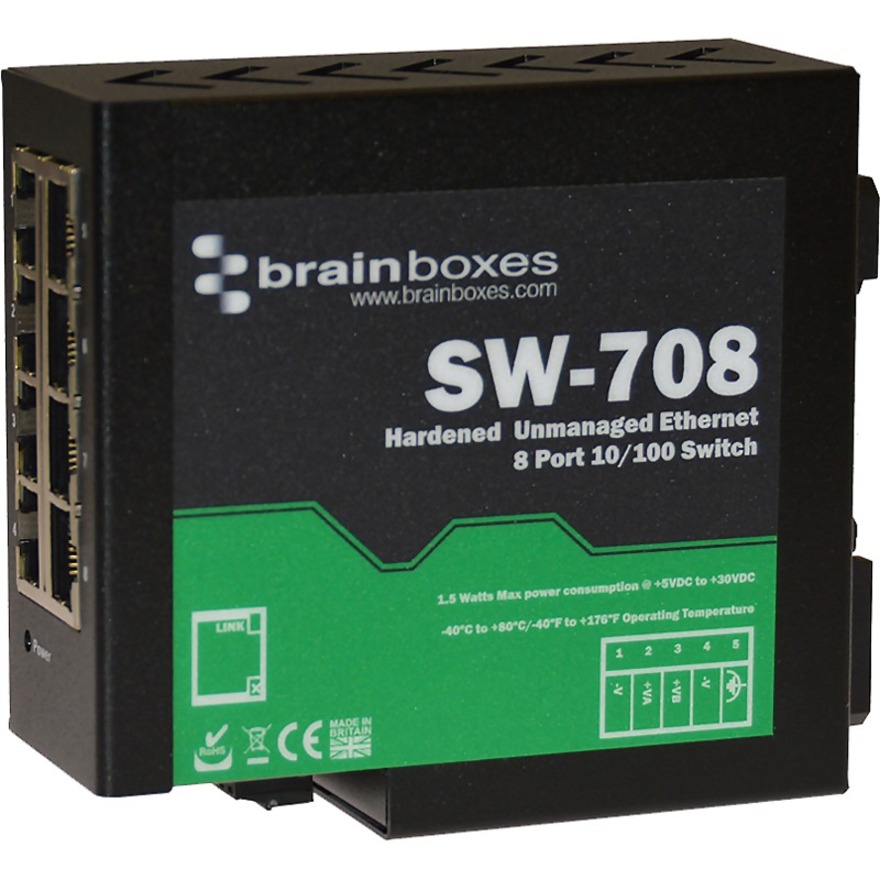

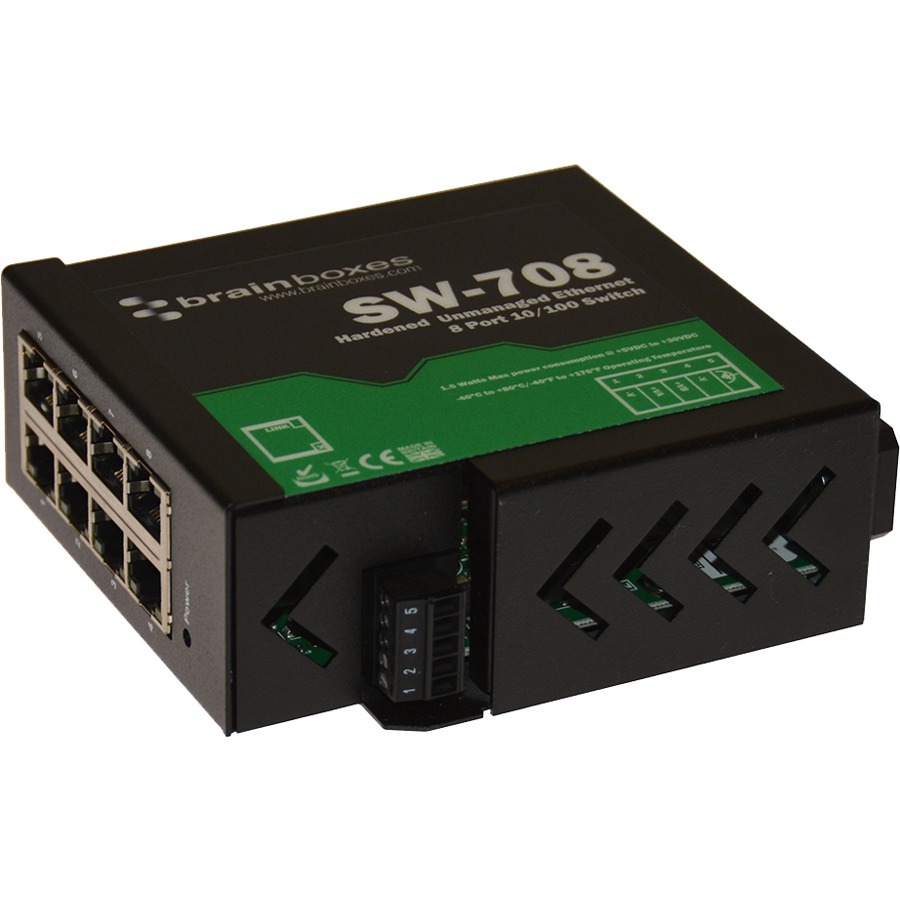

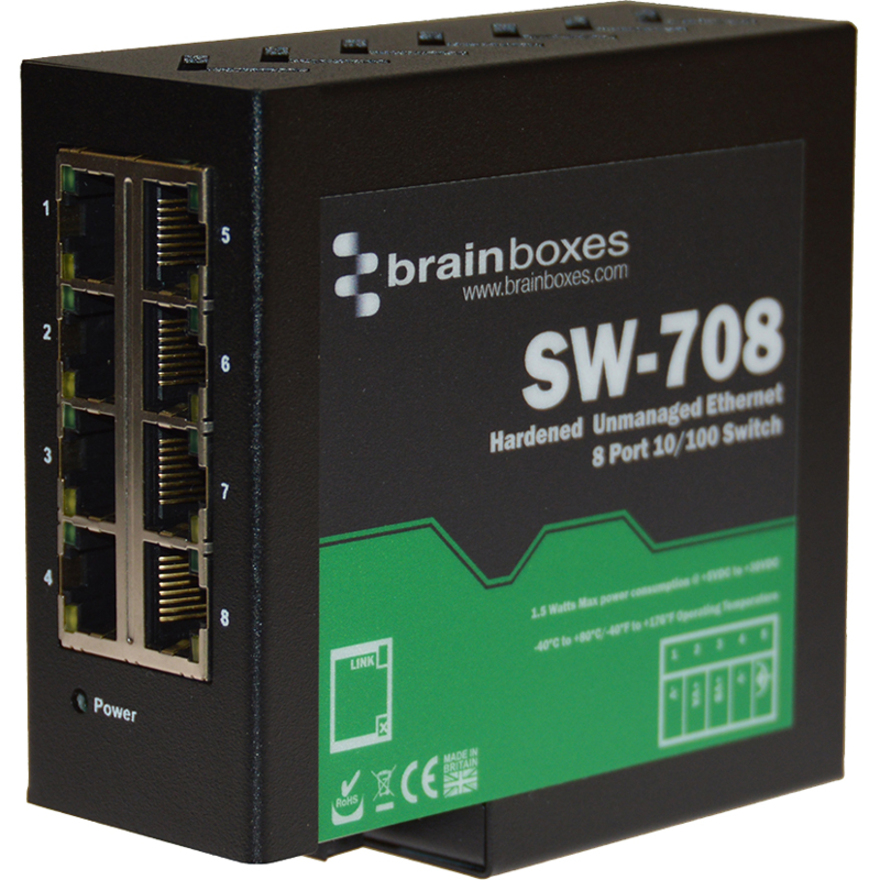

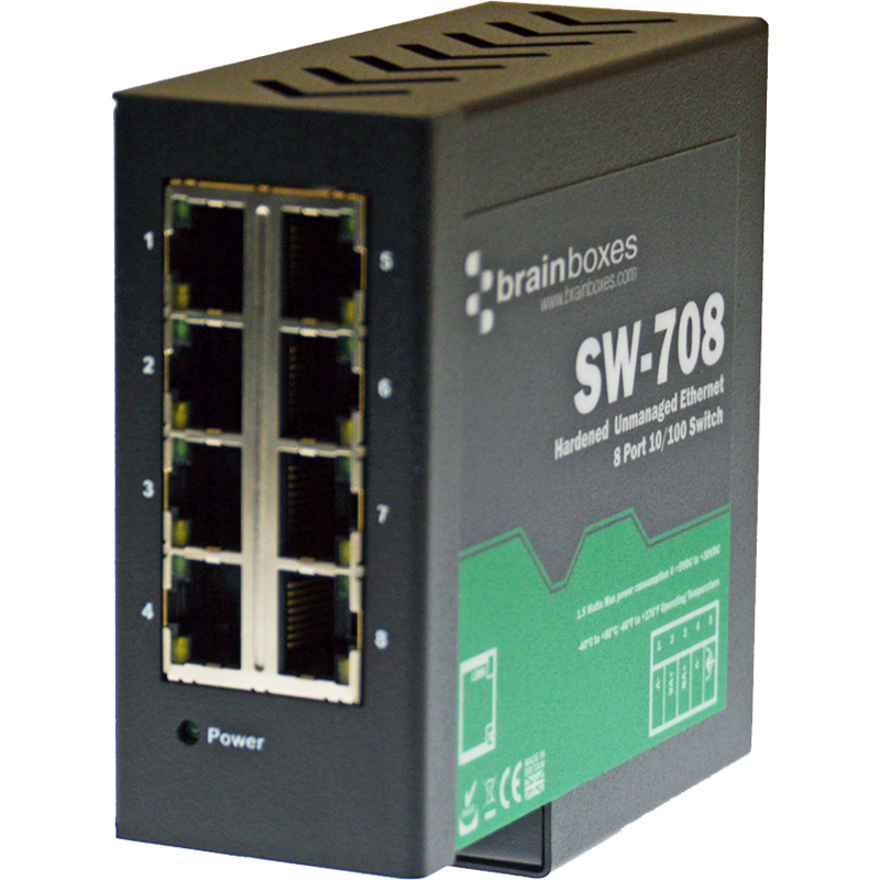

Hardened Industrial Ethernet 8 Port Switch DIN Rail Mountable
Hardened 8 Port Ethernet Switch
Integrated DIN Rail Mount
Redundant dual power inputs: +5V to +30V DC
Industrial operating temp range -40°C to +80°C / -40°F to +176°F
No software required
Lifetime Warranty and Support
Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world.
+5 to +30 Volt Power Input
enables the device to be run
from USB, a vehicle battery or
the factory floor
Non conducting polyamide
casing with removable
numbered power terminal for
easy wiring
Integral DIN mount and slim
design takes up minimal
cabinet space
Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Warranty
Limited Warranty: Lifetime
Highlights
Hardened 8 Port Ethernet Switch
Integrated DIN Rail Mount
Redundant dual power inputs: +5V to +30V DC
Industrial operating temp range -40°C to +80°C / -40°F to +176°F
No software required
Lifetime Warranty and Support
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-708
Brand Name
Brainboxes
Product Model
SW-708
Product Name
Hardened Industrial Ethernet 8 Port Switch DIN Rail Mountable
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
8
Modular
No
Port/Expansion Slot Details
8 x Fast Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-T
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
DIN Rail Mountable
Height
1.8"
Width
4.9"
Depth
4.3"
Weight (Approximate)
15.20 oz
Power Description
Power Source
Power Adapter, USB
Redundant Power Supply Supported
No
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Hardened Industrial Ethernet 8 Port Switch DIN Rail Mountable
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
