Genuine Brainboxes through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Switches & Bridges
Country of origin
United Kingdom
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

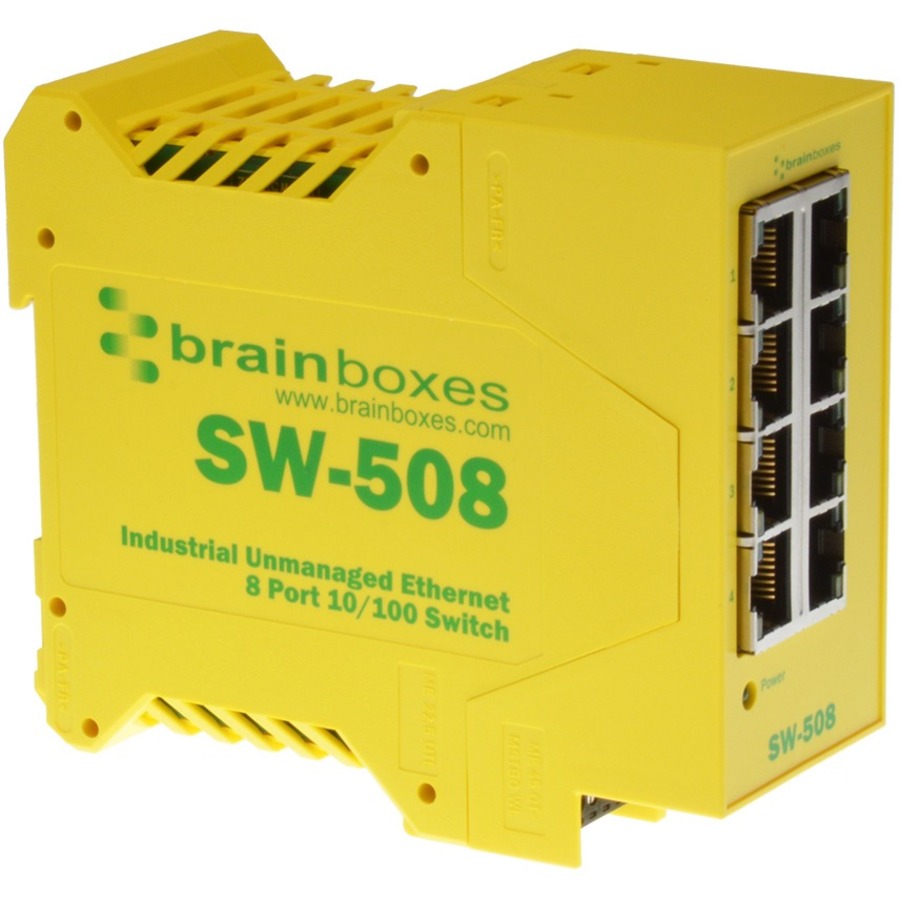

Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
More from the Manufacturer
Industrial Ethernet 8 Port Switch DIN Rail Mountable
8 Port Ethernet Switch
Integrated DIN Rail Mount
Redundant dual power inputs: +5V to +30V DC
Industrial operating temp range -40°C to +80°C / -40°F to +176°F
No software required
Lifetime Warranty and Support
Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
+5 to +30 Volt Power Input
enables the device to be run
from a standard car battery -
ideal for in vehicle applications
Non conducting polyamide
casing with removable
numbered power terminal for
easy wiring

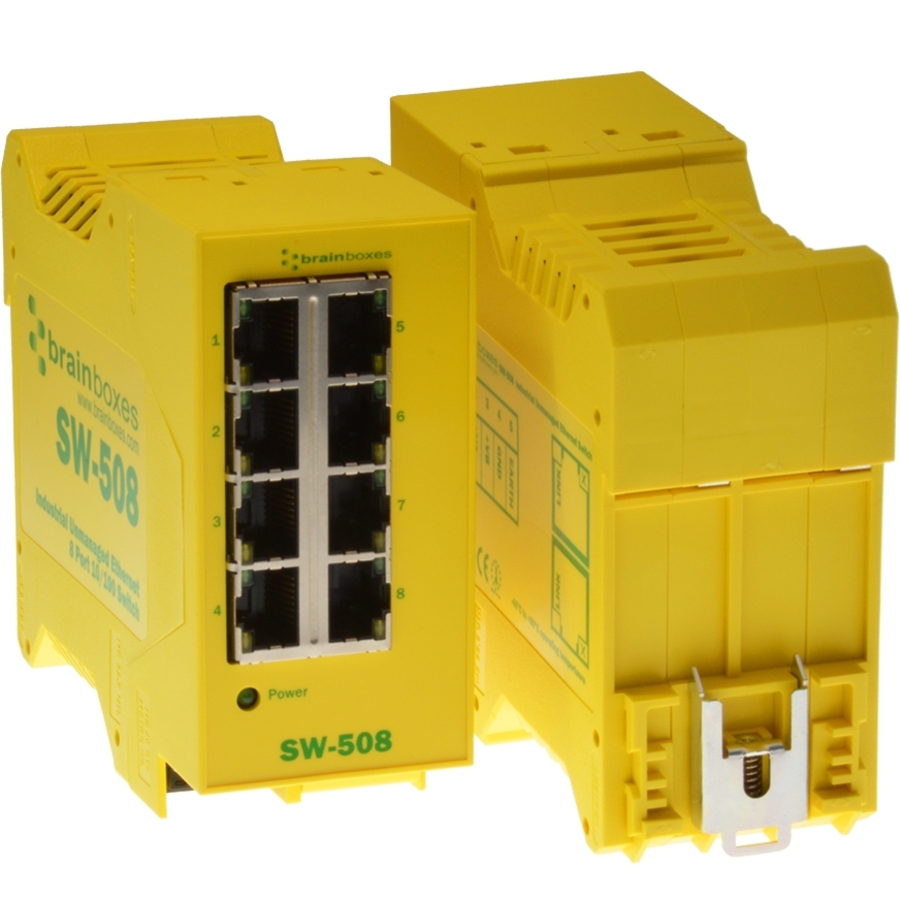

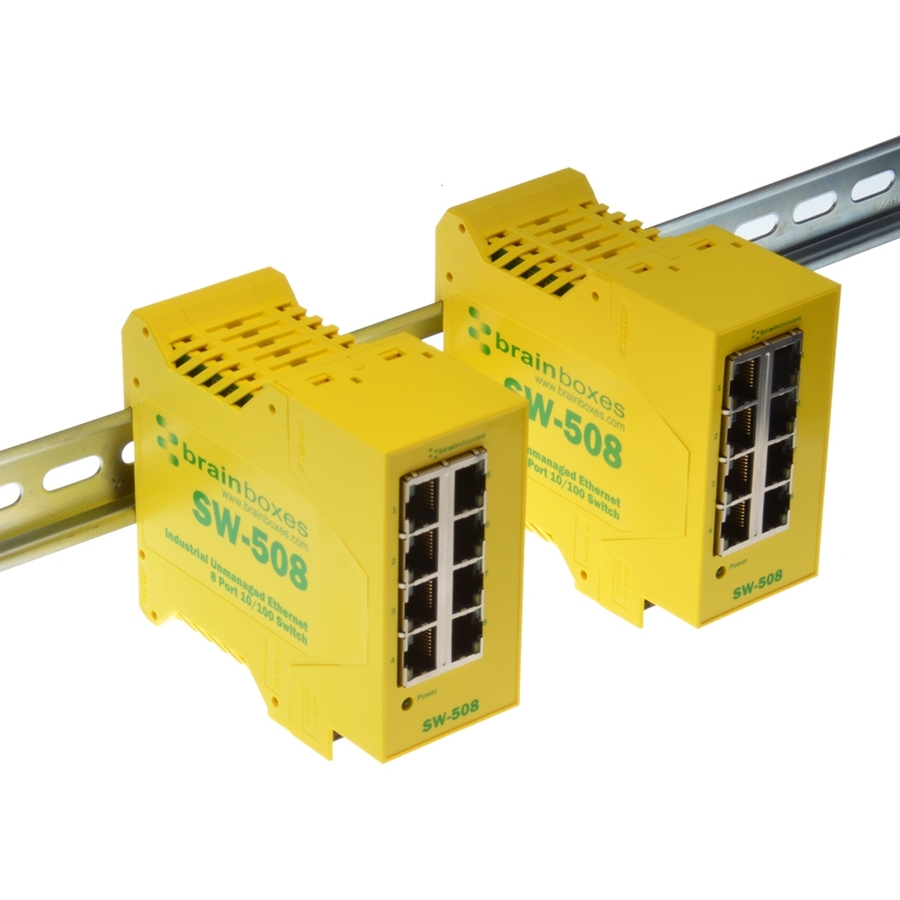

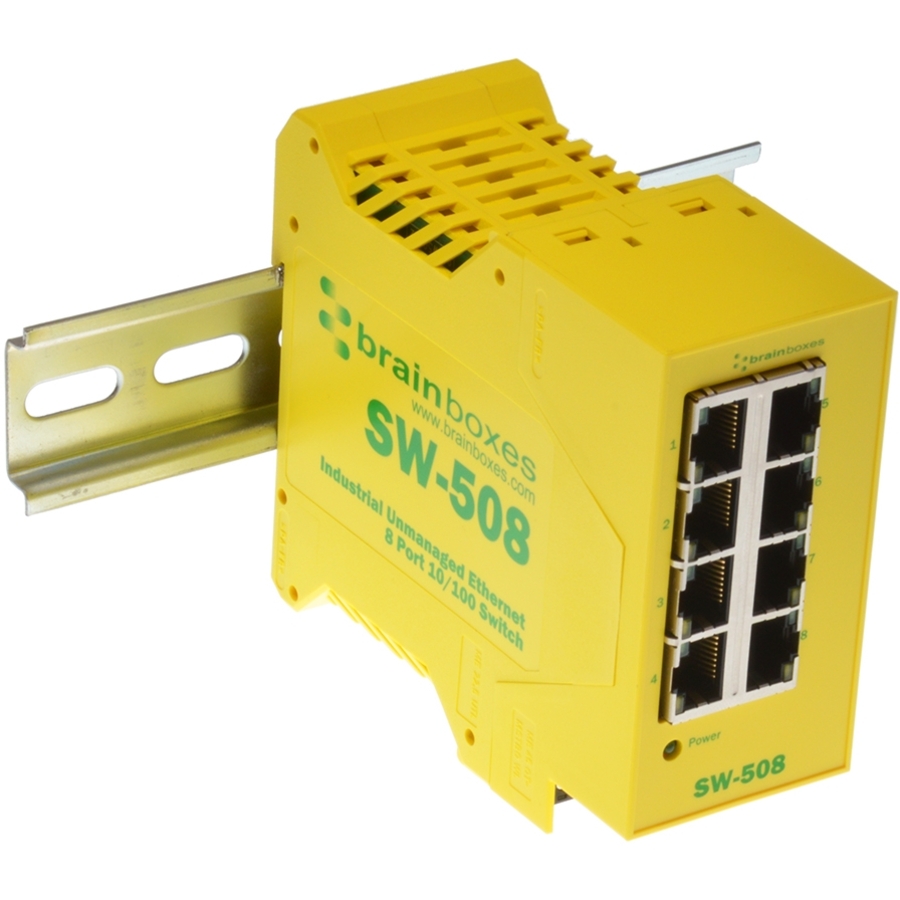

Integral DIN mount and slim
design takes up minimal
cabinet space
Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Warranty
Limited Warranty: Lifetime
Highlights
8 Port Ethernet Switch
Integrated DIN Rail Mount
Redundant dual power inputs: +5V to +30V DC
Industrial operating temp range -40°C to +80°C / -40°F to +176°F
No software required
Lifetime Warranty and Support
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-508
Brand Name
Brainboxes
Product Model
SW-508
Product Name
Industrial Ethernet 8 Port Switch DIN Rail Mountable
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
8
Uplink Port
No
Modular
No
Stack Port
No
Port/Expansion Slot Details
8 x Fast Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Ethernet
Network Technology
10/100Base-TX
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
Rail-mountable
Height
4.5"
Width
3.9"
Depth
1.8"
Weight (Approximate)
5.64 oz
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
Yes
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Industrial Ethernet 8 Port Switch DIN Rail Mountable
