SKU
SW-505
Category
Switches & Bridges
Overview

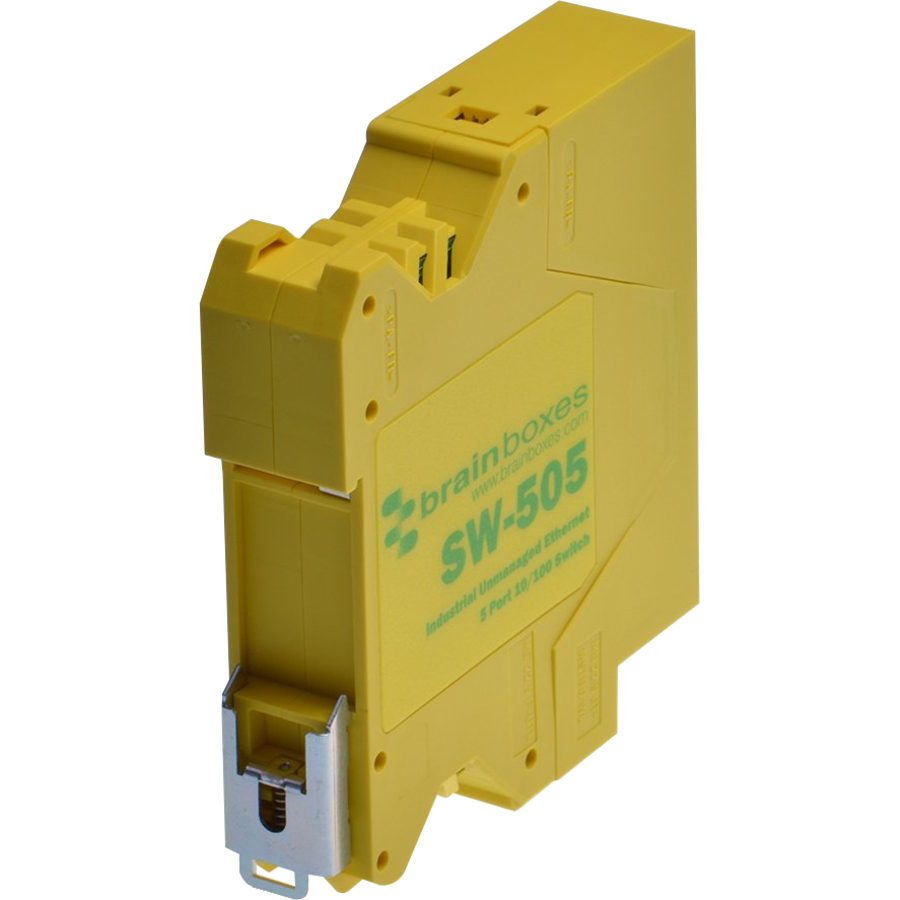

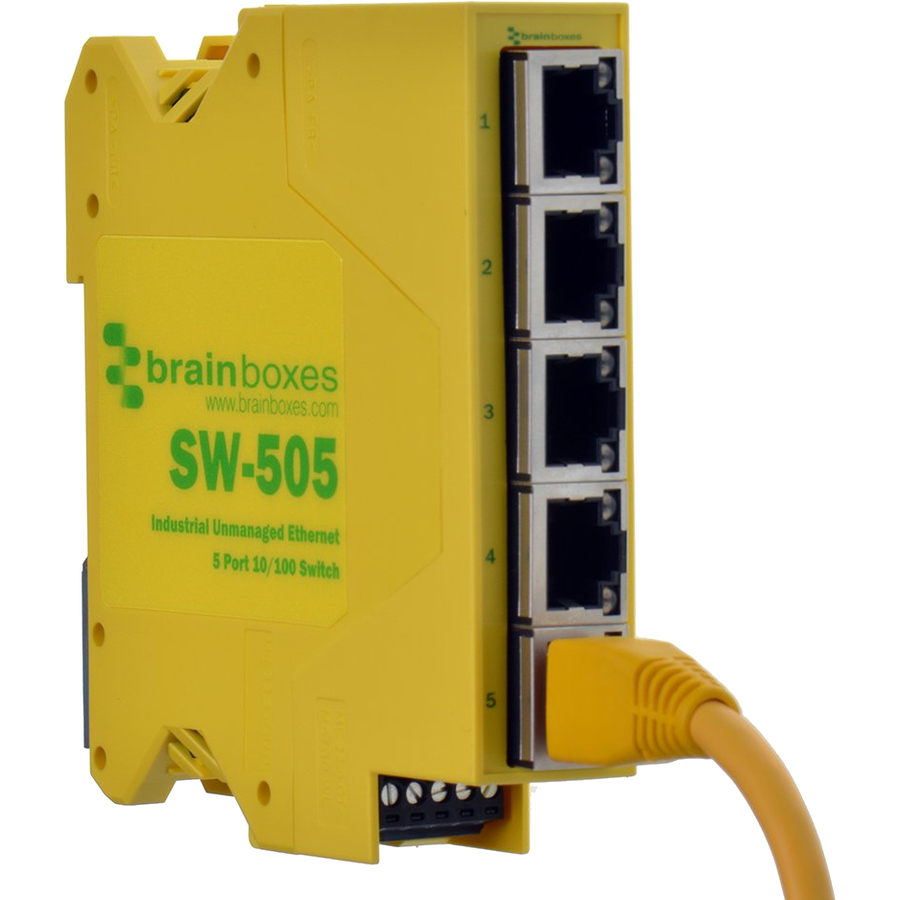

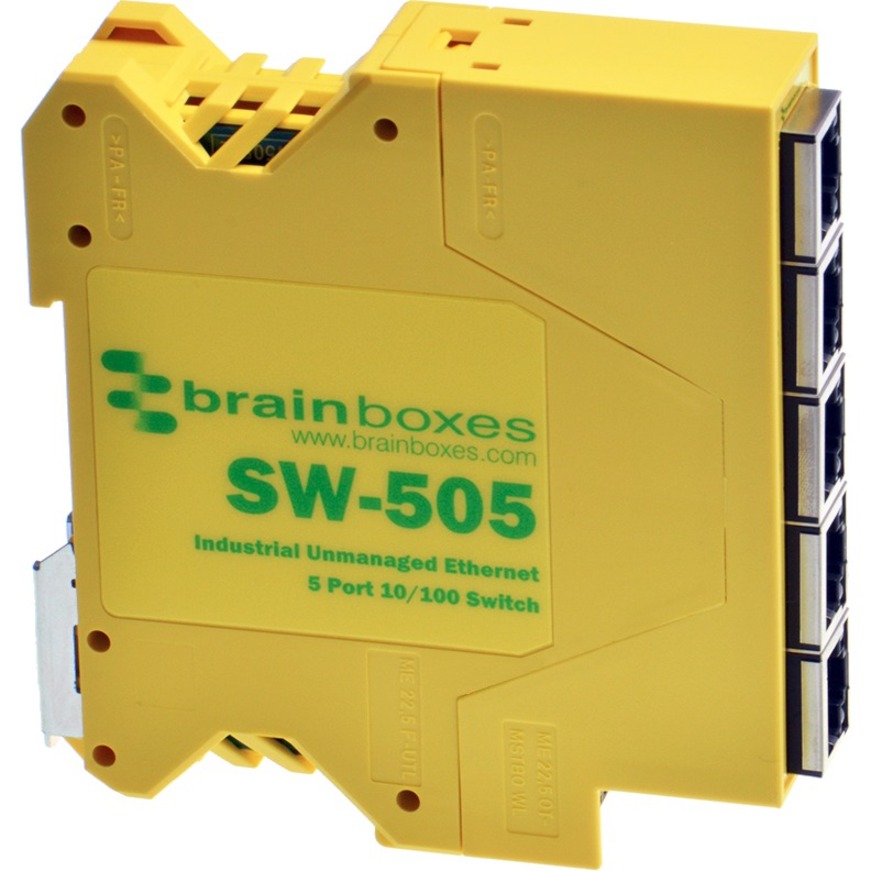

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
More from the Manufacturer
Industrial 5 Port Ethernet Switch 10/100
5 Port 10/100 Mbs Ethernet Switch
Redundant dual power inputs: +5V to +30V DC
Compact design with integral DIN mount
No software required - Simply plug in and connect
Industrial temperature range
Broadcast storm protection
5 Port Compact Ethernet Switch
Integrated DIN Rail Mount with grounding
Redundant dual power inputs: +5V to +30V DC
Industrial operating temp range -40°C to +80°C / -40°F to +176°F
Small Footprint Case, only 22.5mm wide, 94mm deep
+5 to +30 Volt Power Input
enables the device to be run
from USB, a vehicle battery or
the factory floor

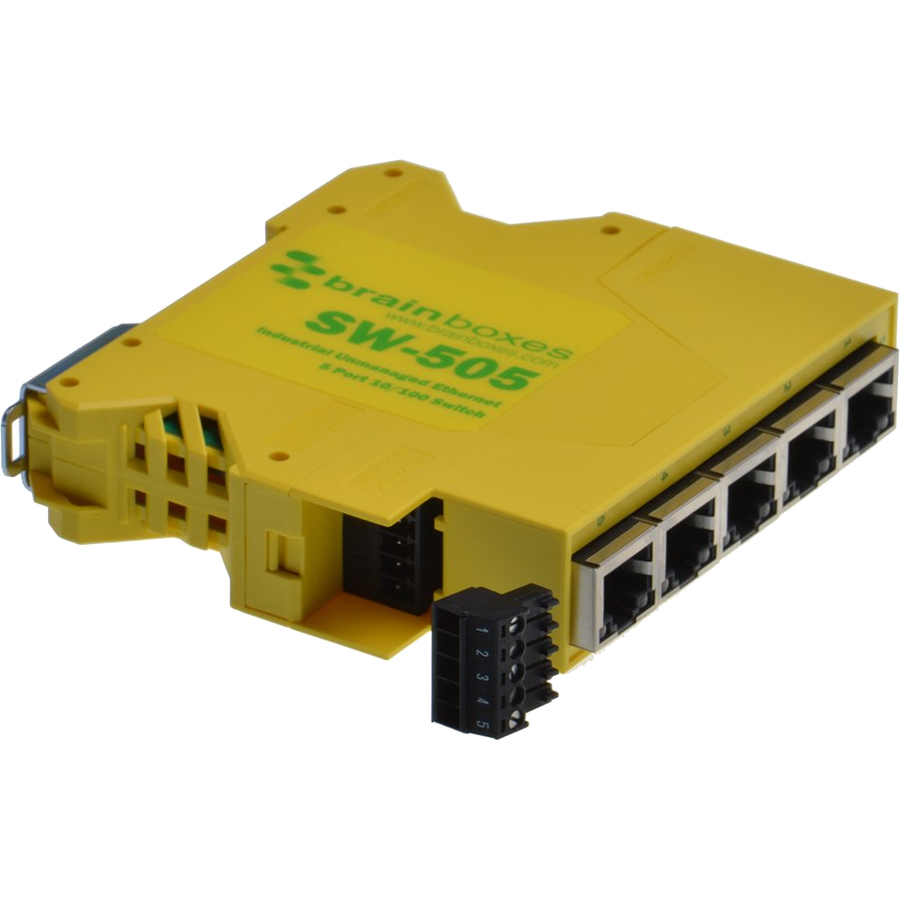

Non conducting polyamide
casing with removable
numbered power terminal for
easy wiring

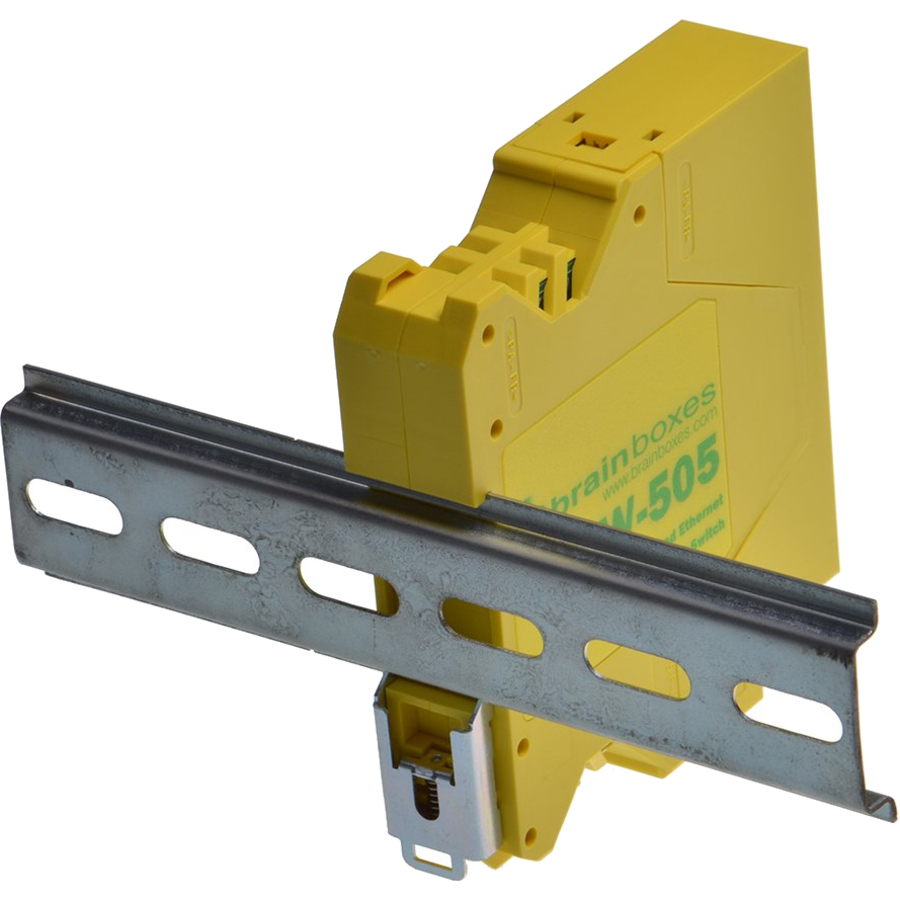

Integral DIN mount and slim
design takes up minimal
cabinet space
Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Warranty
Limited Warranty: Lifetime
Highlights
5 Port Compact Ethernet Switch
Integrated DIN Rail Mount with grounding
Redundant dual power inputs: +5V to +30V DC
Industrial operating temp range -40°C to +80°C / -40°F to +176°F
Small Footprint Case, only 22.5mm wide, 94mm deep
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-505
Brand Name
Brainboxes
Product Model
SW-505
Product Name
Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
5
Modular
No
Port/Expansion Slot Details
5 x Fast Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-TX
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
Rail-mountable
Height
0.9"
Width
3.7"
Depth
3.9"
Weight (Approximate)
4.06 oz
Power Description
Power Source
Power Adapter, USB
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
