Genuine Brainboxes through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Switches & Bridges
Country of origin
Great Britain
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.
Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Warranty
Limited Warranty: Lifetime
Highlights
High-speed, long-distance data transfer in a single, streamlined solution
SFP uplink - securely transmit lightning-fast data over longer distances
4 PoE+ capable ports - fully compliant to IEEE 802.3af/at
High PoE power budget 90W @ 70ºC between all 4 PoE ports simultaneously - efficiently deliver power to connected devices
Embedded industrial design - operating temp -40°C to +70°C / -40°F to +158°F
Redundant dual power inputs +44V to +57V DC: enhances system reliability
Smart LED indicators: real-time status information, quick visual monitoring
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-195
Brand Name
Brainboxes
Product Model
SW-195
Product Name

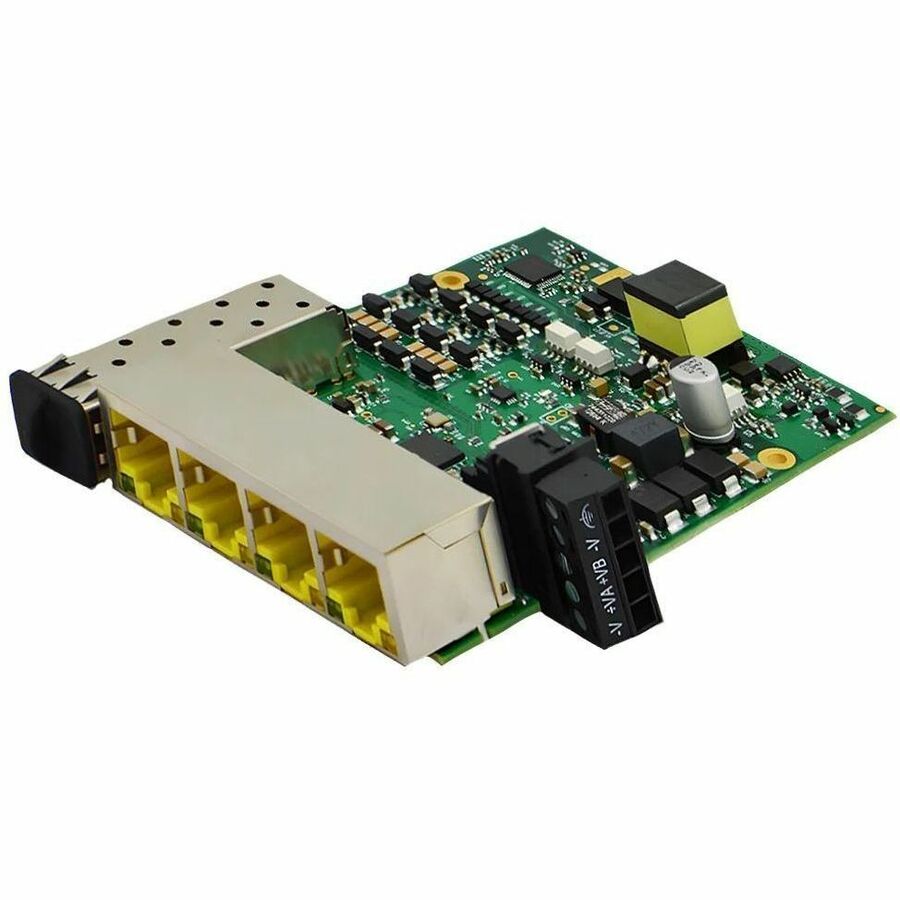

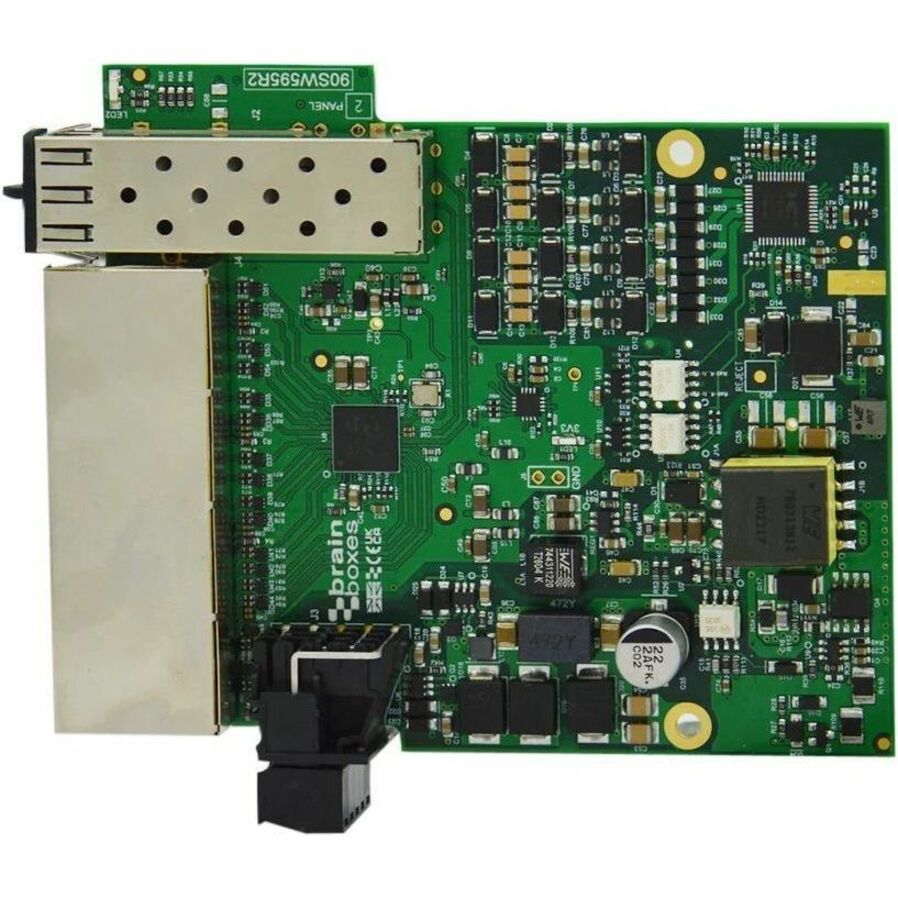

SW-195 Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
4
Network (RJ-45)
Yes
Uplink Port
Yes
Port/Expansion Slot Details
4 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port, 1 x 1000Base-X Gigabit Ethernet SFP Expansion Slot
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T, 1000Base-X
Maximum Data Transfer Rate
125 MB/s
Network & Communication
Layer Supported
2
Networking Standards
IEEE 802.3af, IEEE 802.3at
Physical Characteristics
Form Factor
Compact
Height
0.8"
Width
4.1"
Depth
3.4"
Weight (Approximate)
3.14 oz
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
90 W
Input Voltage
44 V DC, 57 V DC
Power Source
DC
Power Consumption
5.30 W
Warranty
Limited Warranty
Lifetime
I/O Expansions
Total Number of Expansion Slots
1
Expansion Slot Type
SFP
Number of SFP Slots
1
Miscellaneous
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
