Overview

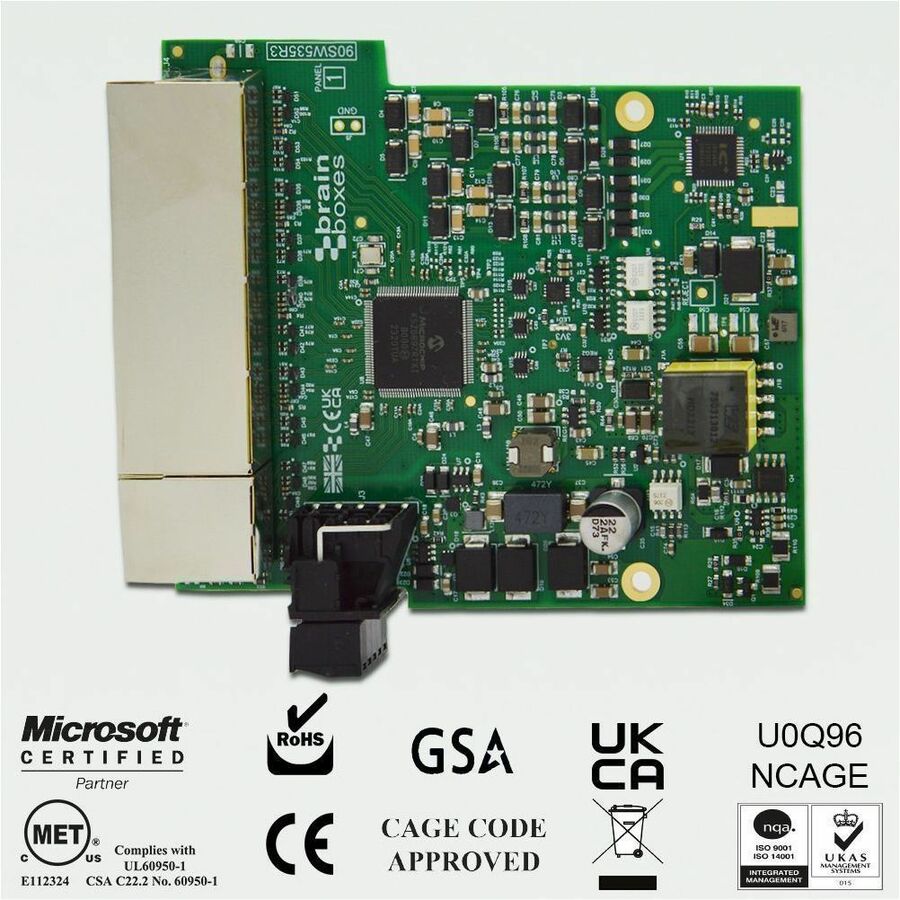

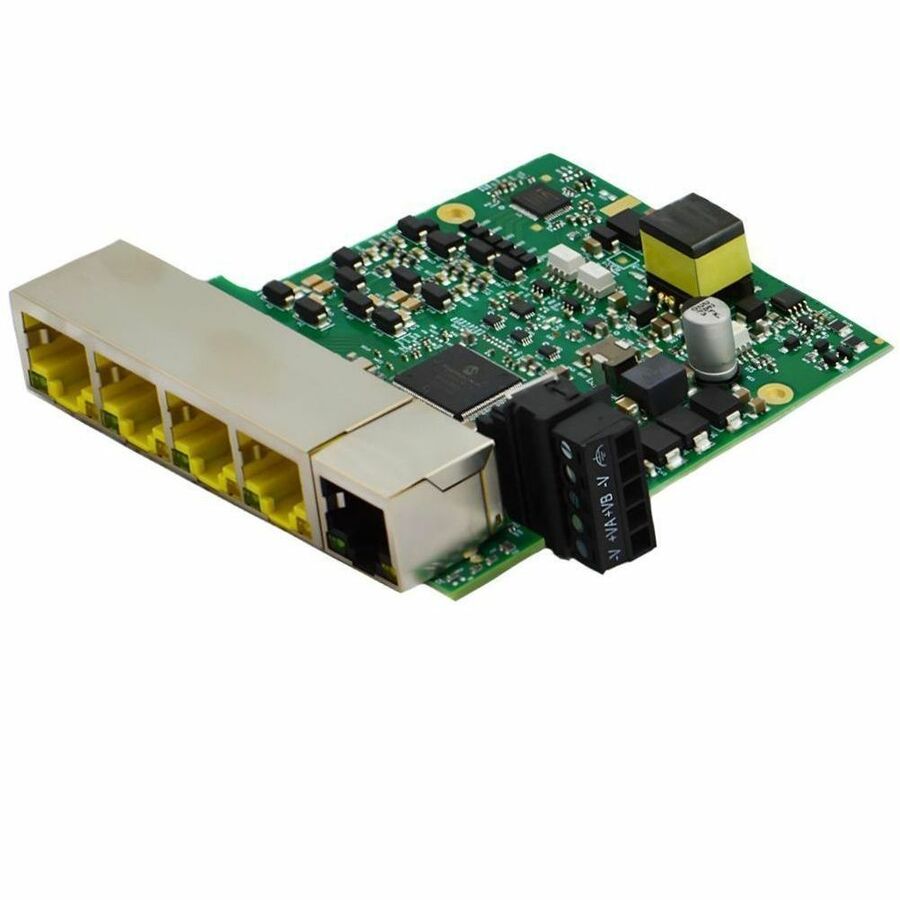

Compact embeddable 5 Port PoE+ Gigabit Ethernet device.
Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.
Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.
Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
Warranty
Limited Warranty: Lifetime
Highlights
Streamlined installation - power and data over the same cable
4 PoE+ capable ports - fully compliant to IEEE 802.3af/at
High PoE power budget 90W @ 70ºC between all 4 PoE ports simultaneously - efficiently deliver power to connected devices
Embedded industrial design - operating temp -40°C to +70°C / -40°F to +158°F
Redundant dual power inputs +44V to +57V DC: enhances system reliability
PoE power isolated from other power domains to 2kV
Smart LED indicators: real-time status information, quick visual monitoring
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-135
Brand Name
Brainboxes
Product Model
SW-135
Product Name
Embedded Industrial 5 Port PoE+ Gigabit Ethernet Switch
Packaged Quantity
1
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
5
Network (RJ-45)
Yes
Port/Expansion Slot Details
5 x Gigabit Ethernet PoE+
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Technology
100/1000Base-T
Maximum Data Transfer Rate
128 MB/s
Network & Communication
Layer Supported
2
Networking Standards
IEEE 802.3af, IEEE 802.3at
Physical Characteristics
Form Factor
Compact
Height
0.8"
Width
3.4"
Depth
4.1"
Weight (Approximate)
3.17 oz
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
90 W
Input Voltage
44 V DC, 57 V DC
Power Source
PoE, DC, USB
Power Consumption
5.50 W
Plug/Connector Type
Terminal Block
Technical Information
Features
LED Indicator
Warranty
Limited Warranty
Lifetime
Miscellaneous
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE)
