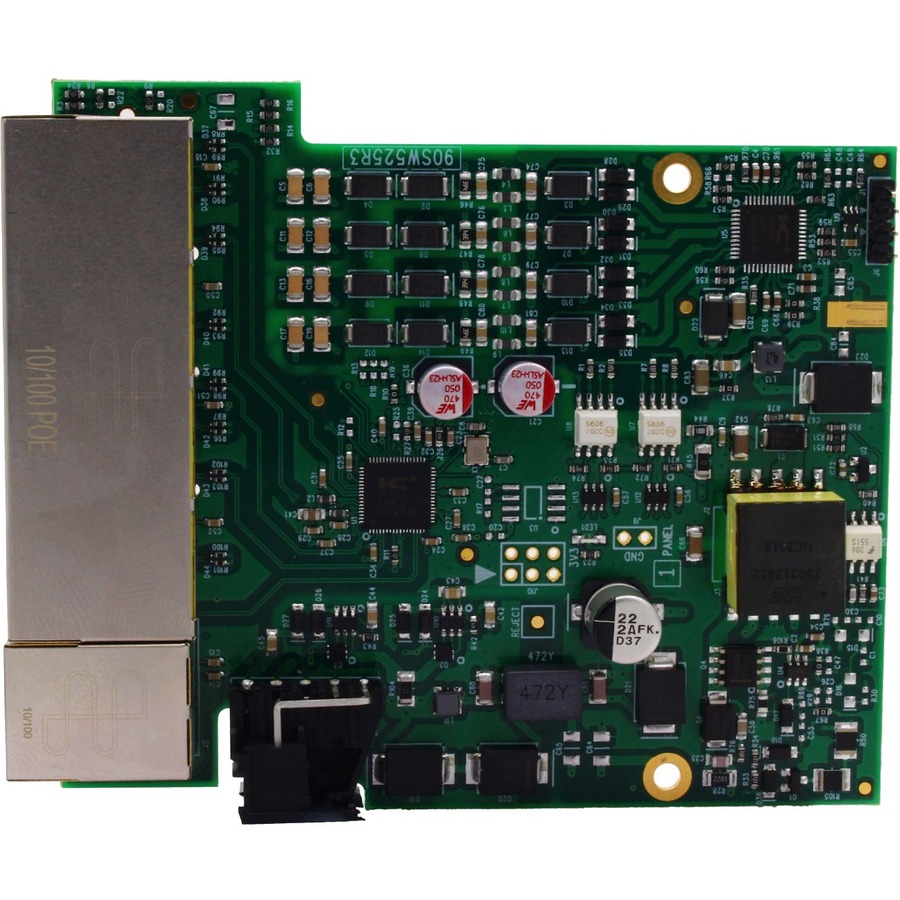

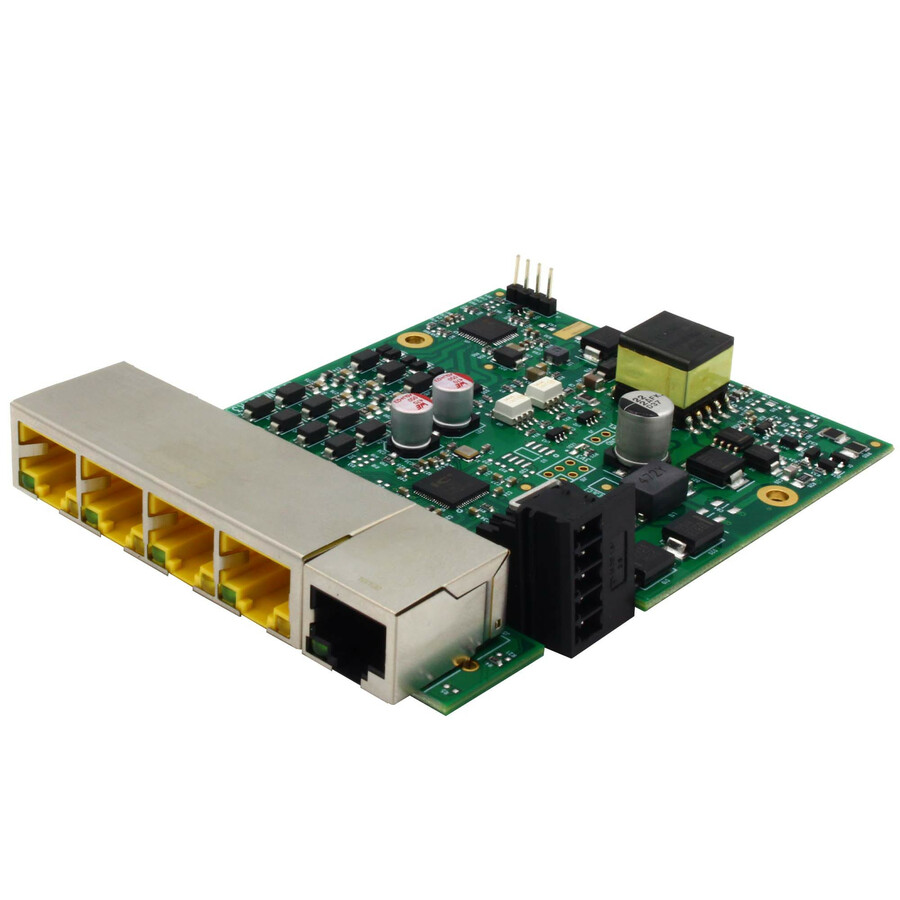

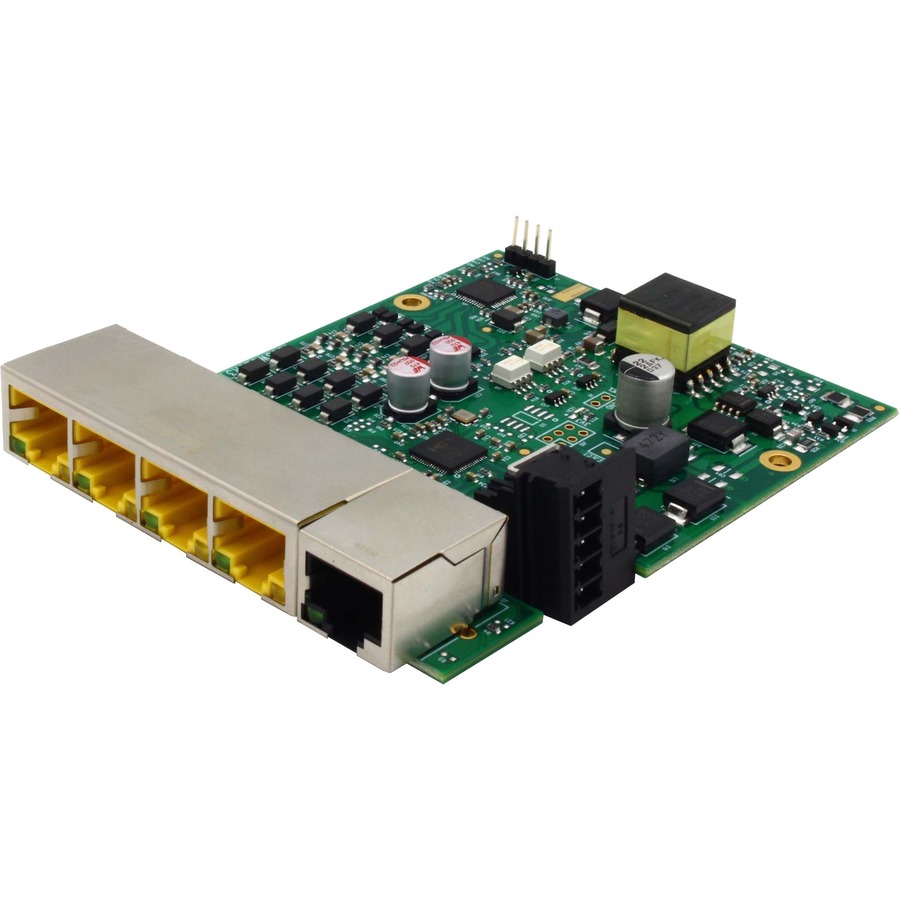

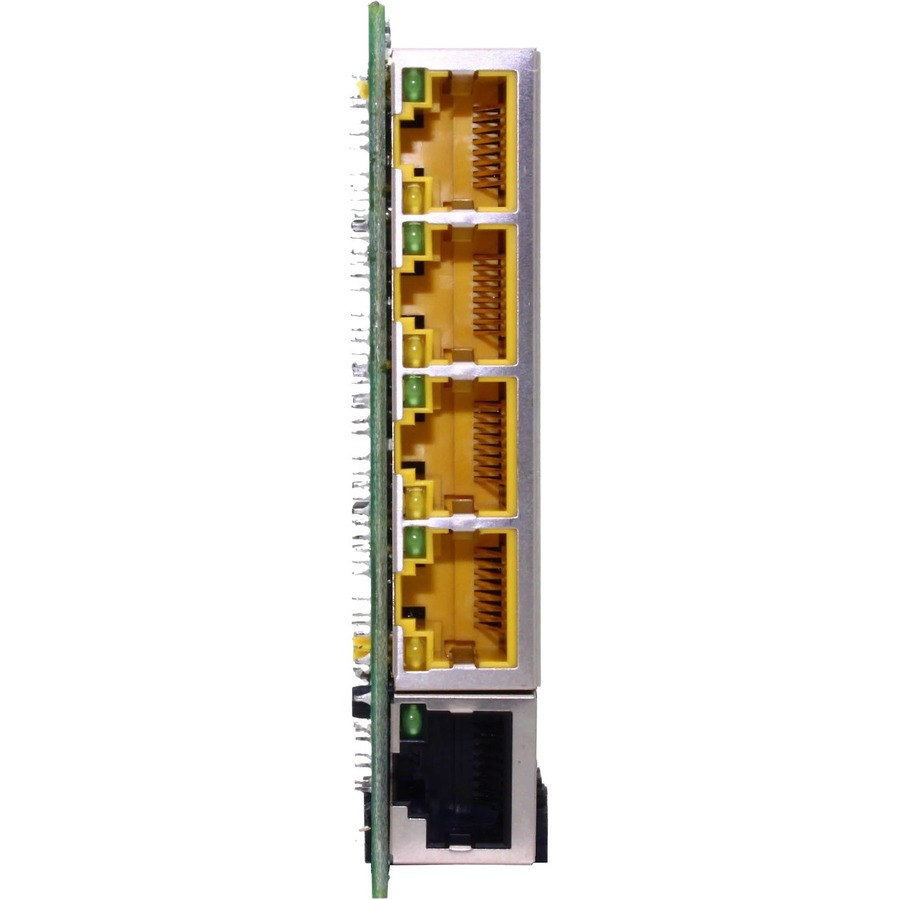

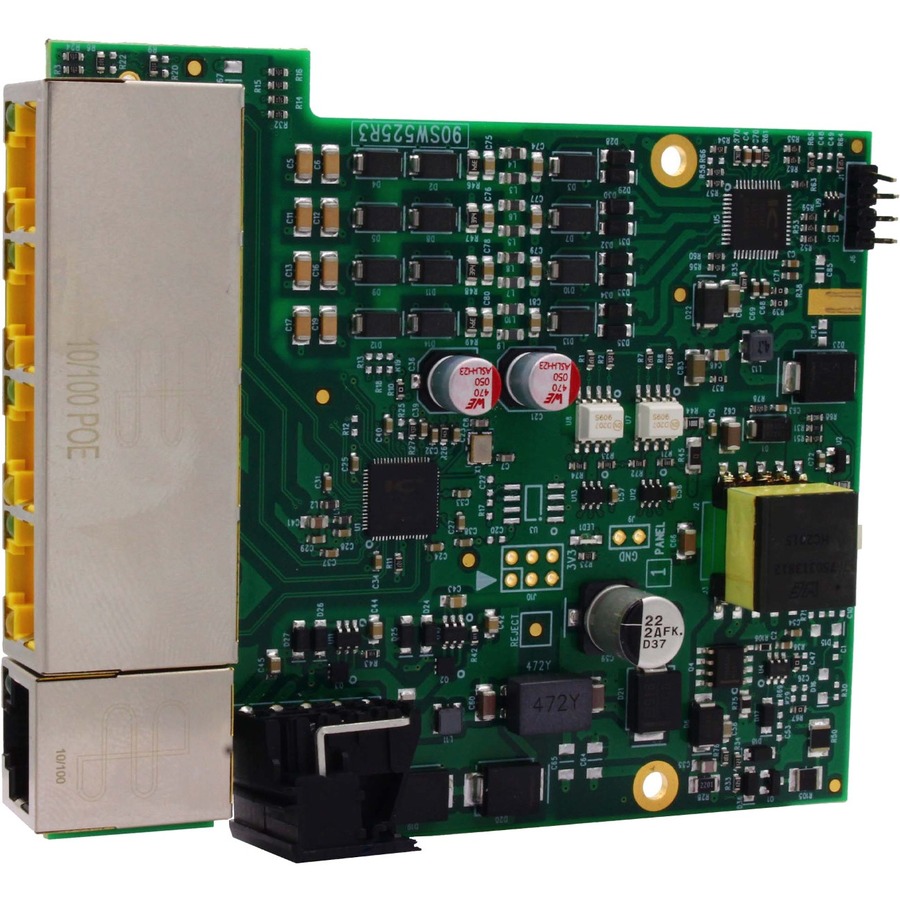

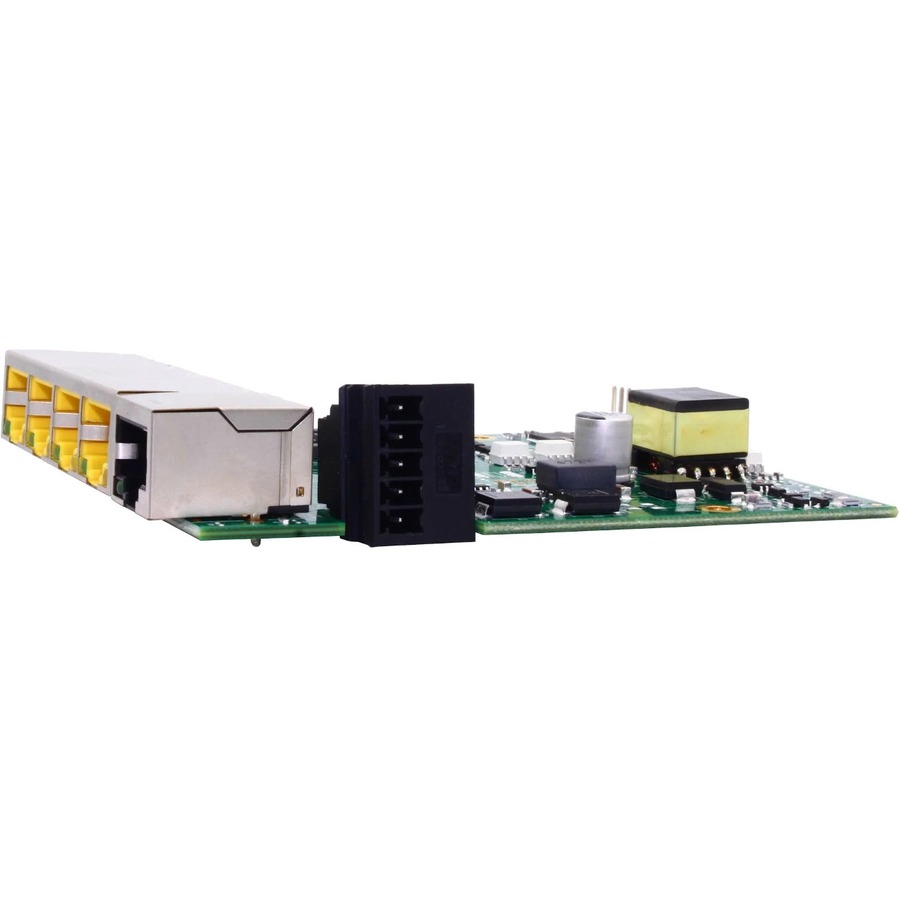

Brainboxes Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch
5 Ports - Fast Ethernet - 10/100Base-T - 2 Layer Supported - 4 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - Lifetime Limited Warranty - TAA Compliant
- SKU
- SW-125
- Category
- Switches & Bridges
MSRP$194.39
$169.33
Save 13%In stock: 2
Genuine Brainboxes through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SW-125
- Category
- Switches & Bridges
Overview
Compact embeddable 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
Highlights
- Allows power and data to be combined on the same Ethernet cable
- Ports 1-4 PoE+ capable
- Ports 1-4 IEEE 802.3af/at compliant: deliver up to 30W to each port (backwards compatible)
- PoE Power Budget: 90W @ 70ºC between all 4 PoE ports simultaneously
- Redundant dual power inputs: +44V to +57V DC
- Industrial operating temp range -40°C to +70°C / -40°F to +176°F
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 44 V DC, 57 V DC |
| Manufacturer Part Number | SW-125 |
| Power Source | Power Supply, USB |
| Limited Warranty | Lifetime |
| Layer Supported | 2 |
| Weight (Approximate) | 2.68 oz |
| Manufacturer | Brainboxes Limited |
| Product Model | SW-125 |
| Product Name | Embedded Industrial 5 Port PoE+ 10/100 Ethernet Switch |
| Network Technology | 10/100Base-T |
| Power Consumption | 4 W |
| Brand Name | Brainboxes |
| Plug/Connector Type | Terminal Block |
| Country of Origin | Great Britain |
| Height | 3.9" |
| Width | 3.5" |
| Depth | 2.4" |
| Manageable | No |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 4 x Fast Ethernet PoE+, 1 x Fast Ethernet Network |
| Redundant Power Supply Supported | Yes |
| TAA Compliant | Yes |
| PoE Budget | 90 W |
| Networking Standards | IEEE 802.3at, IEEE 802.3af |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
