SKU
SW-104
Category
Switches & Bridges
Overview

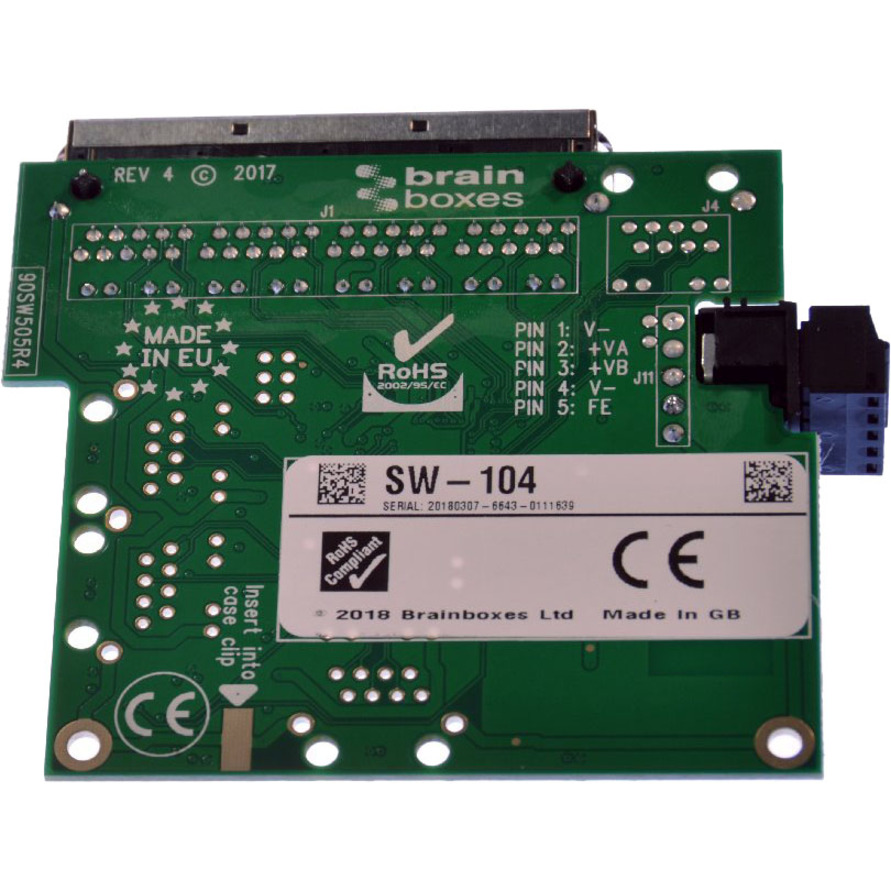

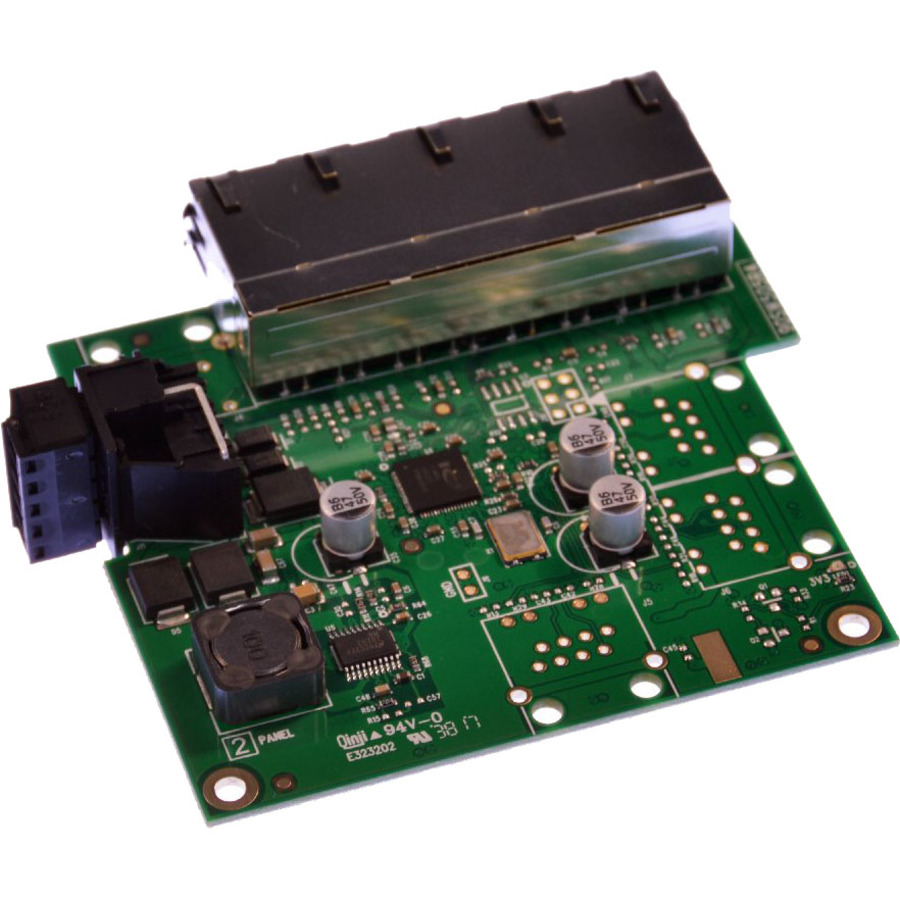

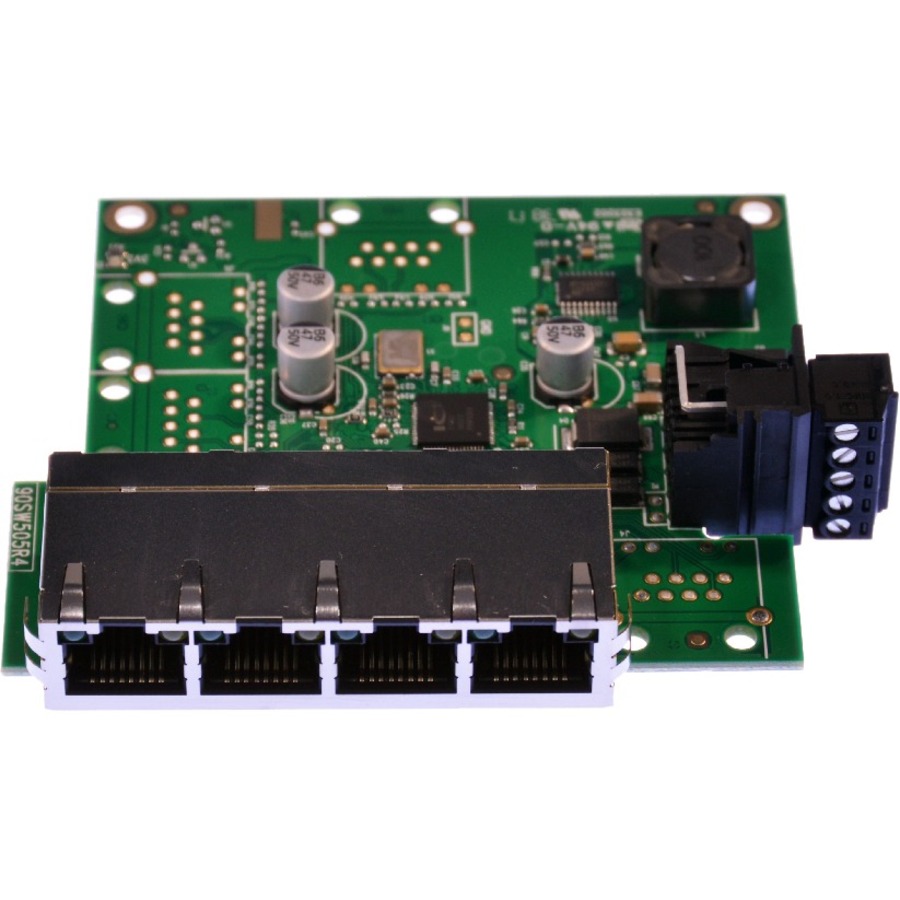

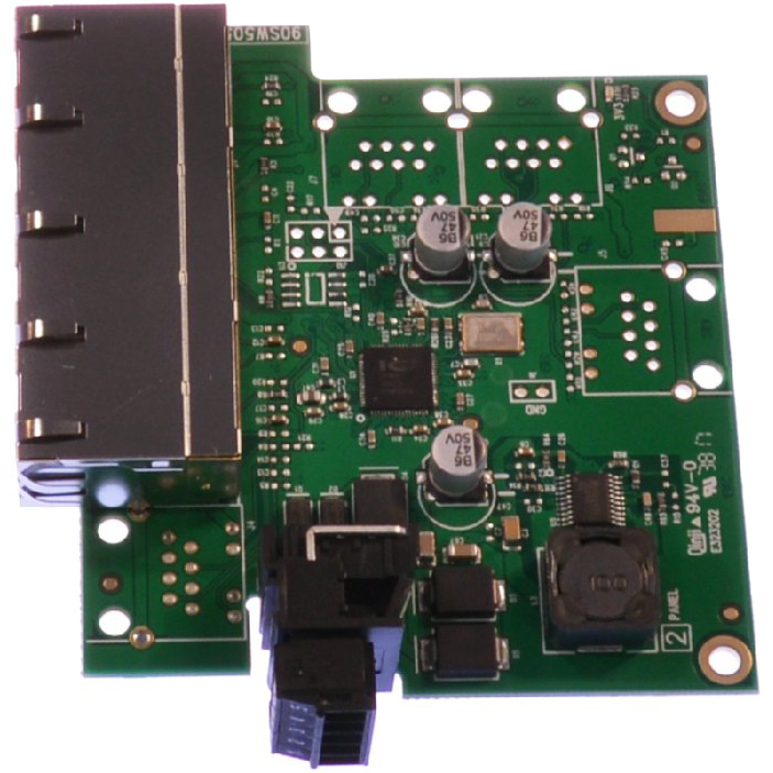

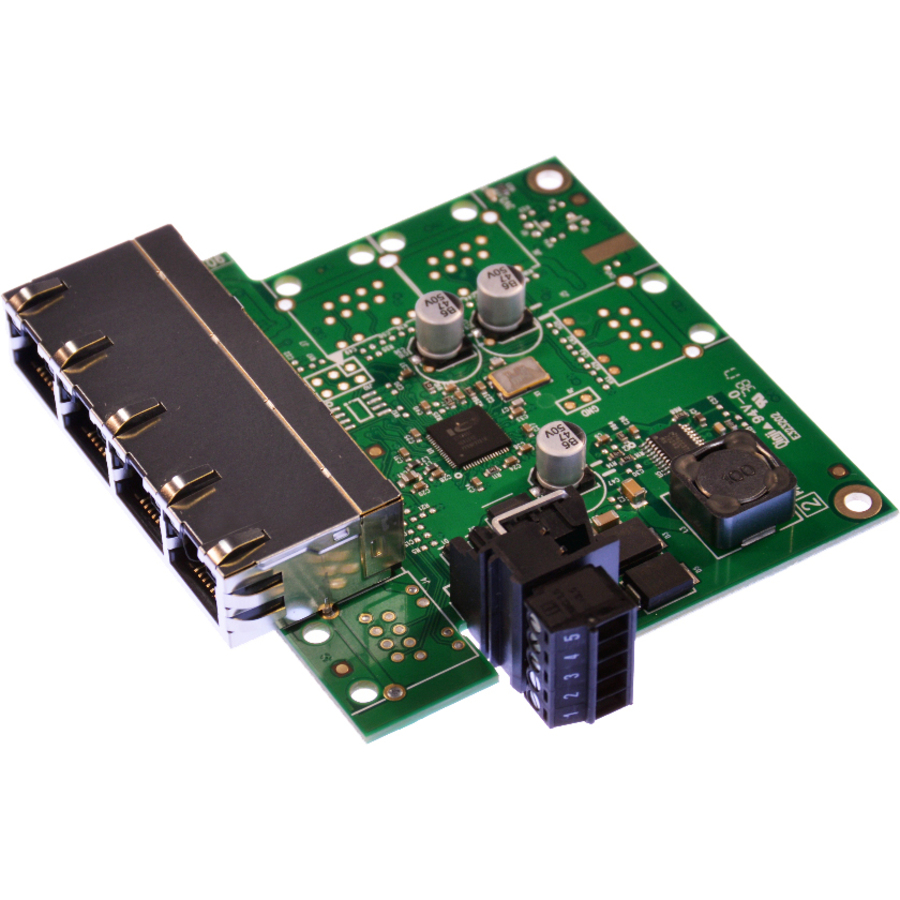

Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
Warranty
Limited Warranty: Lifetime
Highlights
4 Port Ethernet Switch
Ready for embedded applications
Redundant dual power inputs: +5V to +30V DC
Industrial operating temp range -40°C to +80°C / -40°F to +176°F
Lifetime Warranty and Support
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-104
Brand Name
Brainboxes
Product Model
SW-104
Product Name
Industrial Embeddable 4 Port Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
4
Uplink Port
No
Modular
No
Stack Port
No
Port/Expansion Slot Details
4 x Fast Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-T
Network & Communication
Layer Supported
2
Physical Characteristics
Height
0.8"
Width
3.7"
Depth
3.3"
Weight (Approximate)
2.15 oz
Power Description
Power Source
USB, Power Supply
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Industrial Embeddable 4 Port Ethernet Switch
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
