TRENDnet 26-Port Hardened Industrial Unmanaged Gigabit DIN-Rail Switch…

TRENDnet's high-performance AX3000 Dual Band WiFi 6 PoE+ Access Point, model TEW-923DAP, features two concurrent WiFi bands to maximize networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 2402Mbps on the 5GHz band and 573Mbps on the 2.4GHz band. The access point also supports Access Point (AP) and Repeater modes.

Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network. The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments, and includes a convenient wall / ceiling mounting plate.

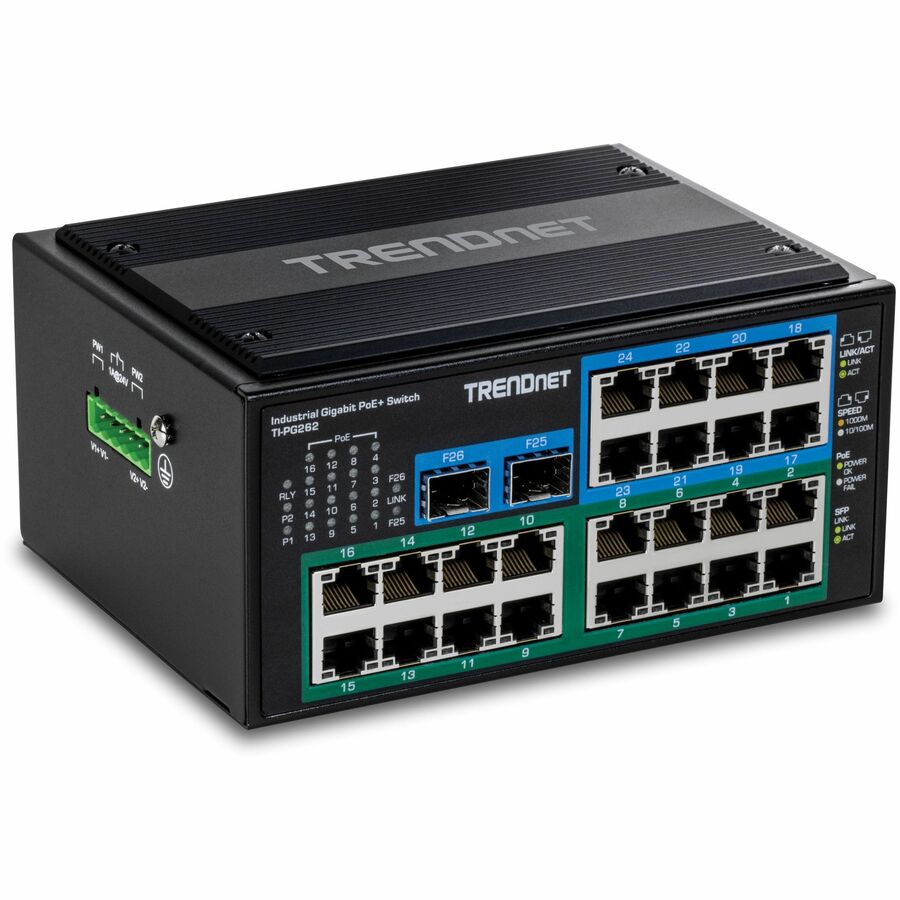

• DEVICE INTERFACE: 16 x Gigabit PoE+ Ports; 8 x Gigabit Ports; 2 x 100/1000Mbps SFP Ports; 6-Pin Removable Terminal Block; LED Indicators; DIN-Rail Mount; Wall Mount; Grounding Point

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG262 26-Port Hardened Industrial Unmanaged Gigabit DIN-Rail Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

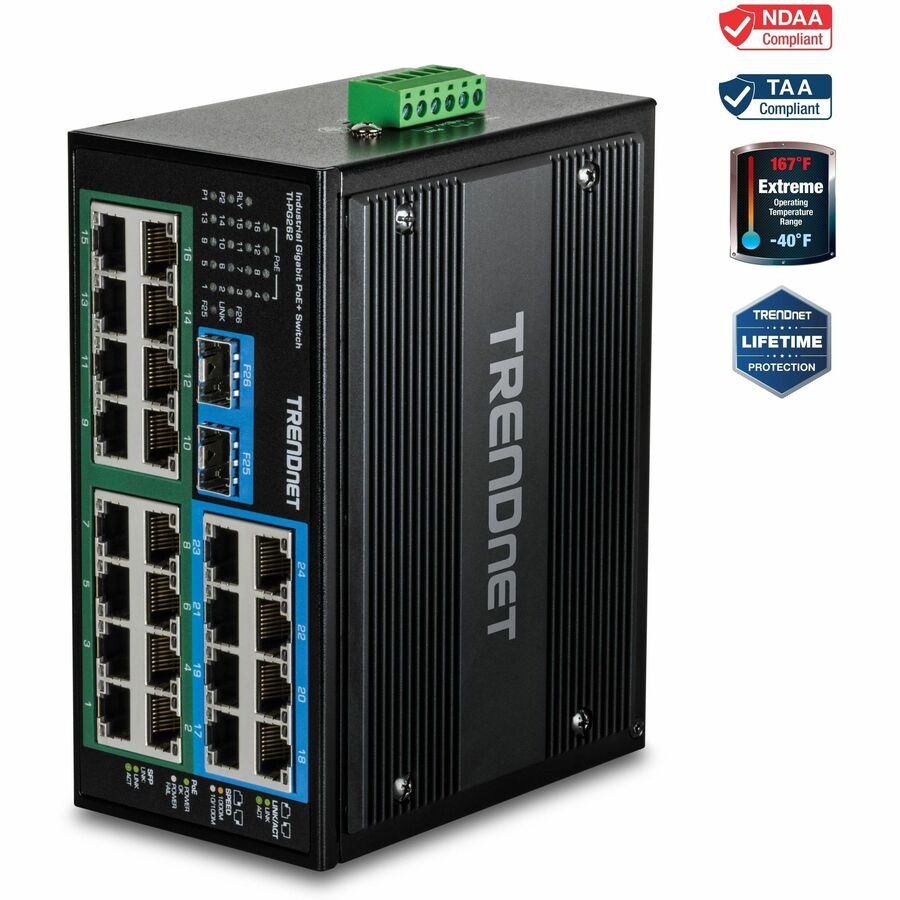

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• POE+ POWER & SWITCHING CAPACITY: The industrial unmanaged switch is equipped with 52Gbps switching capacity, and a 480W PoE power budget supplies up to sixteen Power over Ethernet devices with PoE+ power.

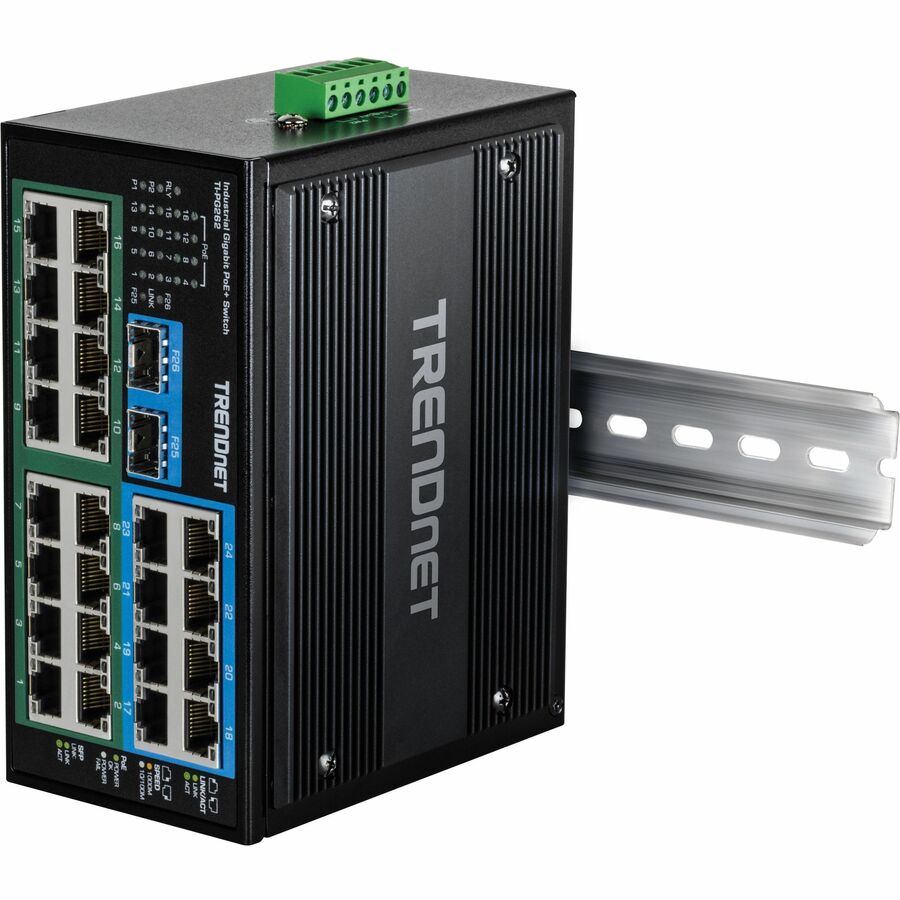

• DIN-RAIL & WALL MOUNT KIT: This 26-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and wall mounting hardware.

• SHOCK AND VIBRATION RESISTANT: Designed to withstand a high degree of vibration and shock. Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-31), and vibration (IEC 60068-2-6)

• EXTREME TEMPERATURE DESIGN: The metal hardened IP30 rated DIN-Rail switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments

• REDUNDANT POWER: The 26-port network switch has dual redundant power inputs with overload current protection (compatible power supply for this industrial PoE+ switch sold separately, model: TI-S48048)

• ELECTRO MAGNETIC COMPLIANCE: Complies with FCC Part 15 Subpart B Class A and CE EN 55032 Class A standards

More from the Manufacturer

TRENDnet’s Industrial Gigabit PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These Industrial Unmanaged PoE+ Switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Industrial Applications

Provides full PoE+ (30 watts) per port for devices such as access points, cameras, access control equipment, and more.

PoE+ Power

Provides full PoE+ (30 watts) per port for devices such as access points, cameras, access control equipment, and more.

Extreme Environments

Hardened IP30 switch, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range, functions in most environments.

• 16 x Gigabit PoE+ ports

• 8 x Gigabit ports

• 2 x 100/1000Mbps SFP ports

• Up to a 480 watt full PoE+ power budget

• 52Gbps switching capacity

• Hardened IP30 rated metal switch

• Includes DIN-Rail and wall mounts

• Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range

• Redundant power inputs with overload current protection

• Alarm output triggered by power failure

• Powers supply sold separately (Model TI-S48048)

• NDAA / TAA compliant

Switching Capacity

The 24-port industrial PoE+ switch with SFP ports features a 52Gbps switching capacity.

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately, model: TI-S48048)

Alarm Output

Alarm output triggered by power failure of primary and/or redundant power

Jumbo Frame

Alarm output triggered by power failure of primary and/or redundant power

Extreme Temperatures

This hardened 24-port rugged PoE+ switch with SFP ports is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55032 Class A standards

Certifications

Rated for information technology (ITE) and industrial equipment (EN55032/35)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-31), and vibration (IEC 60068-2-6)

Full PoE+ Power Budget

Supplies up to 30W of PoE/PoE+ power per port (802.3at/802.3af) with an up to 480W PoE power budget

Network Ports

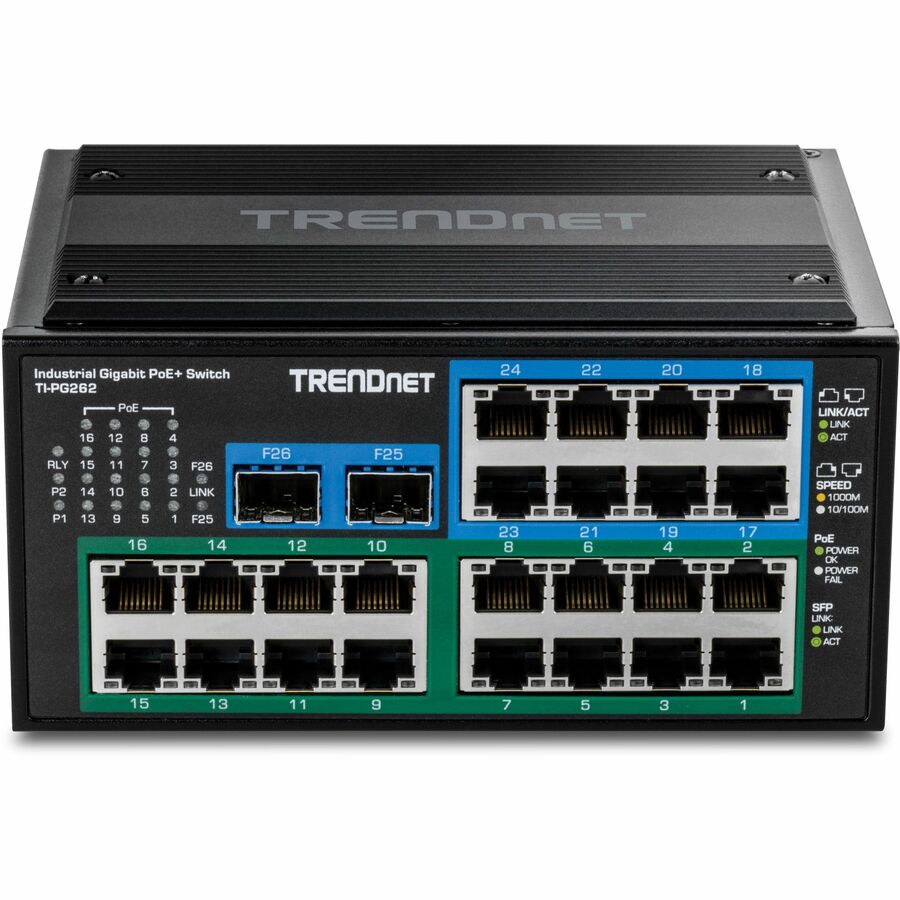

The 24-port DIN-Rail Ethernet switch with SFP ports features 16 x Gigabit PoE+ ports, 8 x Gigabit ports, and 2 x 100/1000Mbps SFP ports

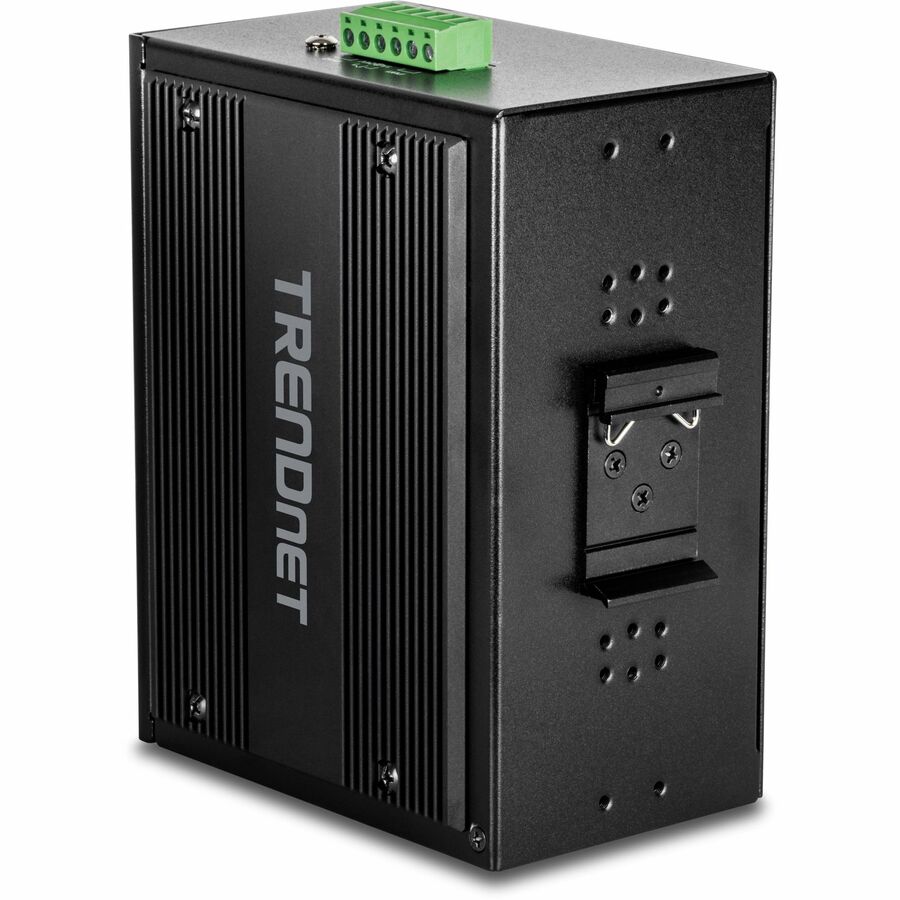

DIN-Rail/Wall Mounts

The 24-Port DIN-Rail Ethernet Switch with SFP ports features a IP30 rated metal enclosure with included DIN-Rail and wall mount hardware

Grounding Point

Grounding point on the 24-Port DIN-Rail Ethernet switch with SFP ports protects equipment from external electrical surges

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3z

IEEE 802.3x

IEEE 802.3af

IEEE 802.3at

Device Interface

16 x Gigabit PoE+ ports

8 x Gigabit ports

2 x 1000Mbps Fiber SFP ports

6-pin removable terminal block

LED indicators

DIN-Rail mount

Wall mount

Grounding point

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2000Mbps (full duplex)

Fiber: 2000Mbps (full duplex)

Performance

Data RAM Buffer: 512KB

Switching Fabric: 52Gbps

MAC Address Table: 8K entries

Jumbo Frame: 9KB

Forwarding Rate: 38.6Mpps (64-byte packet size)

Special Features

Hardened components rated for extreme temperatures

Dual power inputs

Auto negotiation

Auto store and forward architecture

Automatic address learning and address aging

ESD 8KV and Surge 2KV protection

Power

Input: 48 - 56V DC

Compatible power supply: TI-S48048 (sold separately)

Max. consumption: 5.76W @48D VC

PoE

802.3at: Up to 30W per port

PoE budget: 480W @56V DC

PoE Mode A: Pins 1, 2, 3, and 6 for power

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24/14-22

Stranded wire (AWG): 12-24/14-22

Torque: 5 lb. – In / 0.5Nm / 0.56 Nm

Wire strip length: 7-8mm

Alarm Relay Contact

Relay outputs with current carrying capacity of 1A, 24V DC

Short circuit mode when two power sources are connected

Open circuit mode when only one power source is connected

MTBF

503,149 hours

Housing

IP30 metal case

DIN-Rail mount

Wall mount

Grounding point

8KV ESD protection

2KV surge protection

Operating Temperature

- 40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95 % non-condensing

Dimensions

155 x 120 x 78mm (6.1 x 4.7 x 3 in.)

Weight

0.9kg (2 lb)

Certifications

CE

FCC

LVD

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-PG262

Quick Installation Guide

Removable terminal block

DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
