Switch; TI-PG162; 14 x Gigabit Ports; 2 x Gigabit SFP Slots; 32Gbps; IP30 Gigabit Network Ethernet Switch; Lifetime Protection

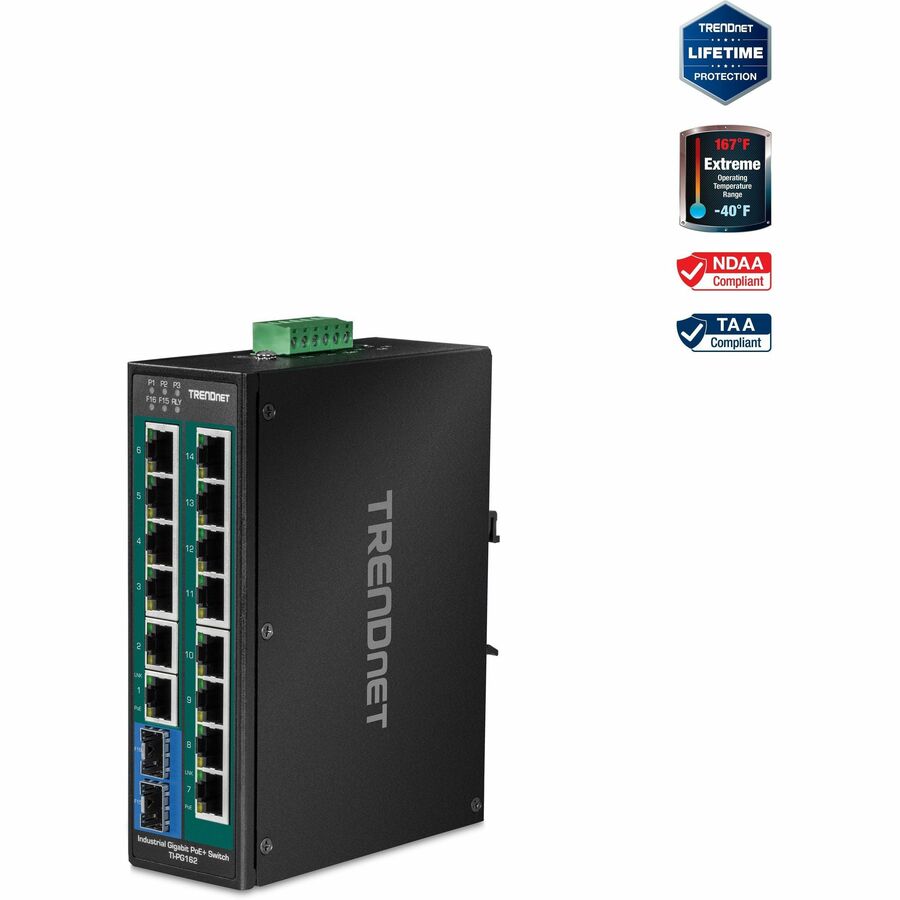

16-Port Industrial Gigabit PoE+ DIN-Rail Switch
$490.45*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 25 and Nov 29, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
TRENDnet's Industrial Gigabit PoE+ DIN-Rail Switches provide network connectivity in rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The Industrial Gigabit PoE+ DIN-Rail Switches each feature a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Our hardened industrial PoE+ switch models feature copper Gigabit PoE+ ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE+ DIN-Rail Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology inside these industrial PoE+ switches, users will only need one set of cables to deliver both data and power. Network PoE devices to this hardened industrial PoE+ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
• 14 x Gigabit PoE+ ports; 2 x Gigabit SFP slots; 240W PoE power budget; 32Gbps switching capacity
• LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG162 16-Port Hardened Industrial Unmanaged Gigabit PoE+ DIN-Rail Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Switches , you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• REDUNDANT POWER: Multiple power inputs on the industrial PoE+ switches provide redundant power with overload current protection (power supply sold separately, model: TI-S48048)
• DIN-RAIL / WALL MOUNTS: Rugged industrial PoE+ switch with IP30 rated metal enclosure, including DIN-Rail mount and wall mount hardware
• WIDE TEMPERATUTRE RANGE: A wide operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in industrial environments with extreme hot or cold conditions
• ALARM RELAY: Alarm relay triggered by power failure of primary and/or redundant power
• SHOCK AND VIBRATION RESISTANT: These hardened industrial PoE+ switches are rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
• GROUNDING POINT: This industrial PoE+ switch features a grounding point for protection against external electrical surges
More from the Manufacturer
OVERVIEW
TRENDnet's Industrial Gigabit PoE+ DIN-Rail Switches provide network connectivity in rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The Industrial Gigabit PoE+ DIN-Rail Switches each feature a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Our hardened industrial PoE+ switch models feature copper Gigabit PoE+ ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE+ DIN-Rail Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology inside these industrial PoE+ switches, users will only need one set of cables to deliver both data and power. Network PoE devices to this hardened industrial PoE+ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
PoE+ Power
This hardened industrial PoE+ switch features a 240W PoE+ power budget that supplies Power over Ethernet devices with 30W of PoE+ power per port.
Redundant Power
Multiple power inputs provide redundant power with overload current protection on this industrial PoE+ switch, minimizing network downtime (power supplies sold separately).
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40° – 75° C (-40° – 167° F).
PoE+ Power
Industrial PoE+ switches supply Power over Ethernet devices with up to 30W of PoE+ power per port
Gigabit Ports
Copper Gigabit PoE+ ports for high-speed device connections with the industrial unmanaged PoE+ switch, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications

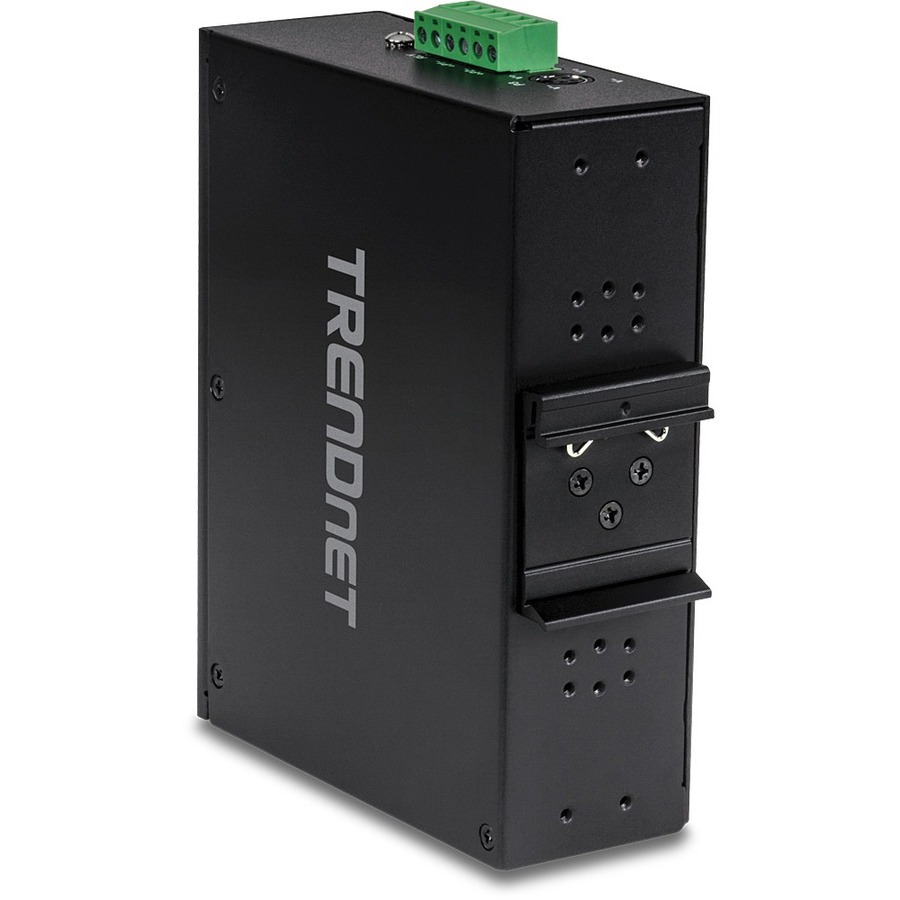

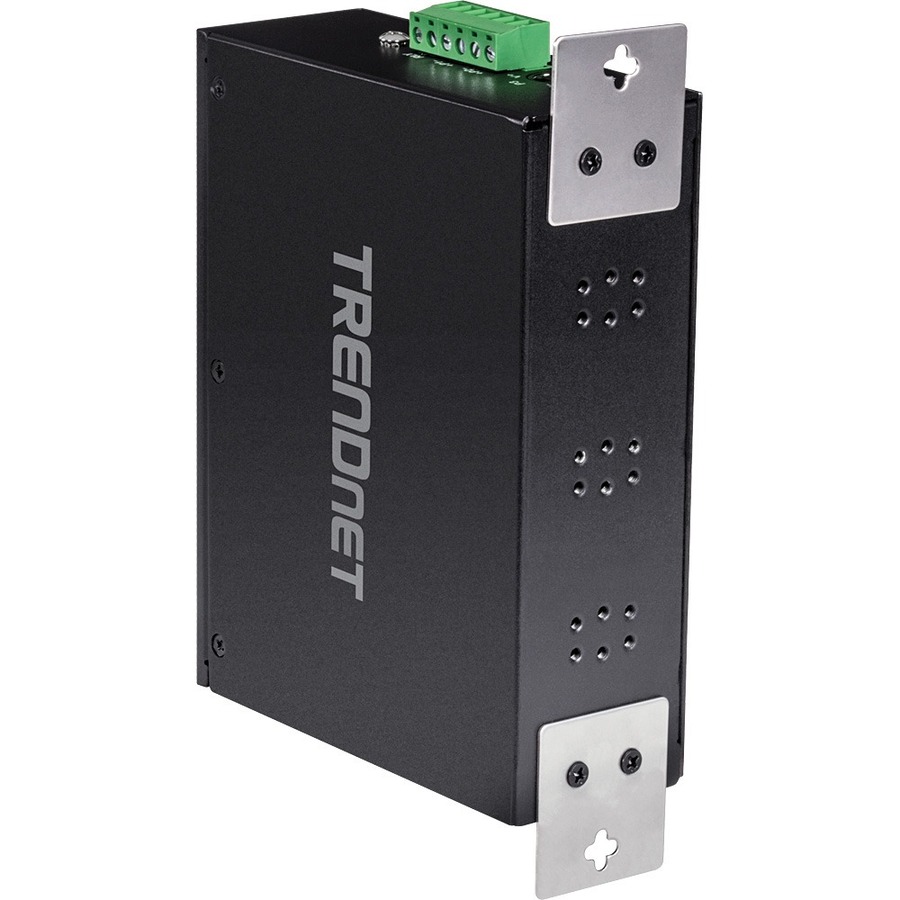

DIN-Rail / Wall Mounts
Rugged industrial PoE+ switch with IP30 rated metal enclosure, including DIN-Rail mount and wall mount hardware
Redundant Power
Multiple power inputs on the industrial PoE+ switches provide redundant power with overload current protection (power supply sold separately, model: TI-S48048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Supports larger packets, or Jumbo Frames (up to 9KB), for increased performance
Wide Temperature Range
A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions
Shock and Vibration Resistant
These hardened industrial PoE+ switches are rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Electro Magnetic Compliance
Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV
Grounding Point
This industrial PoE+ switch features a grounding point for protection against external electrical surges
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3z
IEEE 802.3af
IEEE 802.3at

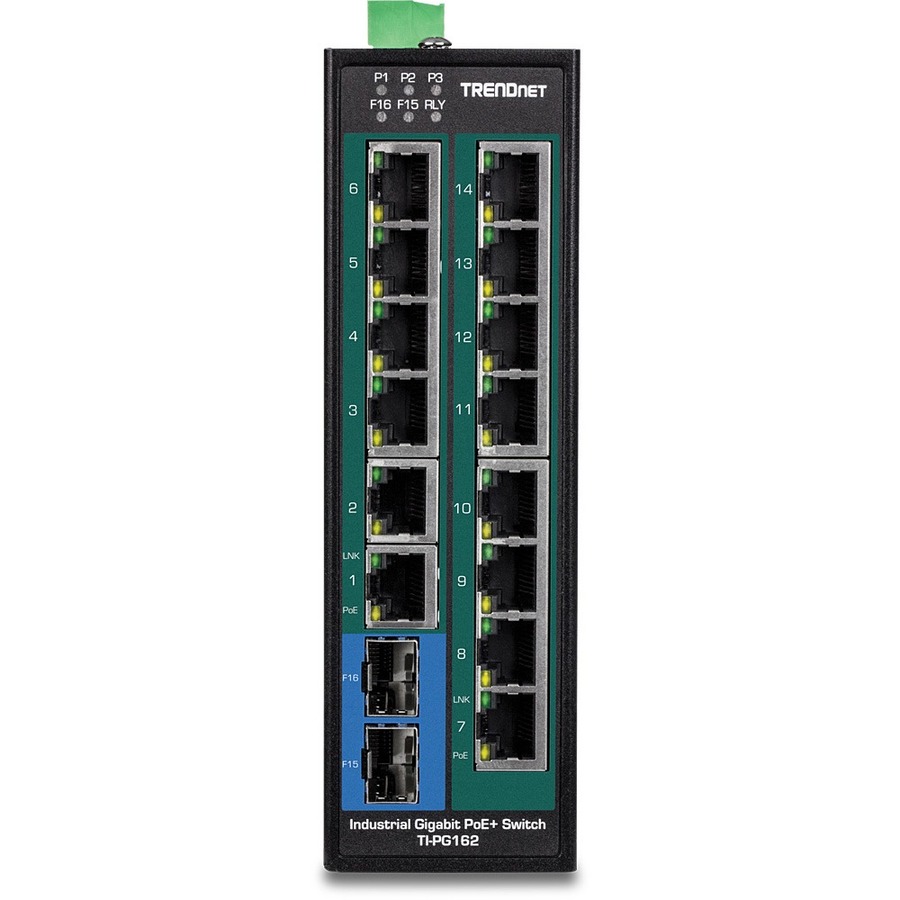

Device Interface
14 x Gigabit PoE+ ports
2 x Gigabit SFP slots
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
SFP: 2000Mbps (full duplex)
Performance
Data RAM Buffer: 512KB
Switching Fabric: 32Gbps
MAC Address Table: 8K entries
Jumbo Frame: 9KB
Forwarding rate: 23.8Mpps (64-byte packet size)
Special Features
Hardened components rated for extreme temperatures
Multiple redundant power inputs
ESD contact 6kV, air 8kV, and surge 2kV support
Low-profile design
DC Power
Input: 48 – 56V DC
Recommended power supply: TI-S48048 (sold separately)
Max. consumption: 13W (no PoE)
Optional Power Adapter (48VDC3000 sold separately)
Input: 100 – 240V AC, 50/60Hz, 2A
Output: 48V DC, 3.34A 160W max.
PoE
PoE budget: 240W

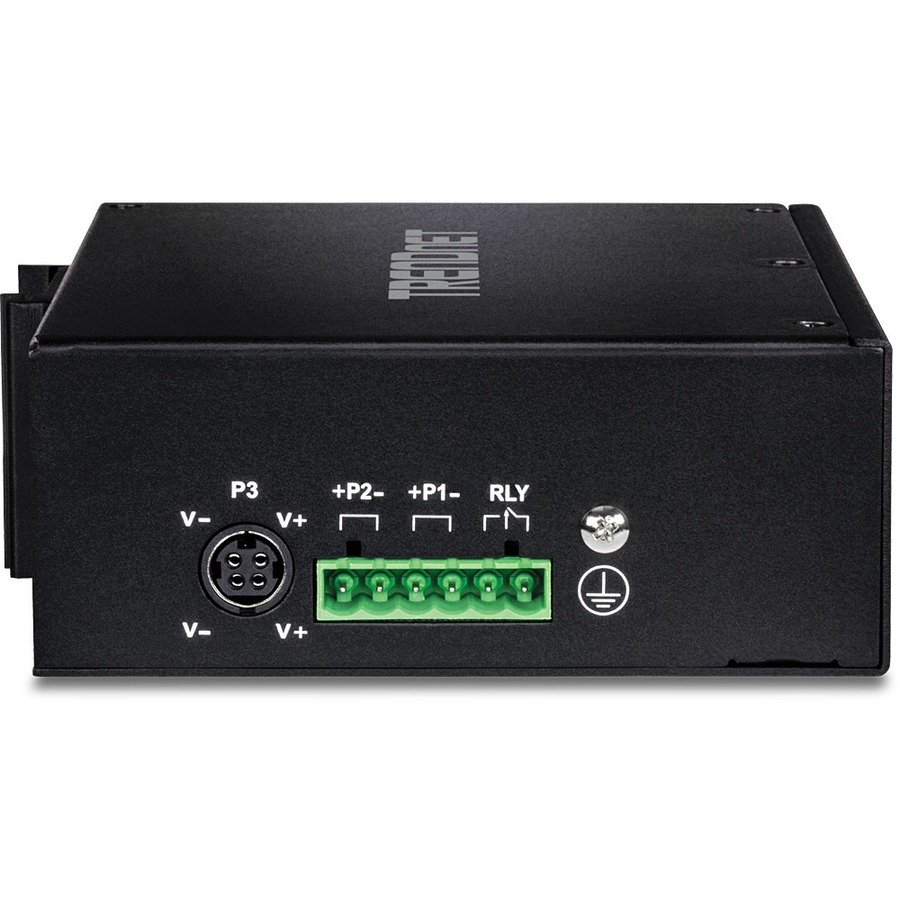

Terminal Block
Multiple power inputs, alarm relay contact, 6 pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5Nm / 0.56Nm
Wire strip length: 7-8mm
Alarm Relay Contact
Relay outputs with current carrying capacity of 1A, 24V DC
Open circuit mode when two power sources are connected
Short circuit mode when only one power source is connected
MTBF
504,738hrs @ 50° C
222,000hrs @ 75° C
Housing
IP30 metal case
DIN-rail mount
Wall mount
Grounding point
6kV contact protection
8kV air protection
2kV surge protection
Operating Temperature
- 40° – 75° C (-40° – 167° F)
Operating Humidity
Max. 95% non-condensing
Dimensions (L x W x H)
155 x 120 x 48mm (6 x 4.7 x 1.9 in.)
Weight
562g (19.8 oz.)
Certifications
CE
FCC
MET
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TI-PG162
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
16-Port Industrial Gigabit PoE+ DIN-Rail Switch
14 x Gigabit PoE+ ports
2 x Gigabit SFP slots
240W PoE power budget
32Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-Rail mount and wall mount brackets
Wide operating temperature range of -40° – 75°C (-40° – 167°F)
Multiple inputs provide redundant power with overload current protection
Alarm output triggered by power failure
Power supply sold separately (model: TI-S48048)
NDAA / TAA compliant
Lifetime Warranty
Limited Warranty: Lifetime
TRENDnet 16-Port Industrial Gigabit PoE
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-PG162 |
| Brand Name | TRENDnet |
| Product Model | TI-PG162 |
| Product Name | 16-Port Industrial Gigabit PoE |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Modular | Yes |
| Port/Expansion Slot Details | 14 x Gigabit Ethernet PoE+, 2 x Gigabit Ethernet Expansion Slot |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T, 1000Base-FX |
| Network & Communication | |
| Layer Supported | 2 |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Height | 3" |
| Width | 6" |
| Depth | 8" |
| Length | 6.1" |
| Weight (Approximate) | 1.05 lb |
| Warranty | |
| Limited Warranty | Lifetime |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
