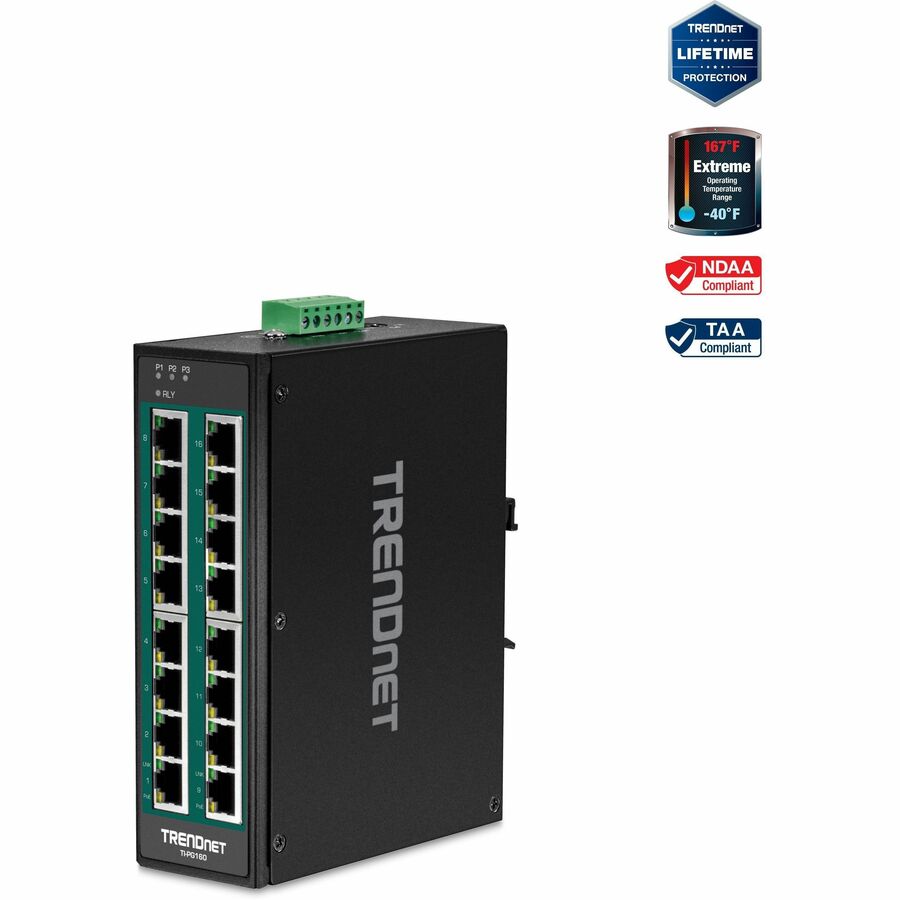

DIN-Rail Switch w/ 16 Gigabit PoE+ Ports; Lifetime Protection; TI-PG160
16-Port Industrial Gigabit PoE+ DIN-Rail Switch
$465.32*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 26 and Nov 30, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
TRENDnet's 16-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG160, has sixteen gigabit PoE+ ports with a 240W PoE power budget. Users are able to connect sixteen PoE+ devices to the industrial PoE switch, while still providing two gigabit ports for additional network connections. The industrial PoE switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments
• NETWORK PORTS: Industrial PoE switch with 16 Gigabit PoE+ ports
• LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG160 16-Port Industrial Gigabit PoE+ DIN-Rail Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• POE+ POWER & SWITCHING CAPACITY: Supplies up to 30W of PoE/PoE+ power per port on the industrial PoE switch with a 240W PoE power budget and 32Gbps switching capacity
• REDUNDANT POWER: Redundant power inputs with overload current protection (power supply sold separately models: TI-S24052, TI-S24048 / TI-S48048)

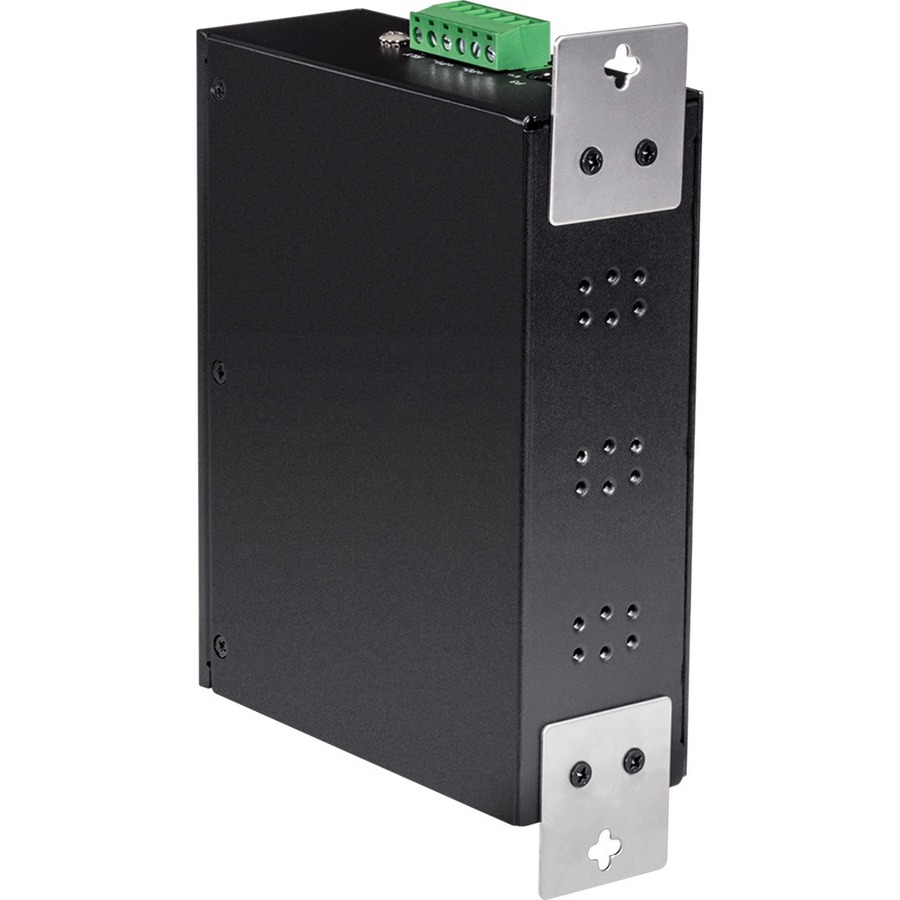

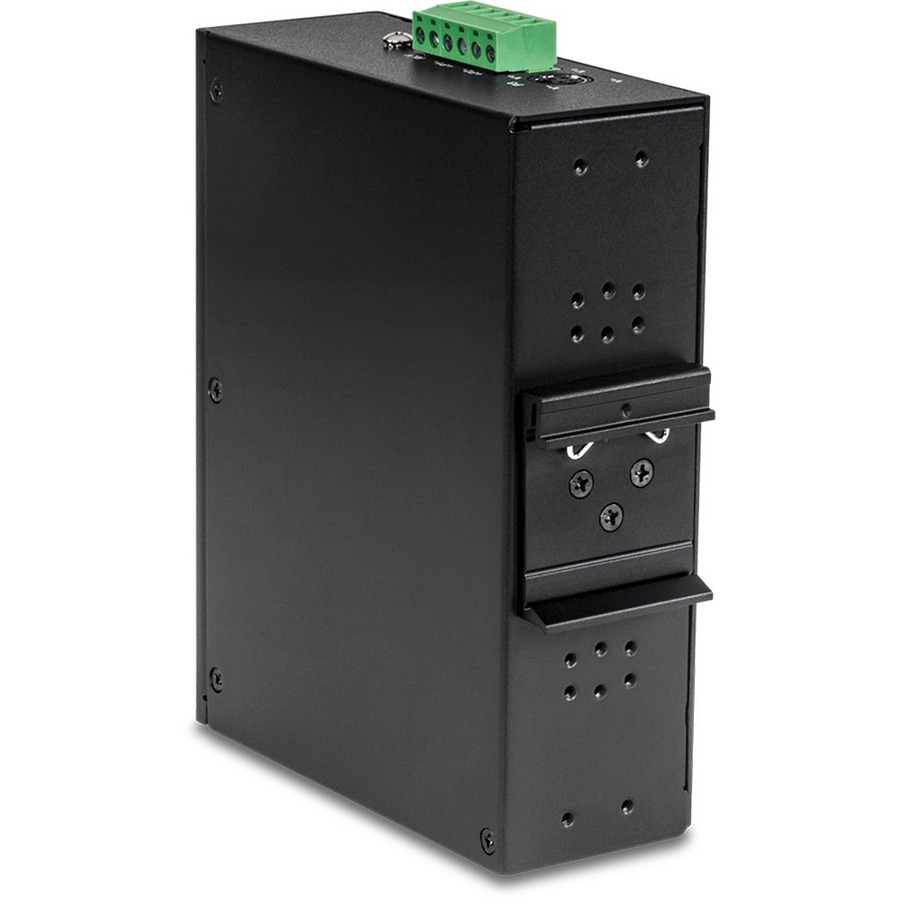

• DIN-RAIL & WALL MOUNTS: IP30 rated metal enclosure with included DIN-rail and wall mount hardware
• GROUNDING POINT: Grounding point on the industrial PoE switch protects equipment from external electrical surges
• SHOCK & VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
• EXTREME TEMPERATURES : Industrial PoE switch rated for an operating temperature range of -40 - 75° C (-40 - 167° F)
More from the Manufacturer
OVERVIEW
TRENDnet's 16-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG160, has sixteen gigabit PoE+ ports with a 240W PoE power budget. Users are able to connect sixteen PoE+ devices to the industrial PoE switch, while still providing two gigabit ports for additional network connections. The industrial PoE switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
PoE Power
A 240W PoE+ power budget supplies up to sixteen Power over Ethernet devices with PoE+ power
Fault Tolerance
The industrial PoE switch features dual redundant power inputs with output alarm relay
Industrial Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40 – 75° C (-40 – 167° F)
PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port on the industrial PoE switch with a 240W PoE power budget
Network Ports
Industrial PoE switch with 16 Gigabit PoE+ ports
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
32Gbps switching capacity
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately models: TI-S24052, TI-S24048 / TI-S48048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Extreme Temperatures
Industrial PoE switch rated for an operating temperature range of -40 – 75° C (-40 – 167° F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point on the industrial PoE switch protects equipment from external electrical surges
Aenean sit amet
Aenean sit amet pellentesque odio. Maecenas quis tellus non odio pellentesque lobortis. Phasellus eleifend ante a turpis laoreet, quis facilisis risus cursus. Suspendisse convallis convallis turpis, non ornare ipsum ultricies et. In elementum rutrum dui eget dictum. Sed non luctus lacus. Praesent sed turpis viverra, cursus sapien ut, convallis nisi. Mauris sed placerat nibh. Sed mollis vulputate.
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
Device Interface

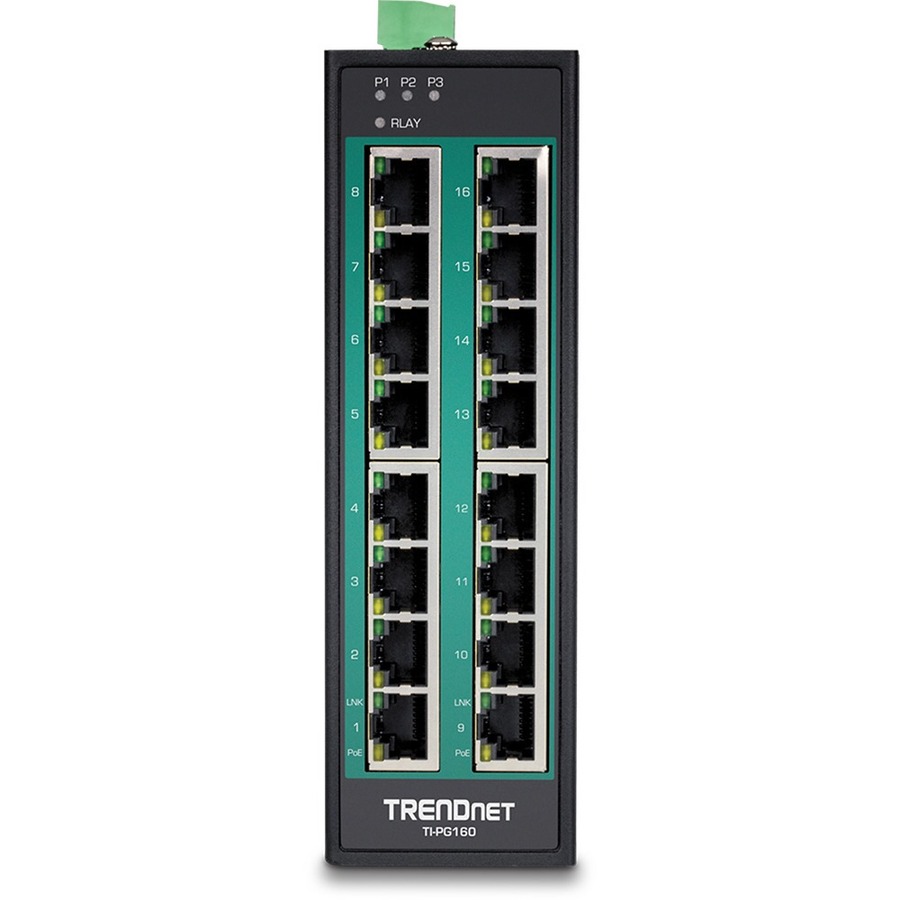

16 x Gigabit PoE+ ports
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Performance
Data RAM Buffer: 512KB
Switching Fabric: 32Gbps
MAC Address Table: 8K entries
Jumbo Frame: 9KB
Forwarding rate: 23.8Mpps (64-byte packet size)
Special Features
Hardened components rated for extreme temperatures
Redundant power inputs
ESD contact 6kV, air 8kV, and surge 2kV support
Low-profile design
DC Power
Input: 48 – 56V DC
Recommended power supply: TI-S24052, TI-S24048 (sold separately)
Max. consumption: 5.76W (no PoE)
Optional Power Adapter (48VDC3000 sold separately)
Input: 100 – 240V AC, 50/60Hz, 2A
Output: 48V DC, 3.34A 160W max.
PoE
PoE budget: 240W

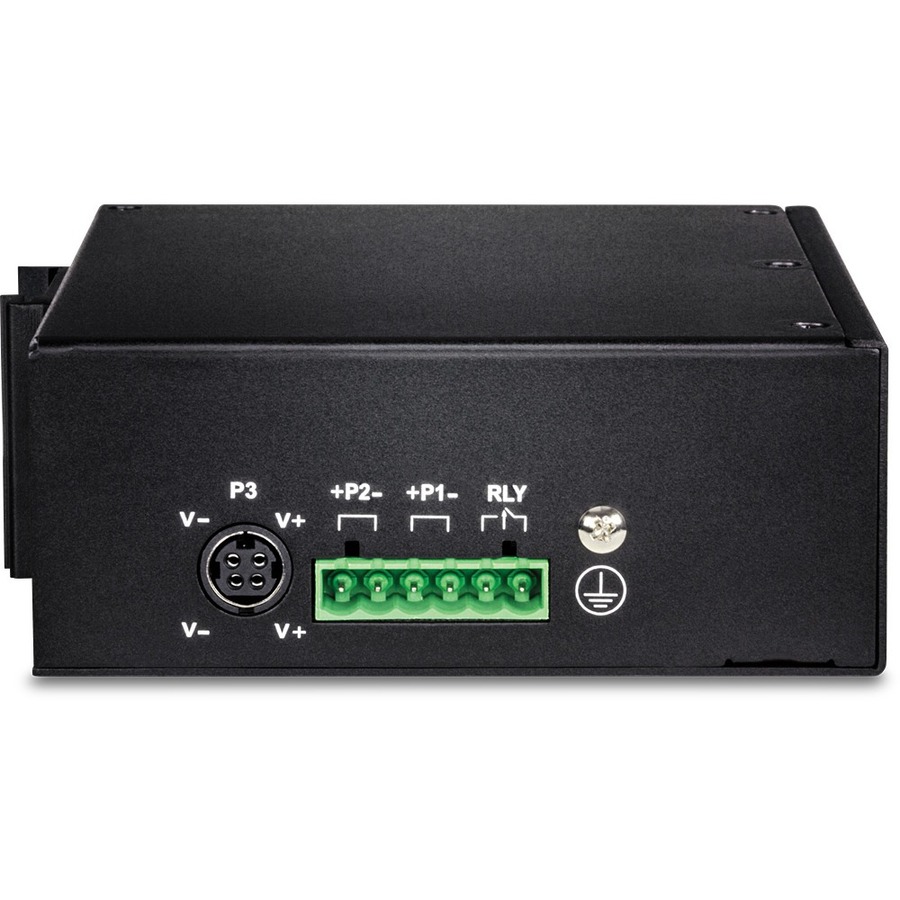

Terminal Block
Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5Nm / 0.56Nm
Wire strip length: 7-8mm
Alarm Relay Contact
Relay outputs with current carrying capacity of 1A, 24V DC
Open circuit mode when two power sources are connected
Short circuit mode when only one power source is connected
MTBF
699,103 hours
Housing
IP30 metal case
DIN-rail mount
Wall mount
Grounding point
6kV contact protection
8kV air protection
2kV surge protection
Operating Temperature
- 40° – 75° C (-40° – 167° F)
Operating Humidity
Max. 95% non-condensing
Dimensions (L x W x H)
155 x 120 x 48mm (6 x 4.7 x 1.9 in.)
Weight
500g (17.7 oz.)
Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TI-PG160
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
16-Port Industrial Gigabit PoE+ DIN-Rail Switch
16 x Gigabit PoE+ ports
240W PoE power budget
32Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-rail and wall mounts
Operating temperature range of -40° – 75° C (-40° – 167° F)
Redundant power inputs with overload current protection
Alarm output triggered by power failure
Power supply sold separately (models: TI-S24052, TI-S24048, TI-S48048)
NDAA / TAA compliant
Lifetime Warranty
Limited Warranty: Lifetime
TRENDnet 16-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-PG160 |
| Brand Name | TRENDnet |
| Product Model | TI-PG160 |
| Product Name | 16-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Modular | No |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Height | 3" |
| Width | 6" |
| Depth | 7" |
| Length | 6.1" |
| Weight (Approximate) | 15.84 oz |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
