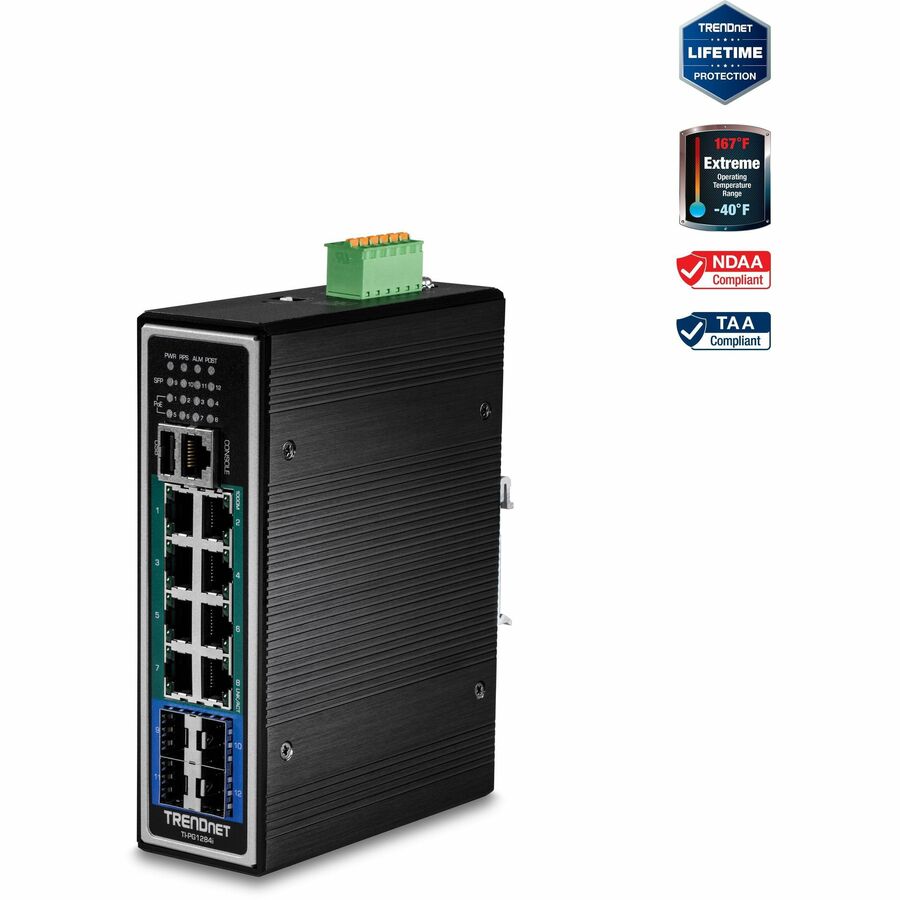

TRENDnet's 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch, model TI-PG1284i, has eight Gigabit PoE+ ports, four Gigabit SFP slots, and a 240 Watts PoE budget. The switch is equipped with an IP30 rated metal enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range (- 40 - 75 °C (- 40 - 167°F)) for harsh environments. L2+ management include features such as PoE port control, 802.1Q / Q-in-Q VLAN, multicast, spanning tree, link aggregation, QoS, IPv4 / IPv6 static routing, ACLs, and 802.1X which allow for network integration flexibility.

• ETHERNET PORT INTERFACE: 8 x Gigabit PoE+ (802.3at) ports, 4 x Gigabit SFP slots, and 1 x console port

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG1284i 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Switches , you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• FULL POE+ POWER BUDGET & CONTROL PER PORT: The managed PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 240 Watt PoE power budget and allows for a 24 Gbps switching capacity. PoE control features for the DIN-Rail switch include enabling / disabling PoE and class, power priority, PD alive check, scheduling, and power delay per port using CLI or web management.

• DIN-RAIL & WALL MOUNT KIT: This 12-Port gigabit PoE+ managed switch comes with an integrated DIN-Rail mount and mounting hardware.

• EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.

• TRAFFIC MANAGEMENT: The Layer 2+ Managed switch features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, and Xpress Ring + ERPS protection for flexible network integration.

• FAULT TOLERANCE: The DIN-Rail Switch features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.

• REDUNDANT POWER: The 12 Port Switch has dual redundant power inputs with overload current protection (power supply sold separately: model: (TI-S24048)

More from the Manufacturer

OVERVIEW

TRENDnet's Industrial Gigabit L2+ Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.

These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.

Industrial Hardened Design

Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments

L2+ Management

Provides an easy to use web management interface for traffic management controls such as VLAN, QoS, access controls, link aggregation, troubleshooting, SNMP monitoring, and per port MAC restriction.

PoE Power

A 240W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.

Network Ports

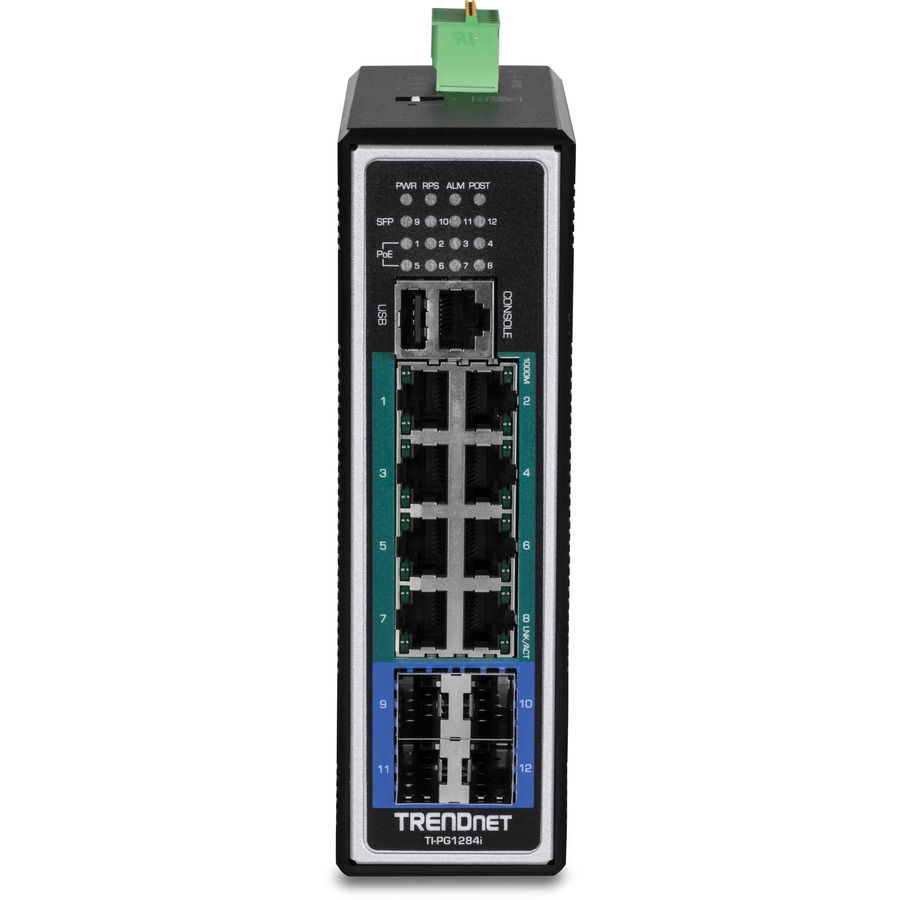

8 x Gigabit PoE+ ports, 4 x Gigabit SFP slots allow for a 24Gbps switching capacity, and 1 x console port (RJ-45 to RS-232) for out-of-band management

PoE Power

Supplies up to 30W of PoE+ power per port with a 240W power budget

Full PoE Control Per Port

Available PoE port controls include enabling / disabling PoE, power priority, PD alive check, and power scheduling

Traffic Management

Managed features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, Xpress Ring, and ERPS for flexible network integration

Layer 2 Management

Offers IPv4 / IPv6 static or DHCPv4 / v6 assignment, IPv4 / IPv6 static routing and proxy ARP, DHCP server / relay / option 82, and DHCP server snooping / screening to filter out unauthorized DHCP servers

Access Control

Managed access control featues include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping and IP Source Guard provides layered network access controls

System Monitoring

Monitoring features include SNMP v1 / v2c / 3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, SFP DDMI, and ModBus / TCP

DIN-Rail Mount

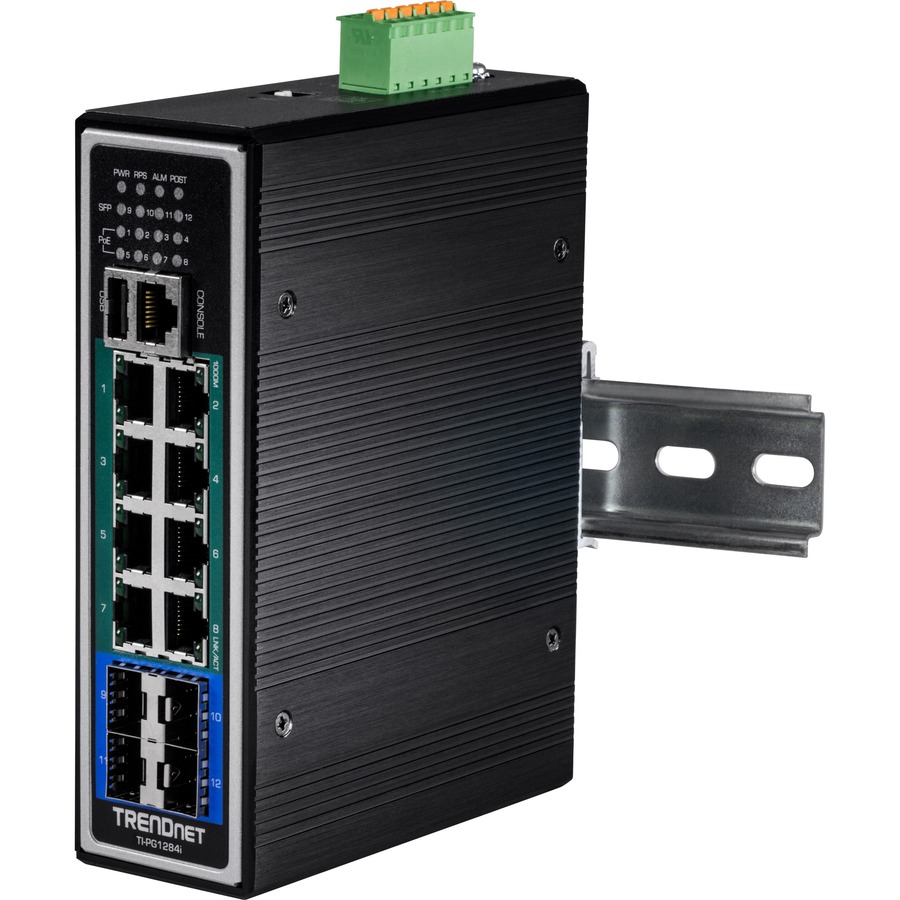

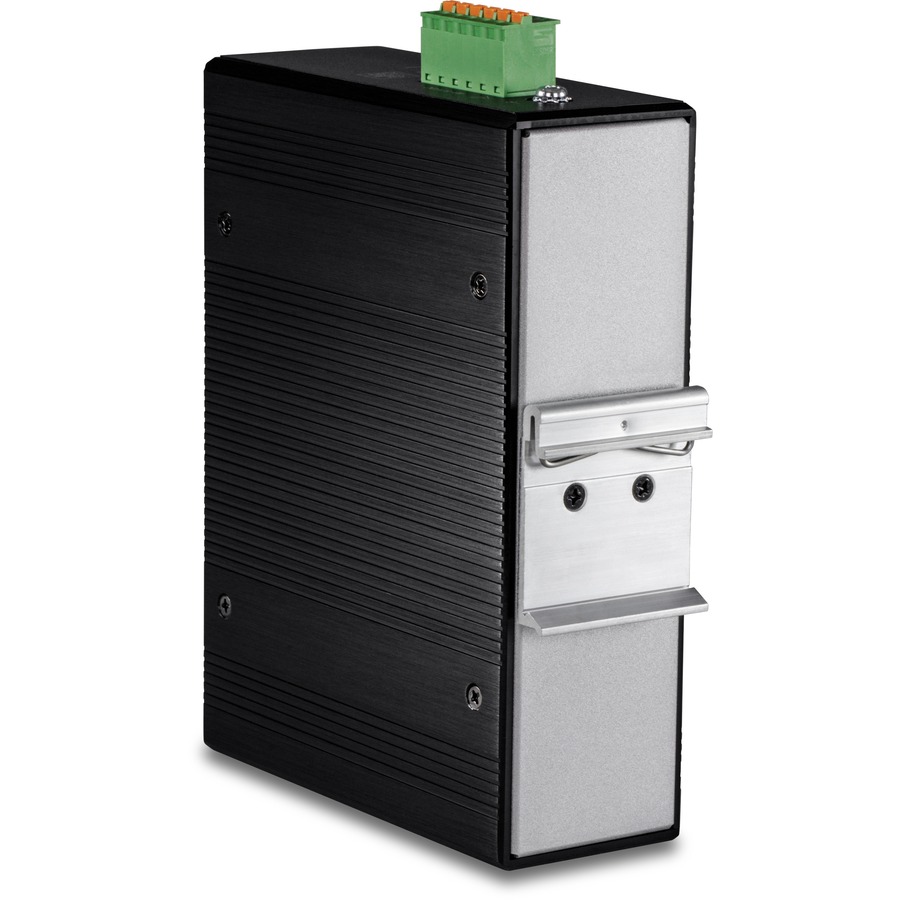

IP30 rated metal enclosure with integrated DIN-Rail mounting hardware

Switching Capacity

24Gbps switching capacity

Redundant Power

Dual power inputs with overload current protection (power supply sold separately: TI-S48048)

Alarm Relay

Alarm relay output triggered by power failure of primary and/or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Wide Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in extreme hot or cold environments

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.1ax

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3az

IEEE 802.3af

IEEE 802.3at

Device Interface

8 x Gigabit PoE+ ports

4 x Gigabit SFP slots

1 x Console port (RJ-45)

1 x USB Port (firmware update, logs, configuration)

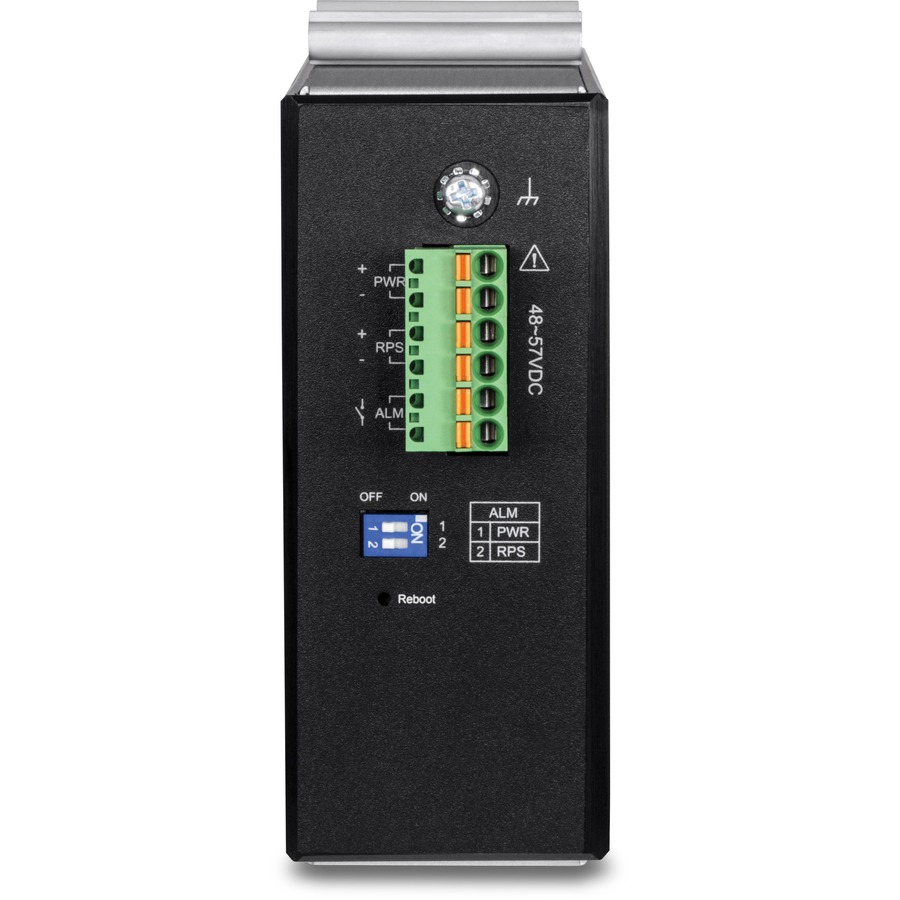

6-pin removable terminal block (primary/RPS power inputs & alarm relay output)

DIP switches

LED indicators

Reboot button

Data Transfer Rate

Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit Ethernet: 2000Mbps (full duplex)

SFP: 2000Mbps (full duplex)

Performance

Switch fabric: 24Gbps

RAM buffer: 1.5MB

MAC address table: 16K entries

Jumbo frames: 10KB

Forwarding mode: store and forward

Forwarding rate: 17.9Mpps (64-byte packet size)

Management

HTTP web-based GUI

CLI: Telnet / SSHv2

SNMP v1, v2c, v3

SNMP trap (up to 5 receivers)

RMON groups 1/2/3/9

Device configuration backup & restore, upgrade firmware, reboot, and reset to default

Multiple administrative or read-only user accounts

Enable or disable power saving mode per port

Static MAC entries

LLDP (Link layer discovery protocol)

Netlite device map

ONVIF device discovery

SNTP

SMTP alert

Syslog

Port statistics/utilization

Traffic monitor

Port mirror: one to one, many to one

Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)

Loopback detection

DHCP relay/option 82

Xpress Ring

ERPS (Ethernet Ring Protection Switching) G8032v2

SFP DDMI (Digital Diagnostic Monitoring Interface)

MIB

MIB II RFC 1213

Bridge MIB RFC 1493

RMON (Group 1,2,3,9) RFC 2819 RFC 1757

Spanning Tree

IEEE 802.1d STP (spanning tree protocol)

IEEE 802.1w RSTP (rapid spanning tree protocol)

IEEE 802.1s MSTP (multiple spanning tree protocol)

BPDU filter, guard, and root guard

Link Aggregation

Static link aggregation and 802.3ad dynamic LACP (Up to 3 groups)

Quality of Service (QoS)

802.1p Class of service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth control per port

Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)

VLAN

802.1Q tagged VLAN

MAC-based VLAN

Port isolation

Up to 256 VLAN groups, ID range 1-4094

Multicast

IGMP snooping v1, v2, v3

IGMP querier

IGMP fast leave

Up to 256 multicast groups

Static multicast entries

Access Control

802.1X authentication (Local user database, RADIUS, guest VLAN assignment)

DHCP snooping/screening

Trusted host/IP access list for management access

Port Security/MAC address learning restriction (Up to 100 entries per port)

Static/dynamic ARP inspection

ACL

Source/Destination MAC address

Source/Destination IP address

Source Interface

VLAN ID

EtherType

TCP/UDP port 1-65535

Layer 3 Features

IPv4 / IPv6 static routing

IPv4 / IPv6 proxy ARP

IP interfaces: Up to 16

Routing table entries: Up to 500 (IPv4: 400 / IPv6: 100)

DHCP Relay / Option 82

Special Features

Netlite device discovery and map display in GUI

Port security: MAC address learning restriction per port

DHCP relay/option 82 & DHCP server snooping/screening support

Wide operating temperature range

Dual redundant power inputs

Alarm relay triggered by power failure

Surge and ESD protection

Power

PWR (Primary) terminal input: 48 – 57V DC

RPS (Redundant) terminal input: 48 – 57V DC

Compatible power supply: TI-S48048 (480W) sold separately

Max. Consumption: 15W (no PoE load); 258W (full PoE load)

PoE

PoE budget: 240W@48V DC input

802.3at: Up to 30W per port

PoE Mode A: Pins 1, 2, 3, and 6 for power

PoE auto classification

PoE port priority/power scheduling/PD alive check

Over current/short circuit protection

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin

Wire range: 0.5 mm^2 to 2.5 mm^2

Solid wire (AWG): 12-26

Stranded wire (AWG): 12-26

Wire strip length: 10-11mm

DIP Switch

Switch

Status

Function

OFF

Disable alarm relay for PWR power input

ON

Enable alarm relay for power failure on PWR power input

OFF

Disable alarm relay for RPS power input

ON

Enable alarm relay for power failure on RPS power input

Alarm Relay Output

Relay output with current carrying capacity of 1A, 24V DC

Short circuit mode when one power source is connected

Open circuit mode when two power sources are connected

Enclosure

IP30 rated metal enclosure

Fanless passive cooling

DIN-Rail mount

Grounding point

ESD (Ethernet) Protection: 8KV DC

Surge (Power) Protection: 6KV DC

MTBF

562,234 499,126 hours @ 25° C

142,948 104,194hours @ 75° C

Operating Temperature

-40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)

Weight

964g (2.12 lbs.)

Certifications

CE

FCC

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-PG1284i

Quick Installation Guide

Removable terminal block

Console cable (RJ-45 to RS-232)

DIN-Rail mounting bracket

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

TRENDnet hardened industrial switches

12-Port Industrial Gigabit L2+ Managed PoE+ DIN-Rail Switch

8 x Gigabit PoE+ ports

4 x SFP slots

Supports 1000Base-FX fiber SFP modules

240W PoE power budget

PoE alive check restarts unresponsive PoE powered devices

24Gbps switching capacity

Hardened IP30 rated metal housing

Includes DIN-rail mounting bracket

Operating temperature range of -40° – 75° C (-40° – 167° F)

Supports LACP, STP/RSTP, VLAN, and IGMP Snooping

IEEE 802.1p QoS with queue scheduling support

CLI (Console / Telnet / SSH), Web (HTTP / HTTPS), SNMP v1 / 2c / 3 management

802.1Q / Q-in-Q VLAN and IGMP Snooping / MLD / MVR support

802.1p / DSCP / Queue Scheduling (SPQ / WRR) QoS support

Bandwidth control per port

Dual inputs provide redundant power with overload current protection

Alarm output triggered by power failure

Supports Ethernet Ring Protection Switching (ERPSv2)

Power supply sold separately (models: TI-S48048)

NDAA / TAA compliant

Lifetime Warranty
