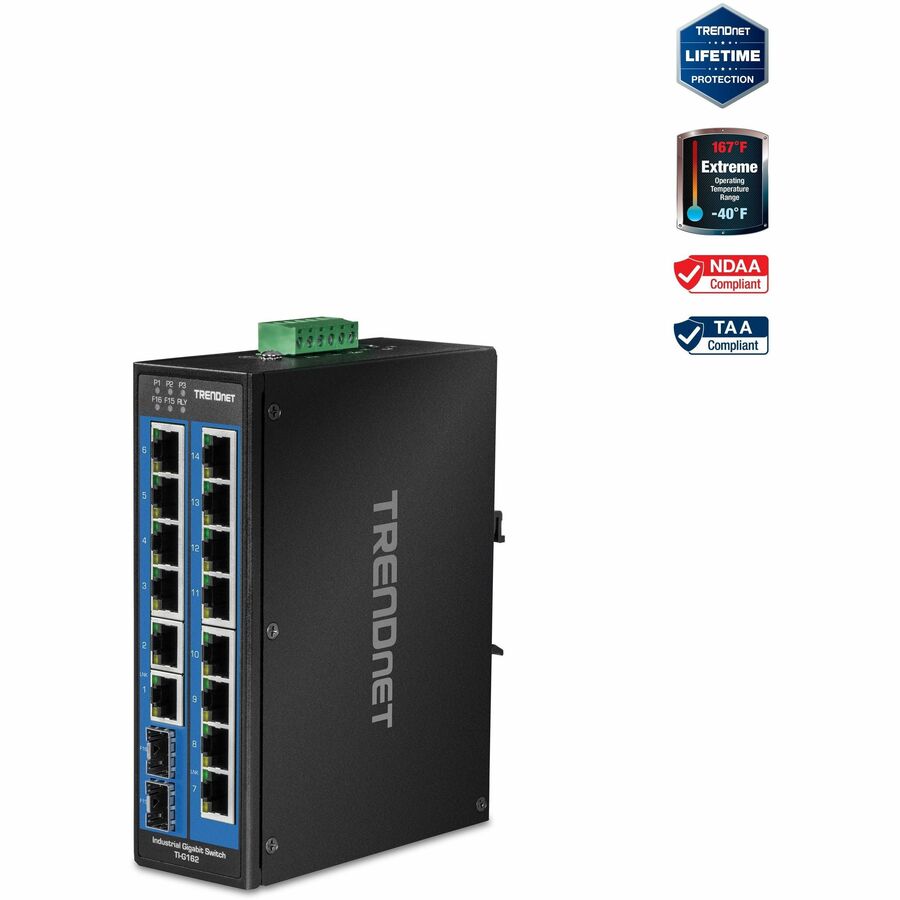

TRENDnet 16-Port Hardened Industrial Unmanaged Gigabit DIN-Rail Switch…

TRENDnet's Industrial Gigabit DIN-Rail Switches are reliable and rugged networking solutions that are designed for use in both extreme and demanding environments. Each Industrial Gigabit DIN-Rail Switch features a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Our hardened industrial switch models feature copper Gigabit ports for high-speed device connections, and Gigabit SFP slots that supports 1000Base-FX modules for long distance fiber networking applications.

• DEVICE INTERFACE: 14 x Gigabit ports; 2 x Gigabit SFP slots; 32Gbps switching capacity

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-G162 6-Port Hardened Industrial Unmanaged Gigabit DIN-Rail Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• REDUNDANT POWER: Multiple power inputs provide redundant power with overload current protection (power supply sold separately, model: TI-M6024)

• DIN-RAIL / WALL MOUNTS: IP30 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount hardware

• WIDE TEMPERATUTRE RANGE: A wide operating temperature range of -40° - 75° C (-40° - 167° F) allows for the installations of the industrial switches in environments with extreme hot or cold conditions

• ALARM RELAY: Hardened industrial switches each with an alarm relay triggered by power failure of primary and/or redundant power

• SHOCK AND VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

• GROUNDING POINT: Industrial switches feature a grounding point for protection against external electrical surges

More from the Manufacturer

OVERVIEW

TRENDnet's Industrial Gigabit DIN-Rail Switches are reliable and rugged networking solutions that are designed for use in both extreme and demanding environments. Each Industrial Gigabit DIN-Rail Switch features a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Our hardened industrial switch models feature copper Gigabit ports for high-speed device connections, and Gigabit SFP slots that supports 1000Base-FX modules for long distance fiber networking applications.

Gigabit Ports

This Industrial switch features copper Gigabit ports for high-speed device connections, and Gigabit SFP slots that support 1000Base-FX modules for long distance fiber networking applications.

Redundant Power

Multiple power inputs provide redundant power with overload current protection on this hardened industrial switch, minimizing overall network downtime (power supplies sold separately).

Industrial Hardened Design

Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40° – 75° C (-40° – 167° F).

Gigabit Ports

Industrial switch features copper Gigabit ports for high-speed device connections, and Gigabit SFP slots that supports 1000Base-FX modules for long distance fiber networking applications

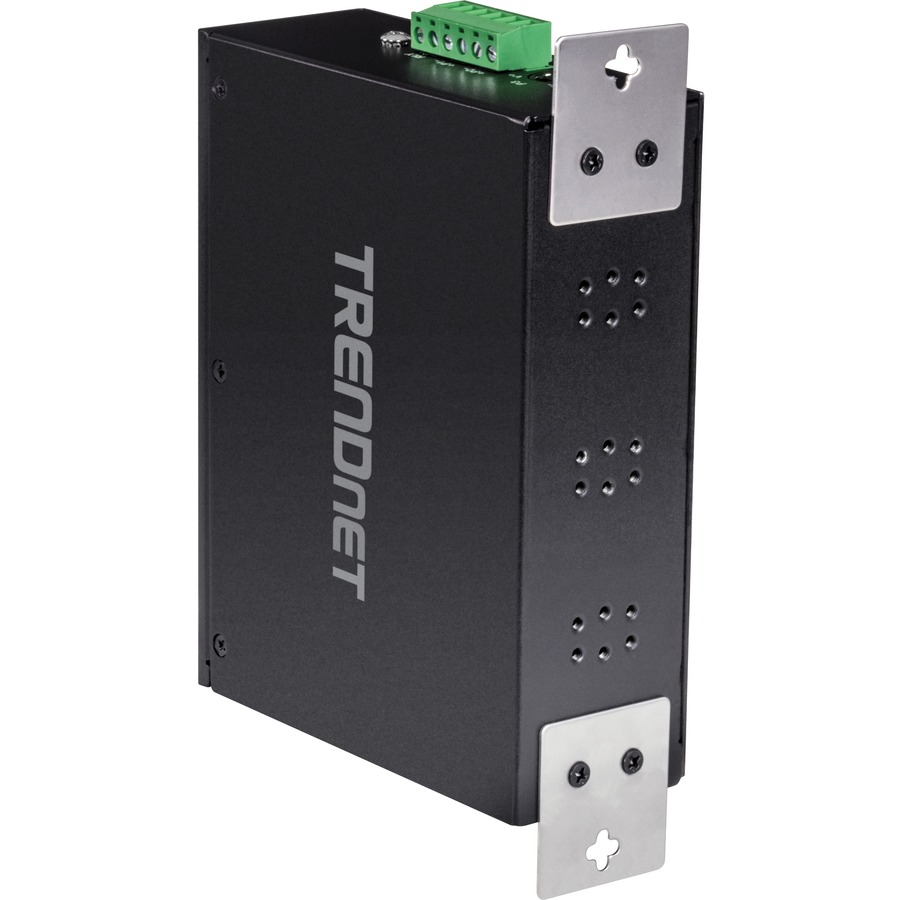

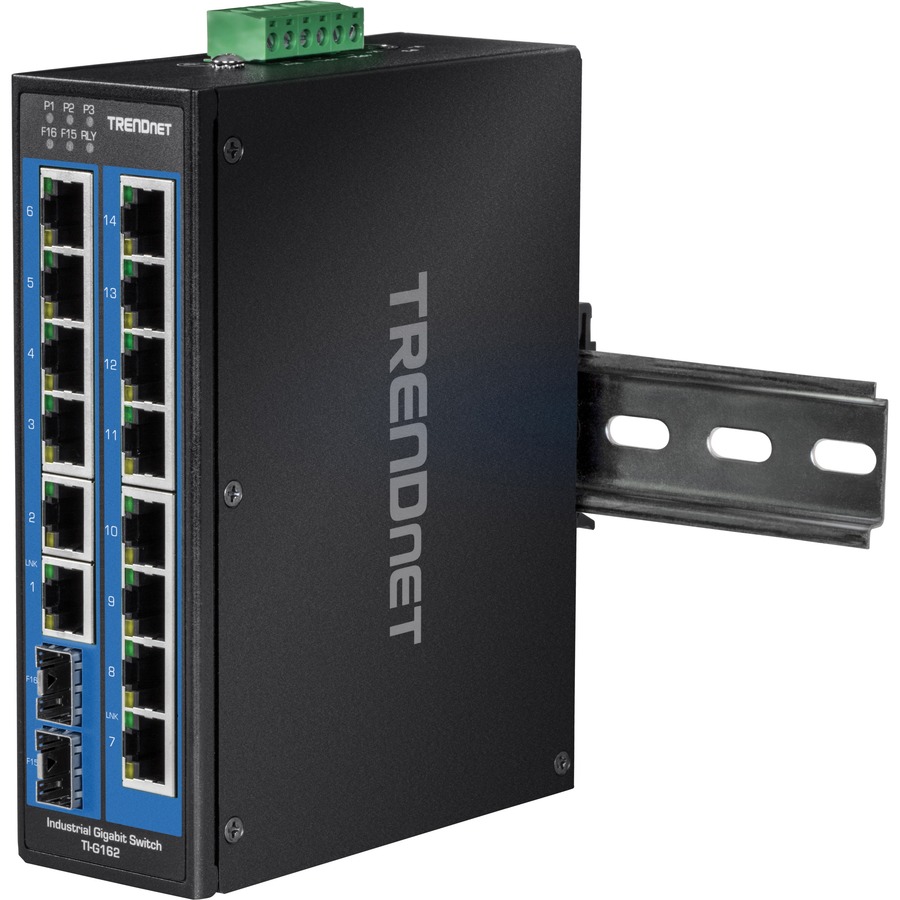

DIN-Rail / Wall Mounts

IP30 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount hardware

Redundant Power

Multiple power inputs provide redundant power with overload current protection (power supply sold separately, model: TI-M6024)

Alarm Relay

Hardened industrial switches each with an alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame

Supports larger packets, or Jumbo Frames (up to 9KB), for increased performance

Wide Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for the installations of the industrial switches in environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV

Grounding Point

Industrial switches feature a grounding point for protection against external electrical surges

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3x

IEEE 802.3z

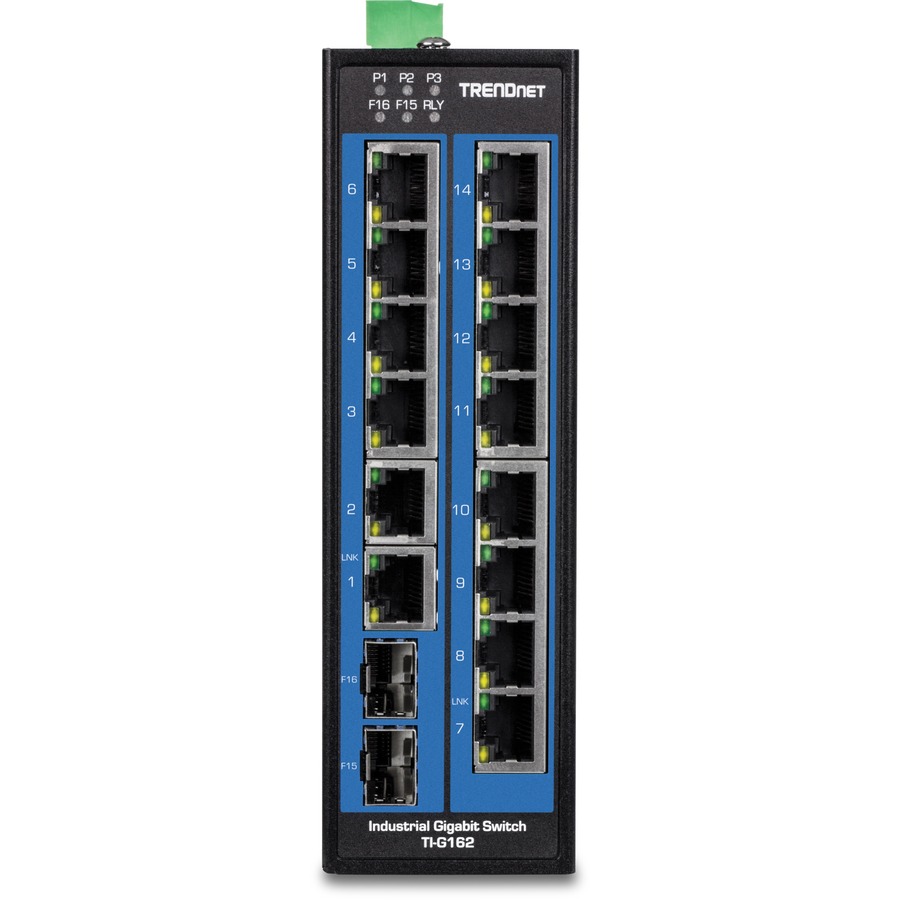

Device Interface

14 x Gigabit ports

2 x Gigabit SFP slots

6-pin removable terminal block

LED indicators

DIN-Rail mount

Wall mount

Grounding point

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2000Mbps (full duplex)

SFP: 2000Mbps (full duplex)

Performance

Data RAM Buffer: 512KB

Switching Fabric: 32Gbps

MAC Address Table: 8K entries

Jumbo Frame: 9KB

Forwarding rate: 23.8Mpps (64-byte packet size)

Special Features

Hardened components rated for extreme temperatures

Multiple power inputs

ESD contact 6kV, air 8kV, and surge 2kV support

Low-profile design

DC Power

Input: 12 – 56V DC

Recommended power supply: TI-M6024 (sold separately)

Max. consumption: 13W

Optional Power Adapter (48VDC3000 sold separately)

Input: 100 – 240V AC, 50/60Hz, 2A

Output: 48V DC, 3.34A 160W max.

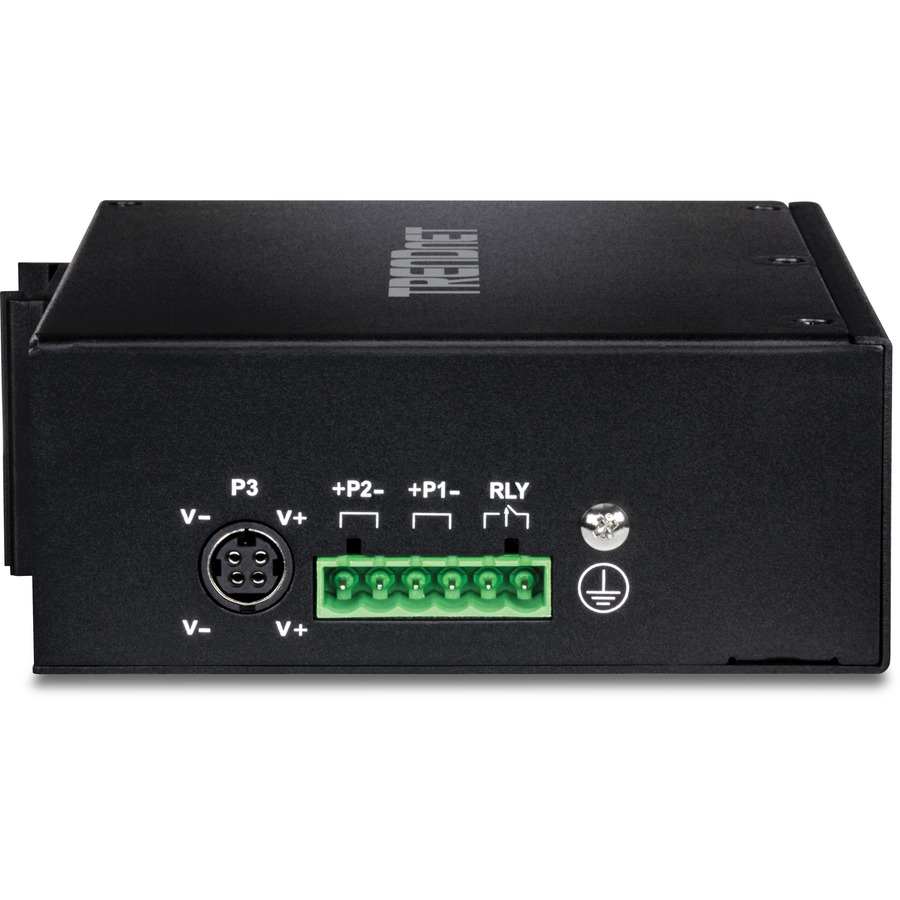

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24/14-22

Stranded wire (AWG): 12-24/14-22

Torque: 5 lb. – In / 0.5Nm / 0.56Nm

Wire strip length: 7-8mm

Alarm Relay Contact

Relay outputs with current carrying capacity of 1A, 24V DC

Open circuit mode when two power sources are connected

Short circuit mode when only one power source is connected

MTBF

514,167 hrs @ 50° C

188,310 hrs @ 75° C

Housing

IP30 metal case

DIN-Rail mount

Wall mount

Grounding point

6kV contact protection

8kV air protection

2kV surge protection

Operating Temperature

- 40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions (L x W x H)

155 x 120 x 48mm (6 x 4.7 x 1.9 in.)

Weight

536g (18.9 oz.)

Certifications

CE

FCC

MET

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-G162

Quick Installation Guide

Removable terminal block

DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
