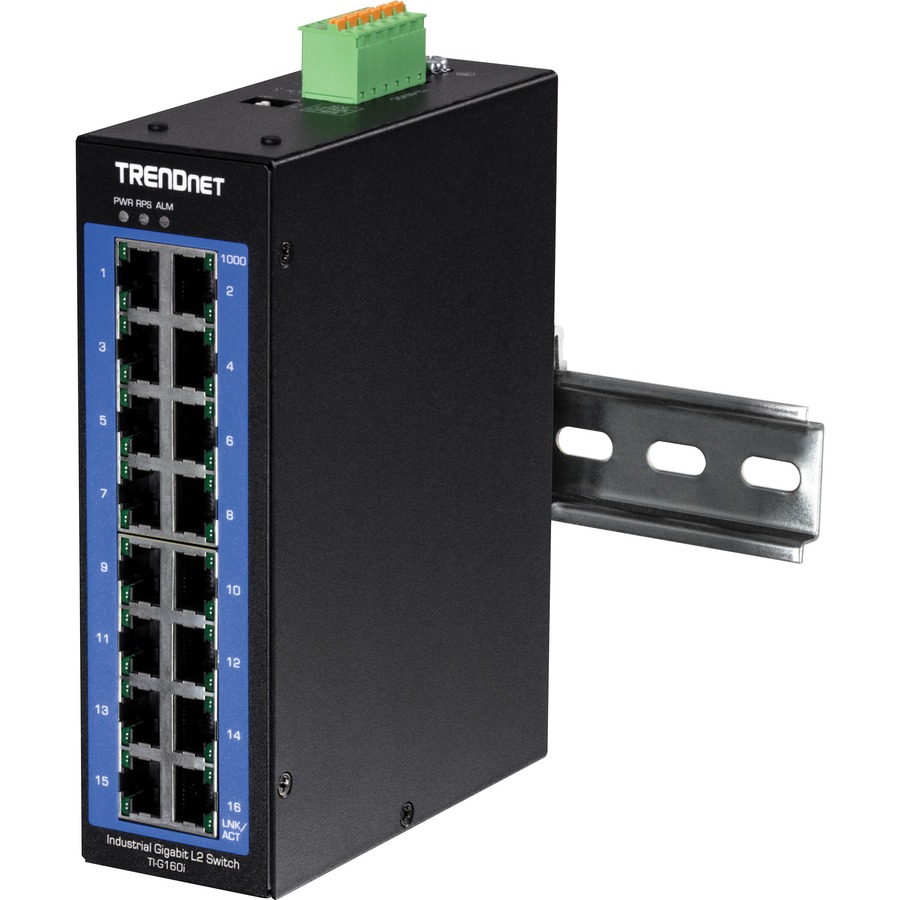

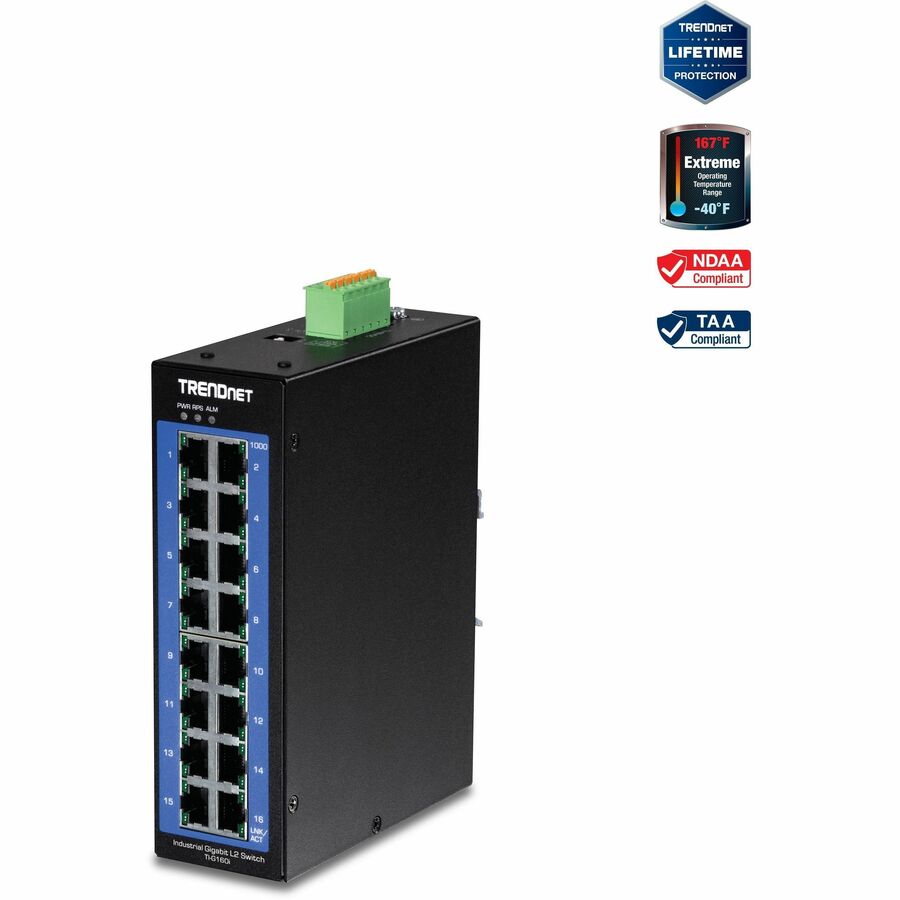

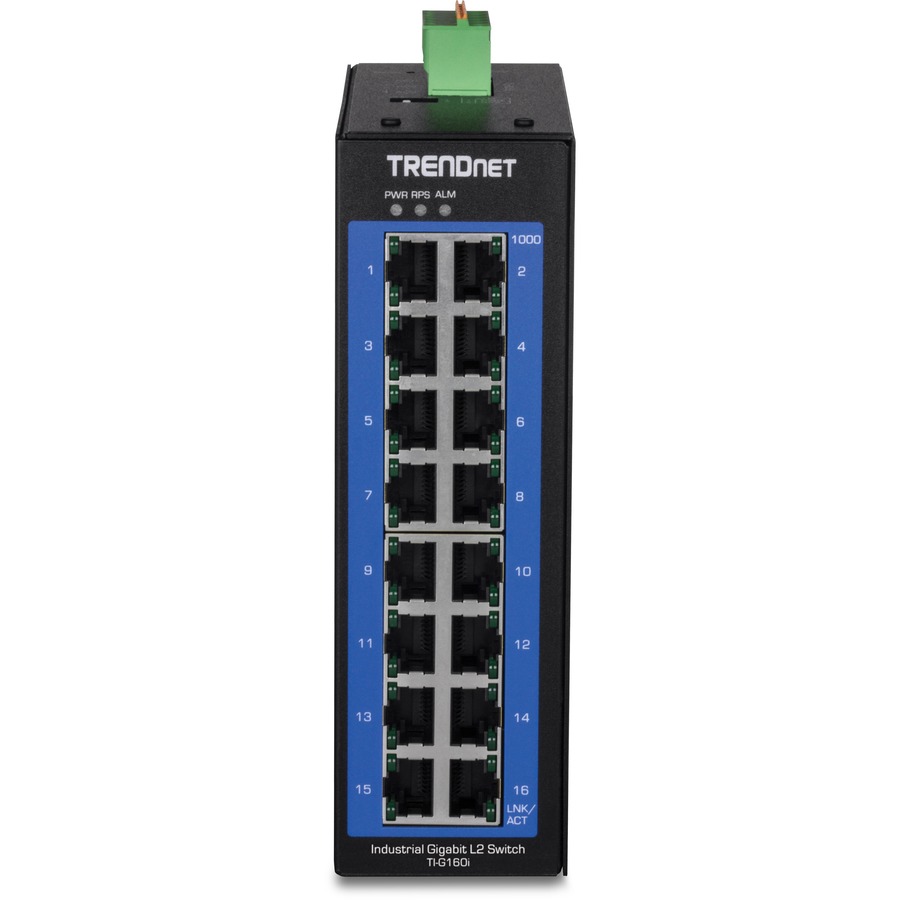

TRENDnet 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, TI-G160i, 16 x Gigabit Ports, NDAA & TAA Compliant, 32 Gbps Switching Capacity, Black

TRENDnet's 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, model TI-G160i, delivers advanced management features and 16 gigabit ports providing a total of 32Gbps switching capacity. Connect up to 16 devices to the switch for high-speed gigabit network connections. The switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks. Easily manage and configure TRENDnet's 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch remotely by updating the switch to the latest firmware for access to TRENDnet Hive?. TRENDnet Hive is a network cloud manager that reduces management time and cost. This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet's reliable cloud service.

• 16 x Gigabit Ports; 6-pin Removable Terminal Block; DIP Switch; LED Indicators; Reset Button; 32Gbps Switching Capacity

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-G160i 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.

• TRAFFIC MANAGEMENT: Managed features include 802.1Q, MAC & Port Isolation VLAN, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR / WFQ), STP / RSTP, and link aggregation for flexible network integration

• HIVE ENABLED: Remotely manage, configure, and diagnose this L2 switch via TRENDnet's cloud service (Additional fee applies)

• ACCESS CONTROL: Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping, and IP Source Guard provides layered network access controls

• SYSTEM MONITORING: Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, and port mirroring

• FAULT TOLERANCE: Redundant power inputs with overload current protection (Power supplies sold separately, model TI M6024)

• INDUSTRIAL DESIGN: Equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

• INTEGRATION FLEXIBILITY: Managed features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

More from the Manufacturer

TRENDnet’s 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, model TI-G160i, delivers advanced management features and 16 gigabit ports providing a total of 32Gbps switching capacity. Connect up to 16 devices to the switch for high-speed gigabit network connections. The switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.

Easily manage and configure TRENDnet’s 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch remotely by updating the switch to the latest firmware for access to TRENDnet Hive™. TRENDnet Hive is a network cloud manager that reduces management time and cost. This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service.

Shock and Vibration Resistant

Compliant with shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6) standards

Integration Flexibility

Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

Industrial Design

Equipped with an IP30 rated metal enclosure, the industrial layer 2 managed switch operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

Network Ports

16 Gigabit Ports

Hive Enabled

Remotely manage, configure, and diagnose this L2 switch via TRENDnet’s cloud service (Additional fee applies)

Traffic Management

Managed features include 802.1Q, MAC & Port Isolation VLAN, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR / WFQ), STP / RSTP, and link aggregation for flexible network integration

Access Control

Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping, and IP Source Guard provides layered network access controls

System Monitoring

Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, and port mirroring

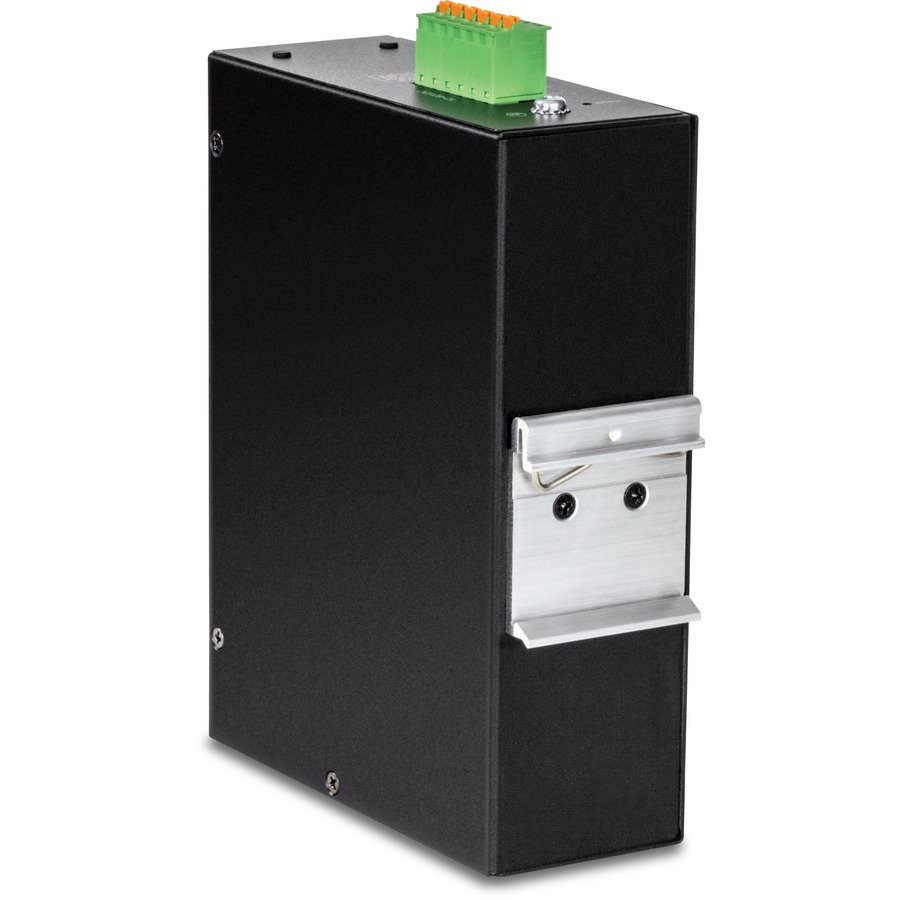

DIN-Rail Mount

IP40 rated metal enclosure includes DIN-rail mounting bracket

Switching Capacity

32Gbps switching capacity

Redundant Power Inputs

Redundant power inputs with overload current protection (power supply sold separately: TI-M6024)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Extreme Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in extreme hot or cold environments

Shock and Vibration Resistant

Compliant for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6) standards

Grounding Point

Grounding point protects equipment from external electrical surges

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.1ax

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3az

Device Interface

16 x Gigabit ports

6-pin removable terminal block (primary/RPS power inputs & alarm relay output)

DIP switch (Alarm for Primary/RPS power)

LED indicators

Reboot button

Performance

Switch fabric: 32Gbps

RAM buffer: 512KB

MAC address table: 8K entries

Jumbo frames: 10KB

Forwarding rate: 23.8Mpps (64-byte packet size)

Management

HTTP/HTTPS (TLS 1.3) web-based GUI

CLI: Telnet / SSHv2

SNMP v1, v2c, v3

SNMP trap (up to 5 receivers)

RMON groups 1/2/3/9

Modbus TCP/IP

Device configuration backup & restore, upgrade firmware, reboot, and reset to default

Multiple administrative or read-only user accounts

Enable or disable power saving mode per port

Static MAC entries

LLDP (Link layer discovery protocol)

Topology Map

ONVIF device discovery

SNTP

SMTP alert

Syslog

Port statistics/utilization

Traffic monitor

Port mirror: one to one, many to one

Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)

Loopback detection

DHCP relay/option 82

ERPS (Ethernet Ring Protection Switching) G8032v2

Hive Cloud Management

Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser

Multi-device management

Provisioning through scheduled batch or configuration updates for multiple switches

Event/hardware network monitoring (CPU/memory utilization)

Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management

MIB

MIB II RFC 1213

Bridge MIB RFC 1493

RMON (Group 1,2,3,9) RFC 2819 RFC 1757

Spanning Tree

STP (spanning tree protocol)

RSTP (rapid spanning tree protocol)

BPDU filter, guard, and root guard

Link Aggregation

Static link aggregation and dynamic LACP (Up to 8 groups)

Quality of Service (QoS)

802.1p Class of service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth control per port

Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)

VLAN

802.1Q tagged VLAN

MAC-based VLAN

Protocol VLAN

Port isolation

Up to 256 VLAN groups, ID range 1-4094

Multicast

IGMP snooping v1, v2, v3

IGMP querier

IGMP fast leave

Up to 256 multicast groups

Static multicast entries

Access Control

802.1X authentication (Local user database, RADIUS, guest VLAN assignment)

DHCP snooping/screening

Trusted host/IP access list for management access

Port Security/MAC address learning restriction (Up to 100 entries per port)

Static/dynamic ARP inspection

ACL

Source/Destination MAC address

Source/Destination IP address

Source Interface

VLAN ID

EtherType

TCP/UDP port 1-65535

Power

PWR (Primary) terminal input: 12 – 60V DC

RPS (Redundant) terminal input: 12 – 60V DC

Compatible power supply: TI-M6024 (60W) sold separately

Max. Consumption: 18W

Terminal Block

Power inputs, alarm relay contact, 6 pin

Wire range: 0.5 mm2 to 2.5 mm2

Solid wire (AWG): 18-20

Stranded wire (AWG):18-20

Wire strip length: 10-11mm

DIP Switch

Switch 1

Status: Off

Function: Disable alarm relay for PWR power input

Status: On

Function: Enable alarm relay for power failure on PWR power input

Switch 2

Status: Off

Function: Disable alarm relay for RPS power input

Status: On

Function: Enable alarm relay for power failure on RPS power input

Alarm Relay Output

Relay outputs with current carrying capacity of 1A, 24V DC

Short circuit mode when one power source is connected

Open circuit mode when two power sources are connected

Enclosure

IP40 rated metal enclosure

Fanless passive cooling

DIN-Rail mount

Grounding Point

ESD (Ethernet) Protection: 8KV DC

Surge (Data) Protection: 1kV DC

Surge (Power) Protection: 1KV DC

MTBF

576,317 hours @ 25° C

Operating Temperature

-40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)

Weight

928g (2.05 lbs.)

Certifications

CE

FCC

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-G160i

Removable terminal block

DIN-Rail mounting bracket

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
