16 Ports - 2.5 Gigabit Ethernet - 2.5GBase-T - 2 Layer Supported - 7.26 W Power Consumption - Twisted Pair - Rack-mountable, Wall Mountable, Desktop
$326.65
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Sep 29 and Nov 3, then process your delivery right after.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. The sturdy metal housing and included rackmount brackets are well-suited for wall mount or 19? 1U rack installations. TRENDnet's reliable 2.5G switches are cost-effective solutions to increase your network's throughput.

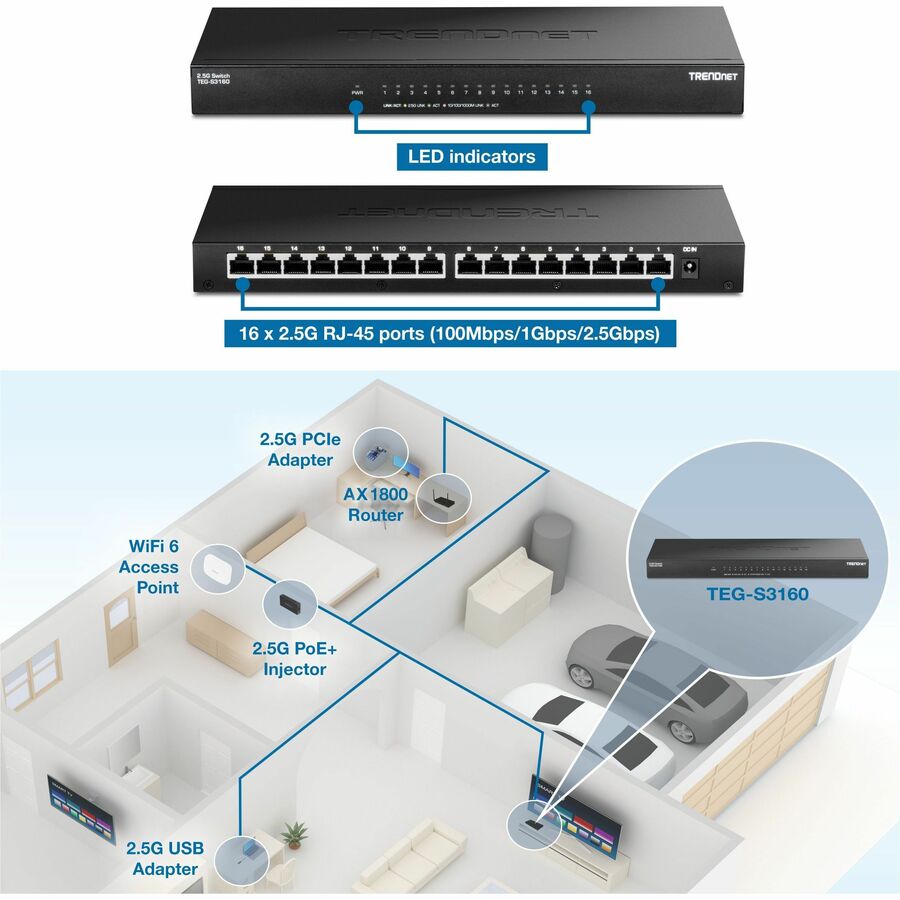

• DEVICE INTERFACE: 16 x 2.5G RJ-45 (10Mbps/100Mbps/1Gbps/ 2.5Gbps); LED indicators
• LIFETIME PROTECTION -We stand by the quality of our products. The TEG-S3160 16-Port Unmanaged 2.5G Desktop Network Ethernet Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• 2.5G PORTS: The 16 Port network switch is equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
• SWITCHING CAPACITY: The unmanaged switch is equipped with a 80Gbps Switching Capacity
• WALL MOUNTABLE: The 2.5G unmanaged switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.
• FANLESS DESIGN: The fanless design lowers energy consumption and eliminates distracting operating noise.
More from the Manufacturer
OVERVIEW
Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s Unmanaged 2.5G Switches. These 2.5G network
switches come equipped with 2.5GBASE-TRJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e
or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility.
The fanless design lowers energy consumption and eliminates operating noise. The sturdy metal housing and included rackmount
brackets are well-suited for wall mount or 19” 1U rack installations. TRENDnet’s reliable 2.5G switches are cost-effective solutions to
increase your network’s throughput.
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
Wall Mountable
The 2.5G switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.
Fanless
The fanless design of this 16-port 2.5G switch lowers energy consumption costs and eliminates operating noise.
FEATURES
Easy Installation
No configuration needed,
simply connect network devices
to the 16-port multi-gig switch
Switching Capacity
80Gbps switching capacity
Housing Design
Sturdy desktop metal housing.

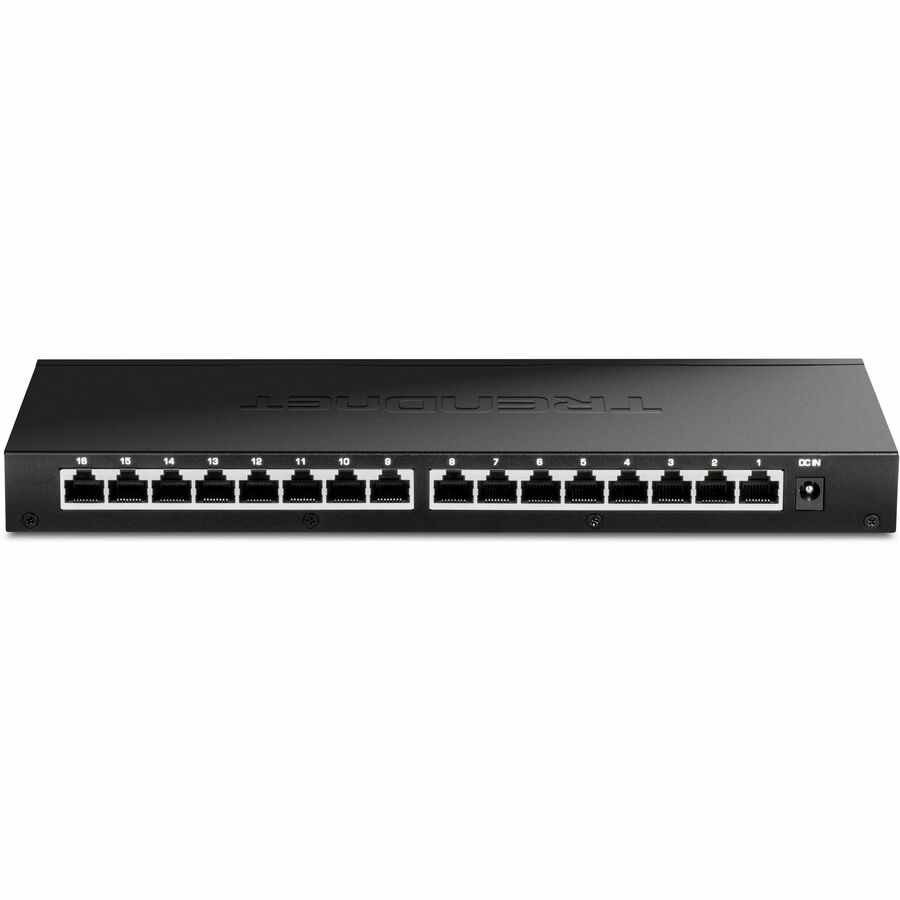

Rear Facing Ports
Hide cable clutter with rear
facing ports on your desktop or
rack
2.5G Ports
This 16-port multi-gigabit switch is
equipped with 2.5GBASE-T RJ-45
ports that provide ultra-fast
speeds capable of up to 2.5Gbps
over existing Cat5e or better
cabling
Fanless
Fanless design on the 16-port
2.5G switch lowers energy
consumption and eliminates
operating noise

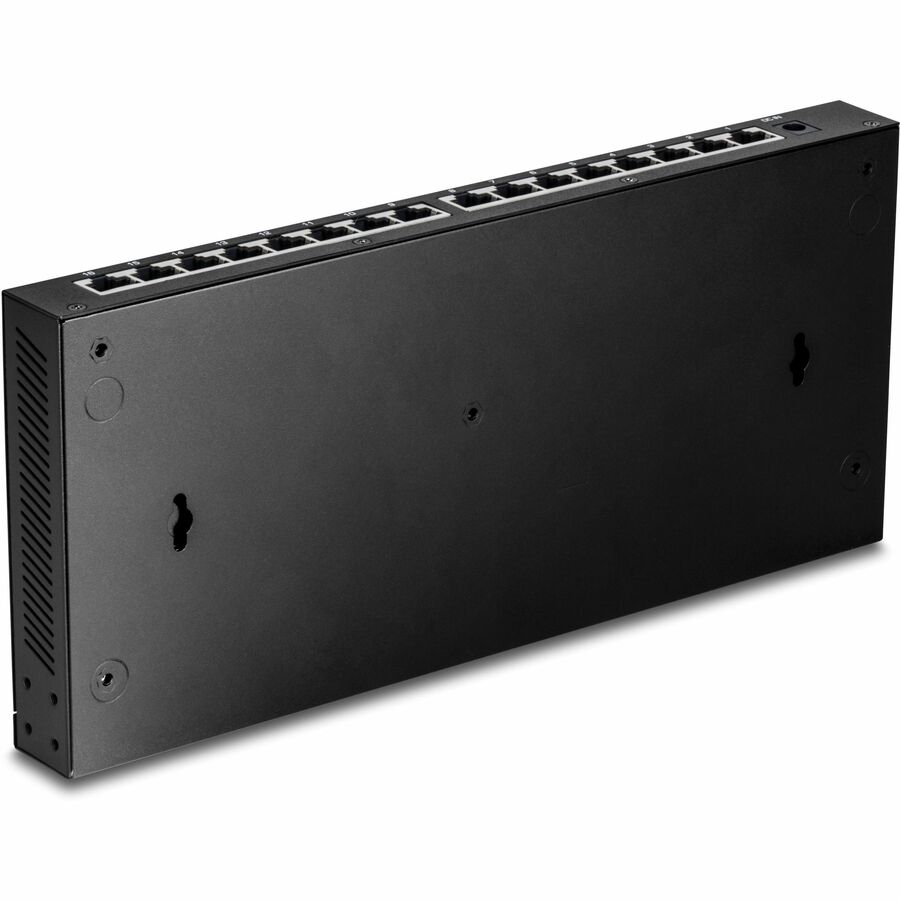

Wall Mountable
The 16-port 2.5G switch features
a convenient wall mountable
design for greater installation
flexibility
19” Rackmount
Sturdy rack mountable metal
housing with mounting kit
included
16-Port Unmanaged 2.5G Desktop Switch
• 16 x 2.5G RJ-45 ports
• Compatible with existing Cat5e or better cabling
• Fanless design eliminates noise
• Rack mountable or wall mountable for installation flexibility
• 80Gbps switching capacity
• IEEE 802.3bz (2.5G) compliant
• Lifetime Warranty
• NDAA / TAA compliant (U.S. and Canada only)
SPECIFICATIONS
Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.3ab
• IEEE 802.3az
• IEEE 802.3bz
Device Interface
• 16 x 2.5G RJ-45 ports (100Mbps/1Gbps/
2.5Gbps)
• LED indicators
Data Transfer Rate
• Fast Ethernet: 100Mbps (half duplex) 200
Mbps (full duplex)
• Gigabit: 2Gbps (full duplex)
• 2.5 Gigabit: 5Gbps (full duplex)
Performance
• Switching Capacity: 80Gbps
• RAM Buffer: 1.5MB
• Jumbo Frames: 12KB
• MAC Address Table: 16K entries
• Forwarding Rate: 59.52Mpps (64-byte packet
size)
Special Features
• Wall mountable
• Rack mountable
Power
• Input: 90 – 264V AC, 47/63 Hz
• Output: 12V DC, 3A
• Max. Consumption: 7.26W
Fan/Acoustics
• Fanless design
MTBF
•223,000 hours
Operating Temperature
• 0° – 40° C (32° – 104° F)
Operating Humidity
• Max. 90% non-condensing
Dimensions (L x W x H)
• 286 x 128 x 27mm (11.25 x 5.02 x 1.06 in.)
Weight
• 982g (2.16lbs)
Certifications
• FCC
• CE
Warranty
• Lifetime Warranty
Package Contents
• TEG-S3160
• Quick Installation Guide
• Rackmount kit
• Power adapter (12V DC, 3A)
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-S3160 |
| Brand Name | TRENDnet |
| Product Model | TEG-S3160 |
| Product Name | 16-Port Unmanaged 2.5G Desktop Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network Technology | 2.5GBase-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz |
| Physical Characteristics | |
| Form Factor | Rack-mountable, Wall Mountable, Desktop |
| Height | 1.1" |
| Width | 5" |
| Length | 11.3" |
| Weight (Approximate) | 2.16 lb |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Power Source | AC |
| Power Consumption | 7.26 W |
| Technical Information | |
| Features | Fanless |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents |
|
