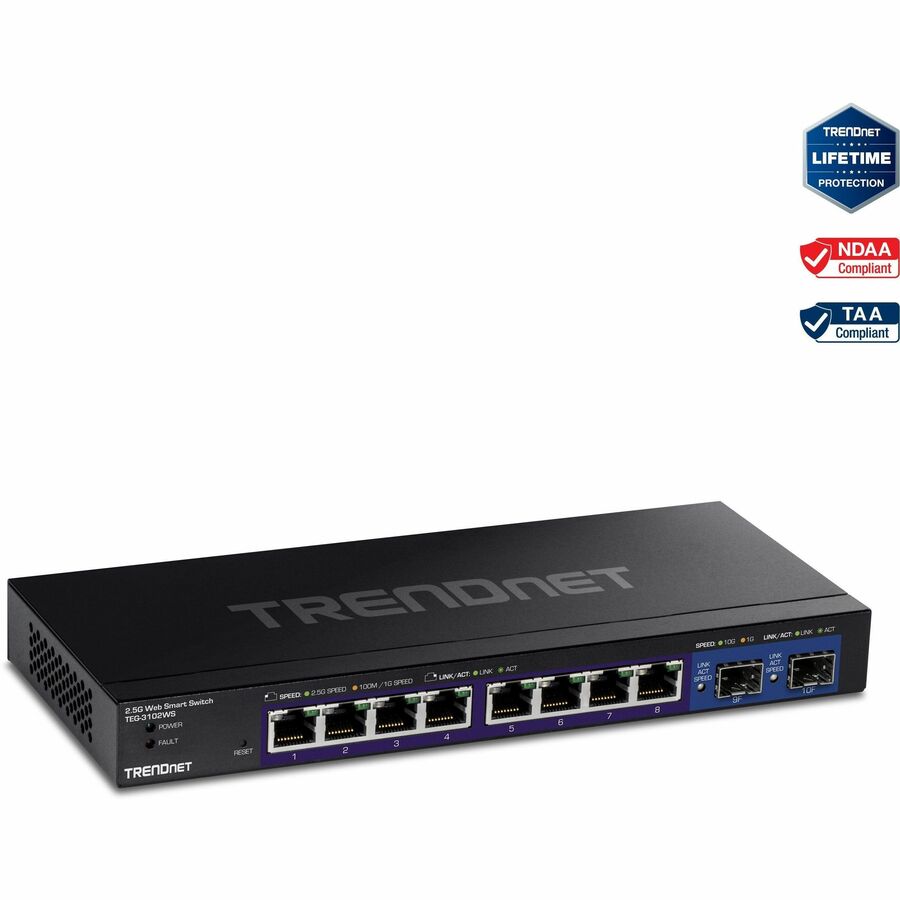

TRENDnet 10-Port Multi-Gig Web Smart Switch, TEG-3102WS, 8 x 2.5GBASE-T Ports, 2 x 10G SFP+ Slots, Ethernet Splitter, Metal Housing, NDAA & TAA Compliant, Lifetime Protection, Black

• DEVICE INTERFACE: 8 x 2.5GBASE-T ports (1Gbps/2.5Gbps); 2 x 10G SFP+ Slots; LED Indicators; Metal Housing

• 2.5G PORTS: This 10 Port Multi-Gig Ethernet switch is equipped with eight 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

• SFP+ SLOTS: The managed switch offers two 10G SFP+ slots for high-speed network connections providing a cost-effective solution in adding 10G link capability

• EASY INSTALLATION: No configuration needed, simply connect network devices to the Gigabit Ethernet switch

• SWITCHING CAPACITY: 80Gbps switching capacity

• TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

• WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

• ACCESS CONTROL: Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls

• COMPATABILITY: 2.5G ports are backwards compatible with 100/1000Mbps devices

• INTEGRATION FLEXIBILITY: Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

• COMPLIANCE: IEEE 802.3bz (2.5G) compliant; IEEE 802.3ae (SFP+) compliant

TRENDnet's Multi-Gigabit Web Smart Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of today's SMB networks. These rack-mountable IPv6-ready managed switches each come with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making these 2.5G managed switches with 10G SFP+ slots powerful solutions for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

These multi-gigabit managed switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. The multi-gig managed switches also each offer two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The design of the switches lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable 2.5G managed switches with 10G SFP+ slots offer cost-effective solutions to increase your network's throughput.

More from the Manufacturer

TRENDnet’s Multi-Gigabit Web Smart Switch series offers advanced L2+ features with enhanced traffic management controls to

meet the evolving demands of today’s SMB networks. These rack-mountable IPv6-ready managed switches each come with an

intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by

grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls,

and SNMP monitoring, making these 2.5G managed switches with 10G SFP+ slots powerful solutions for any SMB network. Improve

voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

These multi-gigabit managed switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of

up to 2.5Gbps over your existing Cat5e or better cabling. The multi-gig managed switches also each offer two dedicated 10G SFP+

slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The

design of the switches lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G managed

switches with 10G SFP+ slots offer cost-effective solutions to increase your network’s throughput.

• DEVICE INTERFACE: 8 x 2.5GBASE-T ports (100Mbps/1Gbps/2.5Gbps); 2 x 10G SFP+ Slots; LED Indicators; Metal Housing

• 2.5G PORTS: This 10 Port Multi-Gig Ethernet switch is equipped with eight 2.5GBASE-T RJ-45 ports that provide multi-gigabit

speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

• 10G SFP+ SLOTS: The managed switch offers two 10G SFP+ slots for high-speed network connections providing a costeffective solution in adding 10G link capability.

• EASY INSTALLATION: No configuration needed, simply connect network devices to the Gigabit Ethernet switch

• SWITCHING CAPACITY: 80Gbps switching capacity

• TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric

VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth

management, and QoS queue scheduling

• WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration

complexity and offers a combination of SMB management features for easy deployment.

• ACCESS CONTROL: Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with

layered access controls

• COMPATABILITY: 2.5G ports are backwards compatible with 100/1000Mbps devices

• INTEGRATION FLEXIBILITY: Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap,

and syslog for monitoring and flexible network integration.

• COMPLIANCE: IEEE 802.3bz (2.5G) compliant; IEEE 802.3ae (SFP+) compliant

10G SFP+ Slots

Offers two 10G SFP+ slots for high-speed network connections providing a cost-effective solution in adding 10G link capability.

2.5G Ports

Equipped with eight 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

Easy Installation

No configuration needed, simply

connect network devices to the

2.5G Ethernet switch

IPv6 Ready

This switch supports IPv6

configuration and IPv6 neighbor

discovery

Troubleshooting

A convenient cable diagnostic test

and traffic statistics aid in network

troubleshooting

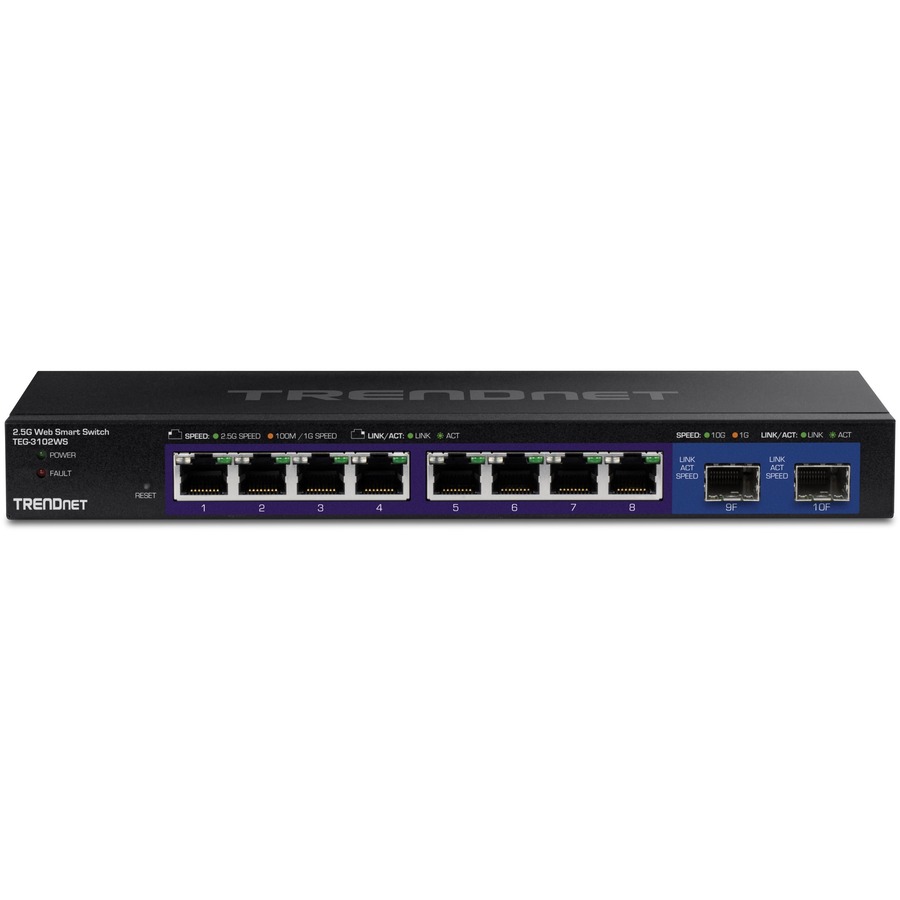

LED Indicators

LED indicators on this multi-gig

switch conveys port status

Access Control

Features such as ACL, SSL, MAC/

port filtering, 802.1X, TACACS+,

and RADIUS are compatible with

layered access controls

Monitoring

RMON, SNMP, SNMP Trap, and

Port Mirroring support administrator

monitoring solutions

Housing Design

Sturdy metal housing

Jumbo Frame

Sends larger packets, or Jumbo

Frames (up to 10KB) for increased

performance

Integration Flexibility

Managed features include access

control lists, VLAN, IGMP snooping,

QoS, RMON, SNMP trap, and

syslog for monitoring and flexible

network integration.

Traffic Management

A broad range of network

configurations are supported by:

802.3ad link aggregation,

Asymmetric VLAN, 802.1Q VLAN,

Voice VLAN, RSTP, MSTP,

Loopback Detection, GVRP, 802.1p

Class of Service (CoS), port

bandwidth management, and QoS

queue scheduling

TRENDnet 10-Port Multi-Gig Web Smart Switch - TEG-3102WS

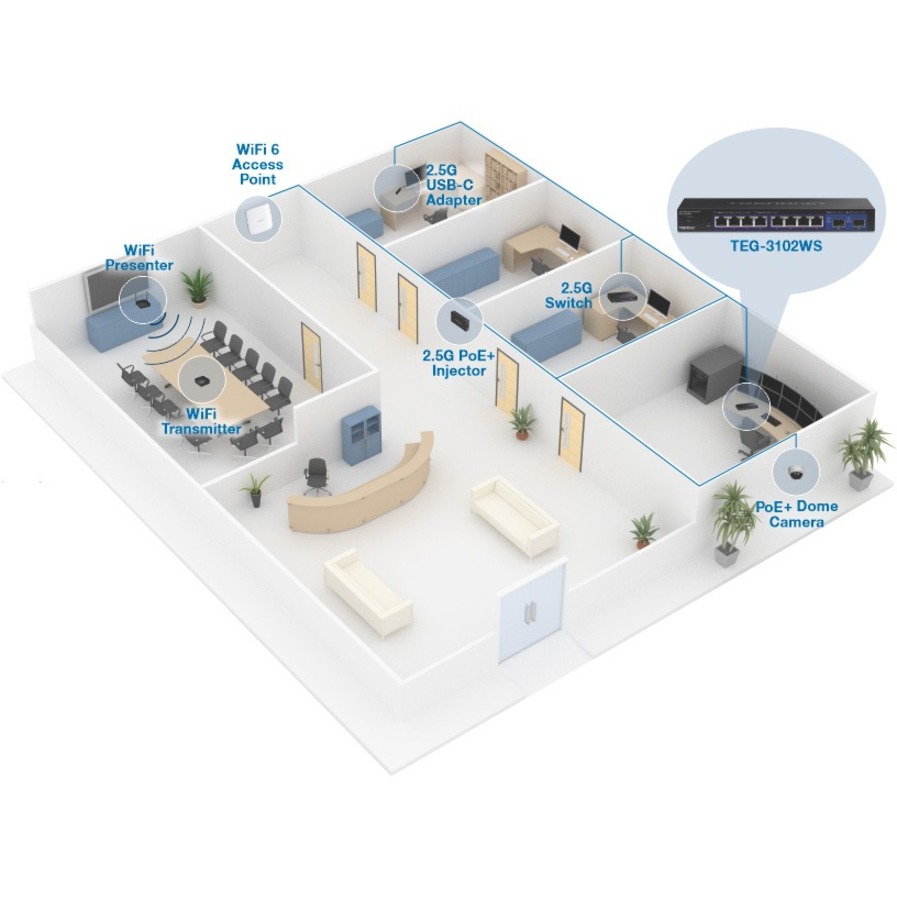

TRENDnet End-to-End Multi-Gigabit Networking Solutions

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3ae

IEEE 802.3az

IEEE 802.3bz

Device Interface

8 x 2.5G Ports

2 x 10G SFP+ slots

LED indicators

Data Transfer Rate

Gigabit Ethernet: 2000Mbps (full duplex)

2.5G Ethernet: 5000Mbps (full duplex)

SFP: 2000Mbps (full duplex)

SFP+: 20Gbps (full duplex)

Performance

Switch fabric: 80Gbps

RAM buffer: 1.5MB

MAC Address Table: 16K entries

Jumbo Frames: 10KB

HOL Blocking Prevention

Forwarding rate: 59.52Mpps (64-byte packet size)

Management

CLI (Telnet / SSHv2) for basic administration

HTTP/HTTPS (SSL v2/3 TLS) Web based GUI

SNMP v1, v2c, v3

RMON v1

Static Unicast MAC Address

Enable/disable 802.3az Power Saving

LLDP and LLDP-MED

Virtual Cable Diagnostics Test

IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

Dual image and configuration

MIB

RMON MIB RFC 1271

LLDP MIB IEEE 802.1ab

RFC 1213 MIB II

RFC 1643 Ethernet intf MIB

RFC 1493 bridge MIB

Spanning Tree

IEEE 802.1d STP (Spanning Tree protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

Static Link Aggregation

802.3ad Dynamic LACP

Quality of Service (QoS)

802.1p Class of Service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth Control per port

Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

802.1Q Tagged VLAN

Dynamic GVRP

Up to 256 VLAN groups, ID Range 1-4094

Private VLAN (Protected Ports)

Voice VLAN (10 user defined OUIs)

Multicast

IGMP Snooping v1, v2, v3

MLD Snooping v1, v2

IGMP fast leave

Up to 256 multicast entries

Port Mirror

RX, TX, or Both

Many to one

Access Control

802.1X Port-Based Network Access Control, RADIUS, TACACS+

Local Dial-In User Authentication

DHCP Snooping

Loopback Detection

Trusted Host

Denial of Service (DoS)

IP MAC port binding

Block unknown multicast

ACL IPv4 L2-L4 & IPv6

MAC Address

VLAN ID

Ether Type (IPv4 only)

IP Protocol 0-255

TCP/UDP Port 1-65535

802.1p

TOS (IPv4 only)

IPv4 Address and Mask (IPv4 only)

IPv6 Address and Prefix Length (IPv6 only)

Layer 3 Features

IPv4 / IPv6 static routing

IP interfaces: Up to 6

Routing table entries: Up to 32 (IPv4 / IPv6)

ARP table (up to 128 entries)

Inter-VLAN routing

Power

Input: 100 – 240V AC, 50/60Hz, internal power supply

Max. consumption: 152.3W

Fan/Acoustics

Fanless

MTBF

893,944 hours

Operating Temperature

-0° – 40° C (32° – 104° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

240 x 104 x 27mm (9.45 x 4.09 x 1.06 in.)

Weight

664g (1.46 lbs.)

Certifications

CE

FCC

Warranty

Lifetime Warranty

PACKAGE CONTENTS

TEG-3102WS

Quick Installation Guide

Power adapter (12V 1.5A)
