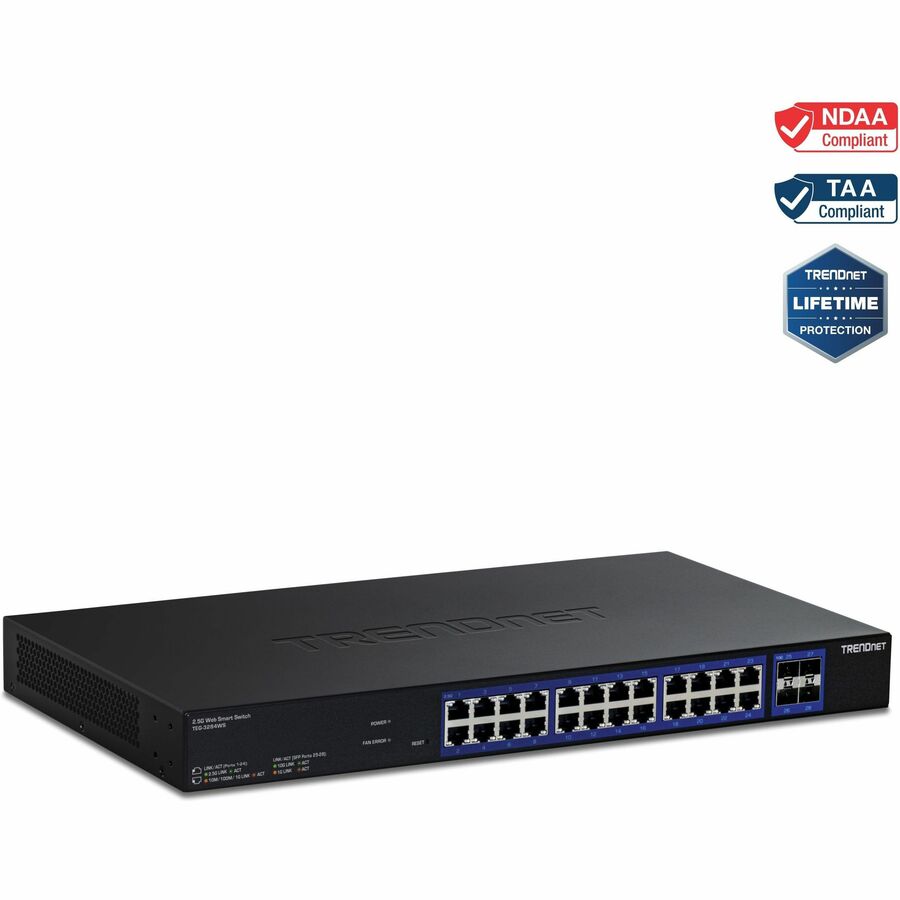

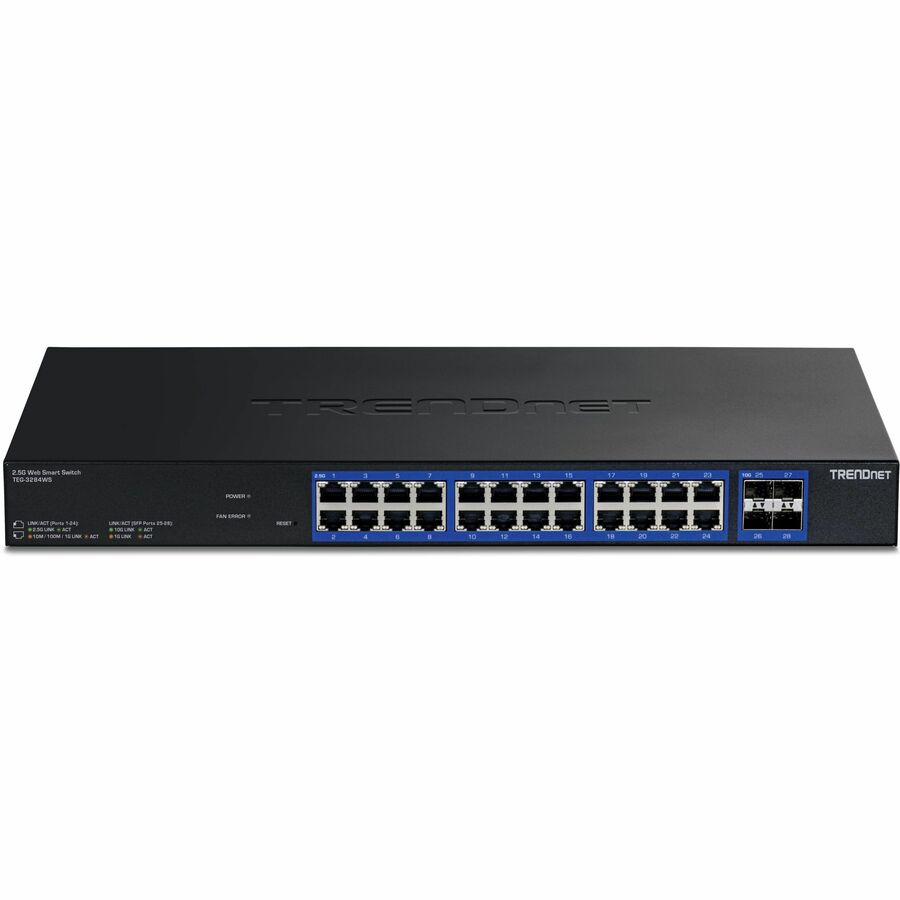

TRENDnet 28-Port Multi-Gig Web Smart Switch, TEG-3284WS, 24 x 2.5G Ports, 4 x 10G SFP+ Ports, Remote Cloud Management, NDAA TAA Compliant, 200Gbs, Lifetime Protection

TRENDnet's 28-Port Multi-Gig Web Smart Switch, model TEG-3284WS, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of today's SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. TEG-3284WS Easily manage and configure this web smart managed switch remotely with access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet's reliable cloud service.

The TEG-3284WS multi-gig managed switch comes equipped with 2.5G RJ-45 ports that provide higher than gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gig managed switch also offers four dedicated 10G SFP+ ports for high-speed network connections, provides an affordable solution in adding 10G link capability to any existing network. The fanless design lowers energy consumption, and eliminates operating noise. TRENDnet's reliable 2.5G managed switch with 10G SFP+ ports offers a cost-effective solution to increase your network's throughput.

• DEVICE INTERFACE: 24 x 2.5G RJ-45 ports (10Mbps/100Mbps/ 1Gbps/2.5Gbps) , 4 x 10G SFP+ ports (1Gbps/10Gbps), LED indicators

• TRENDnet LIFETIME PROTECTION: We stand by our products. The TEG-3284WS 28-Port Multi-Gig Web Smart Switch is secured with Lifetime Manufacturer Protection from TRENDnet.

• NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions thatgovernment customers demand today. (U.S. and Canada only)

• HIVE ENABLED CLOUD SERVICE: Remotely manage, configure, and diagnose this web smart switch via TRENDnet's cloud service (Additional fee may apply)

• 2.5 GIGABIT SPEEDS: Equipped with 24 high-speed 2.5G RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

• 10G SFP+ PORTS:Offers four ultra-fast 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability.

• HIGH SPEED 10G SFP+: Offers four ultra-fast 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability.

• WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

• INTEGRATION FLEXIBILITY: Advanced managed features on this 2.5G managed switch include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration

More from the Manufacturer

OVERVIEW

TRENDnet’s 28-Port Multi-Gig Web Smart Switch, model TEG-3284WS, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of today’s SMB networks. This rack-mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. TEG-3284WS Easily manage and configure this web smart managed switch remotely with access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service. The TEG-3284WS multi-gig managed switch comes equipped with 2.5G RJ-45 ports that provide higher than gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gig managed switch also offers four dedicated 10G SFP+ ports for high-speed network connections, provides an affordable solution in adding 10G link capability to any existing network. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable 2.5G managed switch with 10G SFP+ ports offers a cost-effective solution to increase your network’s throughput.

2.5G Ports

Equipped with 24 high-speed 2.5G RJ45 ports that provide multi-gigabit

speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

10G SFP+ Ports

Offers four ultra-fast 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link

capability

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch

configuration complexity and offers a combination of advanced management

features for easy deployment.

2.5G Ports

Equipped with 24 high-speed 2.5G RJ-45 ports that provide multi-gigabit

speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

10G SFP+ Ports

Offers four dedicated 10G SFP+ ports for high-speed network connections,

providing a cost-effective solution in adding 10G link capability to

any existing network

Hive Enabled

Remotely manage, configure, and diagnose this web smart switch via TRENDnet’s cloud service (Additional fee may apply)

Traffic Management

A broad range of network configurations are supported by: 802.3ad link

aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP,

Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth

management, and QoS queue scheduling

Troubleshooting

A convenient cable diagnostic test and traffic statistics aid in network troubleshooting

Access Control

This 2.5G managed switch includes advanced features, such as ACL,

MAC/port filtering, 802.1X, TACACS+, and RADIUS, that are compatible

with layered access controls

Monitoring

RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

Web Smart Management

The 2.5G managed switch provides an easy-to-use web-based GUI management

for reduced switch configuration complexity, and offers a combination

of advanced management features for easy deployment

Rackmount Design

This switch is well-suited for a 1U rack installations with the included rackmount brackets

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

LED Indicators

LED indicators on this 2.5G managed switch conveys port status

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3ae

IEEE 802.3az

IEEE 802.3bz

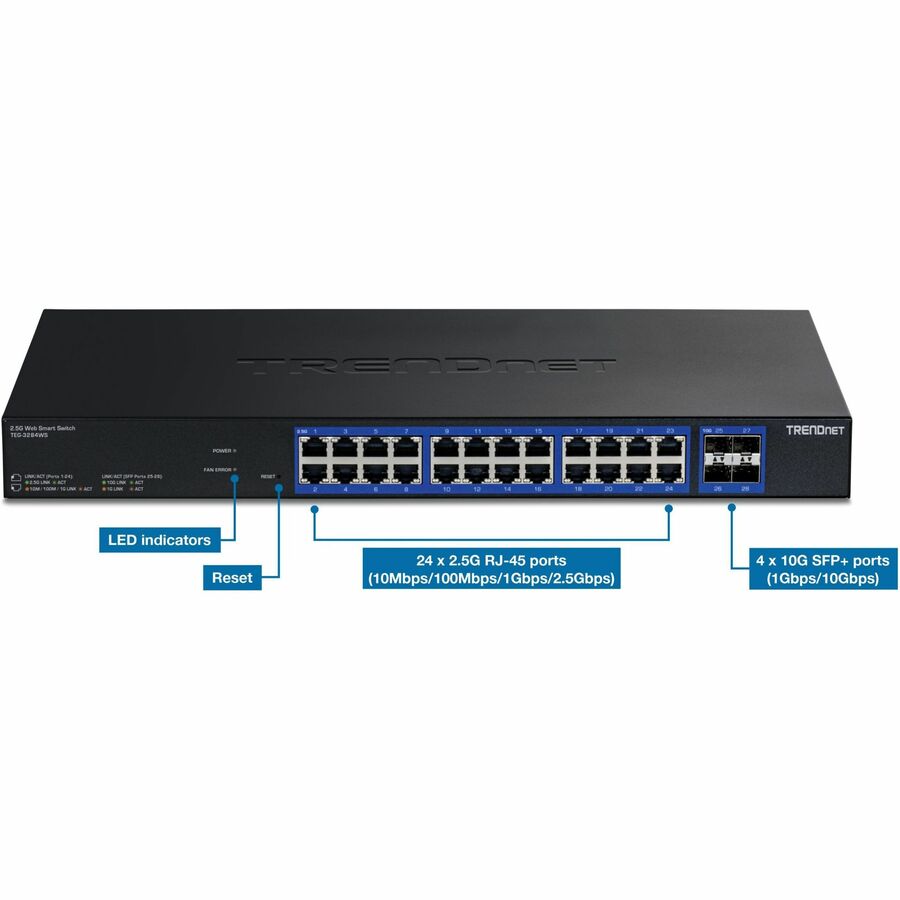

Device Interface

24 x 2.5G RJ-45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps)

4 x 10G SFP+ ports (1Gbps/10Gbps)

LED indicators

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit Ethernet: 2Gbps (full duplex)

2.5G Ethernet: 5Gbps (full duplex)

Gigabit SFP: 2Gbps (full duplex)

SFP+: 20Gbps (full duplex)

Performance

Switching fabric: 200Gbps

RAM Buffer: 2MB

MAC Address Table: 32K entries

Jumbo Frames: 12KB

HOL Blocking Prevention

Forwarding rate: 130.95Mpps (64-byte packet size)

Management

CLI (Telnet / SSHv2) limited administration only

HTTP/HTTPS (SSL v2/3 TLS) Web based GUI

SNMP v1, v2c, v3

RMON v1

Static Unicast MAC Address

Enable/disable 802.3az Power Saving

LLDP

Virtual Cable Diagnostics Test

IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

Dual image

Dual configuration

TC Root/Protect

Ping Watch Dog

Hive Cloud Management

Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser

Multi-device management

Provisioning through scheduled batch firmware or configuration updates for multiple switches

Event/hardware network monitoring (CPU/memory utilization)

Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management

MIB

IP FORWARD TABLE MIB RFC 1354

IPV6 MIB RFC 2465

GVRP MIB IEEE 802.1Q-VLAN

LA MIB IEEE 802.3ad

LLDP MIB IEEE 802.1AB

SNMP MIB RFC 3415

STP MIB RFC 4318

PNAC MIB IEEE 802.1x

VLAN MIB IEEE 802.1q

ACL MIB

BANDWIDTH CTRL MIB

LBD MIB

MIRROR MIB

IPV6 NEIGHBOR MIB

SNTP MIB

STORM CTRL MIB

STATISTICS MIB

Tool MIB

VOICE VLAN MIB

DOS MIB

Spanning Tree

IEEE 802.1d STP

IEEE 802.1w RSTP

IEEE 802.1s MSTP

Link Aggregation

Static Link Aggregation

802.3ad Dynamic LACP

Quality of Service (QoS)

802.1p Class of Service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth control per port

Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

Multiple management VLAN assignment

Asymmetric VLAN

802.1Q Tagged VLAN

Dynamic GVRP

MAC-based VLAN

Protocol-based VLAN

Up to 256 VLAN groups, ID Range 1-4094

Private VLAN (Protected Ports)

Voice VLAN (10 user defined OUIs)

Multicast

IGMP Snooping v1, v2

MLD Snooping v1

IGMP fast leave

MVR (Multicast VLAN Registration)

Static Multicast Address

Up to 256 multicast entries

Port Mirror

RX, TX, or Both

Many to one

Access Control

802.1X Port-Based Network Access Control, RADIUS, TACACS+

Local Dial In User Authentication

DHCP Snooping (per VLAN)

Loopback Detection

Duplicated Address Detection

Trusted Host

Denial of Service (DoS)

IP MAC port binding

Dynamic ARP inspection

Block unknown multicast

ACL IPv4 L2-L4 & IPv6

MAC Address

VLAN ID

Ether Type (IPv4 only)

IP Protocol 0-255

TCP/UDP Port 1-65535

802.1p

DSCP (IPv4 only)

IPv6 Address (IPv6 only)

Layer 3 Features

IPv4 / IPv6 static routing

IP interfaces: Up to 8

Routing table entries: Up to 32 (IPv4 / IPv6)

ARP table (up to 128 entries)

Inter-VLAN routing

Compatibility

Optional Software Utility: Windows® 11 & 10

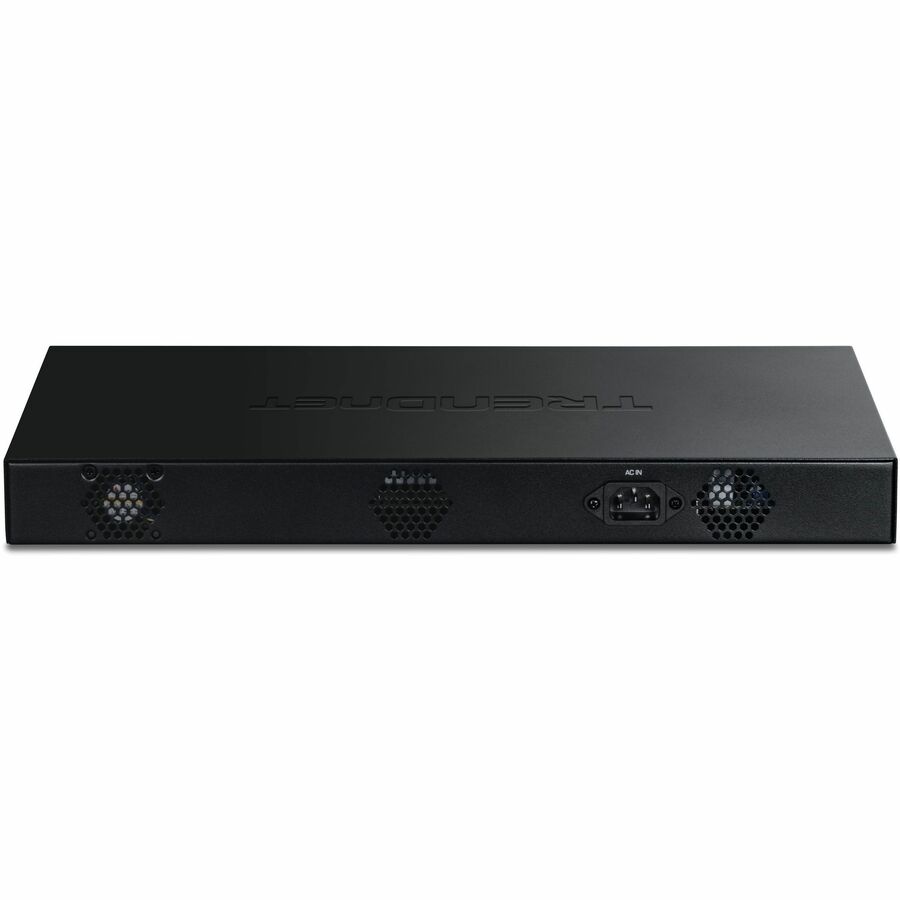

Power

Input: 100 – 240V AC, 50/60Hz, internal power supply

Max. consumption: 40W

Fan/Acoustics

Quantity: 1

Smart fan

Max. noise level 38.6 dBA

MTBF

175,750 hours @ 25°C

Operating Temperature

-5° – 50° C (23° – 122° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

440 x 250 x 44mm (17.32 x 10.04 x 1.73 in.)

Rack mountable 1U height

Weight

3.408kg (7.51 lbs.)

Certifications

CE

FCC

UL

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TEG-3284WS

Power cord (1.8m/6 ft.)

Rackmount kit

All references to speed are for

comparison purposes only. Product specifications, size, and shape are

subject to change without notice, and actual product appearance may

differ from that depicted herein.

28-Port Multi-Gig Web Smart Switch

24 x 2.5G ports

4 x 10G SFP+ ports

Backwards compatible with 10/100/1000BASE-T devices

Easy-to-use web-based management interface

Remote cloud management with TRENDnet Hive (Additional fee may apply)

Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping

Bandwidth control per port

Private, Multicast, and Voice VLAN support

Smart Fan

200Gbps switching capacity

NDAA / TAA compliant (U.S. and Canada only)

Lifetime Warranty
