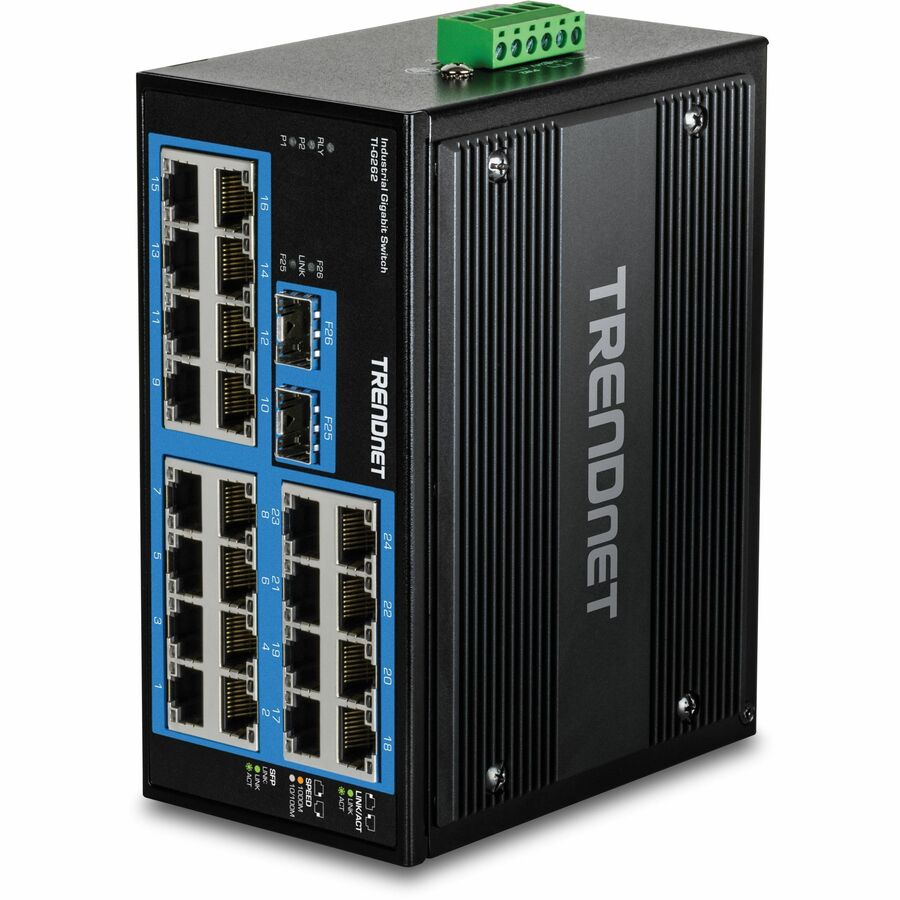

TRENDnet 26-Port Hardened Industrial Gigabit DIN-Rail Switch

TRENDnet's Industrial Gigabit DIN-Rail Switches feature a rugged IP30 rated metal enclosure and are designed to work in the harshest networking environments. This Industrial Unmanaged Switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and gigabit SFP ports for long distance fiber networking applications.

• DEVICE INTERFACE: 14 x Gigabit ports; 2 x Gigabit SFP slots; 32Gbps switching capacity

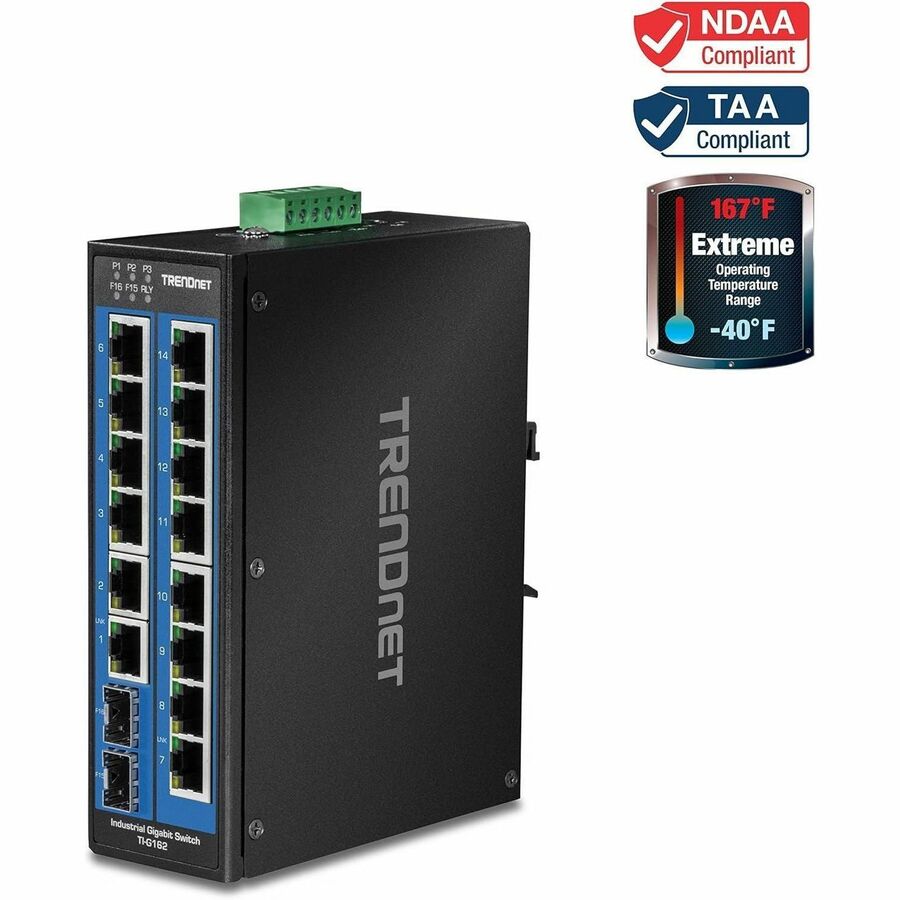

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-G162 6-Port Hardened Industrial Unmanaged Gigabit DIN-Rail Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• REDUNDANT POWER: Multiple power inputs provide redundant power with overload current protection (power supply sold separately, model: TI-M6024)

• DIN-RAIL / WALL MOUNTS: IP30 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount hardware

• WIDE TEMPERATUTRE RANGE: A wide operating temperature range of -40° - 75° C (-40° - 167° F) allows for the installations of the industrial switches in environments with extreme hot or cold conditions

• ALARM RELAY: Hardened industrial switches each with an alarm relay triggered by power failure of primary and/or redundant power

• SHOCK AND VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

• GROUNDING POINT: Industrial switches feature a grounding point for protection against external electrical surges

More from the Manufacturer

TRENDnet’s Industrial Gigabit DIN-Rail Switches feature a rugged IP30 rated metal enclosure and are designed to work in the harshest networking environments. This Industrial Unmanaged Switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and gigabit SFP ports for long distance fiber networking applications.

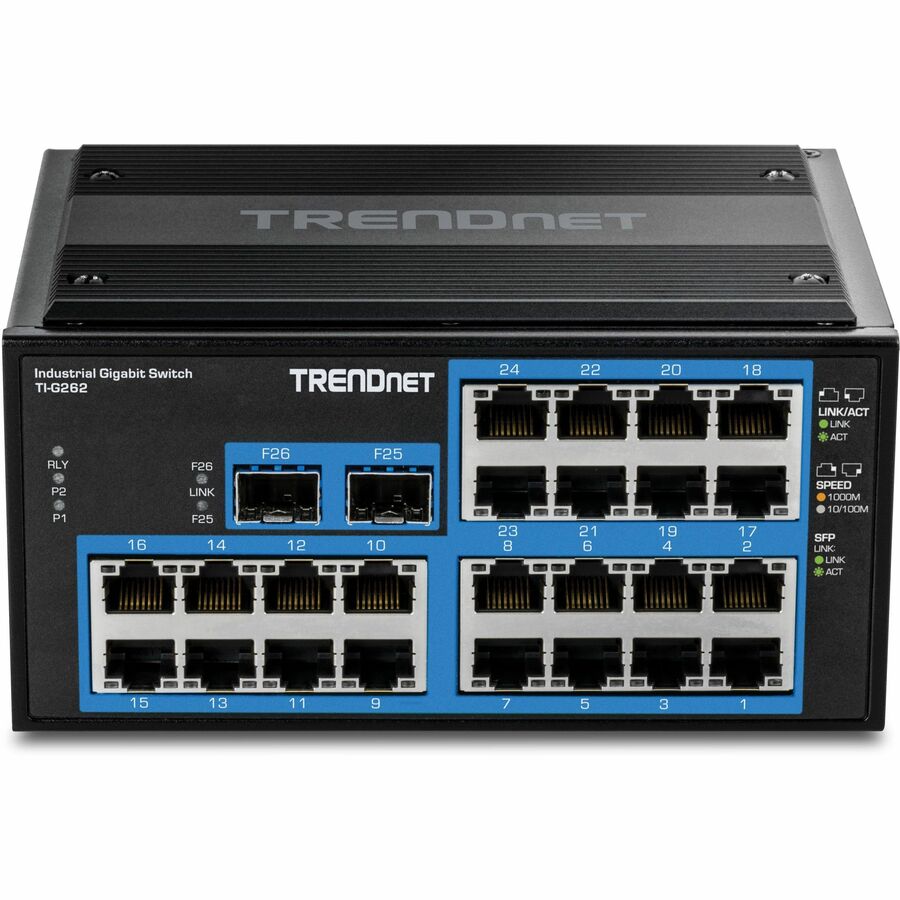

Gigabit Ports

This industrial switch features gigabit RJ-45 ports for high-speed device connections, and gigabit SFP ports that support long distance fiber networking applications.

Redundant Power

Multiple power inputs provide redundant power with overload current protection on this hardened industrial switch, minimizing overall network downtime (power supply sold separately)

Industrial Hardened Design

Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (-40° – 167° F).

Gigabit Ports

Industrial switch features gigabit RJ-45 ports for high-speed device connections, and gigabit SFP ports that support long distance fiber networking applications

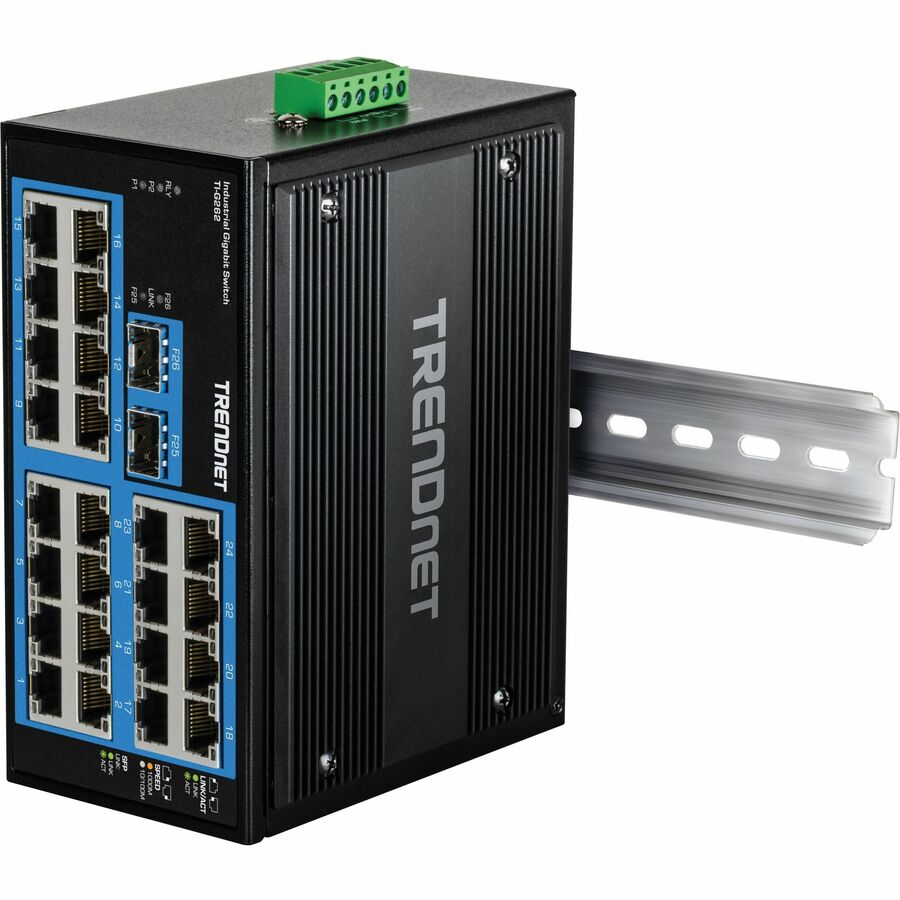

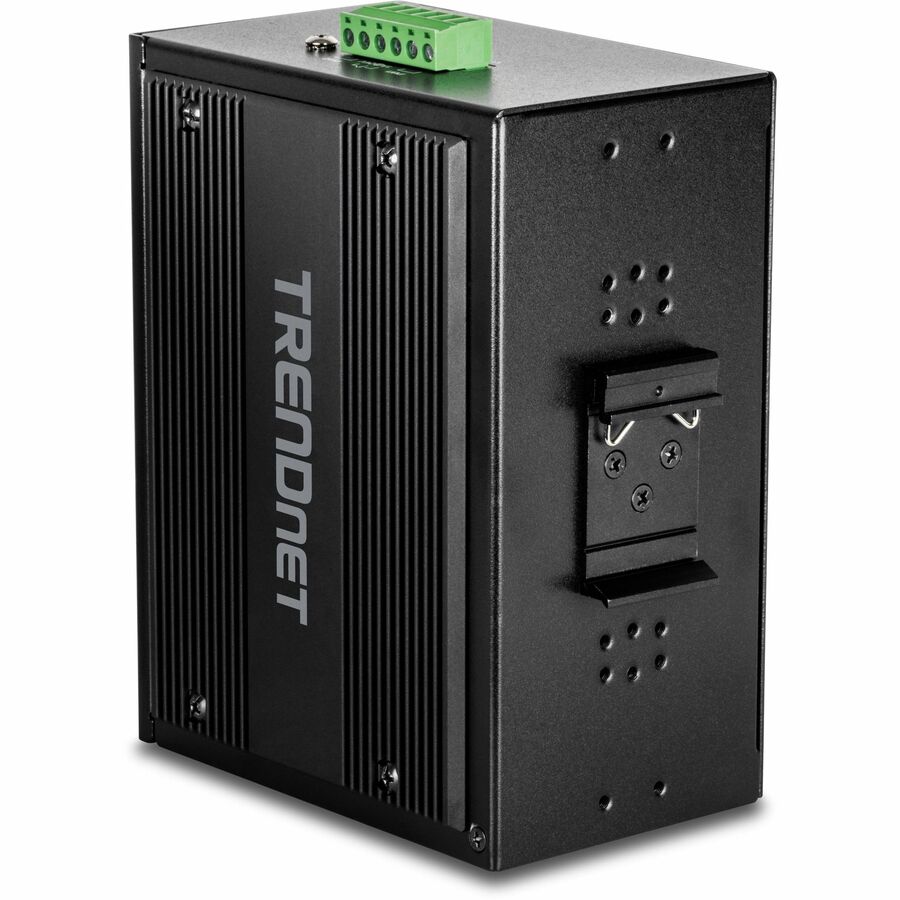

DIN-Rail / Wall Mounts

IP30 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount hardware

Redundant Power

Multiple power inputs provide redundant power with overload current protection (power supply sold separately, models: TI-M6024, TI-S15052)

Alarm Relay

Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame

Supports larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperature Range

Operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV

Grounding Point

Grounding point for high voltage protection

Switching Capacity

52Gbps switching capacity

LED Indicator

LED Indicators convey port status

• DEVICE INTERFACE: 24 x Gigabit Ports; 2 x Gigabit SFP Ports; 52Gbps Switching Capacity

• POWER SUPPLY SOLD SEPARATELY: Power supply sold separately (Compatible models: TI-S15052 & TI-M6024)

• GIGABIT PORTS: This Industrial switch features gigabit RJ-45 ports for high-speed device connections, and gigabit SFP ports

that support long distance fiber networking applications.

• DIN-RAIL & WALL MOUNT KIT: This gigabit industrial switch comes with a DIN-Rail mount and wall mounting hardware.

• INDUSTRIAL HARDENED DESIGN: The DIN-rail switch is equipped rugged IP30 rated metal enclosure, designed to withstand a

high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial

environments.

• SHOCK AND VIBRATION RESISTANT: Designed to withstand a high degree of vibration and shock. Rated for shock (EN

60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

• TRENDnet LIFETIME PROTECTION: The TI-G262 Industrial 26-Port Gigabit DIN-Rail Switch is backed by TRENDnet’s Lifetime Manufacturer Protection.

•NDAA / TAA compliant

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3x

IEEE 802.3z

Device Interface

24 x Gigabit ports

2 x Gigabit SFP ports

6-pin removable terminal block

LED indicators

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2Gbps (full duplex)

SFP: 2Gbps (full duplex)

Performance

Data RAM Buffer: 512KB

Switching Fabric: 52Gbps

MAC Address Table: 8K entries

Jumbo Frame: 9KB

Forwarding Rate: 38.69Mpps (64-byte packet size)

Special Features

Hardened components rated for extreme temperatures

Dual power inputs

Auto negotiation

Auto store and forward architecture

Automatic address learning and address aging

ESD 8KV and Surge 2KV protection

Power

Input: 12 - 56V DC

Compatible power supply: TI-M6024, TI-S15052 (sold separately)

Max. consumption: 10.64W

Terminal Block

Redundant power inputs, alarm relay contact, 6 pin

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24/14-22

Stranded wire (AWG): 12-24/14-22

Torque: 5 lb. – In / 0.5Nm / 0.56 Nm

Wire strip length: 7-8mm

Alarm Relay Contact

Relay outputs with current carrying capacity of 1A, 24V DC

Short circuit mode when two power sources are connected

Open circuit mode when only one power source is connected

MTBF

520,000 hours

Housing

IP30 metal case

DIN-Rail mount

Wall mount

Grounding point

8KV ESD protection

2KV surge protection

Operating Temperature

- 40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

163 x 120 x 77mm (6.41 x 4.72 x 3.03 in.)

Weight

936g (2.06 lbs.)

Certifications

CE

FCC

LVD

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TI-G262

Quick Installation Guide

Removable terminal block

DIN-Rail / wall mount kit
