TRENDnet 28-Port 10/100Mbps Web Smart PoE+ Switch, 20 x PoE Ports, 4 x PoE+ Ports, 2 x Gigabit Ports, 2 x Shared Gigabit Ports (RJ-45 or SFP), Rack Mountable, Lifetime Protection, Black, TPE-224WS

TRENDnet's 28-Port 10/100 Mbps Web Smart PoE+ Switch, model TPE-224WS, offers 24 x 10/100 Mbps PoE ports (Ports 1-4 support PoE+), 2 x Gigabit ports, 2 x shared Gigabit ports (RJ-45 or SFP), and a PoE Power budget of 193W. This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet, and monitoring features at a reduced cost.

• ETHERNET PORT INTERFACE: 20 x PoE ports (15.4 W / port), 4 x PoE+ ports (30 W / port), 2 x Gigabit ports, 2 x Shared Gigabit ports (RJ-45 or SFP)

• LIFETIME PROTECTION -We stand by the quality of our products. The TPE-224WS 28-Port 10/100Mbps Web Smart PoE+ Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA COMPLIANT: With our NDAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• TRAFFIC MANAGEMENT: This web smart Ethernet switch has a broad range of network configurations that are support by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and QoS queue scheduling

• TROUBLESHOOTING CAPABILITIES: The network switch provides real time traffic comparison charts, error group charts, and a convenient cable diagnostic test that aides in rapid troubleshooting

• FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The Web Smart PoE+ switch has a 193W PoE power budget that supplies PoE+ (up to 30 W) to ports 1-4 and PoE (up to 15.4 W) to ports 5-24 along with auto classification and over current/short circuit protection

• WEB SMART MANAGEMENT: The 28 Port Switch provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment

• INTEGRATION FLEXIBILITY: The PoE+ network switch managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration

• TRAFFIC MANAGEMENT: This web smart Ethernet switch has a broad range of network configurations that are support by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and QoS queue scheduling

More from the Manufacturer

TRENDnet's 28-Port 10/100 Mbps Web Smart PoE+ Switch, model TPE-224WS, offers 24 x 10/100 Mbps PoE ports (Ports 1-4 support PoE+), 2 x Gigabit ports, 2 x shared Gigabit ports (RJ-45 or SFP), and a PoE Power budget of 193W. This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet, and monitoring features at a reduced cost.

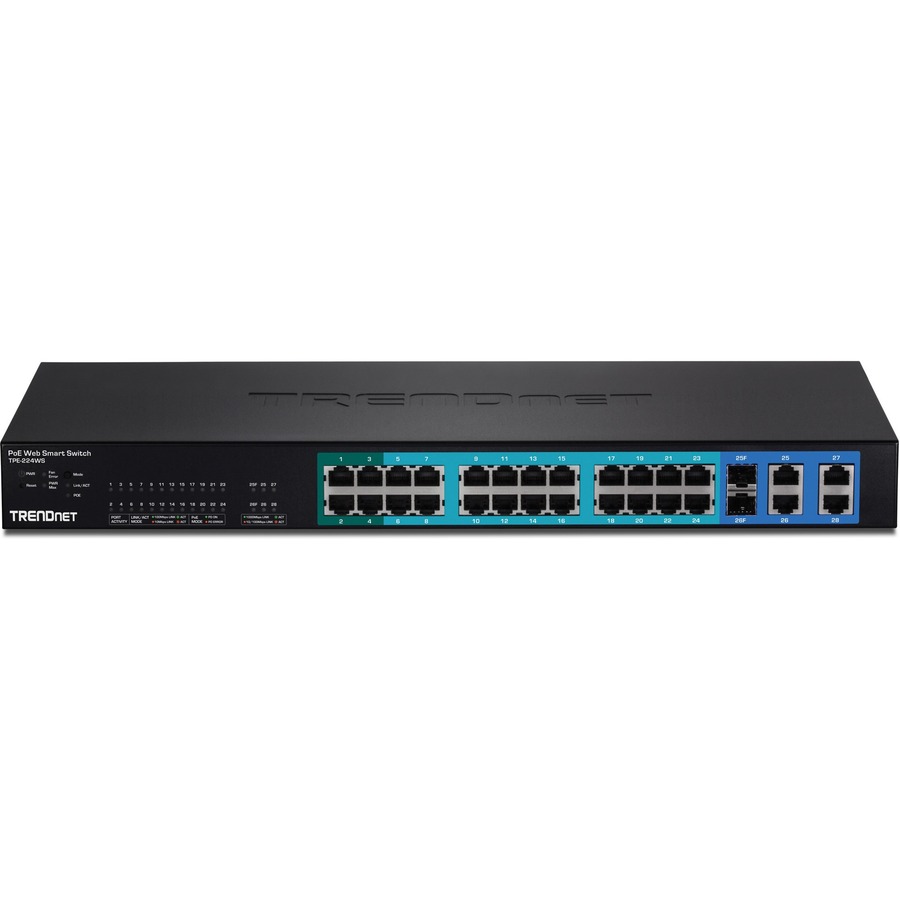

28-Port 10/100 Mbps Web Smart PoE+ Switch

20 x PoE ports (15.4 W / port)

4 x PoE+ ports (30 W / port)

2 x Gigabit ports

2 x Shared Gigabit ports (RJ-45 or SFP)

193 Watt PoE budget

12.8 Gbps switching capacity

Rack mountable

Smart fans reduce energy consumption

NDAA / TAA compliant (U.S. and Canada only)

Lifetime Warranty

Power over Ethernet

The 193 W PoE power budget supplies PoE+ (up to 30 W) to ports 1-4 and PoE (up to 15.4 W) to ports 5-24 along with PD (powered device) auto classification and over current / short circuit protection.

Web Smart Management

Provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.

Integration Flexibility

Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration.

Hardware Design

Provides 24 x 10/100 Mbps PoE ports (Ports 1-4 support PoE+), 4 x Gigabit ports, 2 x shared SFP slots, a PoE Power budget of 193 W, and includes rackmount brackets.

IPv6 Ready

This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic Management

A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, Bandwidth Controls, GVRP, IGMP v1-v3, 802.1p Class of Service (CoS), Spanning Tree (STP, RSTP, and MSTP), and QoS queue scheduling.

Troubleshooting

Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting.

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3af (15.4 W / port)

IEEE 802.3at (30 W / port)

IEEE 802.3az

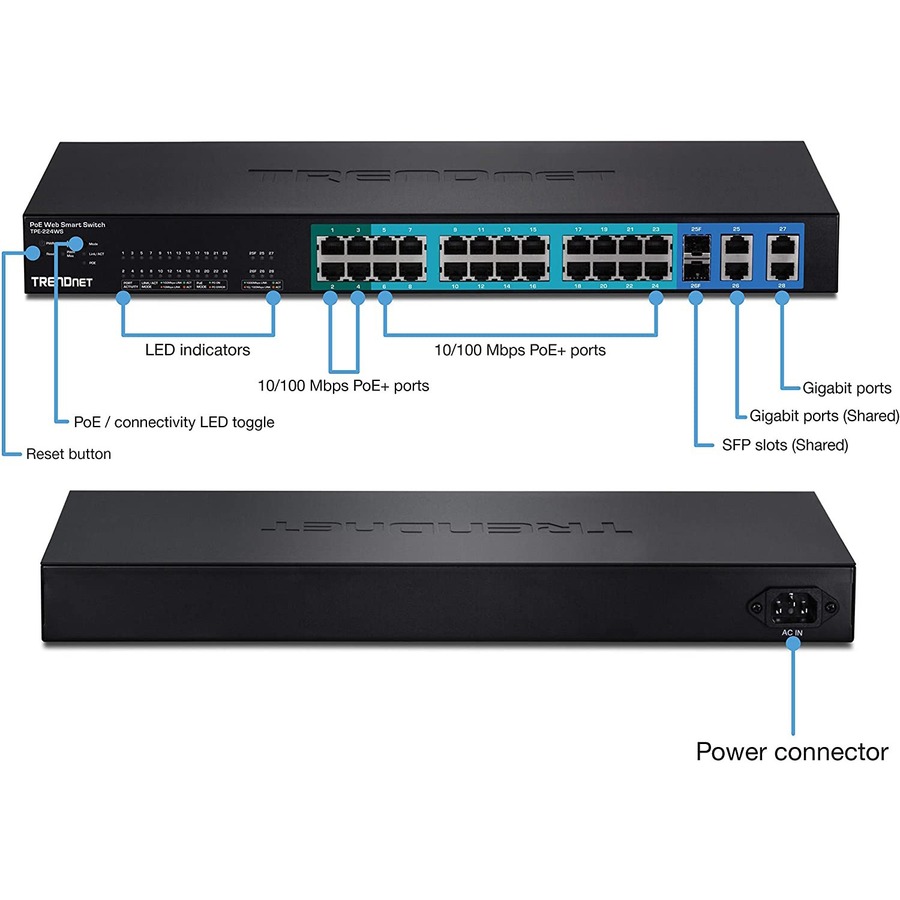

Device Interface

4 x 10/100 Mbps PoE+ ports,

20 x 10/100 Mbps PoE ports

2 x Gigabit ports

2 x Shared Gigabit ports (RJ-45 or SFP)

LED indicators (Mode Button displays Link / Activity or PoE port status)

Reset Button

Data Transfer Rate

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Gigabit Ethernet: 2000 Mbps (full duplex)

Performance

Switch fabric: 12.8 Gbps

RAM buffer: 512 KB

MAC Address Table: 8 K entries

HOL Blocking Prevention

Forwarding rates: 9.5 Mpps (64-byte packet size)

Management

HTTP / HTTPS (SSL v2 / 3 TLS) Web based GUI

SNMP v1, v2c, v3

RMON v1

Static Unicast MAC Address

Enable / disable 802.3az Power Saving

LLDP

Virtual Cable Test

IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

MIB

MIB II RFC 1213

Bridge MIB RFC 1493

Bridge MIB Extension RFC 2674

SNMPv2 MIB RFC 1907

Ethernet Interface MIB RFC 1643

Ethernet –like MIB RFC 2863

Interface Group MIB RFC 2233

MIB Traps Convention RFC 1215

RMON MIB RFC 1757, RFC 2819

802.1p MIB RFC 2674

RADIUS Client Authentication MIB RFC 2618

LLDP-MIB IEEE 802.1ab

Ping MIB RFC 2925, RFC 4560

Spanning Tree

IEEE 802.1D STP (Spanning Tree protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

Static Link Aggregation

802.3ad Dynamic LACP

Quality of Service (QoS)

802.1p Class of Service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth Control per port

Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

Multiple management VLAN assignment

Asymmetric VLAN

802.1Q Tagged VLAN

Dynamic GVRP

Up to 256 VLAN groups, ID Range 1-4094

Private VLAN (Protected Ports)

Voice VLAN (10 user defined OUIs)

Multicast

IGMP Snooping v1, v2, v3 (per VLAN)

Static Multicast Address

Up to 256 multicast entries

Port Mirror

RX, TX, or Both

One to one

Many to one

Access Control

802.1X Port-Based Network Access Control, RADIUS, TACACS+

Local Dial In User Authentication

DHCP Snooping (per VLAN)

Loopback Detection

Duplicated Address Detection

Denial of Service (DoS)

ACL IPv4 L2-L4 & IPv6

MAC Address

VLAN ID

Ether Type (IPv4 only)

IP Protocol 0-255

TCP / UDP Port 1-65535

802.1p

DSCP (IPv4 only)

IPv6 Address (IPv6 only)

Compatibility

Optional Software Utility: Windows

10, 8.1, 8, 7, Vista, XP, Windows

2003 / 2008 Server

Special Features

PoE+

IPv6

802.3az power saving

Rack mountable

Power

Input: 100 - 240 V AC, 50/60 Hz, internal power supply

Consumption: 239.7 W (max.)

PoE

PoE budget: 193 W

802.3at: Up to 30 W per port (ports 1-4)

802.3af: Up to 15.4 W per port (ports 5-24)

Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-)

PD auto classification

Over current / short circuit protection

Fan / Acoustics

Quantity: 2

Noise Level: 54 dB(A) (max.)

MTBF

283,830 hours

Operating Temperature

-5 – 50 °C (23 – 122 °F)

Operating Humidity

Max. 90% non-condensing

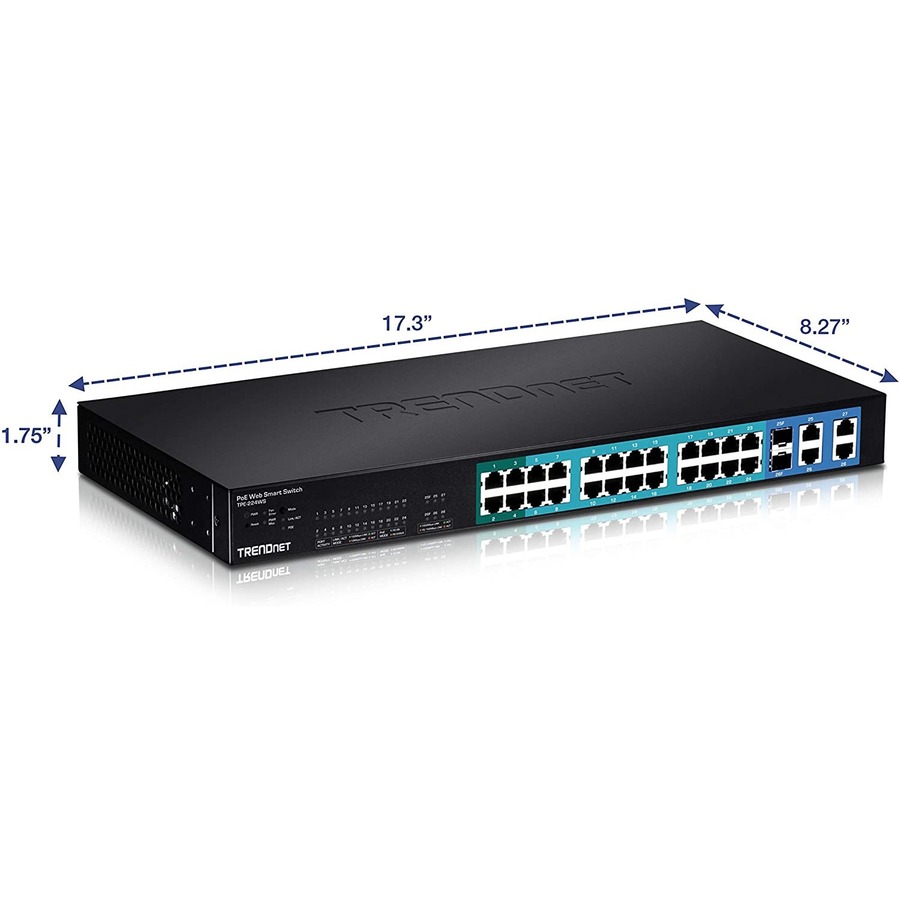

Dimensions

440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.)

Rack mountable 1U height

Weight

3.26 kg (7.18 lbs.)

Certifications

CE

FCC

UL

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TPE-224WS

Quick Installation Guide

CD-ROM (Utility & User's Guide)

Power cord (1.8 m / 6 ft.)

Rack mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
