TRENDnet 28-Port Gigabit Web Smart PoE+ Switch, 24 x Gigabit Ports, 4 x Shared Gigabit Ports (RJ-45 or SFP), 185W PoE Budget, 56Gbps Switching Capacity, Lifetime Protection, Black, TPE-2840WS

TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart PoE+ Managed Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on these cloud managed switches with TRENDnet's reliable cloud service.

Web Smart Management Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

Integration Flexibility Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

PoE Power A 185W PoE power budget supplies power to PoE/PoE+ devices.

More from the Manufacturer

TRENDnet’s Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. TRENDnet’s web smart managed switches also feature SFP slots to support long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Web Smart PoE+ Managed Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Easily manage and configure TRENDnet’s Web Smart PoE+ Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on these cloud managed switches with TRENDnet’s reliable cloud service.

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

Integration Flexibility

Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

PoE Power

A 185W PoE power budget supplies power to PoE/PoE+ devices.

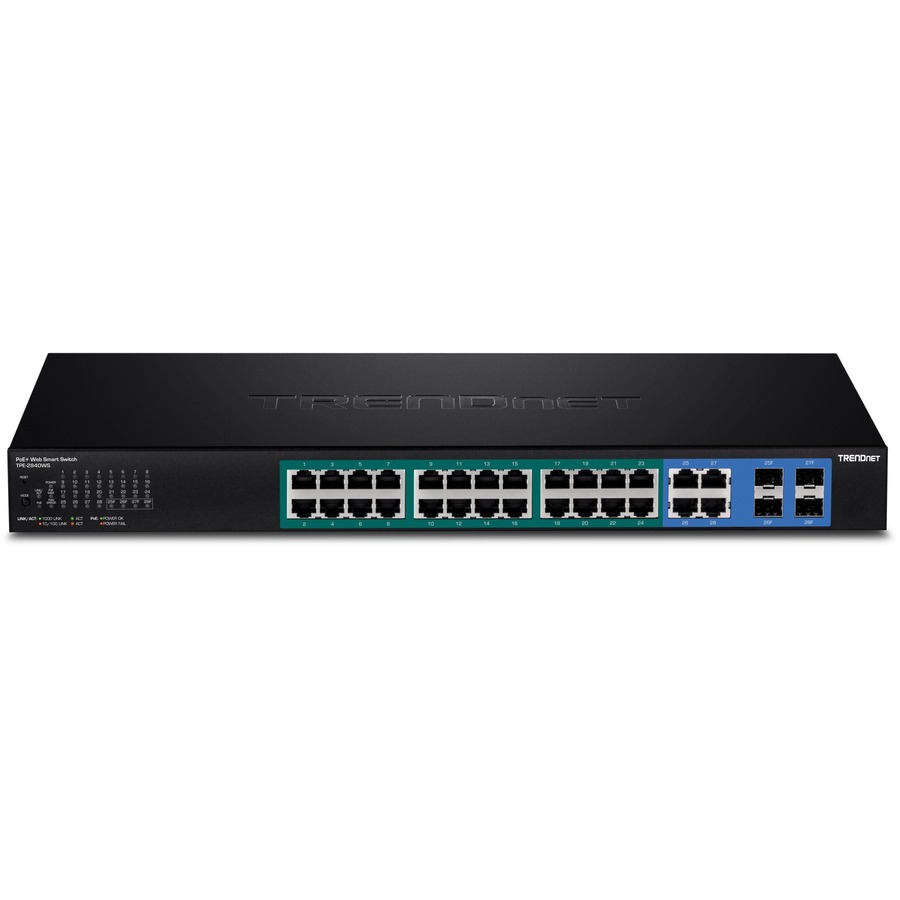

Hardware Design

Provides 24 gigabit PoE+ ports, 4 shared gigabit ports (RJ-45 or SFP), a 56Gbps switching capacity, a built-in power supply, and rackmount brackets.

PoE Power

Supplies up to 30W of PoE+ power per port with a total power budget of 185W.

IPv6 Ready

This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic Management

A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling.

TRENDnet Hive Cloud Manager

ETHERNET PORT INTERFACE: 24 x Gigabit PoE+ Ports, 4 x Shared Gigabit ports (RJ-45 or SFP)

FULL POE+ POWER BUDGET & SWITCHING CAPACITY: The Web Smart PoE+ switch has a 185W PoE power budget that supplies PoE+ (up to 30 W) per port and features 56Gbps switching capacity

WEB SMART MANAGEMENT: The 28 Port Switch provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment

INTEGRATION FLEXIBILITY: The PoE+ network switch managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration

TRAFFIC MANAGEMENT: This web smart Ethernet switch has a broad range of network configurations that are support by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and QoS queue scheduling

TROUBLESHOOTING CAPABILTIES: The network switch provides real time traffic comparison charts, error group charts, and a convenient cable diagnostic test that aides in rapid troubleshooting

TRENDNET HIVE: The advanced network cloud management solution designed to save you both time and cost by simplifying and centralizing management and monitoring of networks(s) and networked devices all from the palm of your hand.(Additional fee applies)

REMOTE CLOUD MANAGEMENT: Hive allows you to remotely manage, configure, and easily diagnose your network devices. Monitor and download detailed usage reports, easily locate data bottlenecks, and expand the network to improve overall productivity

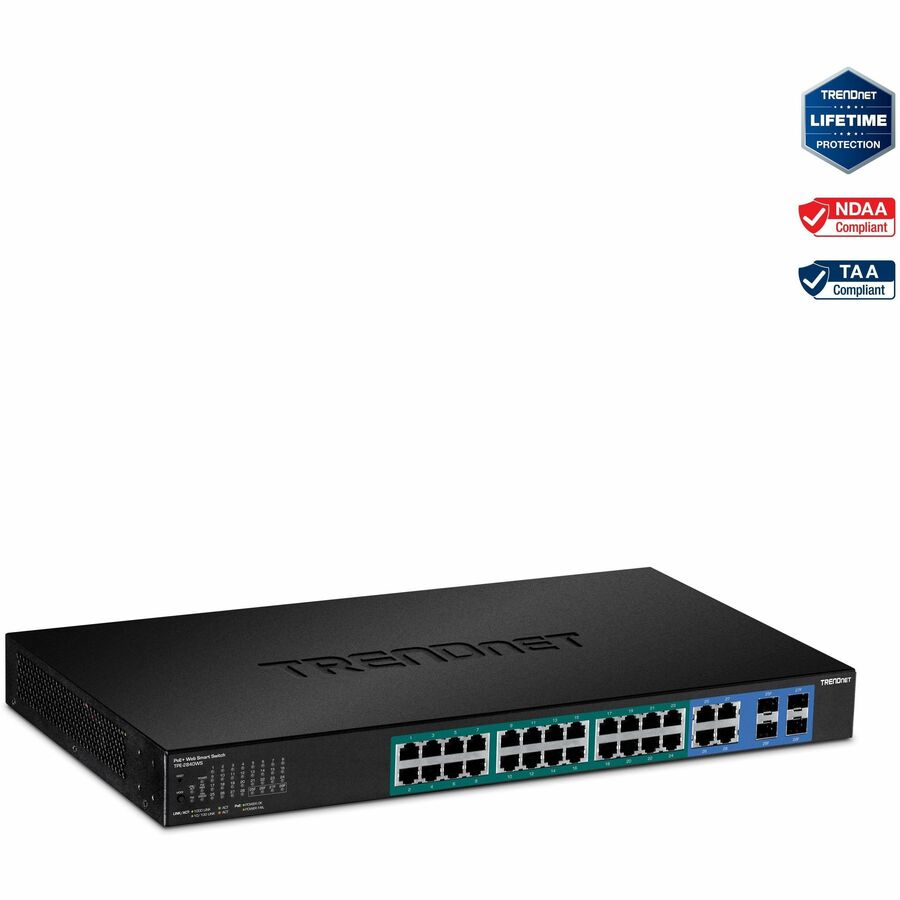

TRENDnet LIFETIME PROTECTION: All metal TRENDnet switches come with lifetime manufacturer protection

NDAA / TAA compliant (U.S. and Canada only)

SPECIFICATIONS

Standards

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1X

IEEE 802.1ab

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3z

IEEE 802.3ab

IEEE 802.3ad

IEEE 802.3af

IEEE 802.3at

IEEE 802.3az

Device Interface

24 x Gigabit PoE+ ports

4 x Shared Gigabit ports (RJ-45/SFP)

LED indicators

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit Ethernet: 2000Mbps (full duplex)

Performance

Switch fabric: 56Gbps

RAM buffer: 4.1Mbits

MAC Address Table: 8K entries

Jumbo Frames: 10Kbytes

HOL Blocking Prevention

Forwarding rate: 41.7Mpps (64-byte packet size)

Management

HTTP/HTTPS (SSL v2/3 TLS) Web based GUI

SNMP v1, v2c, v3

RMON v1

Static Unicast MAC Address

Enable/disable 802.3az Power Saving

LLDP and LLDP-MED

Virtual Cable Diagnostics Test

IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

Hive Cloud Management

Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser

Multi-device management

Provisioning through scheduled batch firmware or configuration updates for multiple switches

Event/hardware network monitoring (CPU/memory utilization)

Enable & disable PoE, set PD (powered device) alive check, configure PoE scheduling, and monitor PoE budget utilization (for PoE switches only)

Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management

MIB

IP FORWARD TABLE MIB RFC 1354

RMON MIB RFC 1271

IPV4 MIB RFC 1213

IPV6 MIB RFC 2465

GVRP MIB IEEE 802.1Q-VLAN

LA MIB IEEE 802.3ad

LLDP MIB IEEE 802.1AB

IGMP SNOOPING MIB RFC 2933

MLD SNOOPING MIB RFC 3019

PRIVATE VLAN MIB IEEE 802.1Q

DHCPSNOOP MIB RFC 2026

QOS MIB RFC 4323

SNMP MIB RFC 3415

STP MIB RFC 4318

PNAC MIB IEEE 802.1x

VLAN MIB IEEE 802.1q

DNS MIB RFC 1611

ACL MIB

BANDWIDTH CTRL MIB

LBD MIB

MIRROR MIB

IPV6 NEIGHBOR MIB

SNTP MIB

STORM CTRL MIB

STATISTICS MIB

Tool MIB

VOICE VLAN MIB

DOS MIB

Spanning Tree

IEEE 802.1D STP (Spanning Tree protocol)

IEEE 802.1w RSTP (Rapid Spanning Tree protocol)

IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

Static Link Aggregation

802.3ad Dynamic LACP

Quality of Service (QoS)

802.1p Class of Service (CoS)

DSCP (Differentiated Services Code Point)

Bandwidth Control per port

Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

Multiple management VLAN assignment

Asymmetric VLAN

802.1Q Tagged VLAN

Dynamic GVRP

Up to 256 VLAN groups, ID Range 1-4094

Private VLAN (Protected Ports)

Voice VLAN (10 user defined OUIs)

Multicast

IGMP Snooping v1, v2, v3 (per VLAN)

Static Multicast Address

Up to 256 multicast entries

Port Mirror

RX, TX, or Both

One to one

Encryption

802.1X Port-Based Network Access Control , RADIUS, TACACS+

Local Dial In User Authentication

DHCP Snooping (per VLAN)

Loopback Detection

Duplicated Address Detection

Trusted Host

Denial of Service (DoS)

ACL IPv4 L2-L4 & IPv6

MAC Address

VLAN ID

Ether Type (IPv4 only)

IP Protocol 0-255

TCP/UDP Port 1-65535

802.1p

DSCP (IPv4 only)

IPv6 Address (IPv6 only)

Compatibility

Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server

Special Features

PoE+

IPv6

802.3az power saving

Rack mountable

PoE scheduling

Power

Input: 100 – 240V AC, 50/60Hz, internal power supply

Max. consumption: 256W

PoE

Power Budget: 185W

802.3at: Up to 30W per port

PoE Mode A: Pins 1, 2, 3, and 6 for power

PoE auto/manual classification

PoE port priority/power scheduling

PD alive check

Fan/Acoustics

Quantity: 2

Noise Level: 52 dBA (max.)

MTBF

443,825 hours

Operating Temperature

-5 – 50°C (23 - 122°F)

Operating Humidity

Max. 95% non-condensing

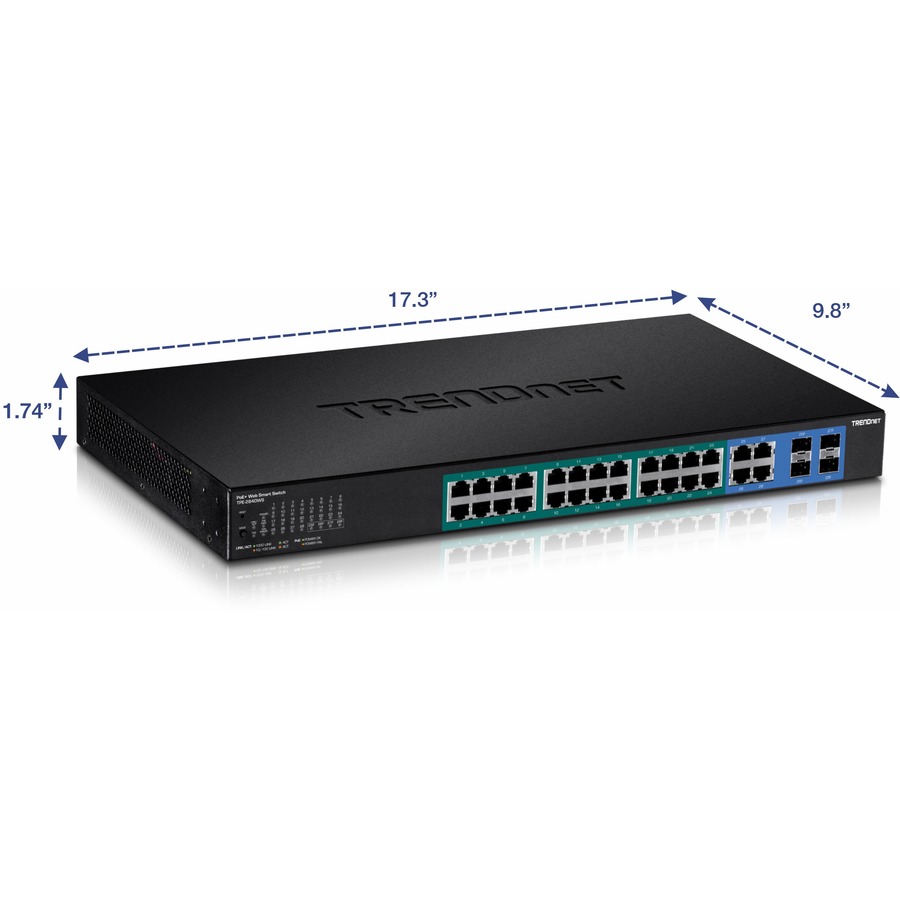

Dimensions

440 x 250 x 44mm (17.3 x 9.8 x 1.74 in.)

Rack mountable 1U height

Weight

3.75kg (8.26 lbs.)

Certifications

CE

FCC

UL

Warranty

Lifetime Warranty*

PACKAGE CONTENTS

TPE-2840WS

Quick Installation Guide

CD-ROM (Utility & User's Guide)

Power cord (1.8m/6 ft.)

Rack mount kit
