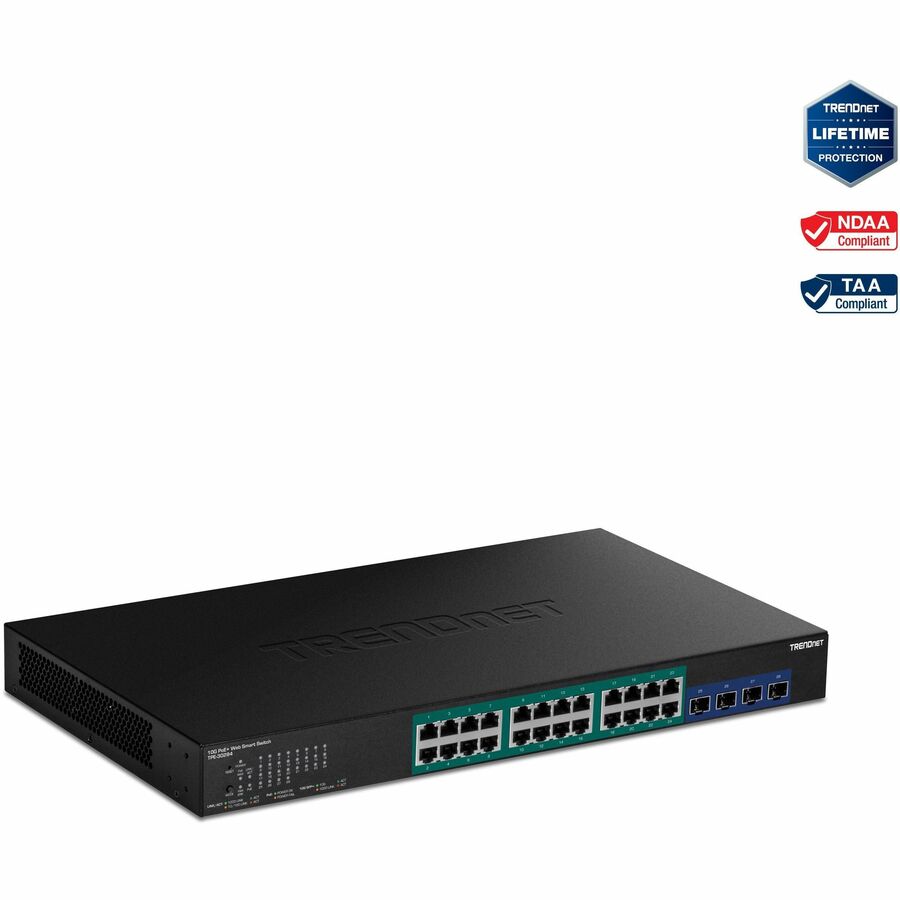

28-Port Gigabit Web Smart PoE+ Switch
$565.36
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Sep 29 and Nov 3, then process your delivery right after.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. 10G SFP+ Slots Offers four dedicated 10G SFP+ slots for high-speed network connections, providing a cost effective solution in adding 10G link capability to an SMB network. Integration Flexibility Managed switch features include access control lists, VLAN, IGMP/MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration. PoE Power A 370W total PoE power budget on the managed PoE+ switch supplies Power over Ethernet devices with up to 30W per port.
• 24 x Gigabit PoE+ ports
• 4 x 10G SFP+ slots
• 370W PoE power budget
• Easy-to-use web-based management interface
• Remote cloud management with TRENDnet Hive (Additional fee applies)
• Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping
• IPv4/IPv6 Static Routing support
• Bandwidth control per port
• Private, Multicast, and Voice VLAN support
• Smart Fans
• 128Gbps switching capacity
• IEEE 802.1p QoS with queue scheduling support
• NDAA / TAA compliant (U.S. and Canada only)
More from the Manufacturer
TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ slots to support long-distance fiber networking applications.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
Easily manage and configure TRENDnet’s Web Smart PoE+ Managed Switch Series remotely by updating switches to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on these cloud managed switches with TRENDnet’s reliable cloud service.
10G SFP+ Slots
Offers four dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
Integration Flexibility
Managed switch features include access control lists, VLAN, IGMP/MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
PoE Power
A 370W total PoE power budget on the managed PoE+ switch supplies Power over Ethernet devices with up to 30W per port.
Hardware Design
Provides gigabit ports for device connections, 10G SFP+ slots for fiber applications, and a 1U 19” rackmount design with brackets included
IPv6 Ready
This managed PoE+ switch supports IPv6 configuration and IPv6 neighbor discovery
Traffic Management
Managed switch features include: Link aggregation, 802.1Q VLAN, Voice VLAN, Multicast VLAN, RSTP, MSTP, Loopback Detection, QoS, and port bandwidth management
Access Control
Includes ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS
IPv4/IPv6 Static Routing
Offload routing processes to the managed PoE+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level
Troubleshooting
A convenient cable diagnostic test and traffic statistics aid in network troubleshooting
Dynamic ARP Inspection
Dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets
Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
TRENDnet End-to-End Multi-Gigabit Networking Solutions
TRENDnet Hive Cloud Manager
24 x Gigabit PoE+ ports; 4 x 10G SFP+ slots
370W PoE power budget; Easy-to-use web-based management interface
Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping; IPv4/IPv6 Static Routing support
Bandwidth control per port; Private, Multicast, and Voice VLAN support; Smart Fans; 128Gbps switching capacity
IEEE 802.1p QoS with queue scheduling support
TRENDNET HIVE: The advanced network cloud management solution designed to save you both time and cost by simplifying and centralizing management and monitoring of networks(s) and networked devices all from the palm of your hand.(Additional fee applies)
REMOTE CLOUD MANAGEMENT: Hive allows you to remotely manage, configure, and easily diagnose your network devices. Monitor and download detailed usage reports, easily locate data bottlenecks, and expand the network to improve overall productivity
NDAA / TAA compliant (U.S. and Canada only)
SPECIFICATIONS
Standards
IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ae
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
Device Interface
24 x Gigabit PoE+ ports
4 x 10G SFP+ slots
LED indicators
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
10G SFP+: 20Gbps (full duplex)
Performance
Switch fabric: 128Gbps
RAM buffer: 1.5MB
MAC Address Table: 16K entries
Jumbo Frames: 12KB
HOL Blocking Prevention
Forwarding rate: 95.2Mpps (64-byte packet size)
Management
CLI (Telnet / SSHv2) for basic administration
HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP and LLDP-MED
Virtual Cable Diagnostics Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
Dual image and configuration
TC Root/Protect
MIB
IP Forward Table MIB RFC 1354
RMON MIB RFC 1271
IPv4 MIB RFC 1213
IPv6 MIB RFC 2465
GVRP MIB IEEE 802.1Q-VLAN
LA MIB IEEE 802.3ad
LLDP MIB IEEE 802.1ab
IGMP Snooping MIB RFC 2933
MLD Snooping MIB RFC 3019
Private VLAN MIB IEEE 802.1Q
DHCP SNOOP MIB RFC 2026
QoS MIB RFC 4323
SNMP MIB RFC 3415
STP MIB RFC 4318
PNAC MIB IEEE 802.1x
VLAN MIB IEEE 802.1q
DNS MIB RFC 1611
ACL MIB
Bandwidth CTRL MIB
LBD MIB
Mirror MIB
IPv6 NEIGHBOR MIB
SNTP MIB
Storm CTRL MIB
Statistics MIB
Tool MIB
Voice VLAN MIB
DoS MIB
Spanning Tree
IEEE 802.1D STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
Static Link Aggregation
802.3ad Dynamic LACP
Quality of Service (QoS)
802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
MAC-based VLAN
Protocol-based VLAN
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)
Multicast
IGMP Snooping v1, v2, v3 (per VLAN)
MLD Snooping v1, v2
IGMP fast leave
MVR (Multicast VLAN Registration)
Static Multicast Address
Up to 256 multicast entries
Port Mirror
RX, TX, or Both
Many to one
Access Control
802.1X Port-Based Network Access Control, RADIUS, TACACS+
Local Dial-in User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS)
IP MAC port binding
Dynamic ARP inspection
Block unknown multicast
ACL IPv4 L2-L4 & IPv6
MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only)
Layer 3 Features
IPv4 / IPv6 static routing
IP interfaces: Up to 6
Routing table entries: Up to 32 (IPv4 / IPv6)
ARP table (up to 128 entries)
Inter-VLAN routing
Compatibility
Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server Compatibility
Special Features
10G SFP+ slots
PoE+
Smart Fans
IPv6
802.3az power saving
Rack mountable
Power
Input: 100 - 240V AC, 50/60Hz, internal power supply
Max. Consumption: 23.7W (no PoE load)
PoE
Power Budget: 370W
Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Fan/Acoustics
Quantity: 2
Noise Level: 52.2dB(A) (max.)
MTBF
287,724 hours
Operating Temperature
-5° – 50°C (23° – 122°F)
Operating Humidity
Max. 95% non-condensing
Dimensions
440 x 249 x 44mm (17.3 x 9.8 x 1.74 in.)
Rack mountable 1U height
Weight
3.94kg (8.69 lbs.)
Certifications
CE
FCC
Warranty
Lifetime Warranty*
PACKAGE CONTENTS
TPE-30284
Quick Installation Guide
Power cord (1.8m / 6 ft.)
Rack mount kit
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPE-30284 |
| Brand Name | TRENDnet |
| Product Model | TPE-30284 |
| Product Name | 28-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ Slots |
| Product Condition | New |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 28 |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+, 4 x 10 Gigabit Ethernet Expansion Slot |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
| Network Technology | 1000Base-T, 10GBase-X |
| Network & Communication | |
| Layer Supported | 3 |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 2" |
| Width | 2" |
| Depth | 11" |
| Weight (Approximate) | 8.80 oz |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Power Source | Power Supply |
| Power Consumption | 23.70 W |
| Warranty | |
| Limited Warranty | Lifetime |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Miscellaneous | |
| Country of Origin | Taiwan |
