Overview

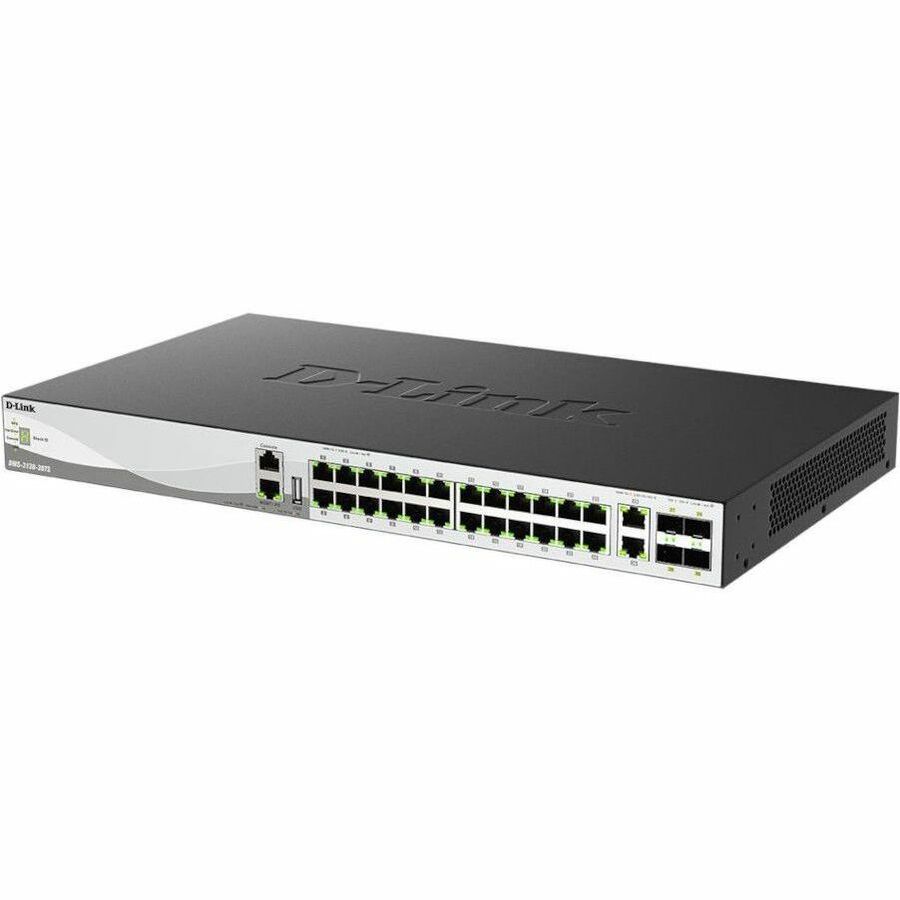

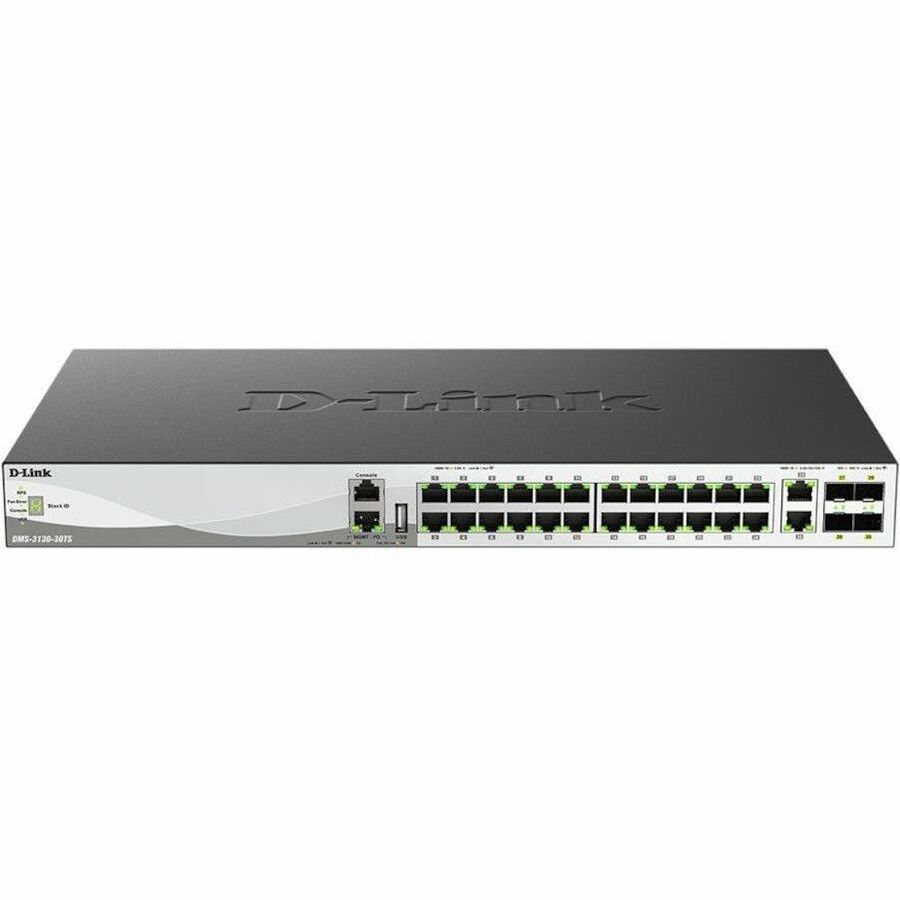

The DMS-3130 Series is a range of Layer 3 Stackable Multi-Gigabit Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal multi-Gigabit access layer solution. Each model boasts two 10GBASE-T ports and four 10G/25G SFP28 ports to provide versatility and speed.
Future-Proof Power over Ethernet Support
The DMS-3130-30PS provides sixteen 2.5G ports supporting 802.3af/at PoE and eight 5G ports supporting 60W 802.3bt PoE standards with a power budget of 740 watts expandable to 960 watts with dual power supplies. Multi-Gigabit PoE with up to 60W of power per port is ideal for Wi-Fi 6/6E access points, smart lighting or industrial automation equipment. Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting.
Highlights
Multi-Gigabit 2.5G/5G/10G/25G support
2.5GBASE-T PoE+ and 5GBASE-T PoE++ support
Four 25G SFP28 uplink ports
Redundant power supply (RPS) support
Two hot-swappable power modules for 1+1 power redundancy and load sharing for DMS3130-30PS
DMS-3130-30TS can also be powered through the RJ45 PD MGMT port
Ethernet Ring Protection Switching (ERPS)
Embedded 6 kV surge protection on all 2.5G/5G Ethernet access ports
Loopback Detection (LBD)
Physical stack of up to 9 units
Supports long-distance stacking over fibre
200 Gbps per device physical stacking bandwidth
Static Route
RIP/RIPng
OSPFv2/v3
Specifications
General Information
Manufacturer
D-Link Systems, Inc
Manufacturer Part Number
DMS-3130-30TS
Brand Name
D-Link
Product Series
DMS-3130
Product Model
DMS-3130-30TS
Product Name
DMS-3130-30TS Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
26.0
Uplink Port
Yes
Modular
Yes
Stack Port
Yes
Port/Expansion Slot Details
24 x 2.5 Gigabit Ethernet Network, 2 x 10 Gigabit Ethernet Network, 4 x 25 Gigabit Ethernet Expansion Slot
