Overview
Power & Value

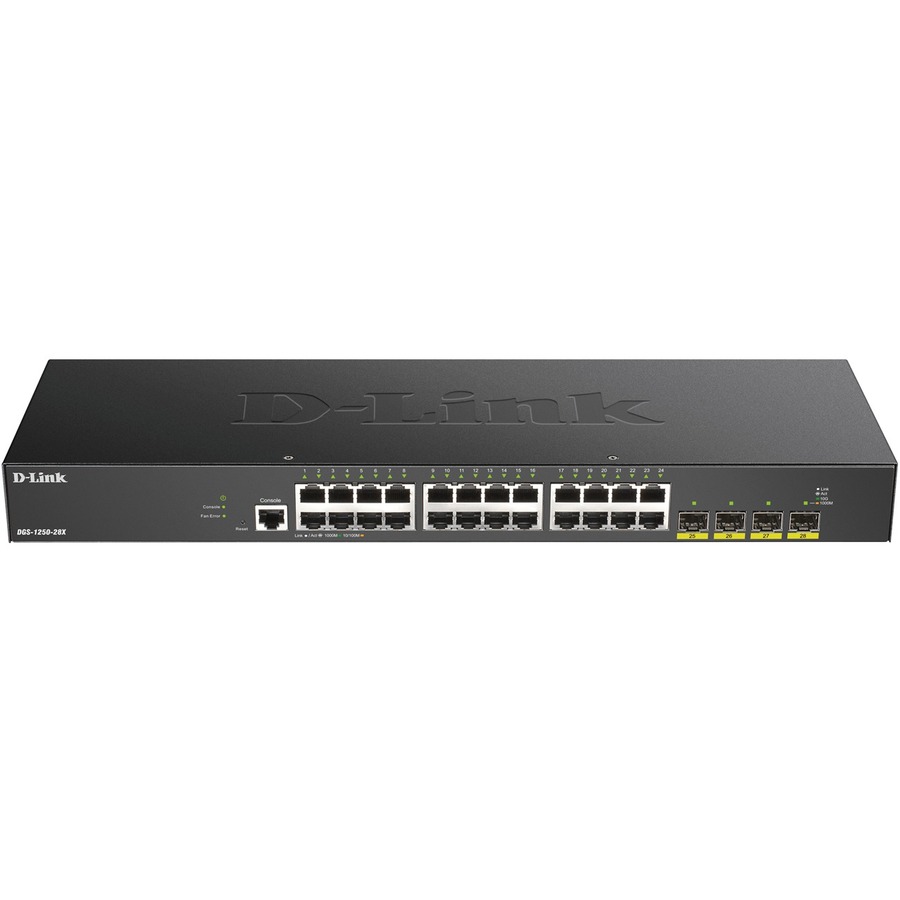

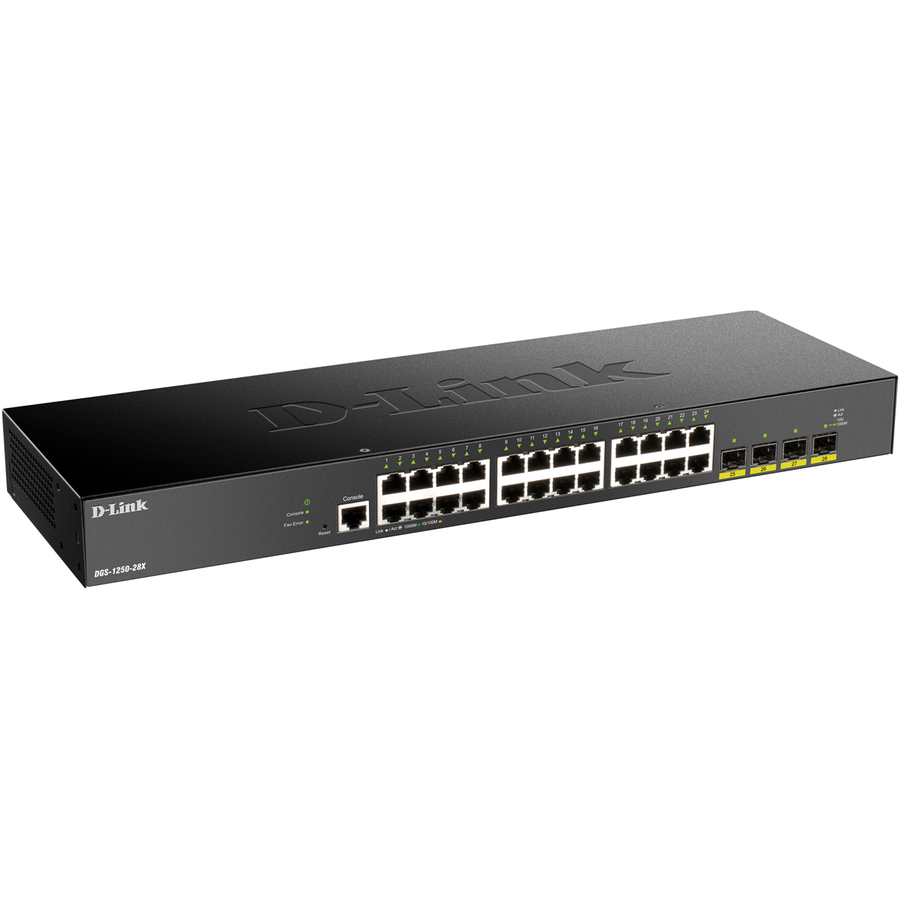

The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.
The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers - enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.
Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
Highlights
Ethernet Switch supports network continuity by maintaining data transmission during operation
Features 28 networking ports to support the connection requirements of larger workgroups using wired infrastructure
Built?in power supply supports internal components by providing required operating voltage
Layer 3 switching support enables structured traffic management without altering established network architecture
Desktop form factor supports placement outside dedicated wiring enclosures for accessible device positioning
Management capability enables control over network setup and configuration according to operational requirements
Gigabit Ethernet supports higher uplink data rates compared to standard Ethernet server connections
Twisted pair cable support enables cost?efficient network connections for data transmission across distances
Specifications
General Information
Manufacturer
D-Link Systems, Inc
Manufacturer Part Number
DGS-1250-28X
Brand Name
D-Link
Product Series
DGS-1250
Product Model
DGS-1250-28X
Product Name
28-Port 10-Gigabit Smart Managed Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
28
Modular
Yes
Port/Expansion Slot Details
24 x Gigabit Ethernet Network, 4 x 10 Gigabit Ethernet Expansion Slot
