SKU
GWN7803
Category
Switches & Bridges
Overview

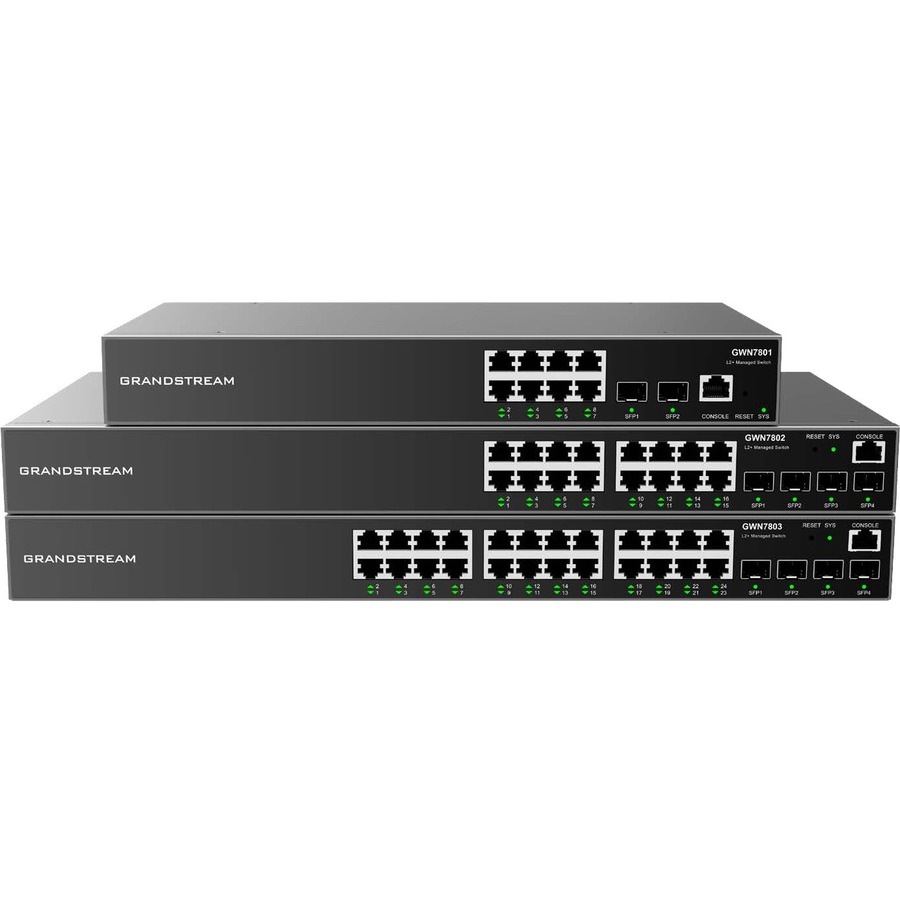

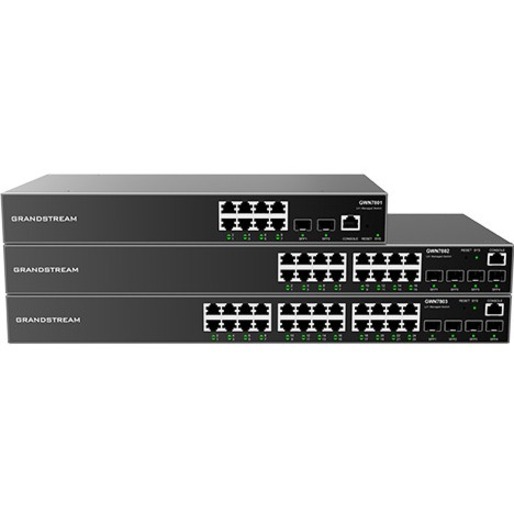

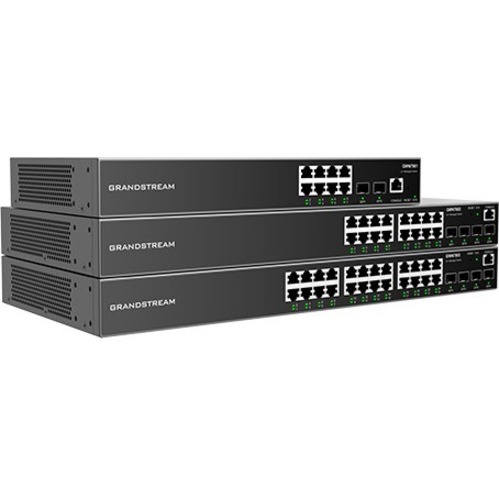

GWN7801(P) - GWN7802(P) - GWN7803(P)
The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal managed network switches for small-to- medium businesses.
• 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform
• Built-in QoS allows for prioritization of network traffic
Highlights
Effectively increases available bandwidth on your network
Quickly and easily set up a wired network with 24 networking ports
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Desktop form factor for your convenience and simplicity of usage
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Twisted Pair media support ensures maximum convenience and great usability
Specifications
Package Contents
Enterprise Layer 2+ Managed Network Switch
1 x 1.2m(10A) AC Cable
Rack-mounting Standard Brackets
1 x Ground Cable
4 x Rubber Feet
2 x Lug Ear
Product Type
Ethernet Switch
Manufacturer Part Number
GWN7803
Power Source
Power Supply
Layer Supported
2
Weight (Approximate)
5.95 lb
Form Factor
Desktop, Wall Mountable, Rack-mountable
Length
17.3"
Manufacturer
Grandstream Networks, Inc
Product Model
GWN7803
Product Name
Enterprise Layer 2+ Managed Network Switch
Network Technology
1000Base-T, 1000Base-X
Power Consumption
30 W
Product Series
GWN7800
Brand Name
Grandstream
Expansion Slot Type
SFP (mini-GBIC)
Height
1.7"
Width
7.9"
Manageable
Yes
Ethernet Technology
Gigabit Ethernet
Network (RJ-45)
Yes
Number of SFP Slots
4
Modular
Yes
Media Type Supported
Twisted Pair, Optical Fiber
Total Number of Network Ports
24
Port/Expansion Slot Details
24 x Gigabit Ethernet Network, 4 x Gigabit Ethernet Expansion Slot
