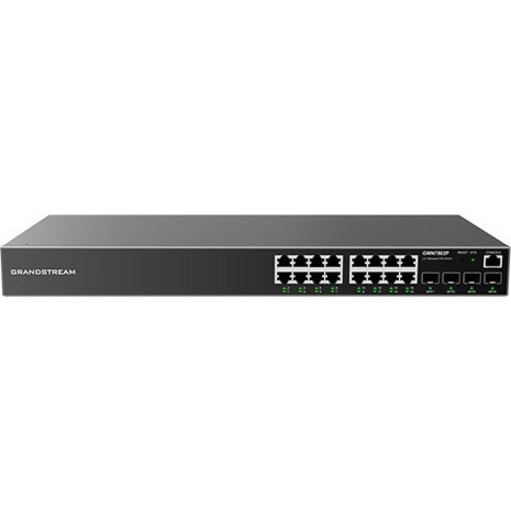

Grandstream Enterprise Layer 2+ Managed Network Switch
16 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 270 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Desktop, Wall Mountable, Rack-mountable
- SKU
- GWN7802P
- Category
- Switches & Bridges
MSRP$255.00
$223.47
Save 12%Back ordered — ships when restocked.
Genuine Grandstream Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GWN7802P
- Category
- Switches & Bridges
Overview

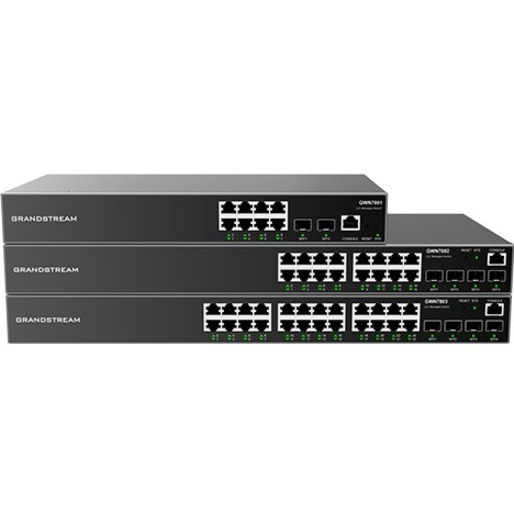

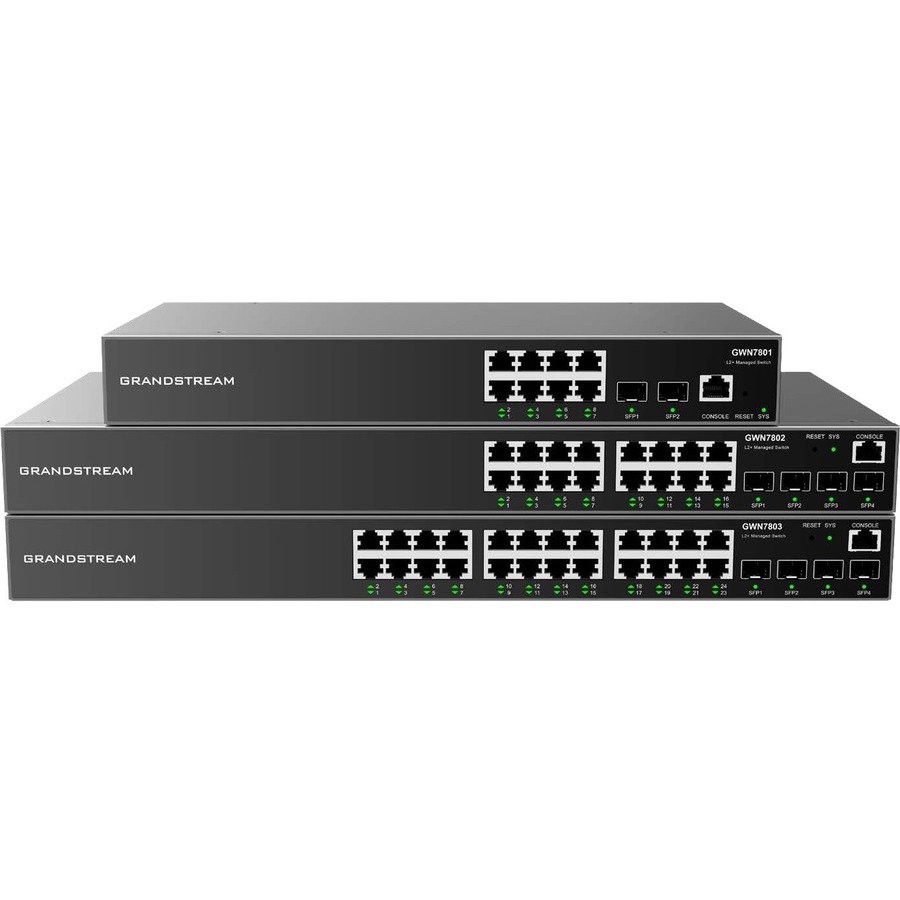

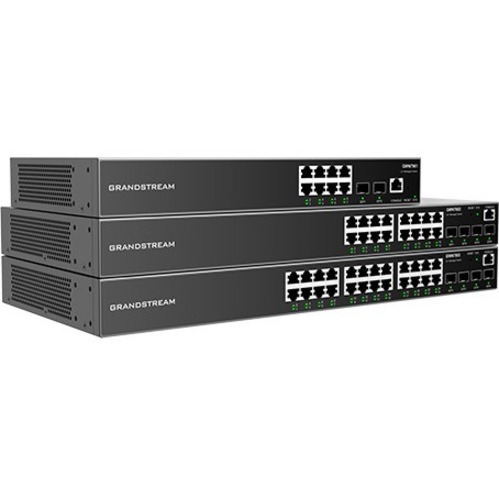

GWN7801(P) - GWN7802(P) - GWN7803(P)
The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal managed network switches for small-to- medium businesses.
• 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform
• Built-in QoS allows for prioritization of network traffic
Highlights
- Ethernet Switch ensures productivity by providing an efficient, hassle-free connection
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 16 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Desktop form factor for added reliability and dependability
- Management capability provides control over setup and configuration of your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Manufacturer Part Number | GWN7802P |
| Power Source | Power Supply |
| Layer Supported | 2 |
| Weight (Approximate) | 6.61 lb |
| Form Factor | Desktop, Wall Mountable, Rack-mountable |
| Length | 17.3" |
| Manufacturer | Grandstream Networks, Inc |
| Product Model | GWN7802P |
| Product Name | Enterprise Layer 2+ Managed Network Switch |
| Network Technology | 1000Base-T, 1000Base-X |
| Power Consumption | 270 W |
| Product Series | GWN7800 |
| Brand Name | Grandstream |
| Expansion Slot Type | SFP (mini-GBIC) |
| Height | 1.7" |
| Width | 7.9" |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 4 |
| Modular | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 16 |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE, 4 x Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 4.0 |
| PoE Budget | 240 W |
| Networking Standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1s |
