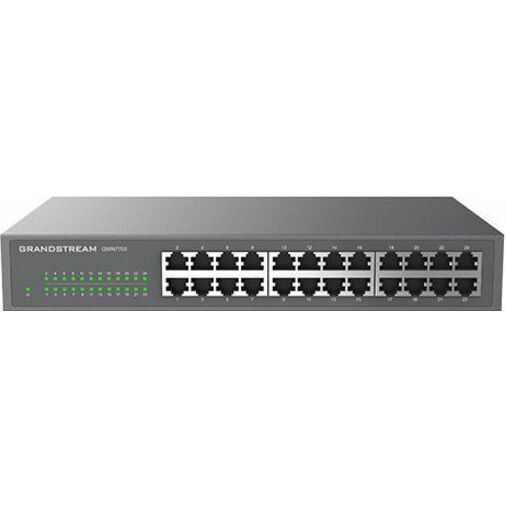

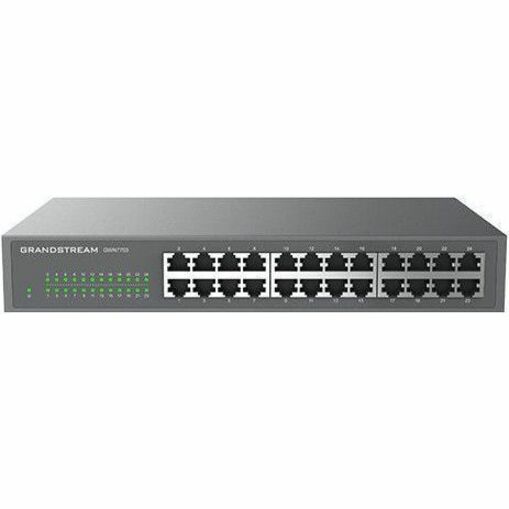

Grandstream GWN7700 GWN7703 Ethernet Switch
24 Ports - Gigabit Ethernet - 10/100/1000Base-T - 13 W Power Consumption - Twisted Pair - 1U - Rack-mountable, Desktop
- SKU
- GWN7703
- Category
- Switches & Bridges
MSRP$85.00
$75.72
Save 11%Back ordered — ships when restocked.
Genuine Grandstream Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- GWN7703
- Category
- Switches & Bridges
Overview
Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
• 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
• Green technology reduces power consumption
• LED Indicators; Per port: Link/Activity Per device: Power
• Auto MDI/MDIX crossover for all ports
• 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/ GWN7701PA/GWN7702P only)
• Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Supports long cable connection
• QoS - Supports Default Strict Priority when present
Highlights
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Rack-mountable form factor for added reliability and dependability
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Twisted Pair media support ensures maximum convenience and great usability
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | GWN7703 |
| Packaged Quantity | 1 |
| Power Source | Power Adapter, AC |
| Weight (Approximate) | 2.98 lb |
| Features | Plug and Play |
| Form Factor | Rack-mountable, Desktop |
| Length | 11" |
| Manufacturer | Grandstream Networks, Inc |
| Product Model | GWN7703 |
| Product Name | GWN7700 GWN7703 Ethernet Switch |
| Network Technology | 10/100/1000Base-T |
| Power Consumption | 13 W |
| Product Series | GWN7700 |
| Brand Name | Grandstream |
| Height | 1.7" |
| Width | 7.1" |
| Manageable | No |
| Compatible Rack Unit | 1U |
| Maximum Data Transfer Rate | 12.50 MB/s |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 24 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network port |
| Networking Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Product Material | Metal |
