Overview
Unmanaged Network Switches

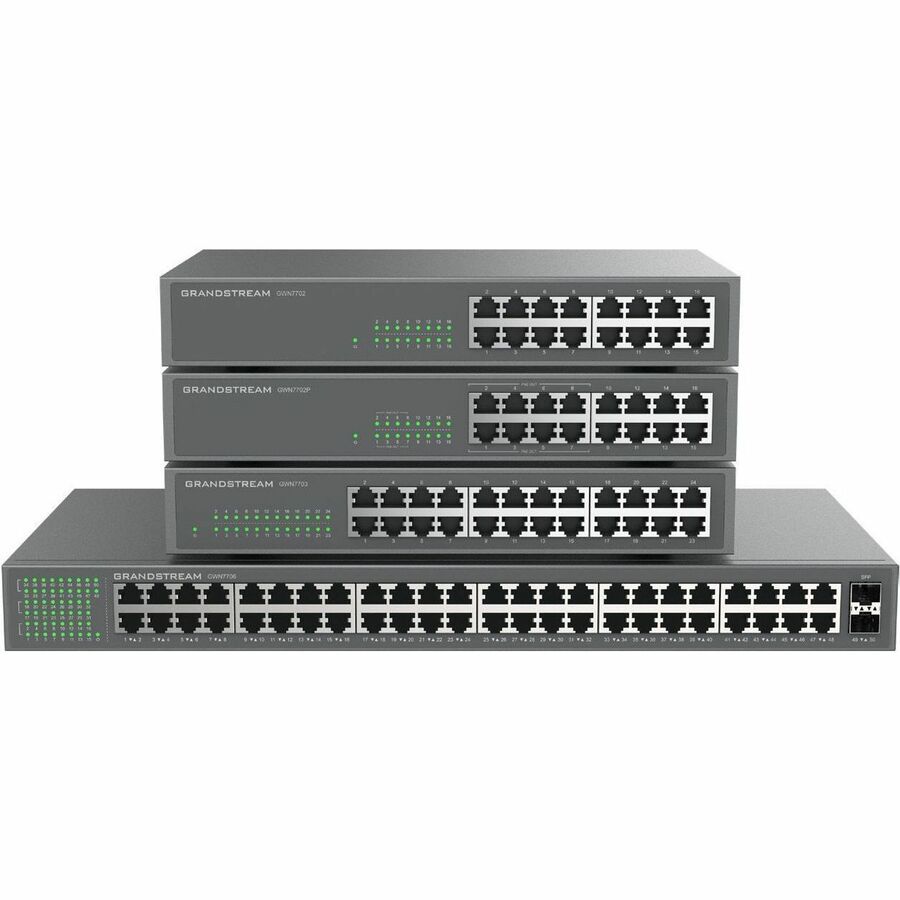

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
• 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
• Green technology reduces power consumption
• LED Indicators; Per port: Link/Activity Per device: Power
• Auto MDI/MDIX crossover for all ports
• 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/ GWN7701PA/GWN7702P only)
• Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
• Supports long cable connection
• QoS - Supports Default Strict Priority when present
Highlights
Effectively reduces downtime with improved network performance
Quickly and easily set up a wired network with 16 networking ports
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Rack mounting enables you to organize wires & secure cables for professional installation
The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
Gigabit Ethernet port for ultra-fast network speeds
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
General Information
Manufacturer
Grandstream Networks, Inc
Manufacturer Part Number
GWN7702P
Brand Name
Grandstream
Product Series
GWN7700
Product Model
GWN7702P
Product Name
GWN7702P Ethernet Switch
Packaged Quantity
1
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
16
Network (RJ-45)
Yes
Port/Expansion Slot Details
8 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network port, 8 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network port
