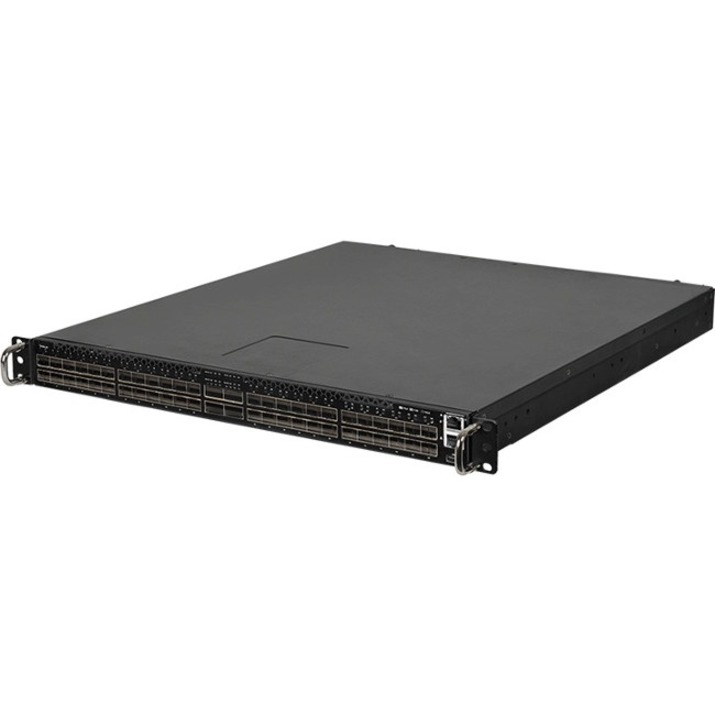

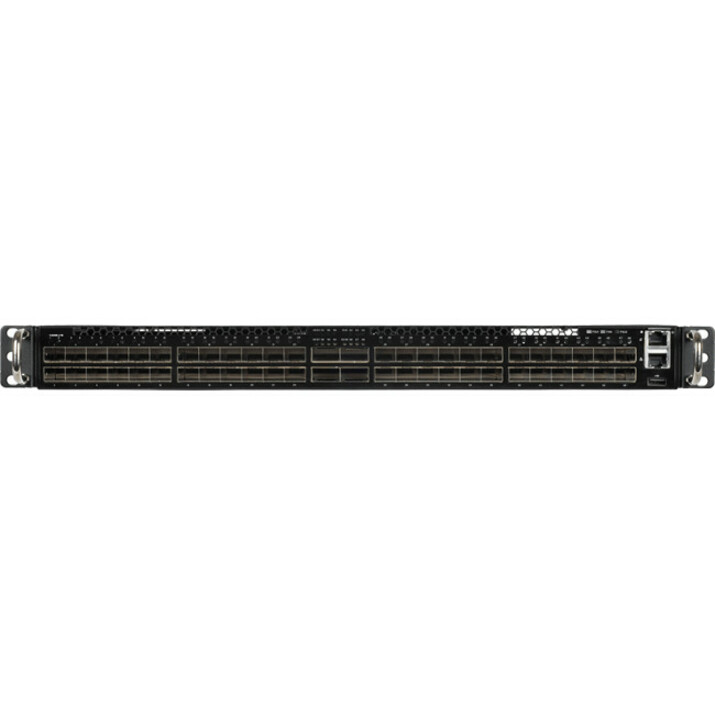

QCT A Powerful Top-of-Rack Switch for Datacenter and Cloud Computing
Manageable - 40 Gigabit Ethernet - 40GBase-X - 3 Layer Supported - Modular - 215 W Power Consumption - Optical Fiber - 1U - Rack-mountable - 3 Year Limited Warranty
SKU
Category
Switches & Bridges
$13,089.03
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 29 and Dec 3, then process your delivery right after.
Genuine Quanta Computer, lnc through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Switches & Bridges
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
A Powerful Top-of-Rack Switch for Datacenter and Cloud Computing
Datacenter networks are facing a major paradigm shift toward the disaggregation of software and hardware. This move, combined with the benets of software-dened networking (SDN) allows network administrators respond quickly to changing business requirements at a lower capital cost as well as reducing the network operations complexity.
QuantaMesh BMS products offer higher performance, increased availability, low latency and better serviceability. QuantaMesh T3048-LY8 supports 48 SFP+ (1/10GbE speed) and 6 QSFP+ (10/40GbE speed) ports in a compact 1U size. By leveraging the new generation merchant silicon chips, T3048-LY8 is a high performance high density Ethernet switch with an aordable price for the deployment of data center infrastructure. With ONIE (Open Network Installation Environment) pre-loaded on QuantaMesh BMS switches, it provides the exibility and allows choice of network operating system supported by ONIE installer. The CPU board design allows T3048-LY8 to install different CPU in order to meet software requirement. This provides agile installation process and faster response for the changing business demand.
Warranty
Limited Warranty: 3 Year
Highlights
ONIE Pre-loaded
x86 CPU Board Support
ONL Ready
Cumulus Linux Ready
Specifications
General Information
Manufacturer
Quanta Computer, lnc
Manufacturer Part Number
1LY8UZZ000Q
Brand Name
QCT
Product Line
QuantaMesh
Product Model
T3048-LY8
Product Name
A Powerful Top-of-Rack Switch for Datacenter and Cloud Computing
Product Type
Ethernet Switch
Interfaces/Ports
Modular
Yes
Stack Port
No
Port/Expansion Slot Details
6 x 40 Gigabit Ethernet Expansion Slot, 48 x 10 Gigabit Ethernet Expansion Slot
Management & Protocols
Manageable
Yes
Media & Performance
Media Type Supported
Optical Fiber
Ethernet Technology
40 Gigabit Ethernet, 10 Gigabit Ethernet
Network Technology
40GBase-X, 10GBase-X
Network & Communication
Layer Supported
3
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
1.7"
Width
20"
Depth
17.1"
Weight (Approximate)
19.87 lb
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
Yes
Power Consumption
215 W
Warranty
Limited Warranty
3 Year
I/O Expansions
Total Number of Expansion Slots
54.0
Expansion Slot Type
QSFP+, SFP+
Shared SFP Slot
No
Number of SFP+ Slots
48
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
