48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 4 Layer Supported - Modular - 95 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable - 3 Year Limited Warranty
MSRP$4,099.00
$2,860.23
Save 30%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 29 and Dec 3, then process your delivery right after.
Genuine Quanta Computer, lnc through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

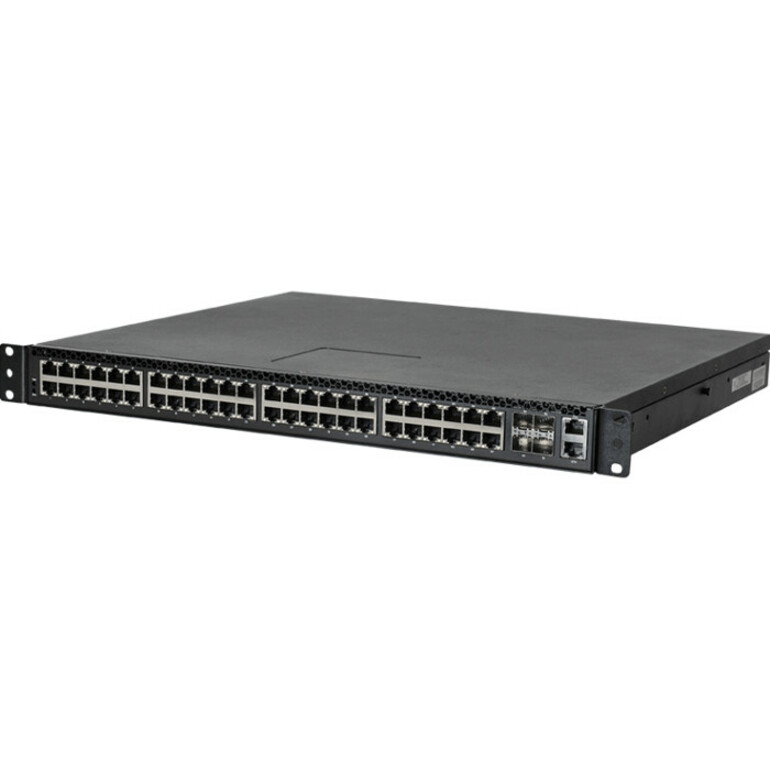

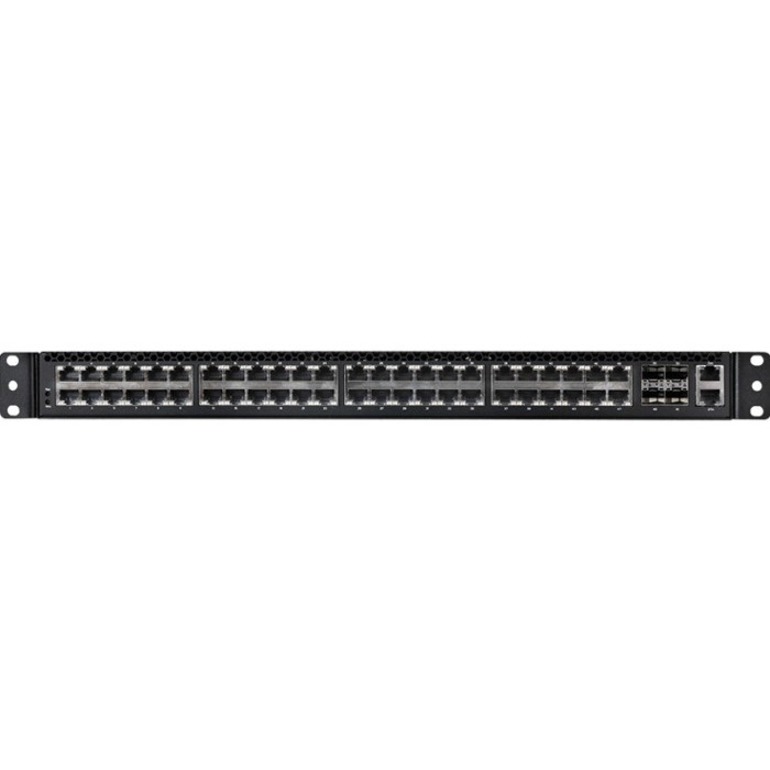

The QuantaMesh T1048-LB9 is a high performance layer 2/3/4 Ethernet switch with 48 10Base-T/100Base-TX/1000Base-T ports and 4 dual speed 1GbE/10GbE SFP+ ports in a compact rack unit size.
Simplicity
The QuantaMesh T1048-LB9 can be managed through an industry standard command-line Interface (CLI) which reduces training and operating costs. The QuantaMesh T1048-LB9 also supports Simple Network Management Protocol (SNMP) both from standard MIB and private MIB for network administrator to easily configure, monitor, and manage operation remotely. The Auto-Installation feature implemented in the QuantaMesh T1048-LB9 helps centralized management to simplify deployment of a truly plug-and-play experience. With the evolution from IPv4 to IPv6, the QuantaMesh T1048-LB9 is a IPv6 integrated management device.
High Availability
The QuantaMesh T1048-LB9 is designed for high availability from both hardware and software perspective. The key features include:

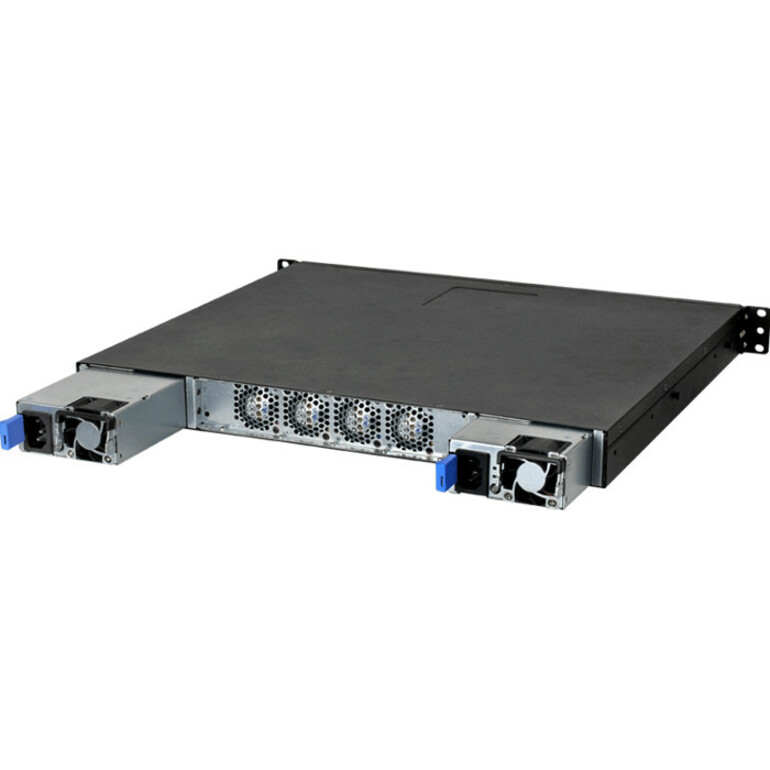

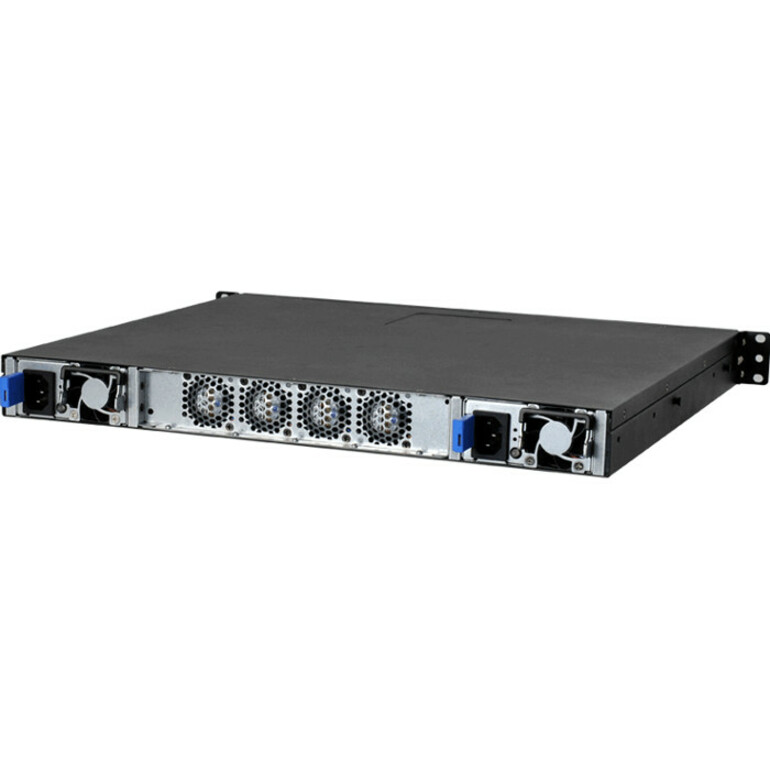

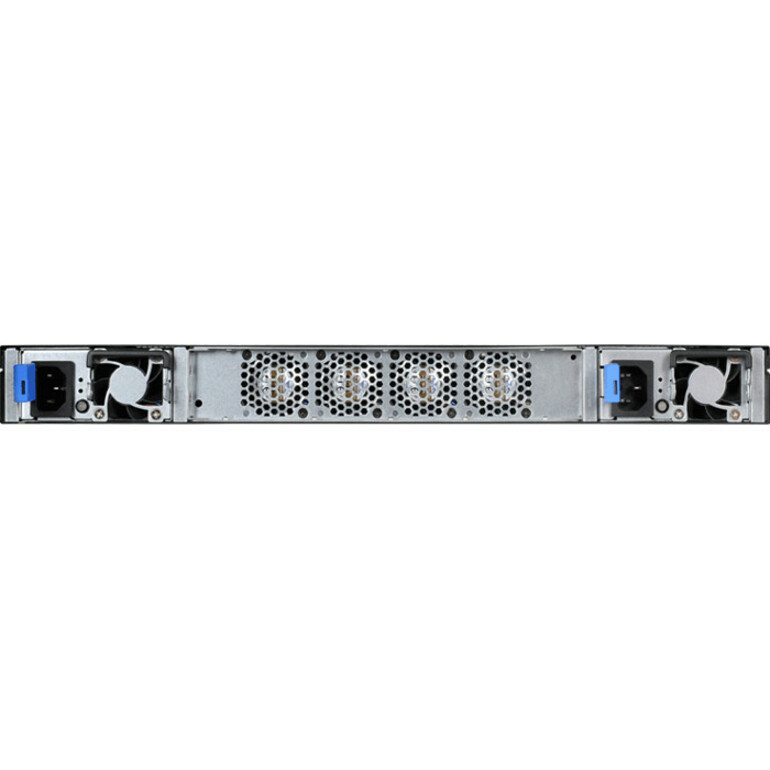

• 1+1 hot-swappable power supplies
• Out-of-band management support
• Spanning Tree with Guarding Features
• Up to 64 gropus of LACP with per group 8 member ports
• Multi-chassis Link Aggregation (MLAG)
• Up to 32 paths ECMP routing for load balancing and redundancy
• Virtual Router Redundancy Protocol (VRRP)
Advanced IPv4 and IPv6 routing
The QuantaMesh T1048-LB9 is a fully layer 2 and layer 3 routing switch that supports advanced IPv4 and IPv6 routing features such as OSPF, OSPFv3, BGP4 and ECMP. The multicast routing features for IGMP v1/v2/v3, PIM-DM/SM, MLD v1/v2 and PIM-DM6/SM6 are all supported in the QuantaMesh T1048-LB9.
Software Defined Network (SDN)
SDN has emerged as a new approach to support open, vendor-agnostic, and programmable networks. T1048-LB9 is equipped with OpenFlow v1.3 features to fulfill the needs of modern data center applications.
Limited Warranty: 3 Year
| General Information | |
|---|---|
| Manufacturer | Quanta Computer, lnc |
| Manufacturer Part Number | 1LB9BZZ000F |
| Brand Name | QCT |
| Product Line | QuantaMesh |
| Product Series | T1000 |
| Product Model | T1048-LB9 |
| Product Name | 1G/10G Datacenter & Enterprise-Class Ethernet Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network, 4 x 10 Gigabit Ethernet Expansion Slot |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T, 10GBase-X |
| Network & Communication | |
| Layer Supported | 4 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.1" |
| Depth | 15.5" |
| Weight (Approximate) | 15.76 lb |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 95 W |
| Warranty | |
| Limited Warranty | 3 Year |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | No |
| Number of SFP+ Slots | 4 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
