Genuine Quanta Computer, lnc through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
1LY8UZZ000P
Category
Switches & Bridges
Overview

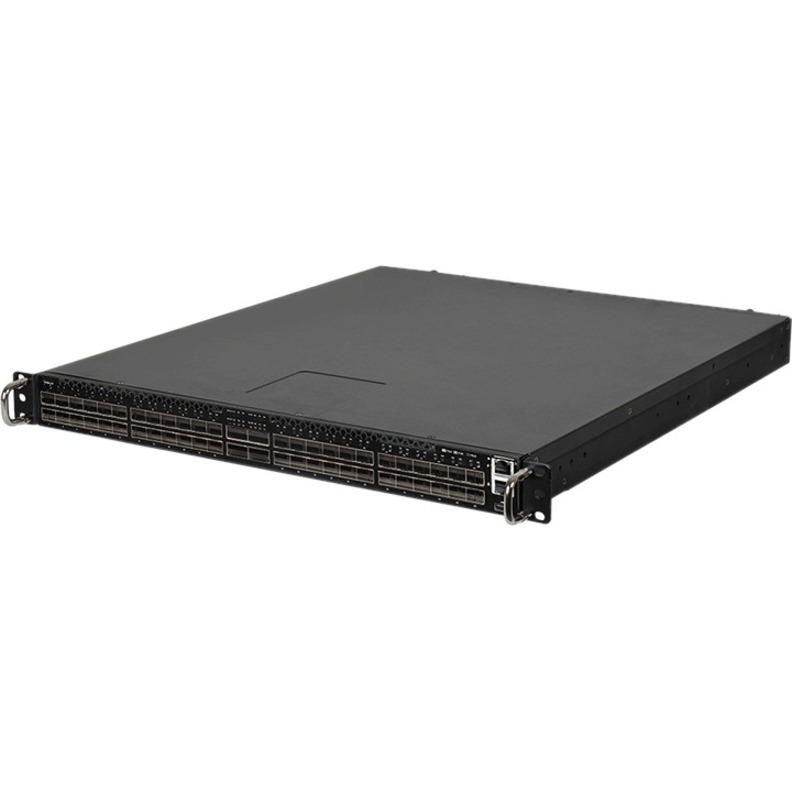

A Powerful Top-of-Rack Switch for Datacenter and Cloud Computing
Datacenter networks are facing a major paradigm shift toward the disaggregation of software and hardware. This move, combined with the benets of software-dened networking (SDN) allows network administrators respond quickly to changing business requirements at a lower capital cost as well as reducing the network operations complexity.

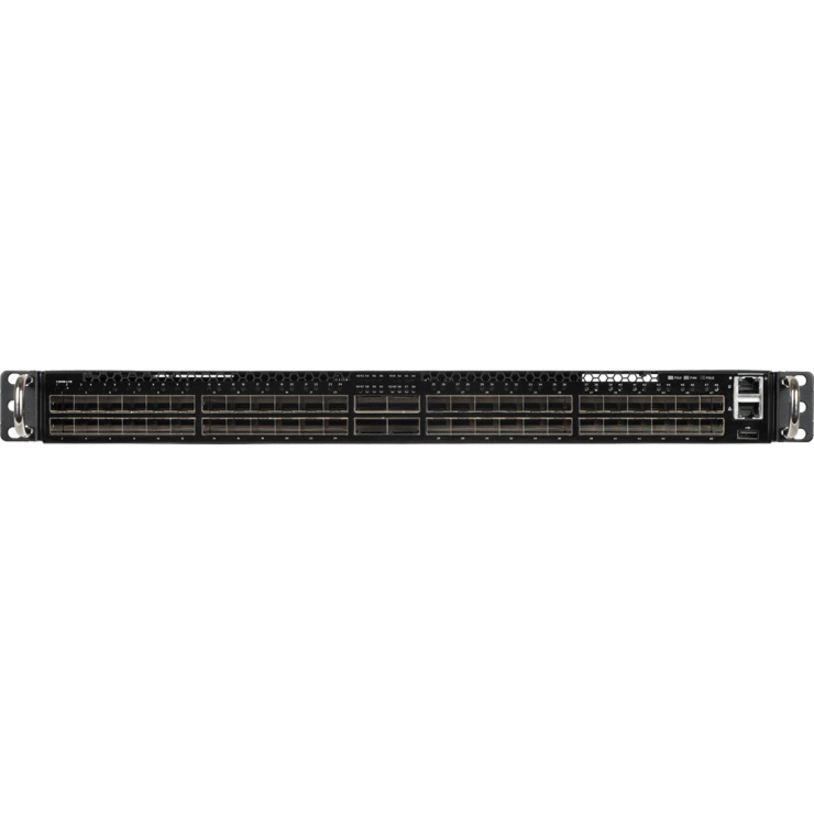

QuantaMesh BMS products offer higher performance, increased availability, low latency and better serviceability. QuantaMesh T3048-LY8 supports 48 SFP+ (1/10GbE speed) and 6 QSFP+ (10/40GbE speed) ports in a compact 1U size. By leveraging the new generation merchant silicon chips, T3048-LY8 is a high performance high density Ethernet switch with an aordable price for the deployment of data center infrastructure. With ONIE (Open Network Installation Environment) pre-loaded on QuantaMesh BMS switches, it provides the exibility and allows choice of network operating system supported by ONIE installer. The CPU board design allows T3048-LY8 to install different CPU in order to meet software requirement. This provides agile installation process and faster response for the changing business demand.
Warranty
Limited Warranty: 3 Year
Highlights
ONIE Pre-loaded
x86 CPU Board Support
ONL Ready
Cumulus Linux Ready
Specifications
General Information
Manufacturer
Quanta Computer, lnc
Manufacturer Part Number
1LY8UZZ000P
Brand Name
QCT
Product Line
QuantaMesh
Product Model
T3048-LY8
Product Name
A Powerful Top-of-Rack Switch for Datacenter and Cloud Computing
Product Type
Ethernet Switch
Interfaces/Ports
Modular
Yes
Stack Port
No
Port/Expansion Slot Details
6 x 40 Gigabit Ethernet Expansion Slot, 48 x 10 Gigabit Ethernet Expansion Slot
Management & Protocols
Manageable
Yes
Media & Performance
Media Type Supported
Optical Fiber
Ethernet Technology
40 Gigabit Ethernet, 10 Gigabit Ethernet
Network Technology
40GBase-X, 10GBase-X
Network & Communication
Layer Supported
3
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
1.7"
Width
20"
Depth
17.1"
Weight (Approximate)
19.87 lb
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
Yes
Power Consumption
215 W
Warranty
Limited Warranty
3 Year
I/O Expansions
Total Number of Expansion Slots
54.0
Expansion Slot Type
QSFP+, SFP+
Shared SFP Slot
No
Number of SFP+ Slots
48
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
