Manageable - 10 Gigabit Ethernet - 10GBase-X - 4 Layer Supported - Modular - 179 W Power Consumption - Optical Fiber - 1U - Rack-mountable - 3 Year Limited Warranty
$10,867.54
Special order — estimated available by September 10, 2026.
Genuine Quanta Computer, lnc through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

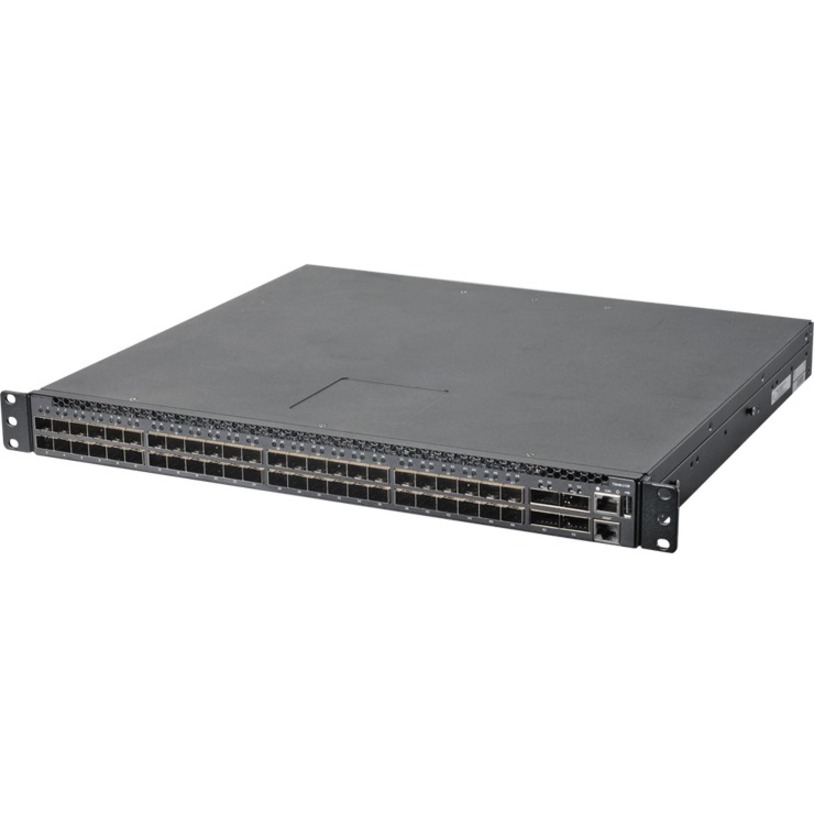

The QuantaMesh T3048-LY2R is a high performance and low latency layer 2/3/4 Ethernet switch with 48 1/10GbE SFP+ and 4 40GbE QSFP+ ports in a compact rack unit size. The 4 40GbE ports provide 160Gbps to aggregate bandwidth up to the core switch. Each 40 Gigabit Ethernet port can be independently configured as 40GbE or 4 x 10GbE for total 64 ports of 10GbE.
Simplicity
The QuantaMesh T3048-LY2R can be managed through an industry standard command-line interface (CLI) which reduces training and operating costs. The QuantaMesh T3048-LY2R also supports Simple Network Management Protocol (SNMP) both from standard MIB and private MIB for easy configuration, monitoring, and remote management for the network administrator. The Auto-Installation feature implemented in the QuantaMesh T3048-LY2R helps centralized management to simplify deployment of a truly plug-and-play experience. With the evolution from IPv4 to IPv6, the QuantaMesh T3048-LY2R is a IPv6 integrated management device.
High Availability
The QuantaMesh T3048-LY2R is designed for high availability from both hardware and software perspective. The key features include:

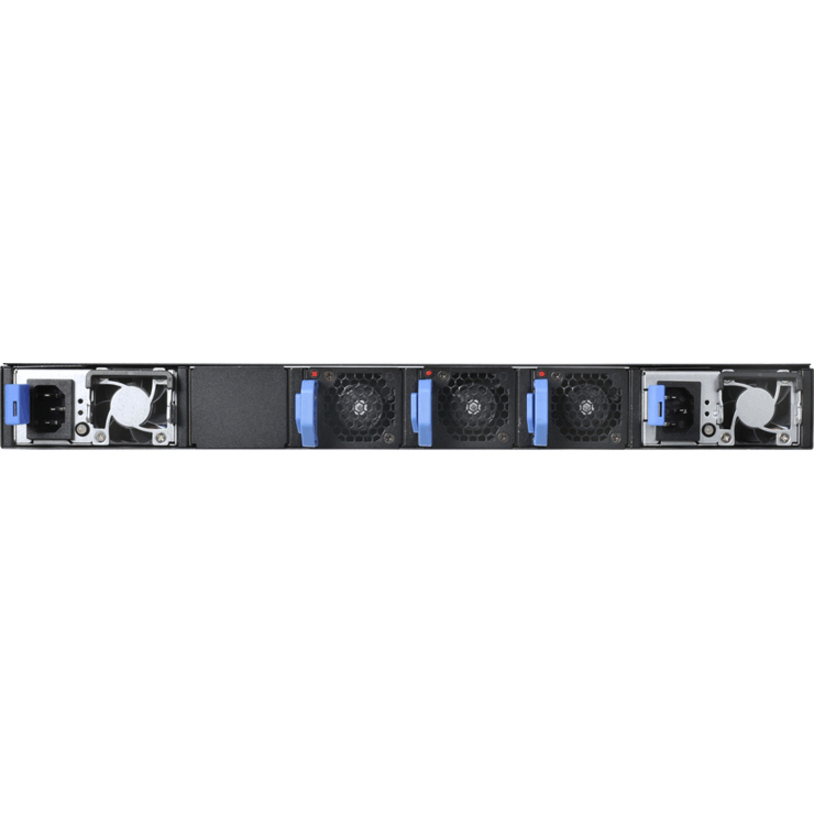

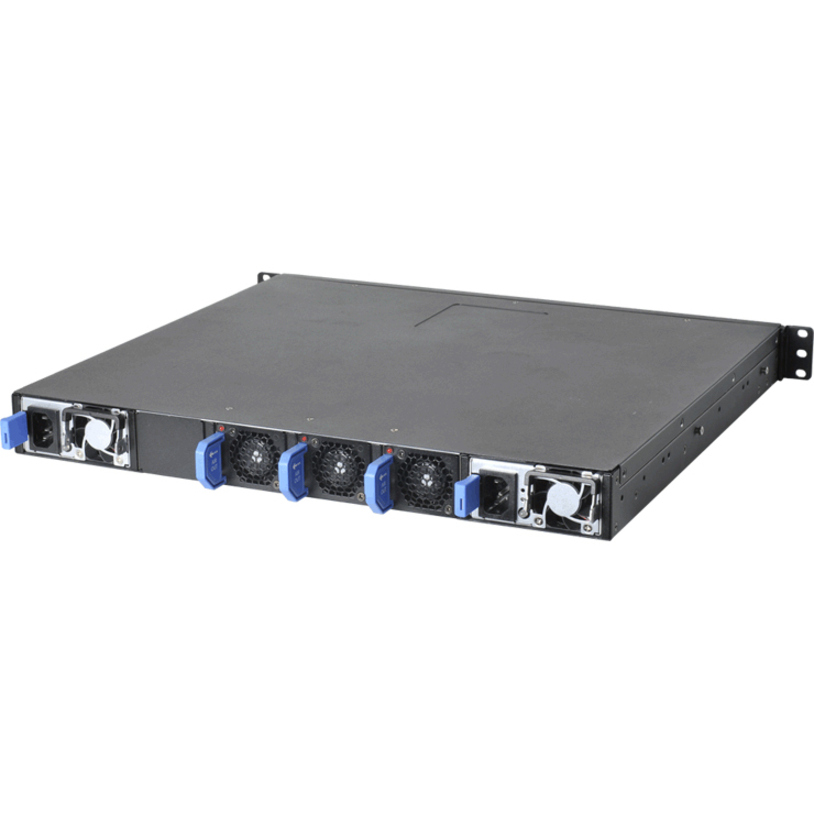

• 1+1 hot-swappable power supplies
• N+1 hot-swappable fans
• Spanning Tree with Guarding Features
• Up to 64 gropus of LACP with per group 32 member ports
• Multi-chassis Link Aggregation (MLAG)
• Up to 32 paths ECMP routing for load balancing and redundancy
• Virtual Router Redundancy Protocol (VRRP)
High-Performance L2/L3 access deployments

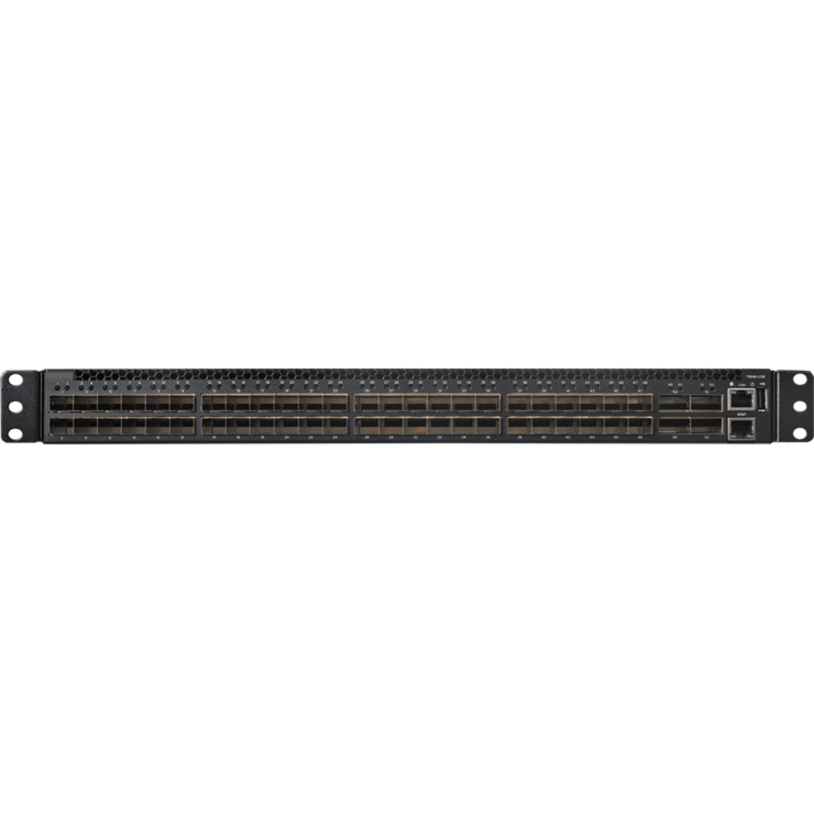

With the compact 1U form factor, high density 48 1/10G SFP+ and 4 40G QSFP+ ports in the front panel, front to back or back to front airflow design, the QuantaMesh T3048-LY2R is ideal for top-of-rack deployments in high-performance, highly demanding datacenters. The 1.28 terabits per second switching capacity and 952Mpps forwarding rate with low power consumption make the QuantaMesh T3048-LY2R a powerful solution to aggregate high-performance servers in the datacenter.
Software Defined Network (SDN)
SDN has emerged as a new approach to support open, vendor-agnostic, and programmable networks. T3048-LY2R is equipped with OpenFlow v1.3 features to fulfill the needs of modern data center applications.
Limited Warranty: 3 Year
| General Information | |
|---|---|
| Manufacturer | Quanta Computer, lnc |
| Manufacturer Part Number | 1LY2BZZ001L |
| Brand Name | QCT |
| Product Line | QuantaMesh |
| Product Series | T3000 |
| Product Model | T3048-LY2R |
| Product Name | A Powerful Top-of-Rack Switch for Datacenters and Cloud Computing |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 48 x 10 Gigabit Ethernet Expansion Slot, 4 x 40 Gigabit Ethernet Expansion Slot |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet, 40 Gigabit Ethernet |
| Network Technology | 10GBase-X, 40GBase-X |
| Network & Communication | |
| Layer Supported | 4 |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.1" |
| Depth | 15.5" |
| Weight (Approximate) | 17.26 lb |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 179 W |
| Warranty | |
| Limited Warranty | 3 Year |
| I/O Expansions | |
| Total Number of Expansion Slots | 52.0 |
| Expansion Slot Type | SFP+, QSFP+ |
| Shared SFP Slot | No |
| Number of SFP+ Slots | 48 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
