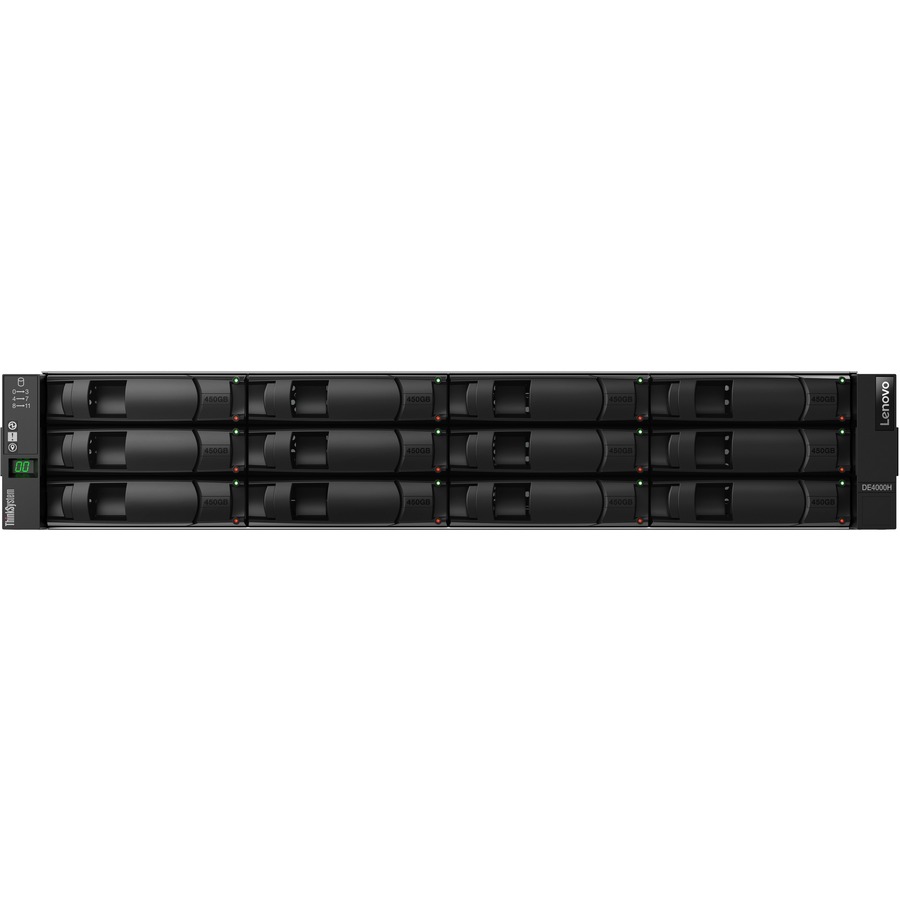

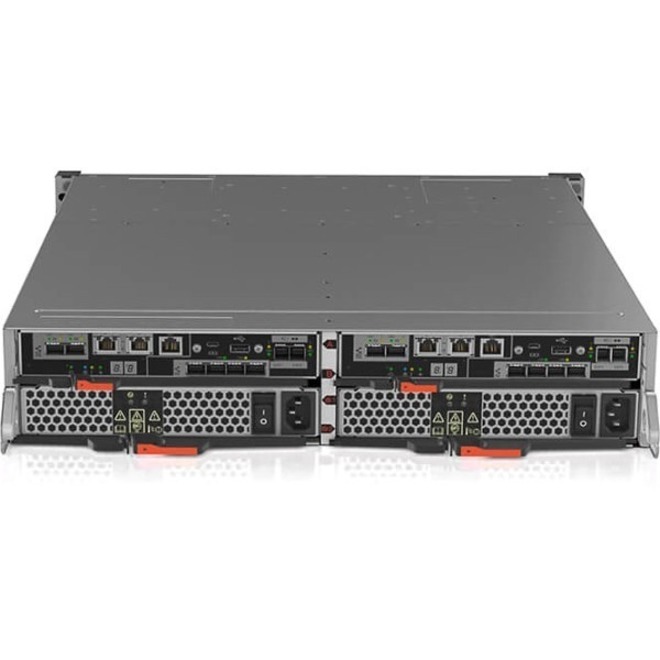

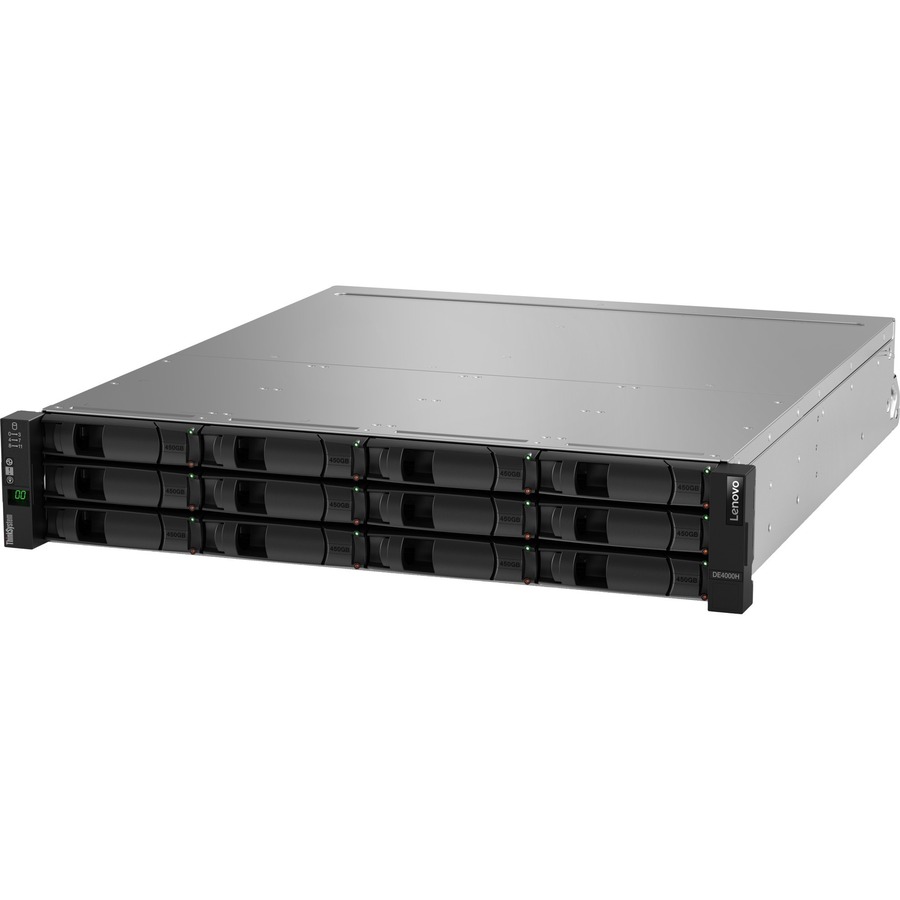

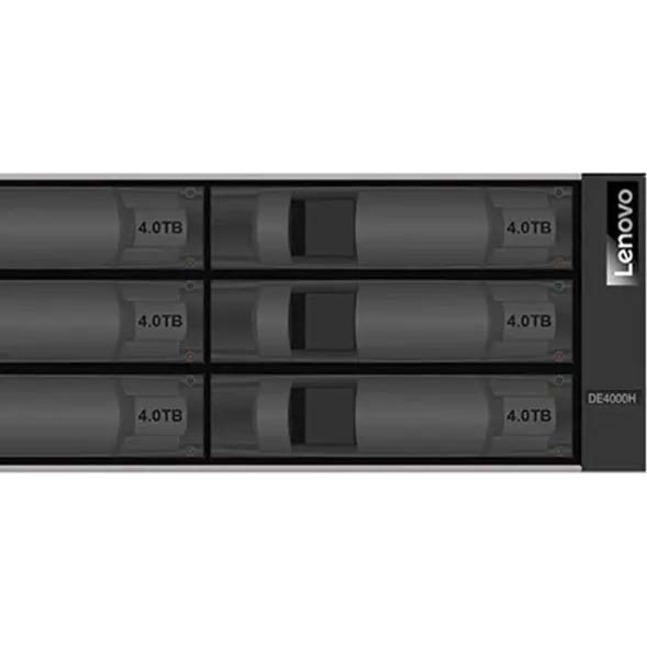

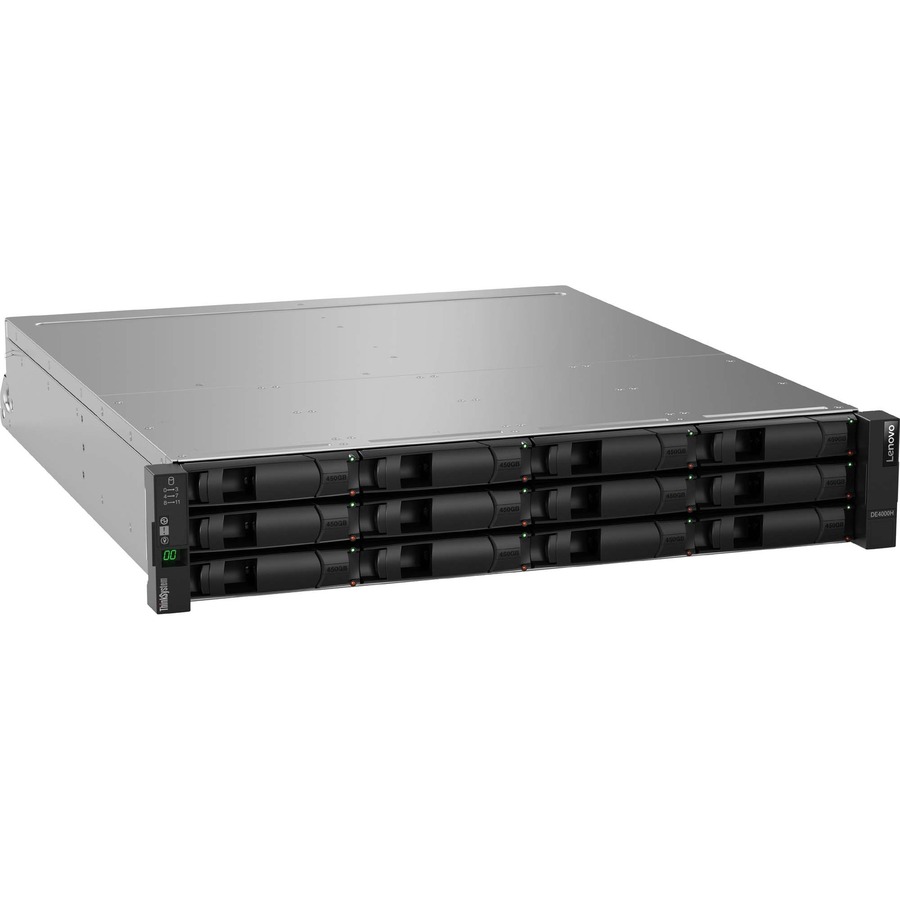

Lenovo ThinkSystem DE4000H SAS Hybrid Flash Array LFF
12 x HDD Supported - 0 x HDD Installed - 12 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported - 0, 1, 3, 5, 6, 10 RAID Levels - 12 x Total Bays - 12 x 3.5" Bay - Gigabit Ethernet - 2 USB Port(s) - FCP, SSH, SMI-S, SNMP, SSL, LDAP - 4 SAS Port(s) External - 2U - Rack-mountable
SKU
Category
Storage Arrays & Servers
$29,360.33
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 13 and Dec 18, then process your delivery right after.
Genuine Lenovo through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Storage Arrays & Servers
Overview
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB or 32 GB memory for a system total of 16 GB or 64 GB. Host interface cards provide 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
Warranty
Additional Warranty Information: Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered. Limited Warranty: 3 Year
About Lenovo
Join Lenovo Transformation is a Team Sport When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
DAS/SAN Storage System offers maximum storage productivity with added dependability
Holds up to 12 HDDs to let you expand limitlessly
Through RAID levels (0, 1, 3, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
RAID technology - data reliability, fault tolerance and improved overall performance
Rack-mountable das/san storage system allows maximum space utilization with easy and convenient access and retrieval of the data
Featuring Gigabit Ethernet port for ultra-fast network speeds
Videos
Lenovo ThinkSystem DE4000H SAS Hybrid Flash Array LFF
Specifications
Controllers
Number of Controllers
2
Controller Type
12Gb/s SAS
RAID Supported
Yes
RAID Levels
0, 1, 3, 5, 6, 10
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
7Y741009NA
Brand Name
Lenovo
Product Line
ThinkSystem
Product Series
DE
Product Model
DE4000H
Product Name
ThinkSystem DE4000H SAS Hybrid Flash Array LFF
Product Type
DAS/SAN Storage System
I/O Expansions
Number of Total Expansion Bays
12
Number of 3.5" Bays
12
Interfaces/Ports
Host Interface
12Gb/s SAS
Number of SAS Ports (External)
4
Total Number of USB Ports
2
Fibre Channel
Yes
Management & Protocols
Protocols
FCP, SSH, SMI-S, SNMP, SSL, LDAP
Network & Communication
Ethernet Technology
Gigabit Ethernet
Physical Characteristics
Height
3.3"
Width
17.6"
Depth
19"
Form Factor
Rack-mountable
Rack Height
2U
Power Description
Number of Power Supplies Installed
2
Plug/Connector Type
C13 to IEC 320-C14
Maximum Power Supply Wattage
913 W
Redundant Power Supply
Yes
Storage
Number of Hard Drives Supported
12
Number of Hard Drives Installed
0
Number of Solid State Drive Supported
12
Number of Solid State Drive Installed
0
SSD Cache Capacity
8 GB
Warranty
Limited Warranty
3 Year
Additional Warranty Information
Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered.
