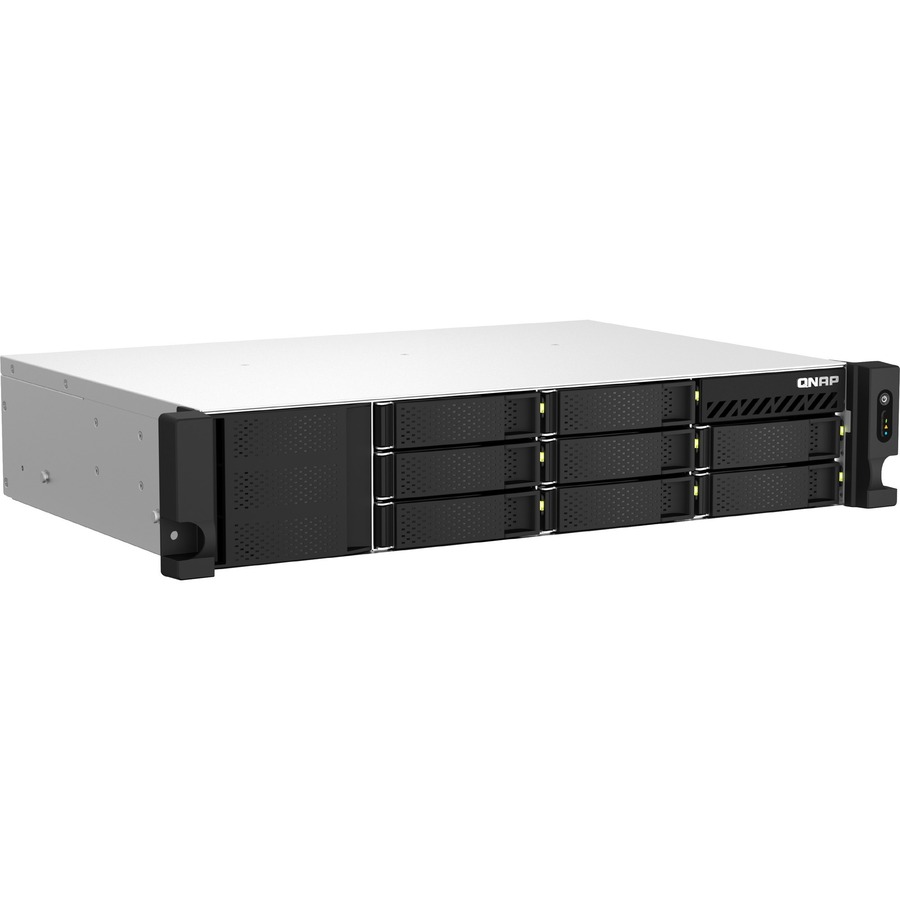

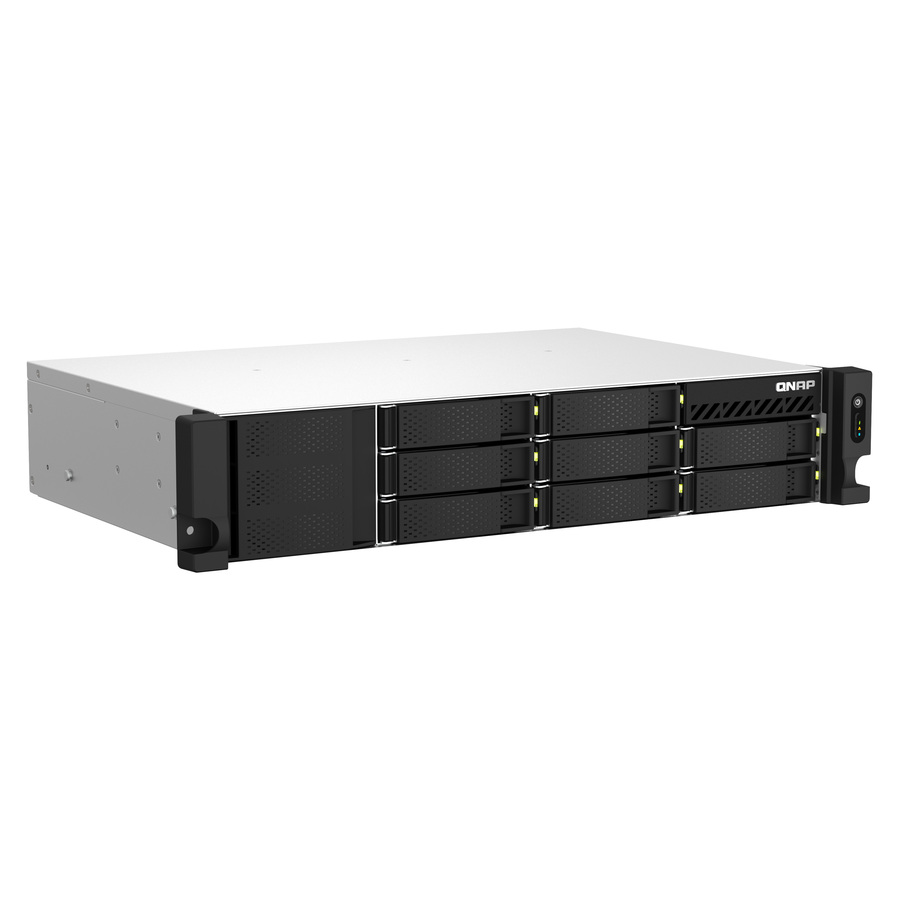

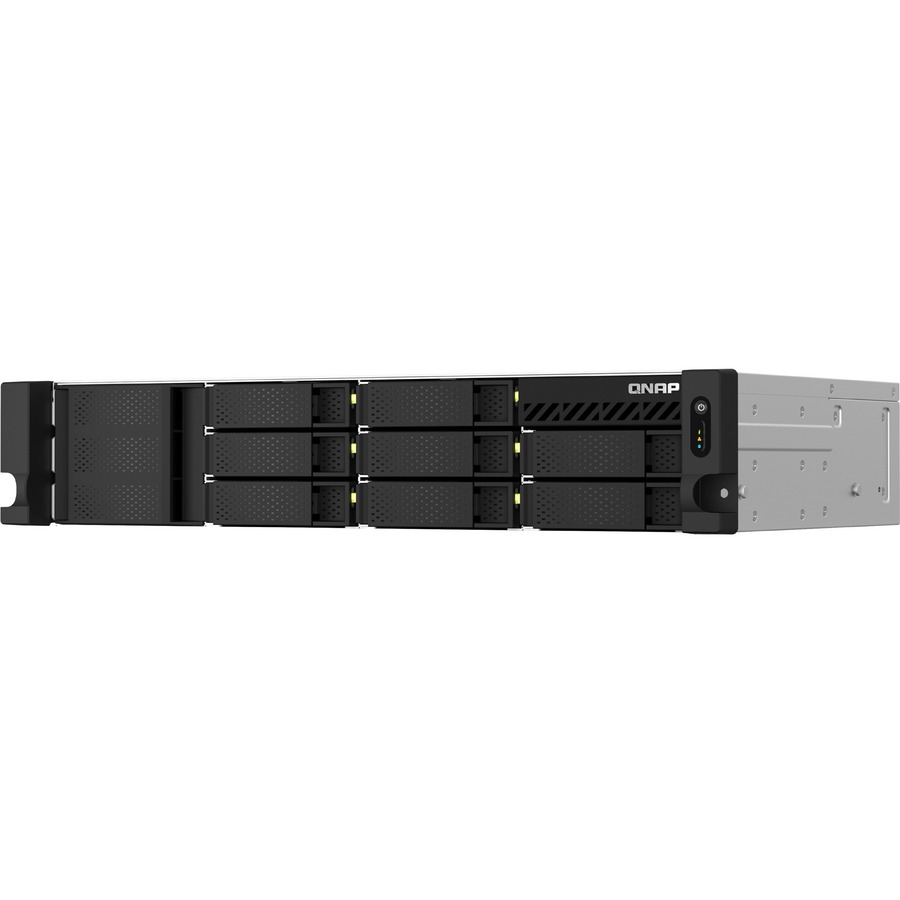

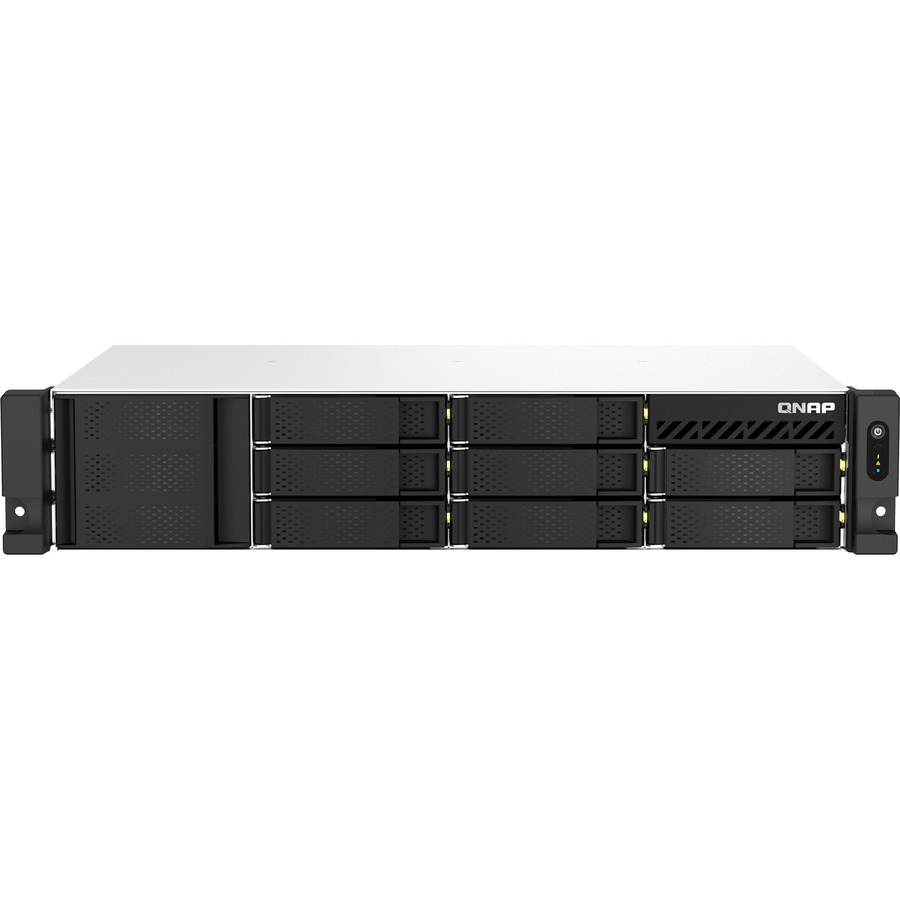

QNAP TS-873AEU-RP-4G SAN/NAS Storage System

Short Depth Rackmount dual-2.5GbE NAS. Powered by a Quad-core AMD Ryzen? processor, supporting 10/25GbE or M.2 SSD caching PCIe expandability for virtual applications

(Supports QTS or QuTS hero operating systems)

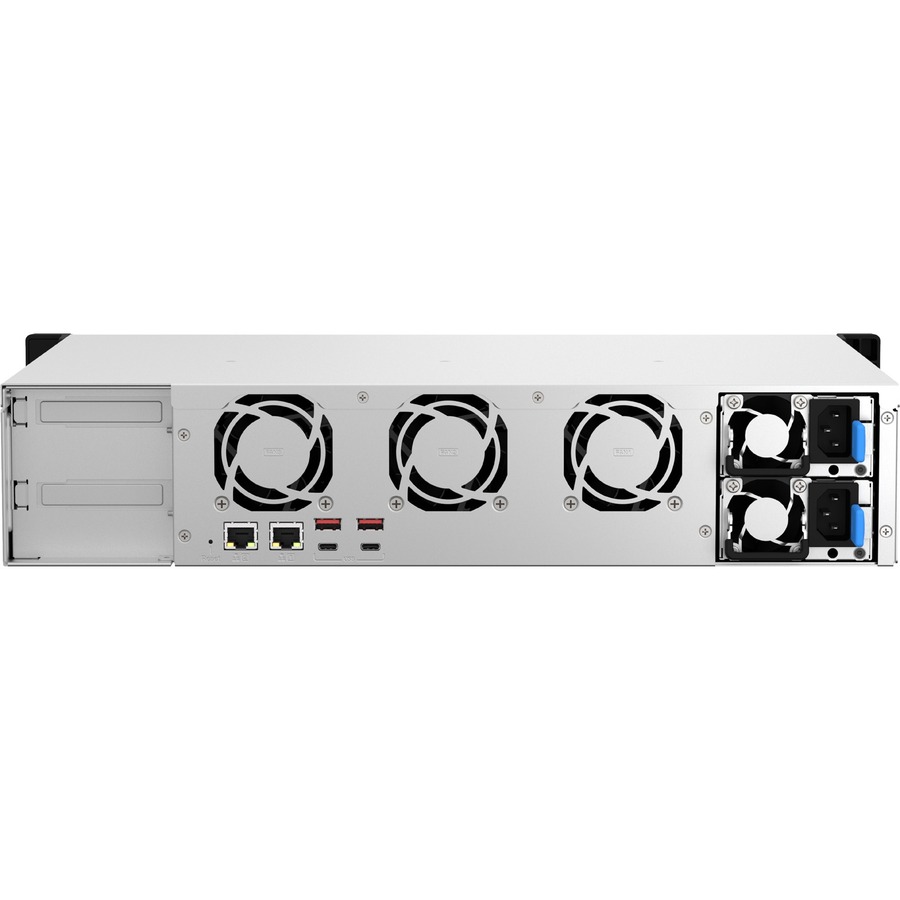

The compact 2U rackmount TS-873AeU-RP combines an AMD Ryzen? V1000 series V1500B quad-core/eight-thread 2.2 GHz processor and dual-2.5GbE connectivity in one chassis. Compared to its previous generation, the TS-873AeU-RP is enhanced with two M.2 PCIe Gen3 x 1 ports for NVMe SSD cache acceleration or Edge TPU empowered AI image recognition. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-873AeU-RP the preeminent choice to tackle resource-demanding applications and tasks, such as virtual machines or intensive multi-user access. The space-efficient short depth design of only 11.7 inches (297.4 mm) makes it easy to install in small media cabinets or places with a lot of cabling. The TS-873AeU-RP also features two redundant power supplies to ensure maximum system uptime.

• Dual-2.5GbE connectivity Features two 2.5GbE ports. Up to 5 Gbps transfer speeds can be achieved by using port trunking.

• PCIe expandability Features one PCIe Gen3 x 8 port. Add extra functionality with PCIe cards, including 10/25GbE ports, QM2, or Fibre Channel.

• Optimized SSD performance Features two M.2 PCIe Gen3 ports to install NVMe SSDs and empower Qtier? and SSD caching technology.

• Hybrid cloud storage Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.

• Virtual machine applications Host multiple virtual machines and containers to run a wide range of applications.

• 2U Short depth design The rackmount NAS has a short-depth design of only 30 cm. It is perfectly suited for installation in a compact rack, or places with a lot of cabling.

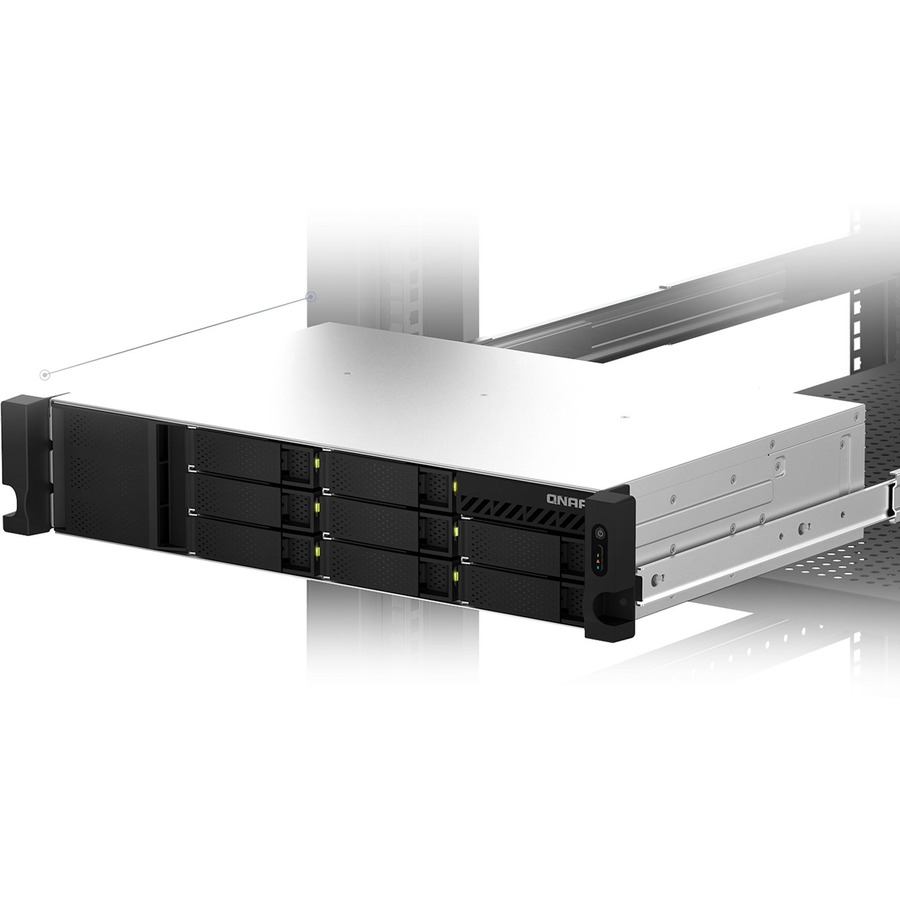

2U Short depth design for up to 38% reduction in size

The 2U rackmount TS-873AeU-RP has a short depth design of only 11.7 inches (297.4 mm), making it an excellent choice for smaller racks, wall-mount AV rack cabinets, and network rack cabinets. The space saved by the short depth design can be reserved for cabling or ventilation. The TS-873AeU-RP is space-saving for flexible deployment and is especially suitable for multiple locations and applications including offices, audiovisual rooms, and security surveillance recording.
