Intel Xeon D-2142IT Octa-core (8 Core) 1.90 GHz - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 128 GB RAM DDR4 SDRAM - 2 x 12Gb/s SAS Controller - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD, RAID-TP RAID Levels - 24 x Total Bays - 24 x 2.5" Bay - 6 x Total Slot(s) - Gigabit Ethernet, 10 Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - QES 2.1.1 - iSCSI, TCP/IP, IPv4, IPv6, LACP, CIFS, SMB 2.0, SMB 3.0, NFSv3, NFSv4, FTP, ... - 4 GB2U
$21,535.60
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 26 and Nov 30, then process your delivery right after.
Genuine QNAP Systems through authorized distribution — NDAA §889 screened before checkout.

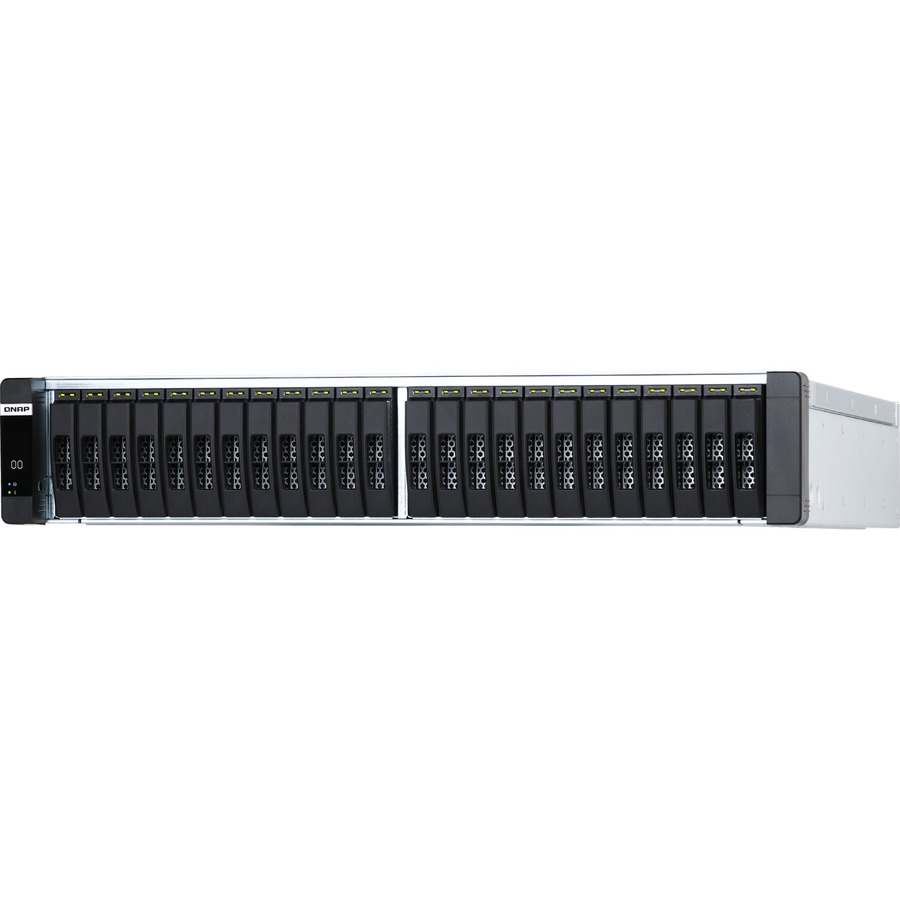

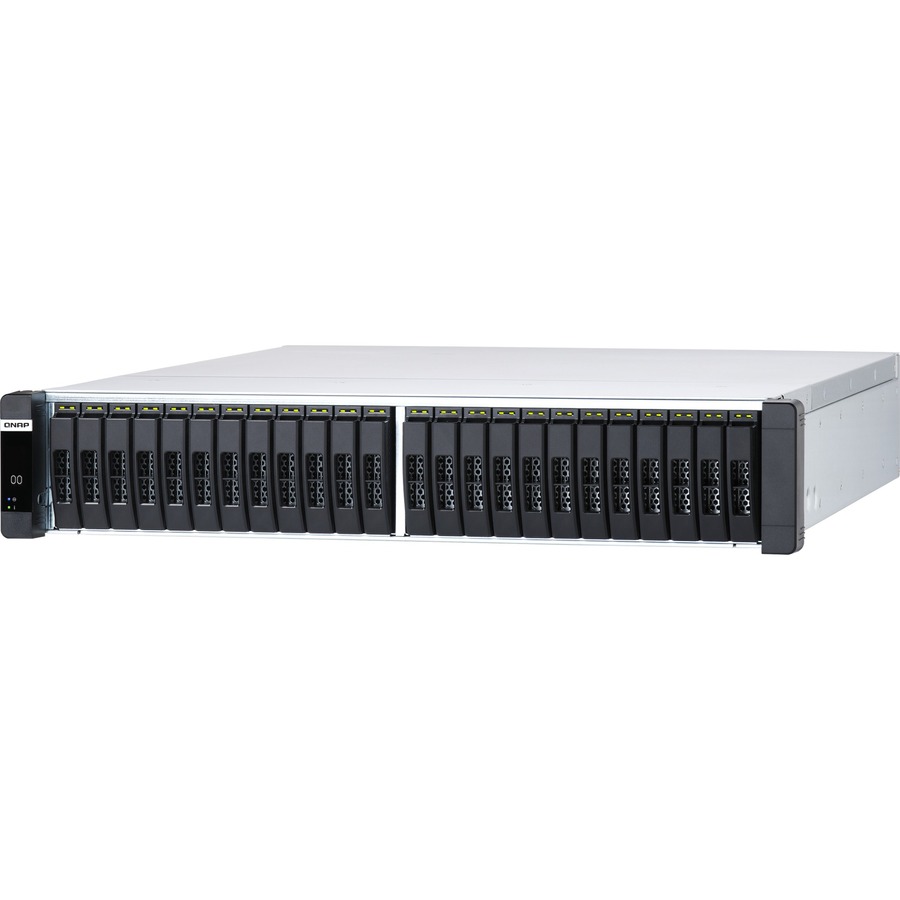

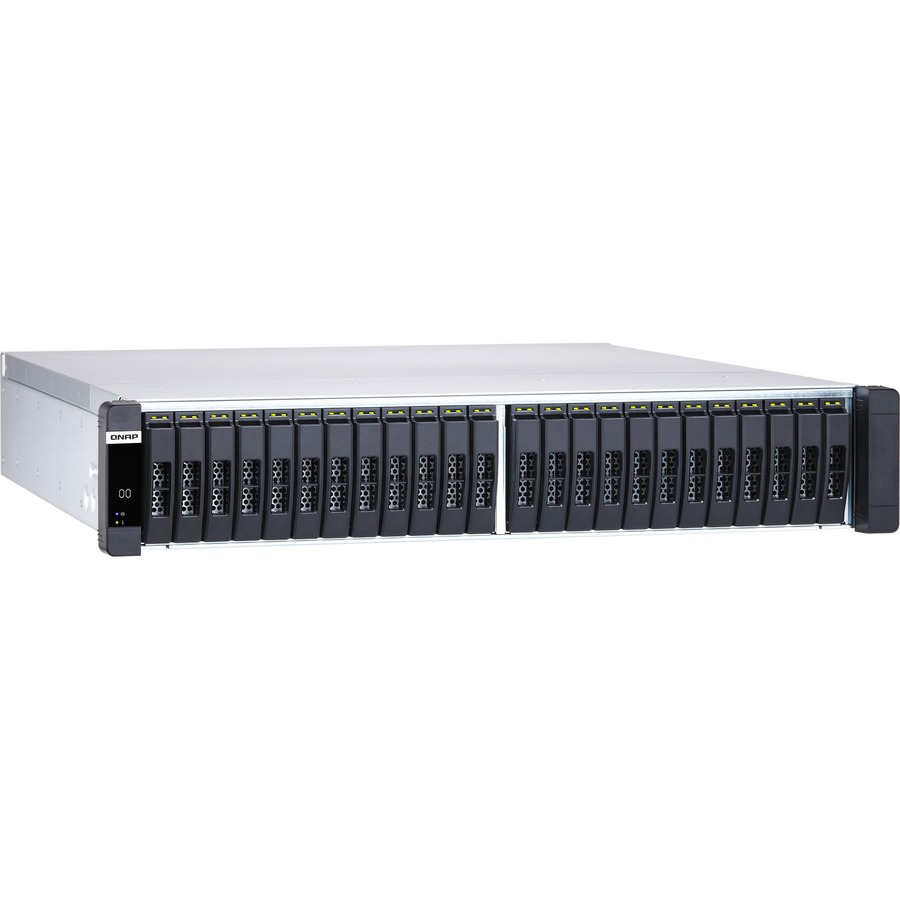

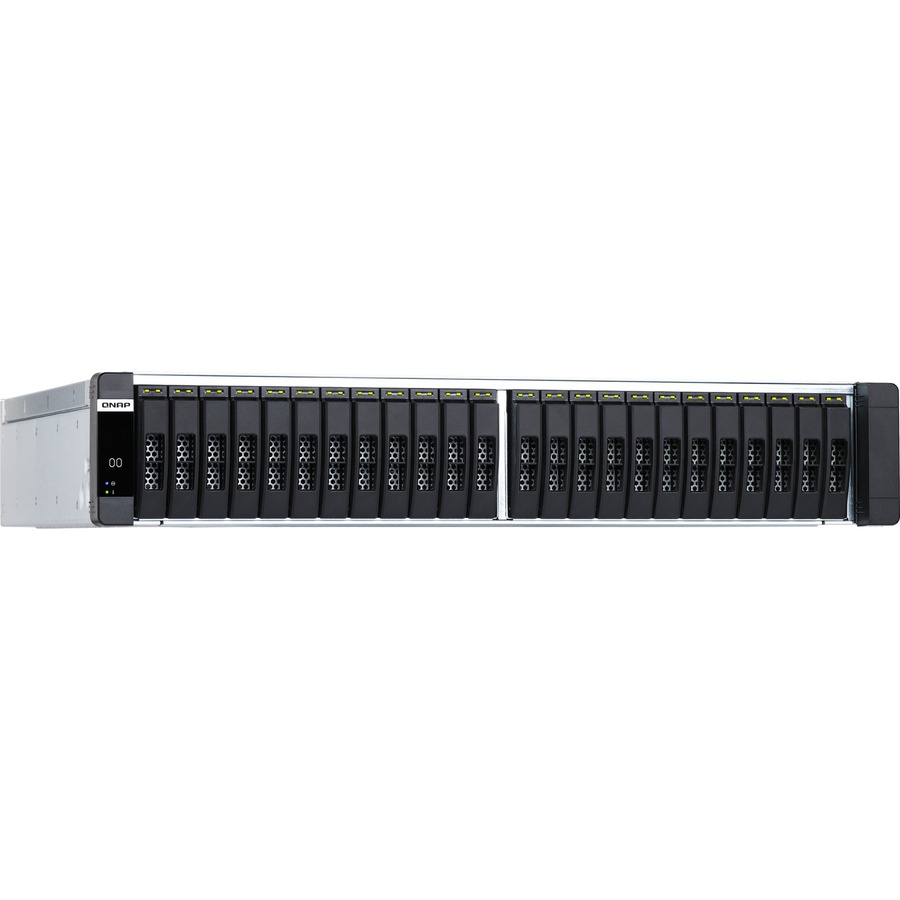

ES2486dc
Powerful and cost-efficient Intel® Xeon® D based Enterprise ZFS NAS, optimized for inline deduplication and all-flash applications
The ES2486dc Enterprise ZFS NAS is QNAP's first high-availability NAS with all-flash arrays and dual active controllers. Powered by an Intel® Xeon® D-2142IT 8 cores/16 threads processor, the ES2486dc supports up to 24 x 2.5-inch SAS 12Gbps SSDs and provides excellent I/O throughputs. Random write performance for all-flash arrays is further driven by the flash-optimized QES 2.1.1 operating system that comes pre-installed on the ES2486dc. The QES uses ZFS to support logical volume management; block-based inline data deduplication and inline compression reduce I/O and SSD storage consumption, which significantly extends SSD lifespan with higher price-performance ratio for all-flash storage arrays. Coupled with near-limitless snapshots and SnapSync for data protection, the QES-based ES2486dc fulfills demanding business applications, such as mission-critical file servers, virtualization servers, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup and recovery.

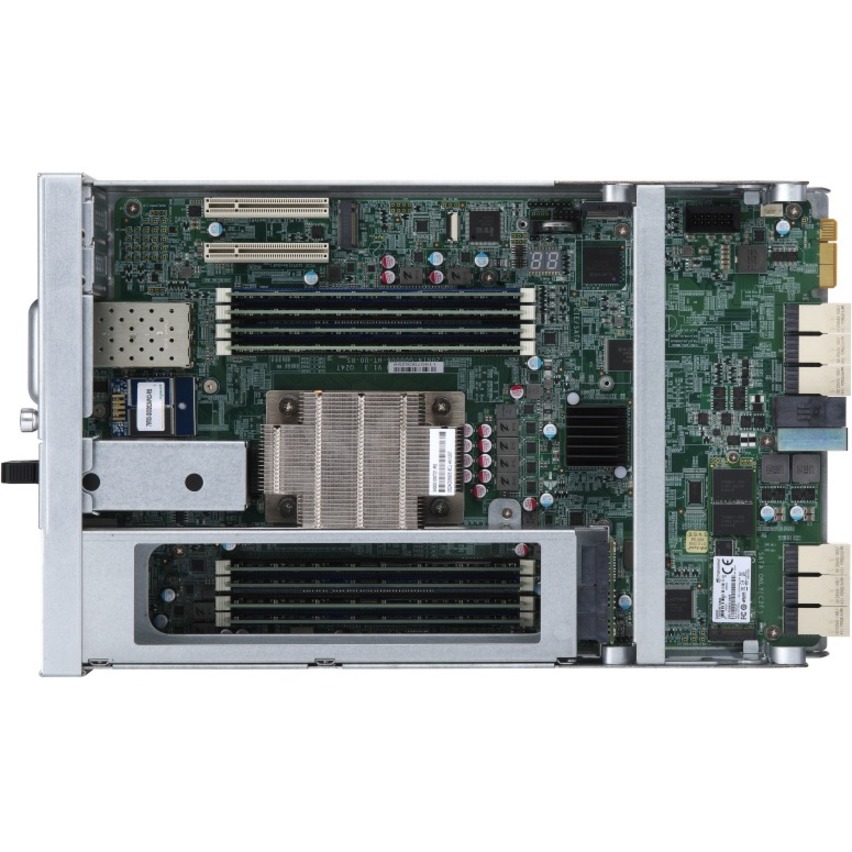

• Intel® Xeon® D dual active-active controllers provide superb uptime and redundancy to ensure high availability (HA).
• Battery-protected DRAM write to cache data protection and flash read acceleration provides industry-leading random access performance.
• PCIe expandability allows for 10GbE/25GbE/40GbE adapters to increase application performance.
• Four 10GbE SFP+ ports accelerate large file sharing and intensive data transfer from virtualization or datacenter.
• Near-limitless snapshots and SnapSync for snapshot remote backup assist businesses to resume essential services in the shortest time.
• Supports VMware® vSphere® 6.5, Windows Server® 2019 and Citrix® XenServer® 7.0 for storage virtualization. Compatible with OpenStack® cloud environments.
Limited Warranty: 5 Year
QNAP Enterprise ZFS NAS ES2486DC-2142IT-128G SAN/NAS Storage System
| Controllers | |
|---|---|
| Number of Controllers | 2 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD, RAID-TP |
| General Information | |
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | ES2486DC-2142IT-128G-US |
| Brand Name | QNAP |
| Product Line | Enterprise ZFS NAS |
| Product Model | ES2486DC-2142IT-128G |
| Product Name | Enterprise ZFS NAS ES2486DC-2142IT-128G SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Number of 2.5" Bays | 24 |
| Total Number of Expansion Slots | 6 |
| Expansion Slot Type | SFP+, PCI Express 3.0 x8 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Management & Protocols | |
| Protocols | iSCSI, TCP/IP, IPv4, IPv6, LACP, CIFS, SMB 2.0, SMB 3.0, NFSv3, NFSv4, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, SNMP, SMTP, SMSC, SMB, SSL, LDAP, NFS, SNMP v1, SNMPv2, SNMPv3, TLS |
| Memory | |
| Standard Memory | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 3.5" |
| Width | 19" |
| Depth | 21.5" |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Weight (Approximate) | 60.43 lb |
| Power Description | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 700 W |
| Redundant Power Supply | Yes |
| Processor & Chipset | |
| Processor Manufacturer | Intel |
| Processor Type | Xeon |
| Processor Model | D-2142IT |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 1.90 GHz |
| Software | |
| Operating System | QES 2.1.1 |
| Storage | |
| Number of Hard Drives Supported | 24 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 0 |
| Flash Memory Capacity | 4 GB |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
