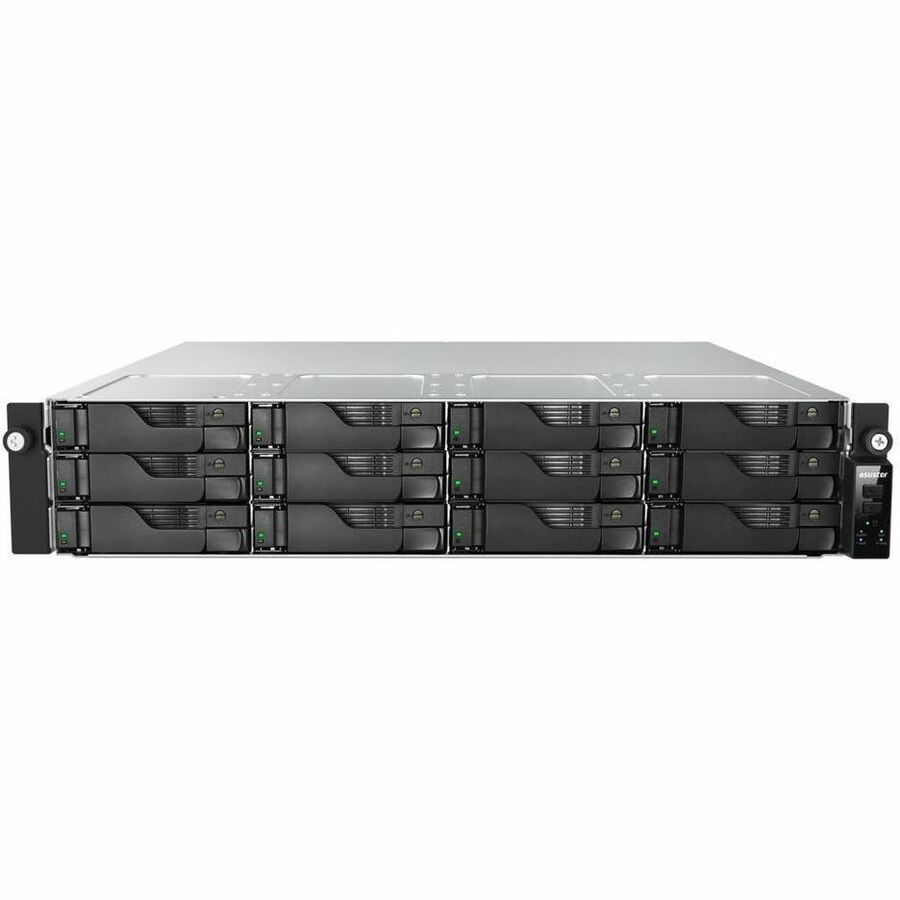

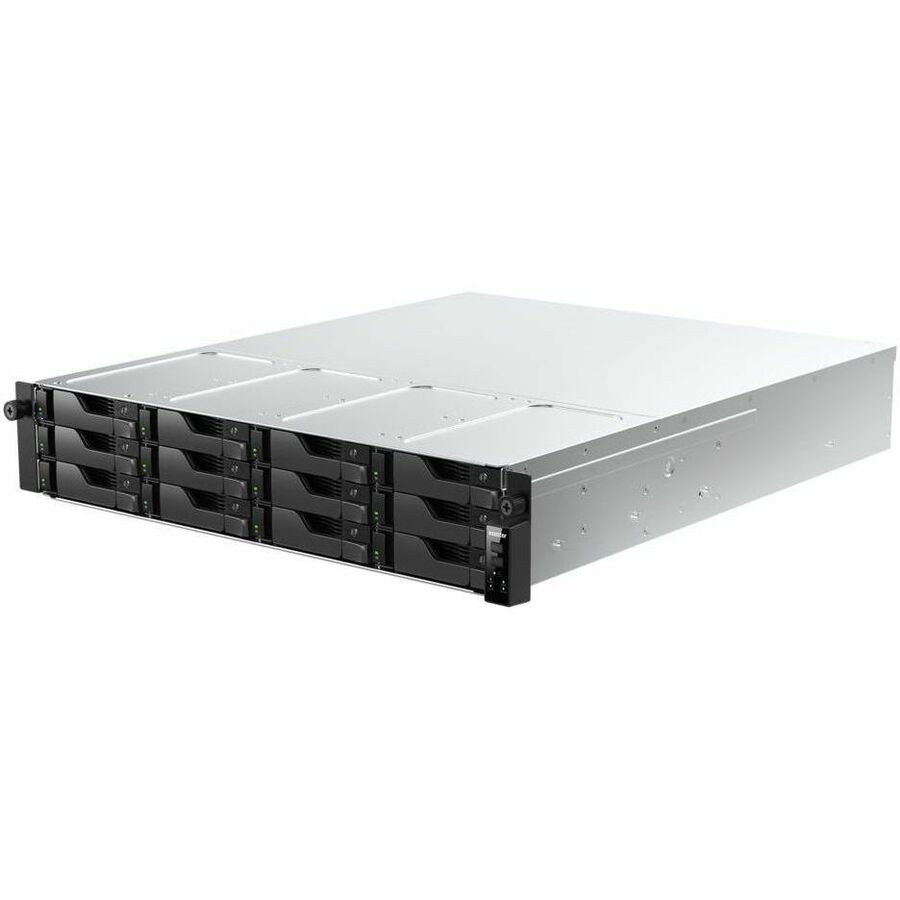

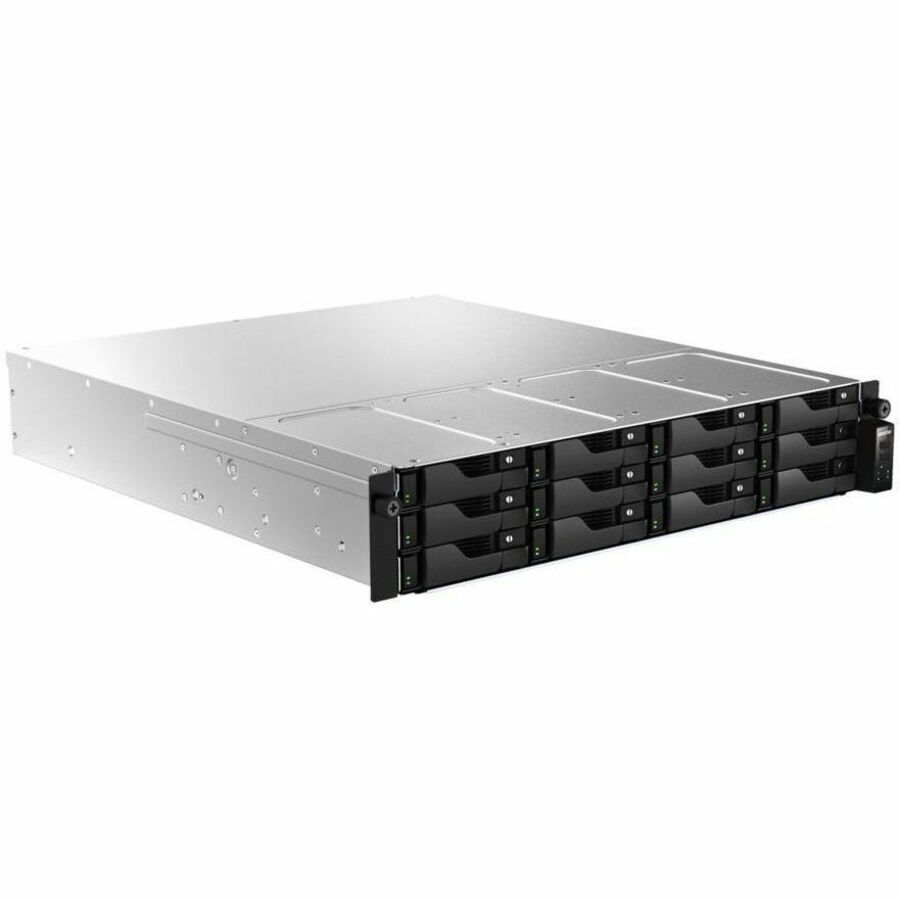

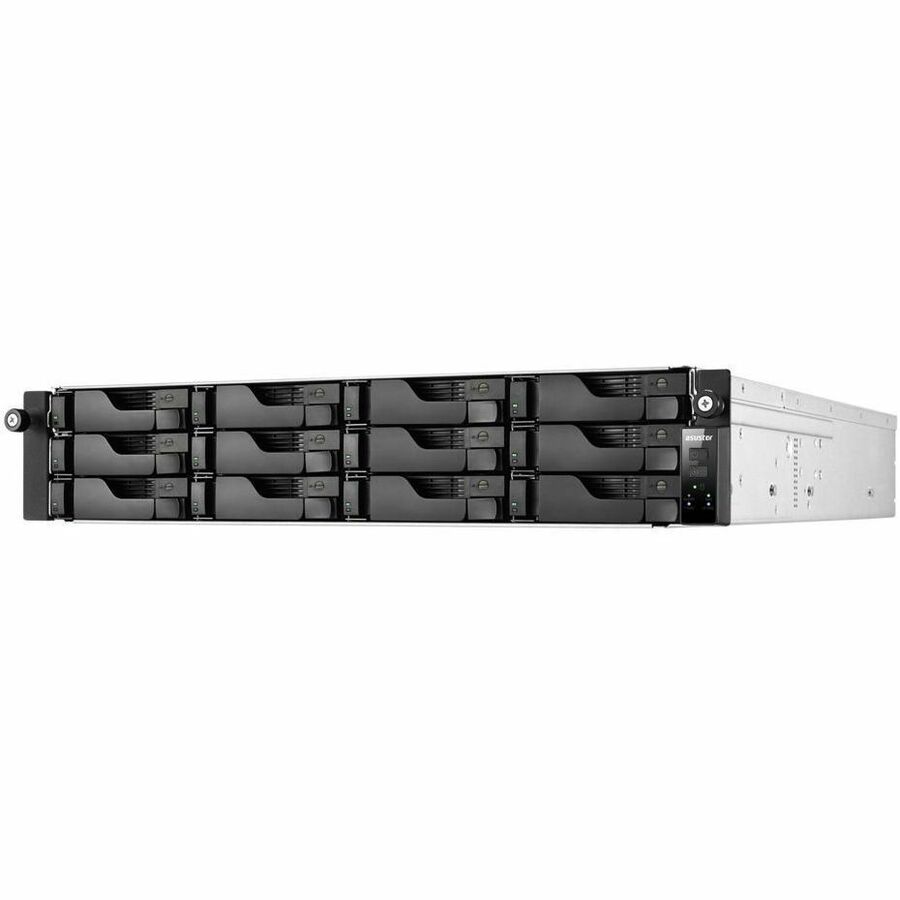

AMD Ryzen 7 Pro 7745 Octa-core (8 Core) 3.80 GHz - 12 x HDD Supported - 0 x HDD Installed - 12 x SSD Supported - 0 x SSD Installed RDX Technology - 16 GB RAM DDR5 SDRAM - Serial ATA/600 Controller - RAID Supported - 0, 1, 5, 6, 10, JBOD RAID Levels - 12 x Total Bays - 12 x 2.5"/3.5" Bay - Gigabit Ethernet, 10 Gigabit Ethernet - HDMI - 4 USB Port(s) - Network (RJ-45) - ADM 5.0 - TCP/IP, LDAP, HTTPS, SFTP, SSH, AFP, FTP, SMB 2.0, IPv4, WEBDAV, SSL, ... - 32 GB Flash Memory Capacity - 2U
$4,575.61
Special order — estimated available by September 10, 2026.
Genuine ASUSTOR through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Powerful Core for Enterprise-Level High-Speed Computing
The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 are equipped with the AMD Ryzen 7 Pro 7745 embedded processor, featuring 8 cores and 16 threads with clock speeds of up to 5.3 GHz. The Lockerstor R Pro Gen2 series with its powerful Ryzen CPU chews through virtualization and containerized workloads as it delivers smooth and stable high-performance computing, making it ideal for diverse enterprise environments.
Expandable for Future Demands
With PCIe Gen5 x8 and Gen5 x4 expansion slots, high-speed devices like 50GbE network cards, SAS storage controllers, and other peripherals can be installed to scale storage and network performance based on evolving business needs.
DDR5-4800 ECC Server-Grade Memory
The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 are equipped with DDR5-4800 ECC memory, which is expandable up to 192GB. ECC memory supports automatic error correction and helps prevent system crashes as well as data corruption, ensuring stable and accurate long-term operation.
PCI Express 5.0
Includes one PCIe Gen5 x4 M.2 2280 NVMe slot, allowing users to install SSDs for high performance caching or storage, significantly improving access speed for small files and enhancing data processing in multi-user environments.
More than Just 10-Gigabit Ethernet!

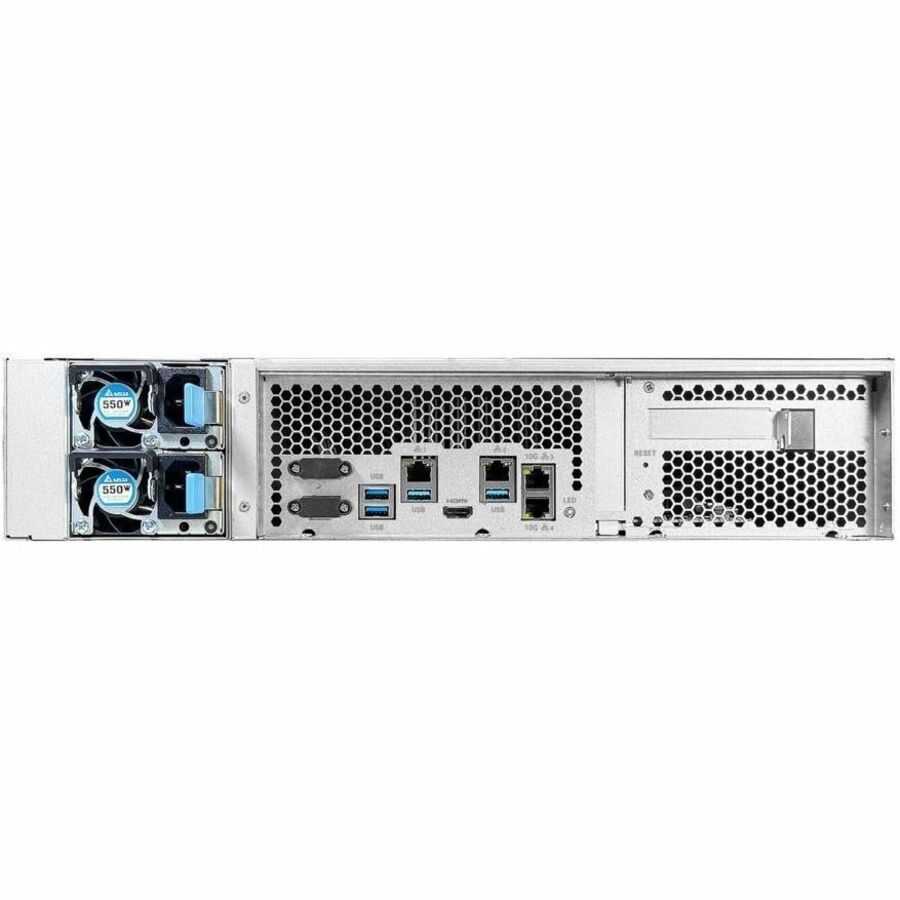

The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 offer dual 10GbE and dual Gigabit Ethernet RJ45 network ports, supporting link aggregation and SMB multichannel, while also delivering ultra-low latency and high-speed data transfer rates. If 10-Gigabit is not enough, the included PCI Express slot allows for 25GbE / 40GbE / 50GbE NICs for even faster networking.
Feels Like Unlimited Space
Your Lockerstor connect to an Xpanstor 12R device using a SAS controller card to add 12 additional drive bays. This provides a stable, high-speed enterprise-grade storage expansion solution without replacing existing hardware and allows your NAS to grow with you.
Efficiently Large and In Charge
Built with dual-redundant 80 PLUS Platinum certified power supplies, providing stable power delivery with up to 92% power conversion efficiency. This ensures optimal energy use even under high workloads, helping businesses save on electricity costs while supporting eco-friendly operations.
Exclusive MyArchive Cold Backup Technology | Unlimited Capacity Expansion
MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.
360° Backup solution and enterprise virtualization application
• MyArchive cold storage backups
• Snapshot Center, Cloud Backup Center, DataSync Center
• Complete iSCSI/IP-SAN and NFS support
• VMware, Citrix and Hyper-V ready
• Supports Virtualization and Docker apps
More from the Manufacturer
Powerful Core for Enterprise-Level High-Speed Computing
More than Just 10-Gigabit Ethernet!
DDR5-4800 ECC Server-Grade Memory
Server-grade ECC memory
ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the NAS the Lockerstor 12R pro Gen2 our most stable NAS ever.
High efficient and energy saving
The Lockerstor 12R Pro Gen2 and 16R Pro Gen2 are equipped with server–grade redundant 80 PLUS Platinum PSUs. The efficient power supplies installed ensure stability when running your NAS for various apps like virtualization.
Enterprise Backup
The Lockerstor 12R Pro Gen2(2U) features comprehensive backup solutions. The built-in redundant power supply and 4 Gigabit Ethernet ports effectively increase reliability, data integrity and execution speeds. The Ethernet ports and power supply all feature failover capabilities (when one fails, the other can continue to operate) in order to ensure for continuous data availability.
Product feature
Snapshot Center
Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
PC-less Software Installation
Mobile installation with AiMaster takes only 3 steps! Finding your NAS, system initialization and installation, power management, ADM firmware updates, system information and more are all available from the convenience of your mobile device at any time.
Effortless Connections to Your NAS
ADM 3.0 provides easy connections by supporting a new Internet Passthrough function that helps users to simplify previously complex router configurations.
Wake Up From Anywhere
The Lockerstor 8 and 10 feature Wake on WAN technology. No specialized equipment or settings are needed to wake the NAS. Simply use ASUSTOR’s wide variety of mobile apps, including but not limited to AiMaster, AiMusic, AiVideos and AiData to turn the NAS on or off remotely. Wake on WAN helps protect data by keeping the NAS powered off when not in use; thereby helping to prevent attacks, protects data integrity by remaining powered off during power failures and Wake on WAN also saves electricity, making for an even more efficient NAS.
Protected From Ransomware
The Lockerstor comes with the most up-to-date version of ADM to help protect against ransomware attacks. Snapshot Center and Btrfs provide the ability to efficiently create snapshots to protect and easily restore lost data. Other security features found on the Lockerstor are the ability to create one or more replacement administrator accounts, a firewall by ADM Defender that features blacklists and whitelists, the ability to change default ports, disable SSH and Terminal to prevent remote attacks. MyArchive cold storage hard drive security can also be increased by implementing AES 256bit encryption.The AiDownload mobile App allows you to use your mobile device to search, add and manage your download tasks while on the go. BitTorrent downloads have never been this convenient.
Cross-Platform Multi-User Access
The ASUSTOR NAS provides seamless cross-platform and multi-user access, allowing you to easily connect to your NAS from Windows, Mac OS X or Unix-like operating systems no matter if you are using a PC, notebook, tablet or smartphone.
Enterprise Versatility
ASUSTOR NAS offers rich variety of services for business users. For the efficiencies of one NAS you can create a multifunctional server that is worth much more.
Comprehensive Backup Solutions
ASUSTOR’s comprehensive backup solution provides more than twelve backup options, including, but not limited to Amazon S3, Dropbox, Google Drive, and Onedrive. ASUSTOR Backup Plan for Windows as well as Time Machine for macOS provide easy backups for desktop and laptops while MyArchive removable hard drives provide long term storage. Btrfs is now supported and with Snapshot Center, can take snapshots of your information in the event of unintentional modification. Restore previous versions easily with Snapshot Center.
Limited Warranty: 5 Year
About ASUSTOR Founded in 2011, ASUSTOR Inc. was established via direct investment from ASUSTeK Computer Inc . The ASUSTOR brand name was created as a portmanteau of “ASUS” and “Storage”. ASUSTOR is a leading innovator and provider of private cloud storage (network attached storage) and video surveillance (network video recorder) solutions, also specializing in the development and integration of related firmware, hardware and applications. We are devoted to providing the world with an unparalleled user experience and the most complete set of network storage solutions possible. Company Culture At ASUSTOR we believe that our employees are our most treasured assets. We encourage creativity and welcome different voices and ideas. We are committed to creating a diverse, welcoming, happy and energetic work environment, providing a flexible space that allows you to employ your creativity and discover your potential. At ASUSTOR you will be able to see our staff's unmatched devotion to the design of network attached storage (NAS), crafting products with a unique blend of hardware and software integration. Our mission is to launch an international brand and to become a global leader in digital storage. Join us for a chance to work with the leading talents in the field, while receiving ample opportunities to display your abilities and grow together with the company.
| Controllers | |
|---|---|
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, JBOD |
| General Information | |
| Manufacturer | ASUSTOR |
| Manufacturer Part Number | AS7212RDX |
| Brand Name | ASUSTOR |
| Product Line | Lockerstor 12R pro |
| Product Model | AS7212RDX |
| Product Name | Lockerstor 12R Pro Gen2 (AS7212RDX) |
| Packaged Quantity | 1 |
| Product Type | SAN/NAS Storage System |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 2.5"/3.5" Bays | 12 |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | PCI Express 5.0 x4, PCI Express 5.0 x8 |
| Interfaces/Ports | |
| Drive Interface | Serial ATA, PCI Express NVMe, PCI Express NVMe 5.0 x4 |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Management & Protocols | |
| Protocols | TCP/IP, LDAP, HTTPS, SFTP, SSH, AFP, FTP, SMB 2.0, IPv4, WEBDAV, SSL, SNMP, iSCSI, TLS, HTTP, NFS, TFTP, UPnP, RSync, DDNS, IPv6, CIFS/SMB, SMB 3.0, SSL/TLS |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
| Physical Characteristics | |
| Cooling Fan | Yes |
| Height | 3.5" |
| Width | 17.3" |
| Depth | 22.7" |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Weight (Approximate) | 30.86 lb |
| Power Description | |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 550 W |
| Redundant Power Supply | Yes |
| Processor & Chipset | |
| Processor Manufacturer | AMD |
| Processor Type | Ryzen 7 Pro |
| Processor Model | 7745 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 3.80 GHz |
| Software | |
| Operating System | ADM 5.0 |
| Operating System Supported | Windows 7, Windows 8, Windows 10, Windows 11, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019, Windows Server 2022, Mac OS X 10.13 High Sierra, Linux |
| Storage | |
| Number of Hard Drives Supported | 12 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 12 |
| Number of Solid State Drive Installed | 0 |
| RDX Technology | Yes |
| Flash Memory Capacity | 32 GB |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
