SKU
70F10000UX
Category
Storage Arrays & Servers
Overview
Modular and Scalable

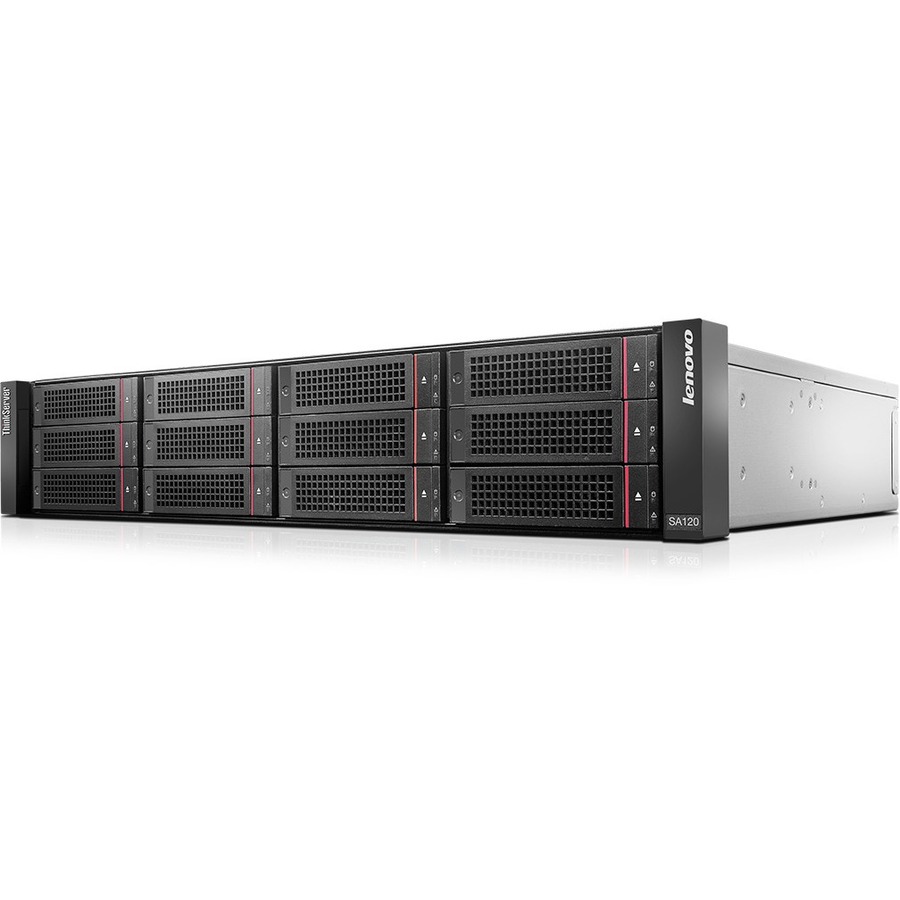

ThinkServer SA120 direct attach storage offers enormous expansion, with twelve 3.5" high capacity front-panel drive bays, up to two I/O controllers and four optional rear-panel 2.5" SSD drive bays to improve throughput. Coupled with ThinkServer host servers configured with LSI® CacheCade technology, these SSD drives enable the ThinkServer SA120 to provide additional cache, low latency and deliver amazing IOPS improvements. This clever, scalable design provides an optimal tiered storage solution.
Customer Focused Design
With legendary Think design and enterprise-grade reliability, the ThinkServer SA120 provides peace of mind. Its innovative storage design combines large capacity near-line 3.5" drives and lightning-fast 2.5" drives to provide a perfect solution for customers who require high performance and maximum capacity at a fraction of the cost and complexity of typical storage area network choices. Servicing the SA120 is easy with tool-less components, hot-swap fans and power supplies. It shares common parts with ThinkServer rack and tower servers for simplified management.
Impressive Features, Great Value
Featuring the latest high performance SSD choices from Intel®, ThinkServer SA120 delivers the fast response and low latency you demand. ThinkServer SA120 offers high efficiency 80 PLUS redundant power supplies to keep your business running smoothly and to reduce power consumption. Plus, if you need fast, professional service help, Lenovo provides an impressive array of warranty upgrades and rapid-response services. Combining these rich features with competitive prices and a standard 3-year warranty, the ThinkServer SA120 offers an impressive value.
Warranty
Limited Warranty: 3 Year
About Lenovo
Join Lenovo
Transformation is a Team Sport
When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
DAS Storage System is the single answer to all your desired storage needs
Robust scalability up to 4 drives to let you expand limitlessly
Rack-mountable das storage system allows maximum space utilization with easy and convenient access and retrieval of the data
Specifications
Controllers
Controller Type
6Gb/s SAS, Serial ATA/600
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
70F10000UX
Brand Name
Lenovo
Product Line
ThinkServer
Product Model
SA120
Product Name
ThinkServer SA120 DAS Array with Single Controller
Product Type
DAS Storage System
I/O Expansions
Number of Total Expansion Bays
16
Number of 3.5" Bays
12
Number of 2.5" Bays
4
Interfaces/Ports
Host Interface
Mini-SAS
Physical Characteristics
Height
3.4"
Width
17.6"
Depth
15.2"
Form Factor
Rack-mountable
Rack Height
2U
Weight (Approximate)
48.40 lb
Power Description
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
550 W
Storage
Number of Hard Drives Supported
12
Number of Solid State Drive Supported
4
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
ThinkServer SA120 DAS Array with Single Controller
