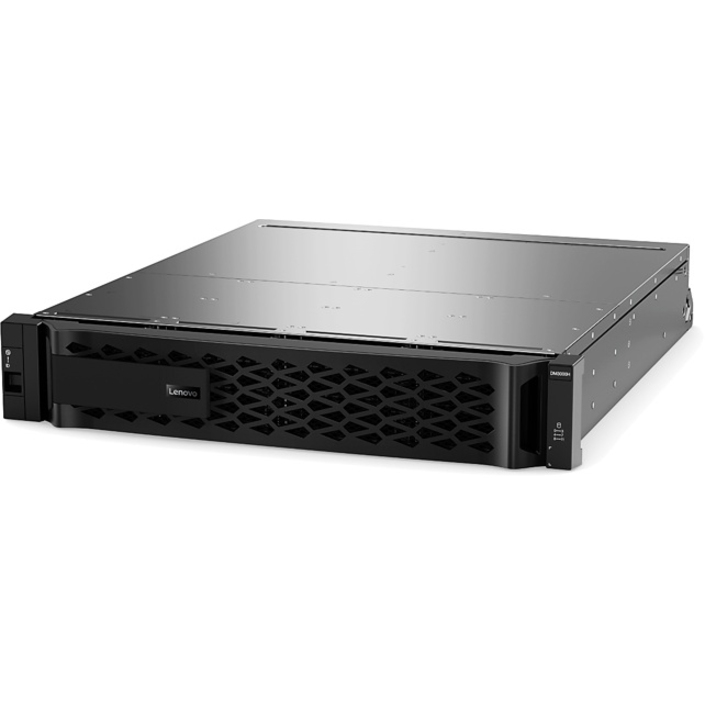

Lenovo ThinkSystem DM3000H Unified Hybrid Storage Array
12 x HDD Supported - 12 x HDD Installed - 48 TB Installed HDD Capacity - Serial Attached SCSI (SAS) - 12 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported - 12 x Total Bays - 12 x 3.5" Bay - 4 x Total Slot(s) - 10 Gigabit Ethernet - 2 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - Data ONTAP 9.7 - NFS, CIFS, SMB, iSCSI, SSH, SNMP, SSL, LDAP, FCP - 4 SAS Port(s) External - 2U - Rack-mountable
- SKU
- 7Y42A000NA
- Category
- Storage Arrays & Servers
MSRP$16,999.00
$15,998.85
Save 6%Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7Y42A000NA
- Category
- Storage Arrays & Servers
Overview
Lenovo ThinkSystem DM3000H is a unified, hybrid storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small enterprises and remote offices/branch offices of large enterprises. Powered by the ONTAP software, ThinkSystem DM3000H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
The ThinkSystem DM3000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of general purpose workloads, including file services, virtualization, Microsoft applications, backup and archiving, and other storage I/O-intensive applications.

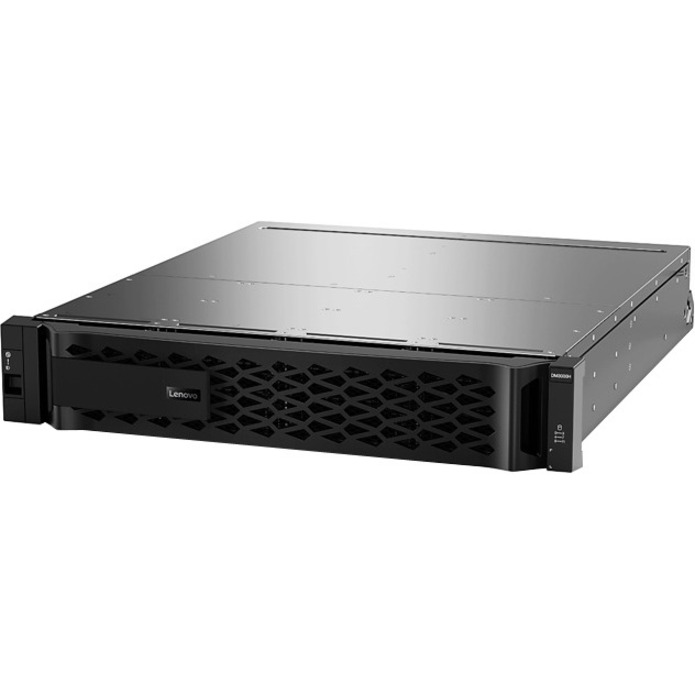

ThinkSystem DM3000H models are 2U rack-mount controller enclosures that include two controllers, 64 GB RAM and 8 GB battery-backed NVRAM per system (32 GB RAM and 4 GB NVMRAM per controller), and 12 LFF hot-swap drive bays (2U12 form factor). Controllers provide universal 1/10 GbE NAS/iSCSI or 4/8/16 Gb Fibre Channel (FC) ports, or 1/10 GbE RJ-45 ports for host connectivity.
A single ThinkSystem DM3000H Storage Array scales up to 144 drives with the attachment of ThinkSystem DM120S 2U12 LFF, DM600S 4U60 LFF, and DM240S 2U24 SFF Expansion Enclosures.
Highlights
- SAN/NAS Storage System offers maximum storage efficiency and convenience
- Robust scalability up to 12 drives to let you expand limitlessly
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable san/nas storage system allows a clutter-free, convenient usage with increased efficiency
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Data ONTAP 9.7 OS with all the creative and productive tools you need
Specifications
| Package Contents |
|
|---|---|
| Product Type | SAN/NAS Storage System |
| Manufacturer Part Number | 7Y42A000NA |
| Protocols | NFS, CIFS, SMB, iSCSI, SSH, SNMP, SSL, LDAP, FCP |
| Packaged Quantity | 1 |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 63.70 lb |
| Operating System | Data ONTAP 9.7 |
| Form Factor | Rack-mountable |
| Manufacturer | Lenovo Group Limited |
| Product Model | DM3000H |
| Product Name | ThinkSystem DM3000H Unified Hybrid Storage Array |
| Product Line | ThinkSystem |
| Controller Type | 12Gb/s SAS |
| Product Series | DM |
| Rack Height | 2U |
| Brand Name | Lenovo |
| Fibre Channel | Yes |
| Plug/Connector Type | C13 to IEC 320-C14 |
| Expansion Slot Type | SFP+ |
| Number of Controllers | 2 |
| Height | 3.4" |
| Width | 17.6" |
| Depth | 20" |
| Environmentally Friendly | Yes |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Hard Drive Interface | Serial Attached SCSI (SAS) |
| RAID Supported | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Total Expansion Bays | 12 |
| Number of 3.5" Bays | 12 |
| Number of Network (RJ-45) Ports | 8 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 913 W |
| Hard Drive Configuration | 12 x 4TB |
| Total Number of USB Ports | 2 |
| Number of USB 2.0 Ports | 2 |
| Total Hard Drive Capacity Installed | 48 TB |
| Number of Hard Drives Supported | 12 |
| Number of Hard Drives Installed | 12 |
| Number of Solid State Drive Supported | 12 |
| Number of Solid State Drive Installed | 0 |
| Drive Interface | 12Gb/s SAS |
| Number of SAS Ports (External) | 4 |
| Total Number of Expansion Slots | 4 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
