Overview
The AT-XS916MXT and AT-XS916MXS switches offer cost effective, high-speed 10G connectivity for servers and storage, and support 100/1000 connections for existing networks. The XS900MX Series enable a highly flexible and reliable network, which can easily scale to meet increasing traffic demands.
Overview
The XS900MX Series are the ideal 10G access switches for enterprise networks or anywhere a relay switch with 10G uplink is required. Theswitches also make the ideal core or aggregation switch, to connect servers and storage in a small network.

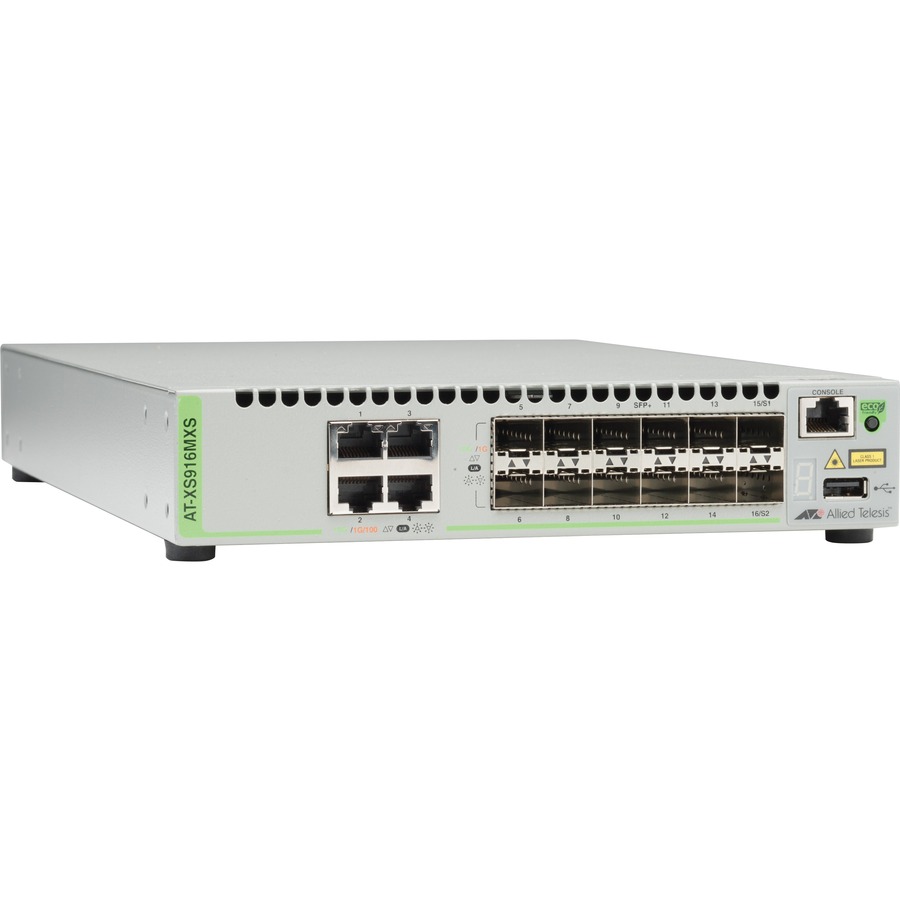

The AT-XS916MXT features 12 x 100/1000/10GBASE-T and 4 x SFP+ slots. The AT-XS916MXS features 4 x 100/1000/10GBASE-T and 12 x SFP+ slots.
Easy management
The XS900MX Series switches feature Allied Telesis Management FrameworkTM (AMF), a sophisticated suite of management tools that provides a simplified approach to network management.
Common tasks are automated or made so simple that the everyday running of a network can be achieved without the need for highly trained, and expensive, network engineers.Powerful features like centralized management, auto-backup, auto-upgrade, auto- provisioning and auto-recovery enable plug-and-play networking and zero-touch management.
Resiliency
Ethernet Protection Switching Ring (EPSRingTM) and 10 Gigabit Ethernet allow several XS900MX Series switches to form a protected ring capable of recovery within as little as 50ms. This feature is perfect for high performance and high availability in enterprise networks.
Stackable
Create a VCStack of two XS900MX Series switches (using 10G SFP+ direct attach cables). VCStack provides a highly available system where network resources are spread out across stacked units, reducing the impact if one of the units fails. With VCStack and the XS900MX Series, up to 28 x 10G ports can be provisioned as a single virtual switch in one rack unit.
Highlights
Layer 3 Switch provides dependable and powerful connectivity for maximum usability
Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
Provides efficient communication with other layer 3 switch in the stack to ensure maximum productivity
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
Can work as layer 3 routing for scalable network design
Rack mounting enables you to organize wires & secure cables for professional installation
Gigabit Ethernet port for ultra-fast network speeds
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Specifications
General Information
Manufacturer
Allied Telesis, Inc
Manufacturer Part Number
AT-XS916MXS-10
Brand Name
Allied Telesis
Product Line
CentreCOM
Product Series
XS900MX
Product Model
AT-XS916MXS
Product Name
12 SFP/SFP+ Slot Stackable Switch with 4-Port 100/1000/10G Base-T (RJ-45)
Product Type
Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports
4
Uplink Port
Yes
Modular
Yes
Stack Port
Yes
Port/Expansion Slot Details
4 x 10 Gigabit Ethernet Network, 12 x 10 Gigabit Ethernet Expansion Slot
Management & Protocols
Manageable
Yes
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Ethernet Technology
Gigabit Ethernet, 10 Gigabit Ethernet
Network Technology
10GBase-X, 10GBase-T
Network & Communication
Layer Supported
3
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
1.7"
Width
12.7"
Depth
8.3"
Weight (Approximate)
5.95 lb
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
No
I/O Expansions
Total Number of Expansion Slots
12.0
Expansion Slot Type
SFP+
Shared SFP Slot
No
Number of SFP+ Slots
12
Miscellaneous
Package Contents
12 SFP/SFP+ Slot Stackable Switch with 4-Port 100/1000/10G Base-T (RJ-45)
