Genuine Allied Telesis through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
AT-GS920/8PS-10
Category
Switches & Bridges
Overview

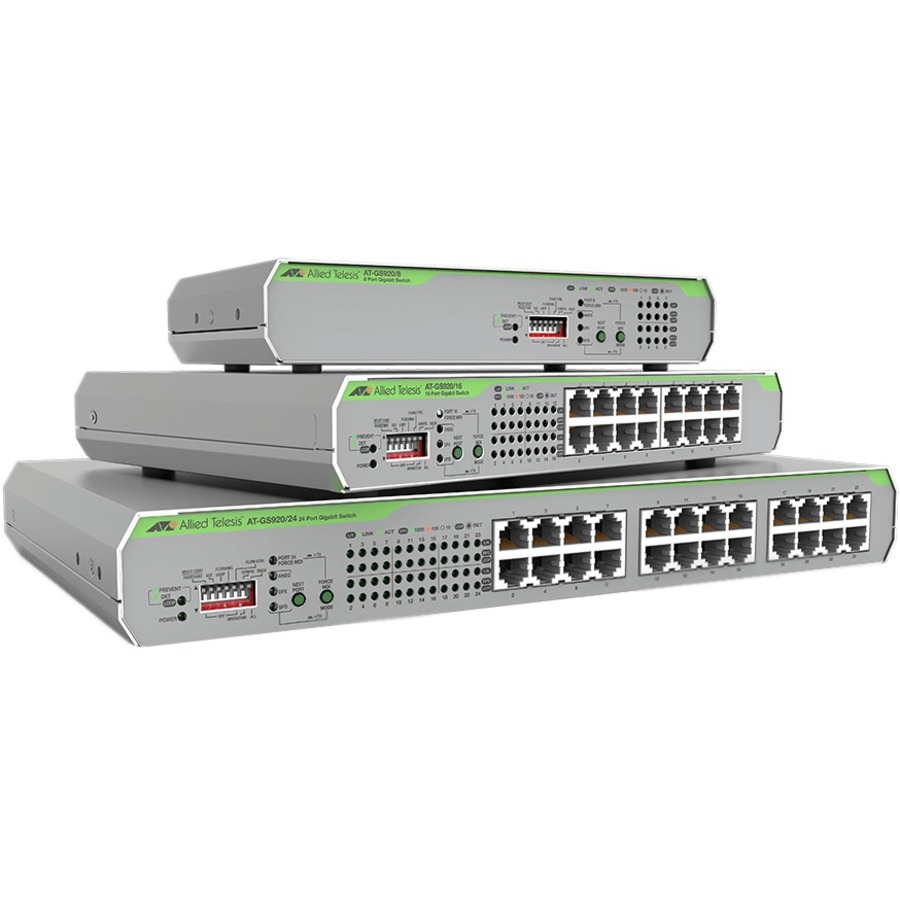

The Allied Telesis GS920 Series offers DIP Smart Gigabit switching solutions for the desktop and small networks. Front-panel DIP switches provide easy configuration of commonly-used features, without the need for a PC. DIP switches GS920 series switches provide port configuration for Speed/Duplex, Loop Detection and Flooding mode. The ability to set up the DIP switch without a PC saves money and time.
DIP switches
GS920 series switches provide port configuration for Speed/Duplex, Loop Detection and Flooding mode. The ability to set up the DIP switch without a PC saves money and time.
High performance
The GS920 Series delivers ultra-fast speed and high performance for today's high-bandwidth applications, such as video, graphics and industrial design, using Gigabit Ethernet.
Quality and reliability
Allied Telesis is a world leader in unmanaged Ethernet switches, and ships more than 250,000 unmanaged switches every year. Allied Telesis offers both proven reliability and industry-leading quality.
Speed/duplex configuration
The GS920 Series allows speed and duplex to be set on a per-port basis. This supports older devices where auto-negotiation is not supported, as well as embedded devices which may support a fixed speed/duplex only.
Loop detection
The Loop Detection feature discovers network loops, and shuts down affected ports. After the loop is resolved, affected ports are automatically returned to active use.
Flooding mode
Flooding mode allows the easy capture of data streams for troubleshooting and analysis, as they are sent to all ports.
Power over Ethernet (PoE)
The GS920/8PS supports PoE+ (IEEE 802.3at) and delivers up to 30W per port.
Private VLANs
Private VLANs isolate ports so that they can only communicate with the uplink port, and other ports in the same VLAN group. The GS920/8PS supports 3 different port groupings for flexible private VLAN deployment.
Highlights
DIP smart switches
Loop Guard (Loop Detection) for avoiding loops at the network edge
Loop Detection Frames are regularly sent, and affected ports are shut down if a loop is discovered
IEEE802.3az Energy Efficient Ethernet (EEE)
Force MDI avoids incorrect cabling and potential network loops
EAPOL/BPDU forwarding
Flow control
Speed/duplex configuration
Flooding mode
Fanless design for silent operation
Specifications
General Information
Manufacturer
Allied Telesis, Inc
Manufacturer Part Number
AT-GS920/8PS-10
Brand Name
Allied Telesis
Product Line
CentreCOM
Product Series
GS920
Product Model
GS920/8PS
Product Name
8-port 10/100/1000T POE+ Unmanaged Switch with Internal PSU
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
8
Uplink Port
Yes
Port/Expansion Slot Details
8 x Gigabit Ethernet Network
Management & Protocols
Manageable
No
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Network & Communication
Layer Supported
2
Physical Characteristics
Form Factor
Desktop, Rack-mountable, Wall Mountable
Height
1.7"
Width
8.3"
Depth
10.8"
Weight (Approximate)
3.53 lb
Power Description
Power Source
Power Supply
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
