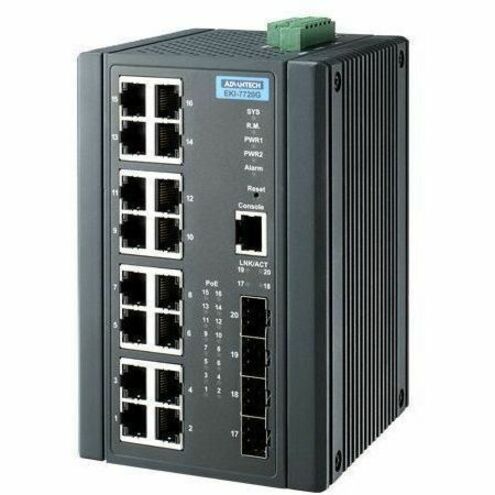

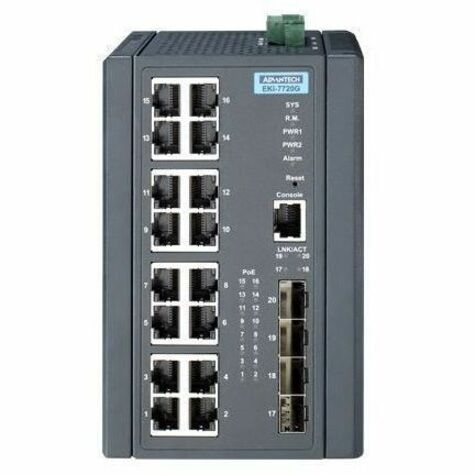

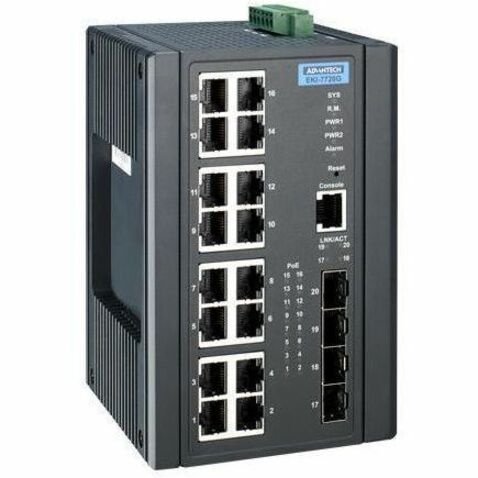

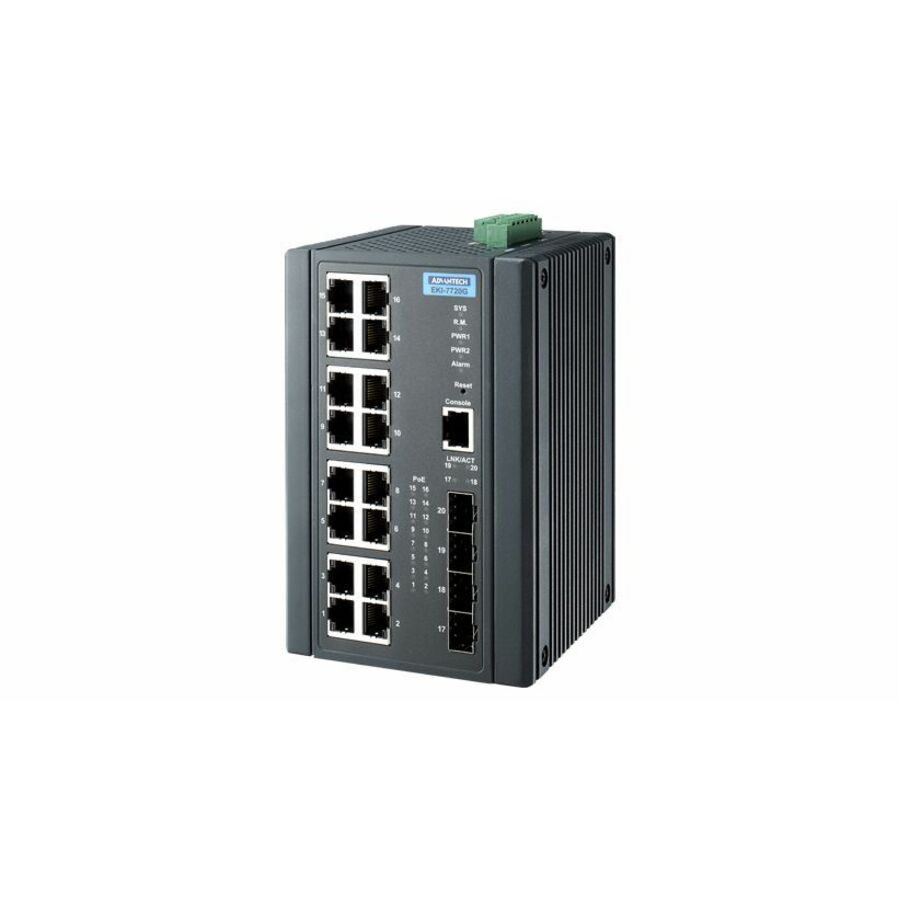

Advantech EKI-7720G-4FPI Ethernet Switch
Advantech

Advantech EKI-7720G-4FPI Ethernet Switch

16 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 10/100/1000Base-T, 1000Base-X, 1000Base-SX/LX, 1000Base-LHX, 1000Base-ZX, 100Base-FX - 2 Layer Supported - 4 SFP Slots - 16 W Power Consumption - 420 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable, Enclosure - 5 Year Limited Warranty

SKU
EKI-7720G-4FPI-BE
Category
Switches & Bridges

MSRP$1,975.00

$1,566.92

Save 21%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-7720G-4FPI-BE
Category
Switches & Bridges

Overview

The EKI-7720G-4FPI Gigabit managed PoE switch comes with 16 10/100/1000BaseT(X) ports with 802.3af/at supported and 4 Giga SFP ports. It features 16 IEEE802.3af/at PoE ports, -40~70°C operating temperature, and Din-Rail/Wall-Mount installation options, making it ideal for application which requires high-bandwidth transmission, more PoE ports, and Din-Rail installation. In addition, it is also embedded with Advantech exclusive features like IXM which benefits users for fast deployment and can dramatically save engineers time and costs, X-Ring Pro which achieves ultra-high speed recovery time of less than 20ms to ensure network stability, and Security Pack which protects your network from internal intrusion.

Highlights

  • 16 x Gigabit Ethernet ports + 4 x SFP ports
  • Support up to 16 x IEEE 802.3at/af PoE ports for PD demands
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
  • IXM function for fast deployment
  • Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • Supports NMS for easy and visualized to monitor and manage network remotely
  • Dual 48 ~ 57VDC power inputs and 1 x relay output

Specifications

Product TypeEthernet Switch
Input Voltage48 V DC, 53 V DC, 57 V DC
Manufacturer Part NumberEKI-7720G-4FPI-BE
Power SourceDC
Limited Warranty5 Year
Layer Supported2
FeaturesIP30, Broadcast Storm Control, Strict Priority Queuing (SPQ), DHCP Snooping, Access Control List, DHCP Relay, Remote Monitoring (RMON)
Form FactorDIN Rail Mountable, Wall Mountable, Enclosure
ManufacturerAdvantech Co., Ltd
Product ModelEKI-7720G-4FPI
Product NameEKI-7720G-4FPI Ethernet Switch
Network Technology10/100/1000Base-TX, 10/100/1000Base-T, 1000Base-X, 1000Base-SX/LX, 1000Base-LHX, 1000Base-ZX, 100Base-FX
Power Consumption16 W
Product SeriesEKI-7700
Brand NameAdvantech
Plug/Connector TypeTerminal Block
Expansion Slot TypeSFP
Height6"
Width3.8"
Depth4.1"
ManageableYes
Maximum Data Transfer Rate128 MB/s
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of SFP Slots4
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Network Ports16
PoE (RJ-45) PortYes
Port/Expansion Slot Details16 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE RJ-45 Network Port, 4 x Gigabit Ethernet SFP Expansion Slot
Total Number of Expansion Slots4
Redundant Power Supply SupportedYes
PoE Budget420 W
Networking StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.3ad
Product MaterialMetal
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
