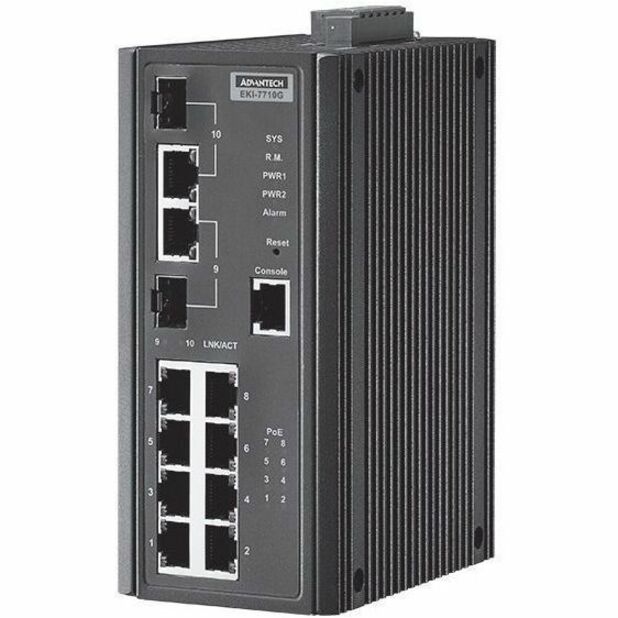

Advantech 8G+2G Port Gigabit Managed Redundant Industrial PoE Switch
10 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-TX - 2 Layer Supported - 12.10 W Power Consumption - 120 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Enclosure - 5 Year Limited Warranty
SKU
Category
Switches & Bridges
MSRP$1,447.05
$1,253.96
Save 13%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Switches & Bridges
Overview
The EKI-7710G-2CP/2CPI support 8 Gigabit PoE ports and 2 Gigabit combo ports. They provide up to 30W per port for high-power-consumption powered devices. They come embedded with Advantech IXM function, which can benefit users with fast deployment and can dramatically save considerably on engineering time and costs. The EKI-7710G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability
Warranty
Limited Warranty: 5 Year
Highlights
8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit copper/SFP combo ports
SFP socket for easy and flexible fiber expansion
Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
IXM function enables fast deployment ƒ Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB ƒ NEMA TS2 for traffic control
EN50121-4 approval for railway trackside deployment
Dual 24 ~ 48 VDC power input and 1 x relay output
Wide operating temperature range of -40 ~ 75°C (EKI-7710G-2CPI)
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
EKI-7710G-2CP-BE
Brand Name
Advantech
Product Series
EKI-7710G
Product Model
EKI-7710G-2CP
Product Name
8G+2G Port Gigabit Managed Redundant Industrial PoE Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
10
Network (RJ-45)
Yes
Port/Expansion Slot Details
8 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE+ RJ-45 Network Port, 2 x 10/100/1000BASE-T/TX Gigabit Ethernet RJ-45/SFP Combo Port
