Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
EKI-7720G-4F-BE
Category
Switches & Bridges
Overview

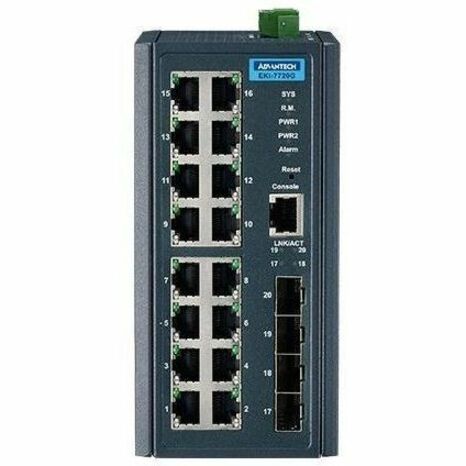

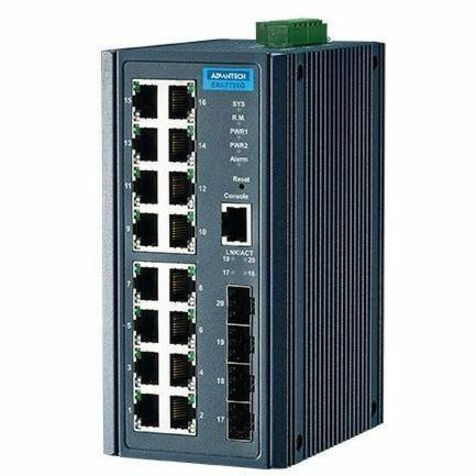

The EKI-7720G-4F and EKI-7720G-4FI provide users with abundant port options for connecting to various device types with 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. These switches are embedded with Advantech's IXM function, which can benefit users with fast deployment and can dramatically save on engineering time and costs. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, these switches are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability. The EKI-7720G-4FI in particular features a wide operating temperature range of wide -40 ~ 75°C.
Highlights
16 x Gigabit Ethernet ports + 4 x SFP ports
Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
IXM function for fast deployment
Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
Supports NMS for easy and visualized to monitor and manage network remotely
Dual 12 ~ 48 VDC power input and 1 x relay output
Specifications
Product Type
Ethernet Switch
Input Voltage
12 V DC, 48 V DC
Manufacturer Part Number
EKI-7720G-4F-BE
Power Source
DC
Limited Warranty
5 Year
Layer Supported
2
Weight (Approximate)
2.87 lb
Features
IP30, Port Mirroring, Unicast Storm Control, Multicast Storm Control, Link Aggregation, DHCP Snooping, Remote Monitoring (RMON)
Form Factor
DIN Rail Mountable, Wall Mountable
Manufacturer
Advantech Co., Ltd
Product Model
EKI-7720G-4F
Product Name
16GE+4G SFP Port Gigabit Managed Redundant Industrial Switch
Network Technology
10/100/1000Base-T, 1000Base-X
Power Consumption
14.50 W
Brand Name
Advantech
Plug/Connector Type
Terminal Block
Expansion Slot Type
SFP (mini-GBIC)
Height
6"
Width
2.9"
Depth
4.1"
Manageable
Yes
Maximum Data Transfer Rate
128 MB/s
Ethernet Technology
Gigabit Ethernet
Network (RJ-45)
Yes
Number of SFP Slots
4
Stack Port
Yes
Media Type Supported
Twisted Pair, Optical Fiber
Total Number of Network Ports
16
Port/Expansion Slot Details
16 x Gigabit Ethernet Network, 4 x Gigabit Ethernet Expansion Slot
