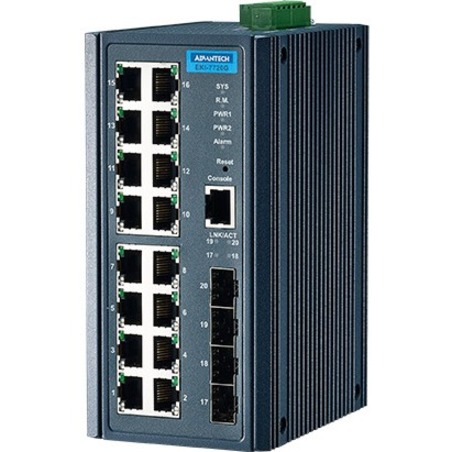

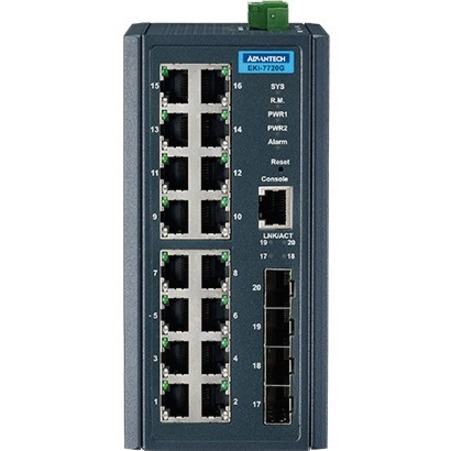

Advantech 16GE+4SFP Port Gigabit Managed Redundant Industrial Switch
Advantech

Advantech 16GE+4SFP Port Gigabit Managed Redundant Industrial Switch

16 Ports - Manageable - 2 Layer Supported - Modular - 4 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty

SKU
EKI-7720G-4FI-AE
Category
Switches & Bridges

MSRP$1,623.70

$1,288.26

Save 21%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-7720G-4FI-AE
Category
Switches & Bridges

Overview

EKI-7720G-4F/4FI supports 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advan-tech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7720G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7720G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7720G-4FI).

Highlights

  • 16 Gigabit Ethernet ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • -40 ~ 75°C wide-range operating temperature (EKI-7720G-4FI)
  • Dual 12~48 VDC power input and 1 relay output

Specifications

Product TypeEthernet Switch
Manufacturer Part NumberEKI-7720G-4FI-AE
Power SourcePower Supply
Limited Warranty5 Year
Layer Supported2
Form FactorDIN Rail Mountable, Wall Mountable
ManufacturerAdvantech Co., Ltd
Product ModelEKI-7720G-4FI
Product Name16GE+4SFP Port Gigabit Managed Redundant Industrial Switch
Network Technology10/100/1000Base-TX
Product SeriesEKI-7720G
Brand NameAdvantech
Expansion Slot TypeSFP (mini-GBIC)
Height6"
Width2.9"
Depth4.1"
ManageableYes
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
Number of SFP Slots4
ModularYes
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Network Ports16
Port/Expansion Slot Details16 x Gigabit Ethernet Network, 4 x Gigabit Ethernet Expansion Slot
Total Number of Expansion Slots4
Redundant Power Supply SupportedYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
