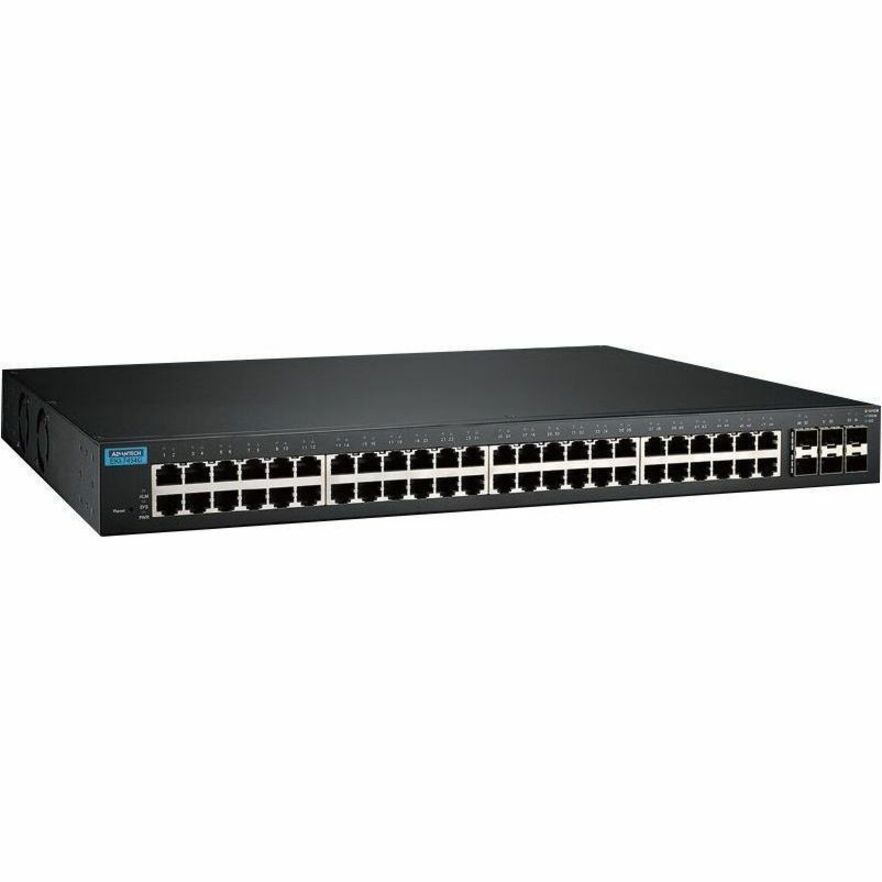

Advantech EKI-7454G-6X Ethernet Switch
Advantech

Advantech EKI-7454G-6X Ethernet Switch

48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X, 10GBase-X - 2 Layer Supported - 36 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable, Enclosure

SKU
EKI-7454G-6X-AE
Category
Switches & Bridges

MSRP$2,142.00

$1,960.18

Save 8%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-7454G-6X-AE
Category
Switches & Bridges

Overview

The EKI-7454G-6X is equipped with 48 Gigabit Ethernet ports plus 6 10G SFP+ ports. It is ideal for large-scale networks with server and surveillance applications, that involve high resolution videos and images, to achieve high performance and large-scale data transmission. Designed for rack-mount installation with 1U 19" design, integrates layer 2 switching software, delivering wire speed across all ports up to 216 Gbps for layer 2 and network nodes.

Highlights

  • 48 Gigabit Ethernet Ports and 6 10G SFP Ports
  • 0 to 60°C operating temperature range
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • IXM Function Enables Fast Deployment
  • Redundancy: Gigabit X-Ring Pro ((Ultra High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP

Specifications

Product TypeEthernet Switch
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberEKI-7454G-6X-AE
Power SourceAC
Layer Supported2
FeaturesBroadcast Storm Control, Remote Monitoring (RMON), Support Dual Image, Strict Priority Queuing (SPQ)
Form FactorRack-mountable, Enclosure
ManufacturerAdvantech Co., Ltd
Product ModelEKI-7454G-6X
Product NameEKI-7454G-6X Ethernet Switch
Network Technology10/100/1000Base-T, 1000Base-X, 10GBase-X
Power Consumption36 W
Brand NameAdvantech
Expansion Slot TypeSFP+
Height1.8"
Width17.4"
Depth10.6"
ManageableYes
Compatible Rack Unit1U
Maximum Data Transfer Rate1.25 GB/s
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of SFP+ Slots6
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Network Ports48
Port/Expansion Slot Details48 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port, 6 x 1/10 Gigabit Ethernet SFP+ Expansion Slot
Total Number of Expansion Slots6
Networking StandardsIEEE 802.1Q, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x
Product MaterialMetal
