Advantech 24GE+4GE Combo port Unmanaged Industrial Ethernet Switch
Advantech

Advantech 24GE+4GE Combo port Unmanaged Industrial Ethernet Switch

28 Ports - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-TX, 10/100/1000Base-T, 100Base-FX, 1000Base-LX/SX, 1000Base-LHX, 1000Base-XD, 1000Base-ZX, 1000Base-EZX - 2 Layer Supported - 20 W Power Consumption - Optical Fiber, Twisted Pair - 1U - Rack-mountable - 5 Year Limited Warranty

SKU
EKI-2428G-4CI-BE
Category
Switches & Bridges

MSRP$1,290.00

$1,030.66

Save 20%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-2428G-4CI-BE
Category
Switches & Bridges

Overview

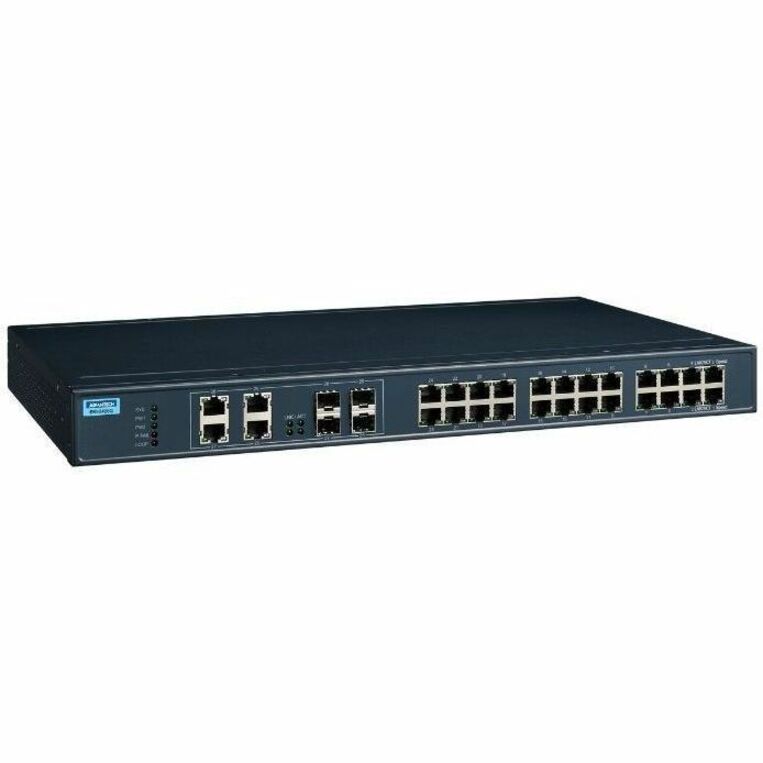

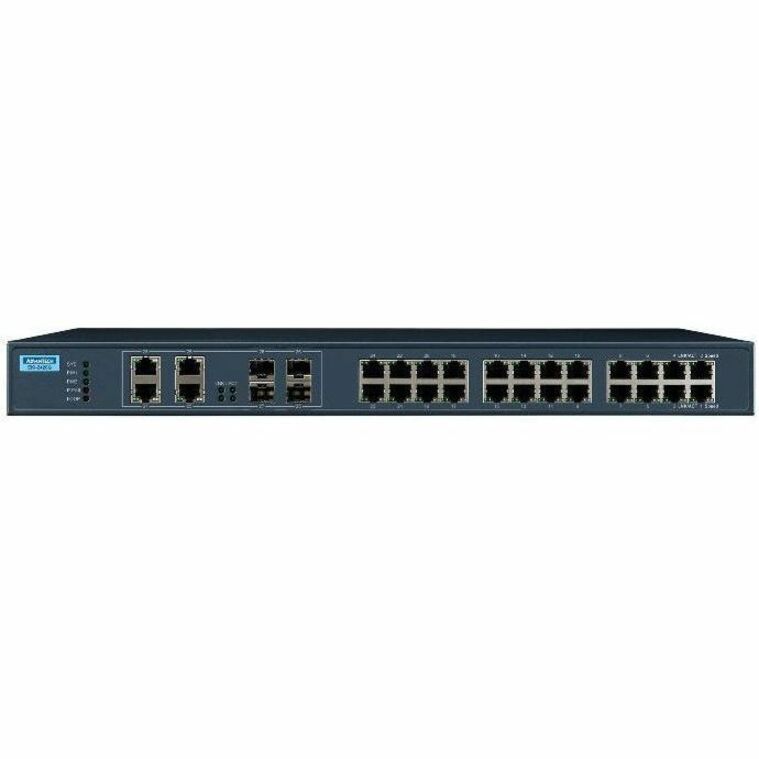

The EKI-2428G is an industrial-class unmanaged switch with 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It is highly reliable with -40 ~ 70 °C wide temperature operation.

Highlights

  • 24 x Gigabit ports + 4 x Gigabit copper/SFP combo ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Provides 8K MAC address
  • Supports 12-48VDC power input
  • -40 ~ 70°C wide-range operating temperature

Specifications

Product TypeEthernet Switch
Input Voltage12 V DC, 48 V DC
Manufacturer Part NumberEKI-2428G-4CI-BE
Power SourceDC
Limited Warranty5 Year
Layer Supported2
Weight (Approximate)8.38 lb
FeaturesIP30, Auto-negotiation, Reverse Polarity Protection, Overload Current Protection
Form FactorRack-mountable
ManufacturerAdvantech Co., Ltd
Product ModelEKI-2428G-4CI
Product Name24GE+4GE Combo port Unmanaged Industrial Ethernet Switch
Network Technology1000Base-X, 10/100/1000Base-TX, 10/100/1000Base-T, 100Base-FX, 1000Base-LX/SX, 1000Base-LHX, 1000Base-XD, 1000Base-ZX, 1000Base-EZX
Power Consumption20 W
Brand NameAdvantech
Plug/Connector TypeTerminal Block (4 Wire)
Height1.7"
Width17.2"
Depth10.2"
ManageableNo
Compatible Rack Unit1U
Maximum Data Transfer Rate128 MB/s
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Media Type SupportedOptical Fiber, Twisted Pair
Total Number of Network Ports28
Shared SFP SlotYes
PoE (RJ-45) PortNo
Port/Expansion Slot Details24 x Gigabit Ethernet Network, 4 x Gigabit Copper/SFP Combo Ports
Networking StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab
Product MaterialMetal
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
